Toyota IQ

2008-11 → 2016-03 · chassis KGJ10,NGJ10 · catalogue 102110 · Japan

Supported model Data version 2016-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

2 part groups · 3 illustrations

Illustrations

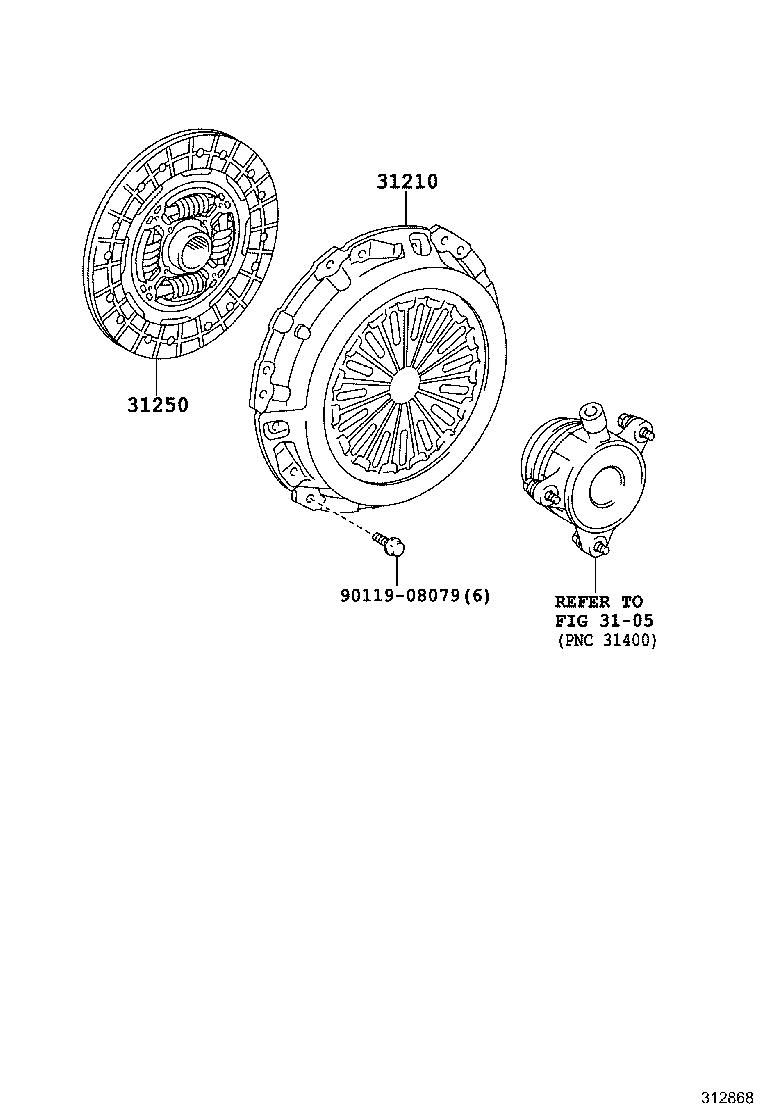

Figure 312138F 312138F 2009-11 → 2010-02 Figure 312138F 312138F 2010-11 → — Figure 312868 312868 2012-08 → 2012-09

Part groups

PNCDescription
31210 Cover Assy, Clutch
31250 Disc Assy, Clutch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
