Toyota IQ

2008-11 → 2016-03 · chassis KGJ10,NGJ10 · catalogue 102110 · Japan

Supported model Data version 2016-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

27 part groups · 2 illustrations

Illustrations

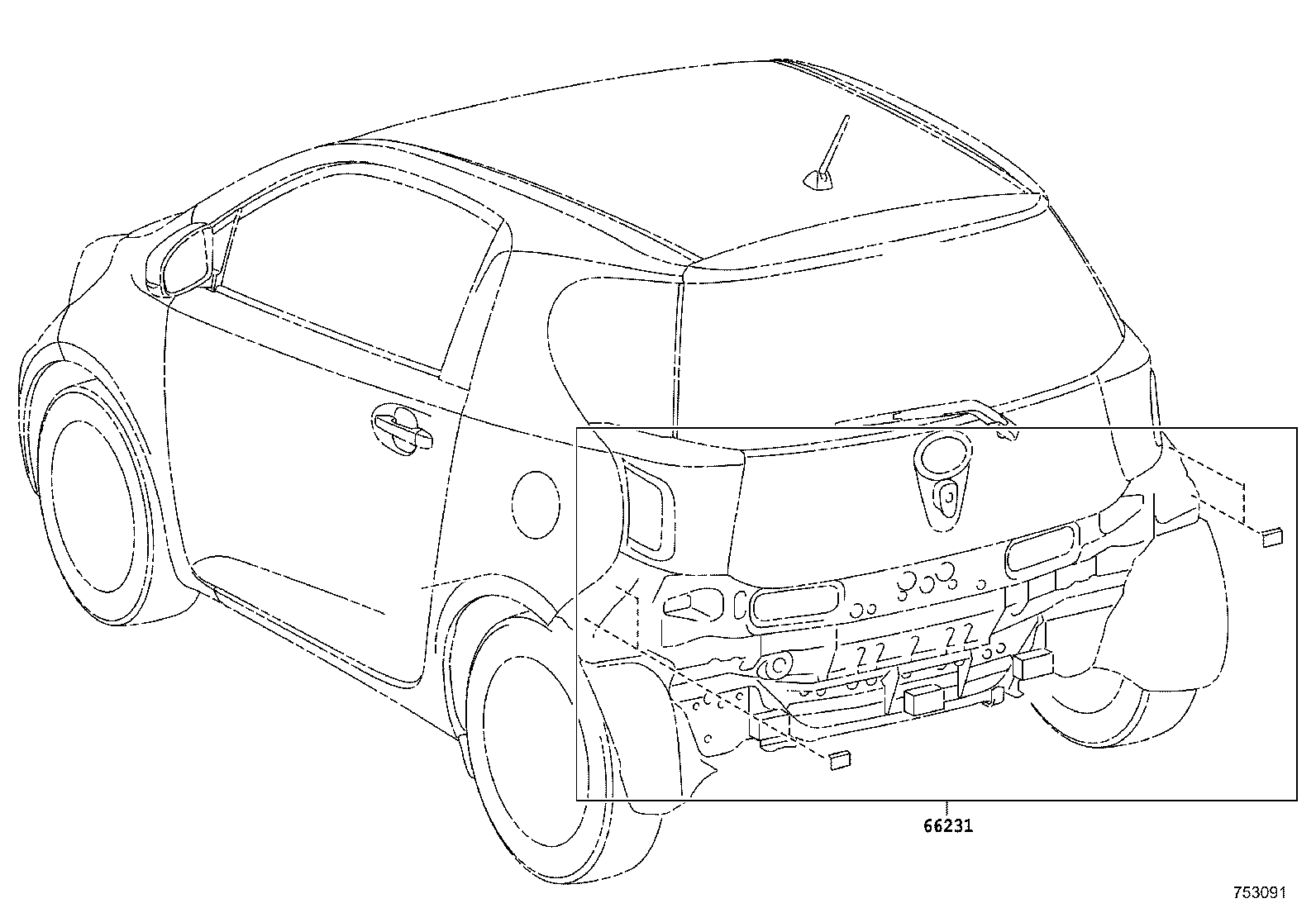

Figure 752342G 752342G 2008-11 → — Figure 753091 753091 2012-08 → 2012-09

Part groups

PNCDescription
60117 Cover Sub-assy, Front Pillar, Upr RH
60118 Cover Sub-assy, Front Pillar, Upr LH
65631A Plate, Rear Wheel House, Front RH
65632A Plate, Rear Wheel House, Front LH
66231 Protector
75395A Clip, Outside Moulding, NO.1
75395G Clip, Outside Moulding, NO.1
75489 Fin, Body Side Stabilizer Aero Dynamic
75551E Moulding, Roof Drip Side Finish, RH
75552E Moulding, Roof Drip Side Finish, LH
75561A Clip, Roof Drip Side Finish Moulding
75687 Protector, Quarter Moulding, Lower Rear RH
75688 Protector, Quarter Moulding, Lower Rear LH
75755C Moulding, Front Door Window Frame, Rear RH
75756C Moulding, Front Door Window Frame, Rear LH
75867A Clip, Rocker Panel Moulding
75873 Moulding, Quarter Panel Wheel Opening, RH
75873A Clip (FOR QUARTER OPENING MOULDING)
75874 Moulding, Quarter Panel Wheel Opening, LH
75921 Tape, Black Out, NO.1 RH
75922B Tape, Black Out, NO.1 LH
76901A Mudguard Sub-assy, Side, RH
76902A Mudguard Sub-assy, Side, LH
76921A Protector, Side Mudguard, NO.1
76922C Protector, Side Mudguard, NO.2
76924G Retainer, Rocker Panel Moulding
76924H Retainer, Side Mudguard, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
