Toyota IQ
2008-11 → 2016-03 · chassis KGJ10,NGJ10 · catalogue 102110 · Japan
Supported model
Data version 2016-09

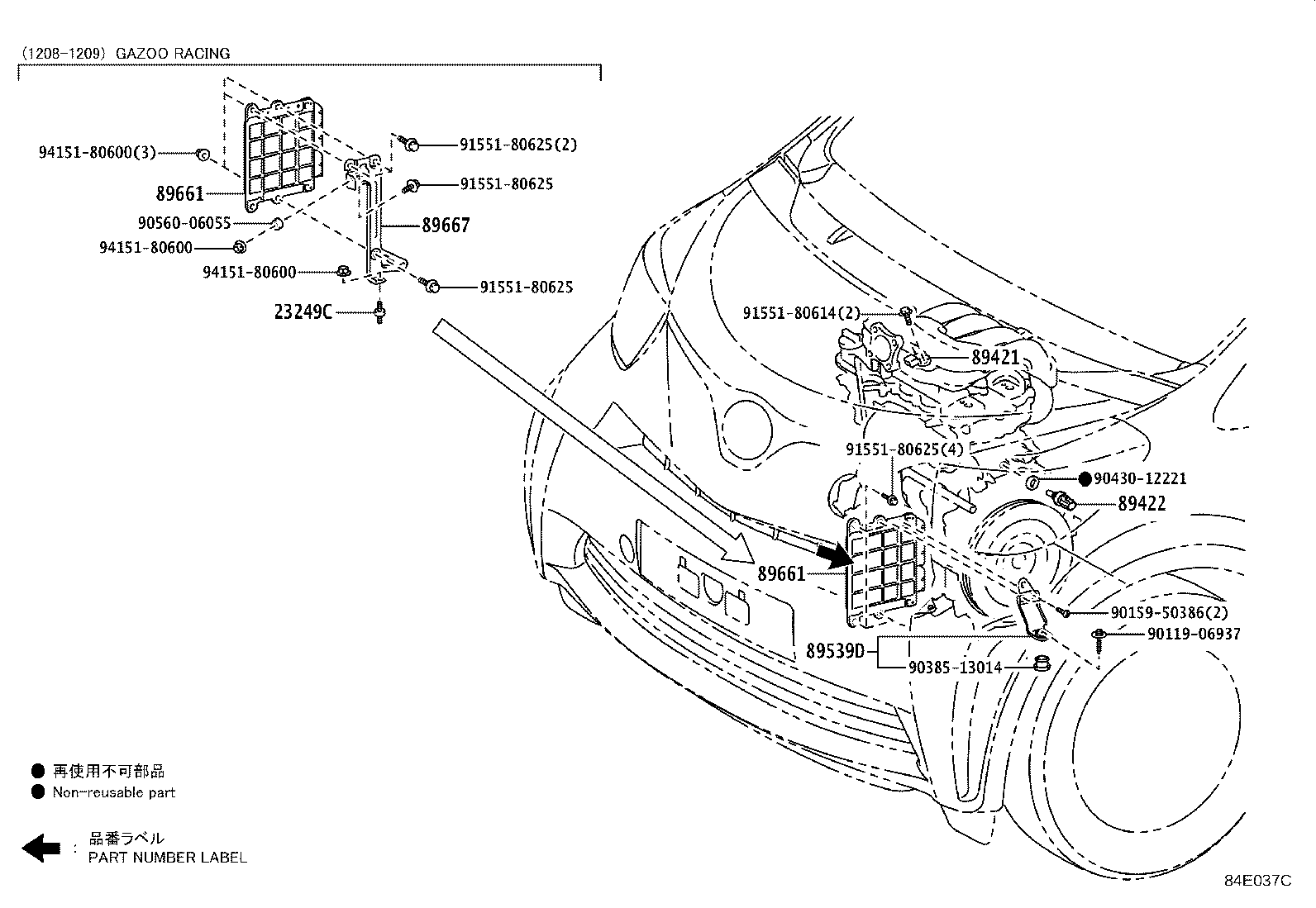

Electronic Fuel Injection System
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 23249C | Rubber, Cushion |
| 89421 | Sensor Assy, Vacuum (FOR E.F.I.) |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89539D | Bracket, Computer |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
