Toyota IQ
2008-11 → 2016-03 · chassis KGJ10,NGJ10 · catalogue 102110 · Japan
Supported model
Data version 2016-09

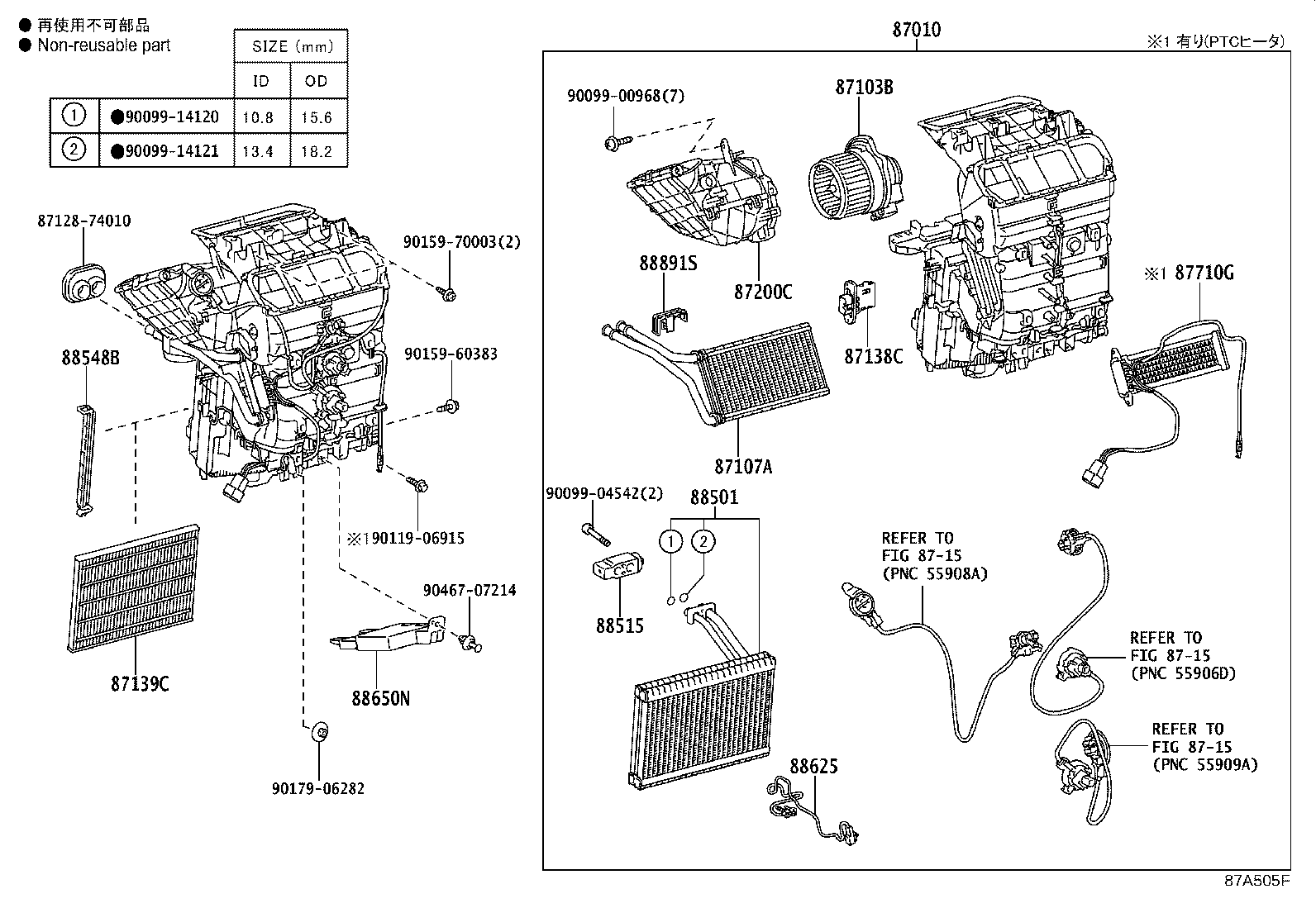

Heating & Air Conditioning - Cooler Unit
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82210K | Harness Assy, Air Conditioner |
| 87010 | Unit Assy, Air Conditioner |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87106D | Servo Sub-assy, Damper, NO.1 |
| 87106H | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87106J | Servo Sub-assy, Damper(FOR MODE) |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87138C | Resistor, Blower |
| 87139C | Filter, Clean Air |
| 87200C | Accessory Assy, Heater |
| 87710G | Quick Heater Assy |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88515 | Valve, Cooler Expansion |
| 88548B | Case, Air Filter |
| 88625 | Thermistor, Cooler, NO.1 |
| 88650N | Amplifier Assy, Air Conditioner |
| 88891S | Cover, Cooler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
