Toyota IQ

2008-11 → 2016-03 · chassis KGJ10,NGJ10 · catalogue 102110 · Japan

Supported model Data version 2016-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

4 part groups · 5 illustrations

Illustrations

Figure 87A552B

87A552B 2008-11 → —

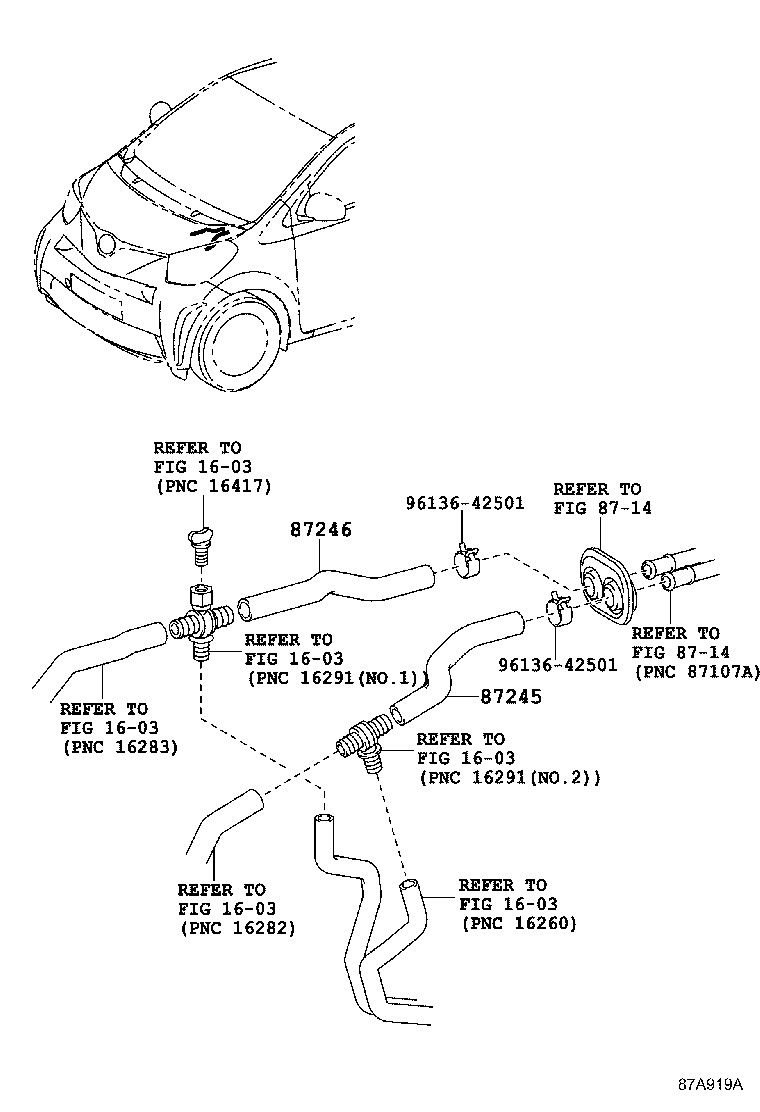

Figure 87A919A

87A919A 2009-08 → —

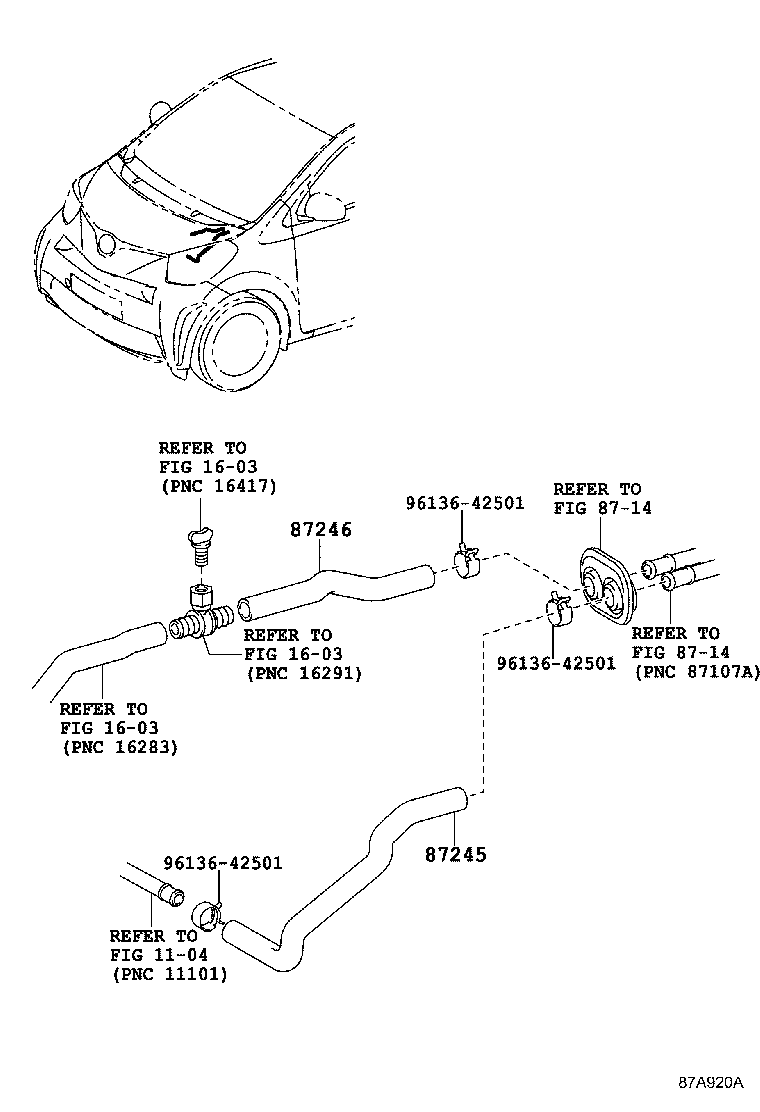

Figure 87A920A

87A920A 2009-11 → 2010-02

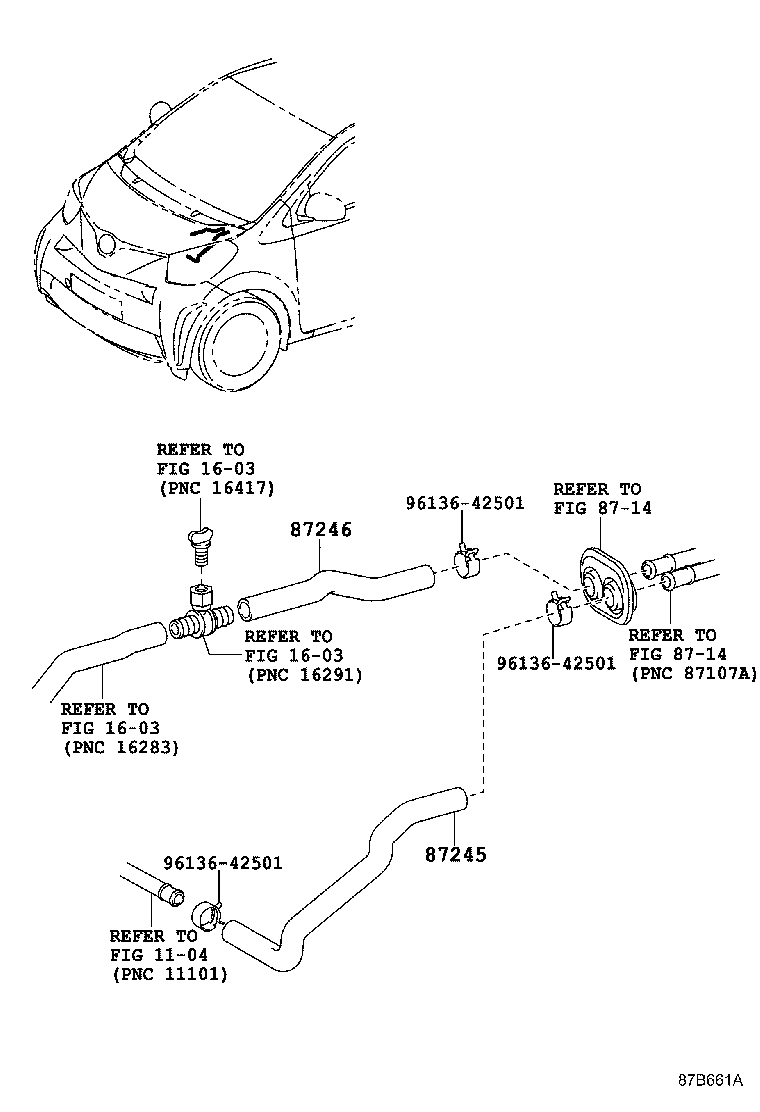

Figure 87B661A

87B661A 2010-11 → —

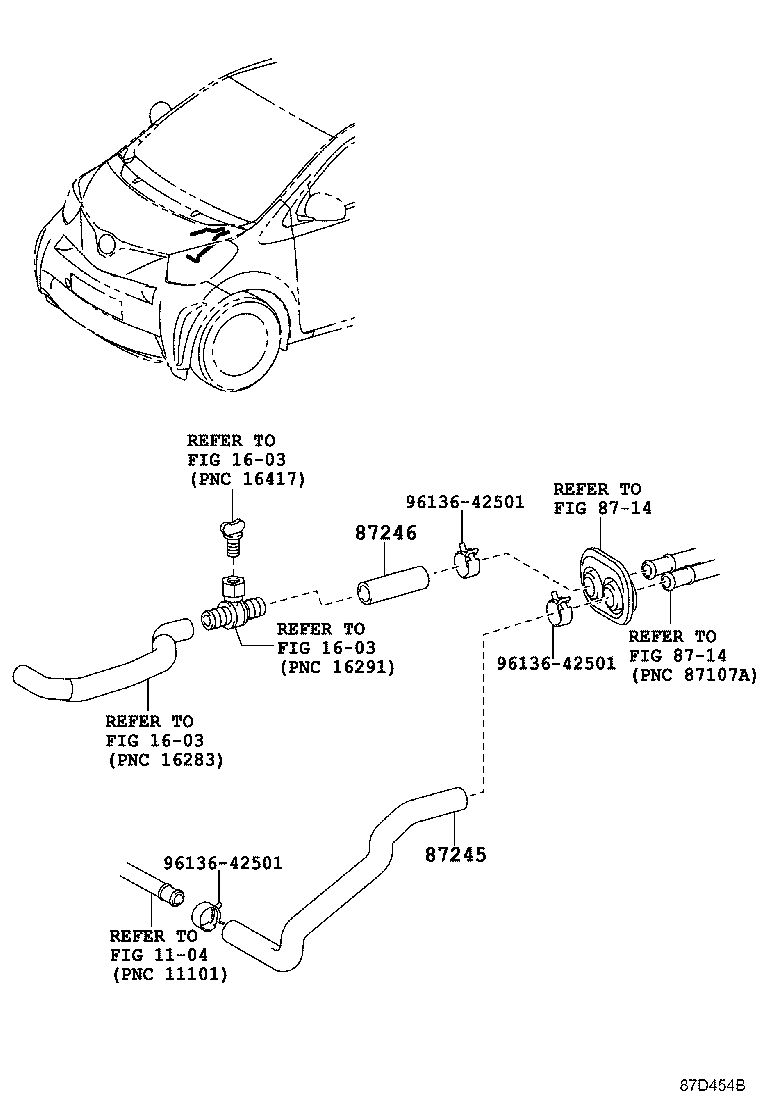

Figure 87D454B

87D454B 2012-08 → 2012-09

Part groups

PNC	Description
87209	Hose Sub-assy, Water
87209B	Hose Sub-assy, Water, B
87245	Hose, Heater Water, Inlet
87246	Hose, Heater Water, Outlet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
