Toyota IQ

2008-11 → 2016-03 · chassis KGJ10,NGJ10 · catalogue 102110 · Japan

Supported model Data version 2016-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

13 part groups · 2 illustrations

Illustrations

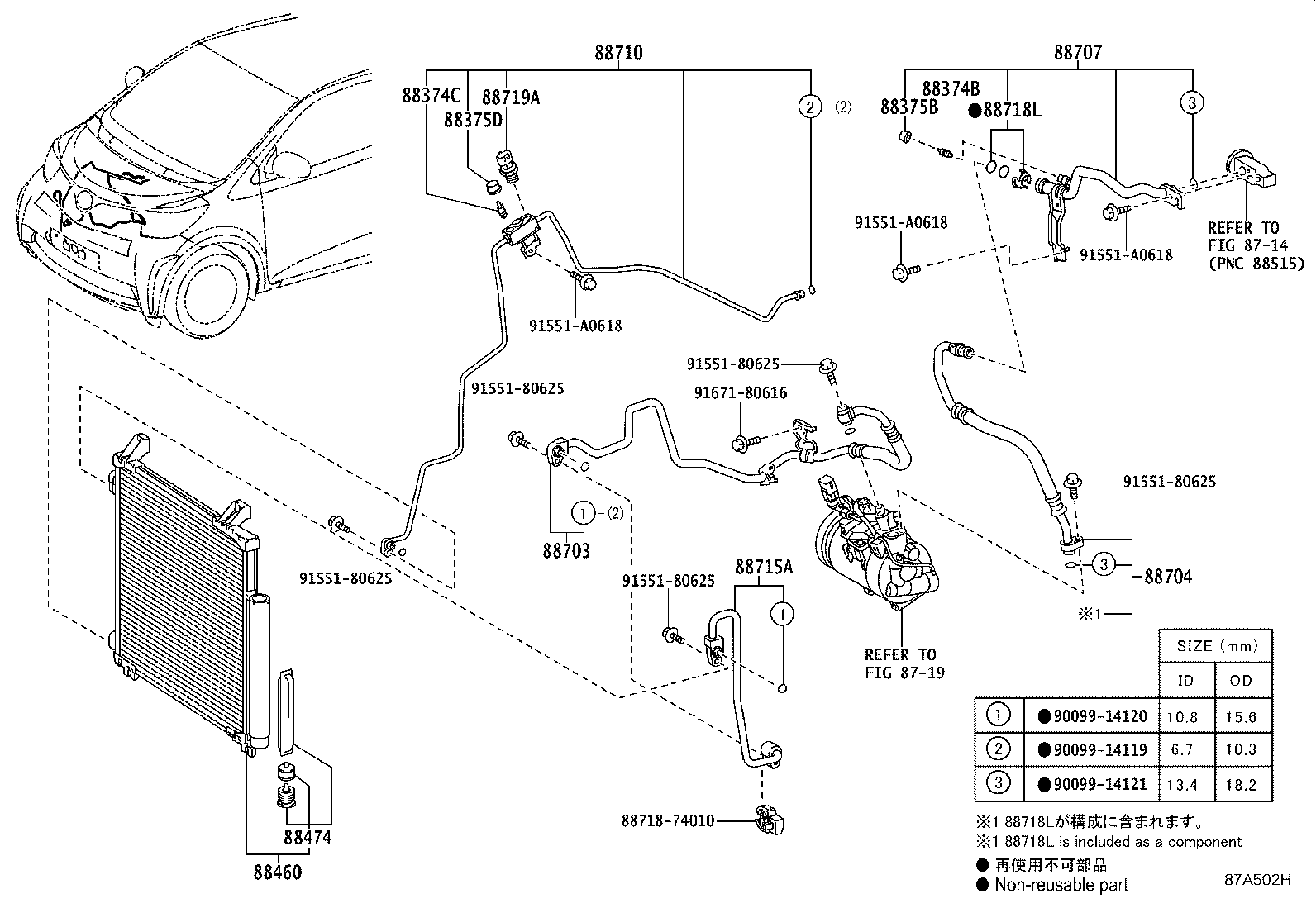

Figure 87A501G 87A501G 2008-11 → — Figure 87A502H 87A502H 2009-08 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88707 Pipe Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88715A Pipe, Cooler Refrigerant Discharge, A
88718L Clamp, Piping
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
