Heating & Air Conditioning - Compressor

7 part groups · 2 illustrations

Illustrations

Figure 87A481C

87A481C 2008-11 → —

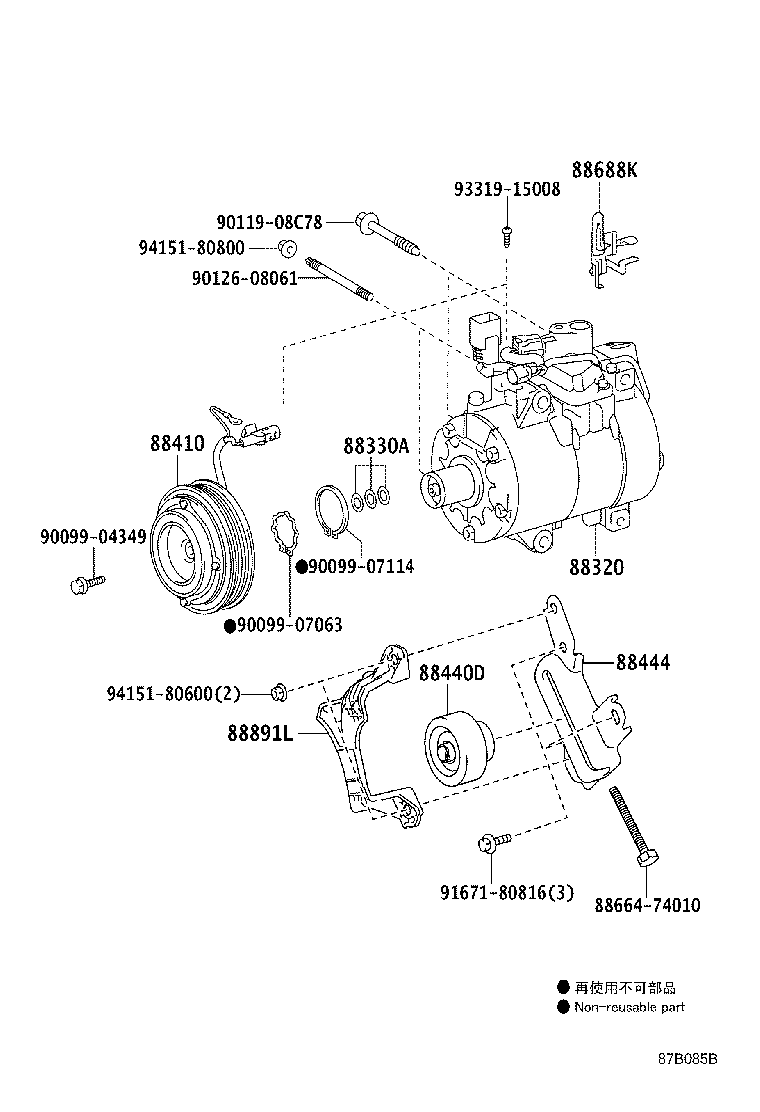

Figure 87B085B

87B085B 2009-08 → —

Part groups

PNC	Description
88320	Compressor Assy, Cooler
88330A	Washer (FOR MAGNET CLUTCH)
88410	Clutch Assy, Magnet
88440D	Pulley Assy, Idle NO.2
88444	Bracket, Idle Pulley
88688K	Bracket, Cooler Compressor
88891L	Cover, Cooler, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
