Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 3 illustrations

Illustrations

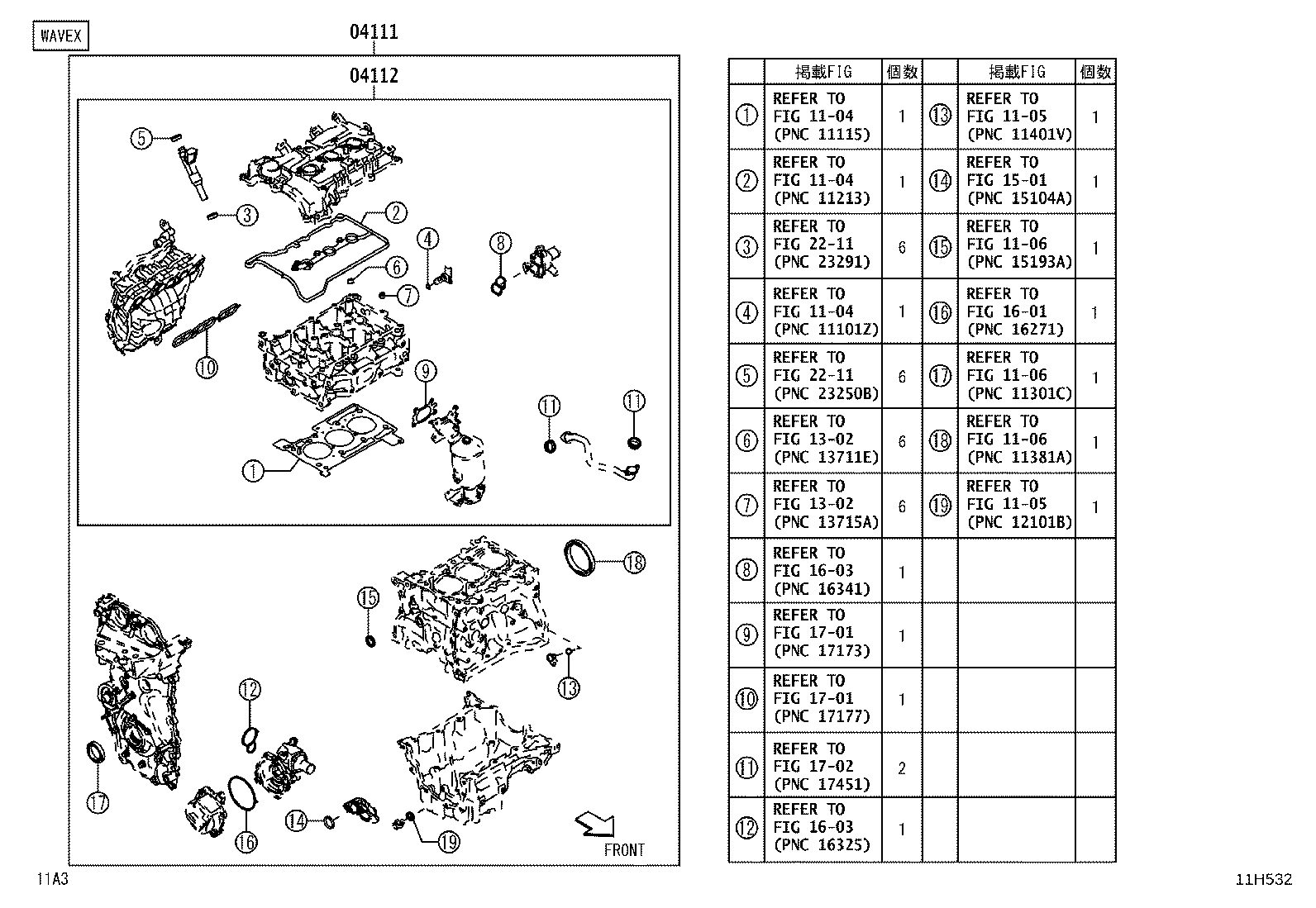

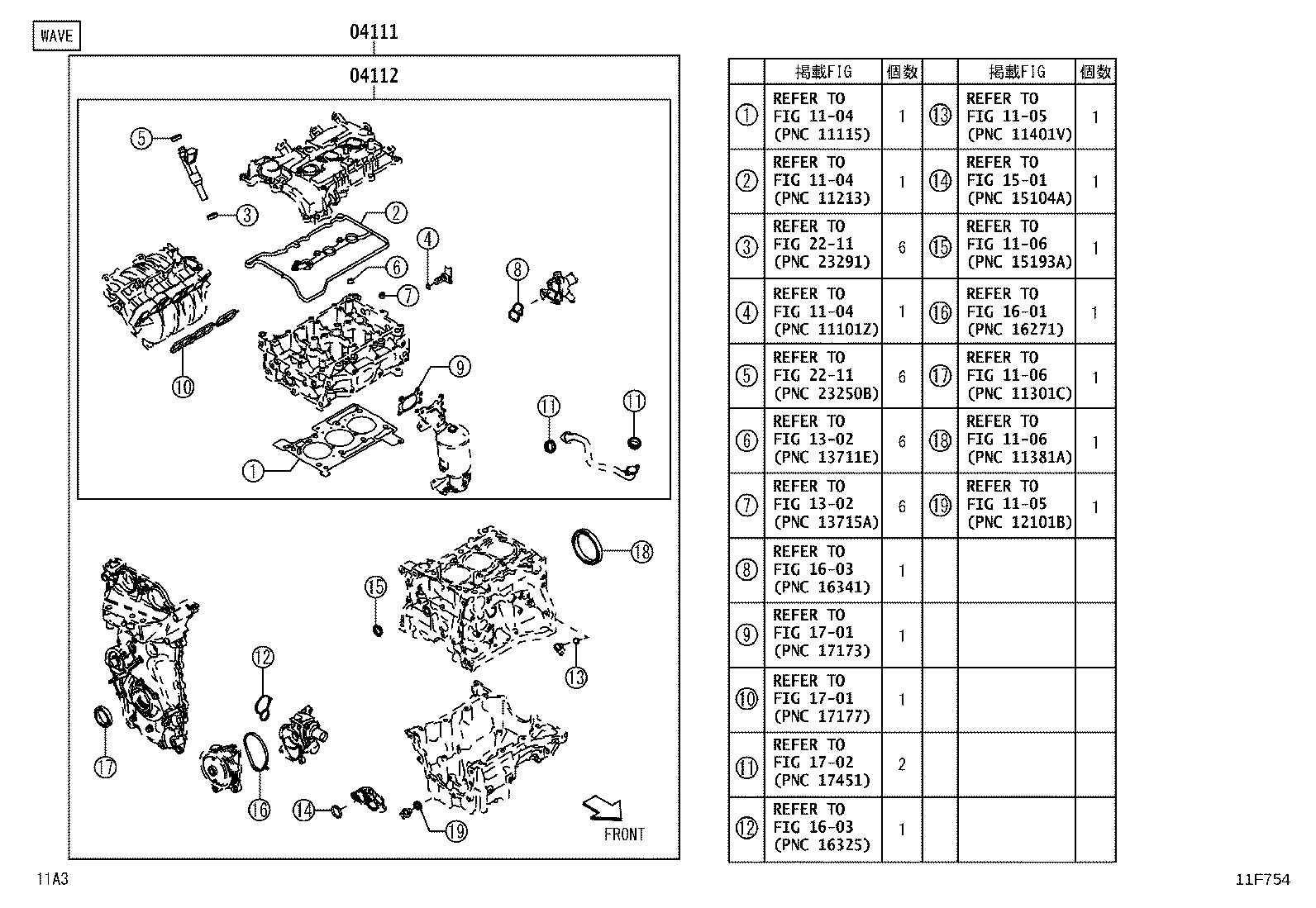

Figure 11E586B 11E586B 2019-10 → — Figure 11F754 11F754 2021-11 → — Figure 11H532 11H532 2021-11 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
