Toyota Raize
2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan
Supported model
Data version 2021-11
Camshaft & Valve

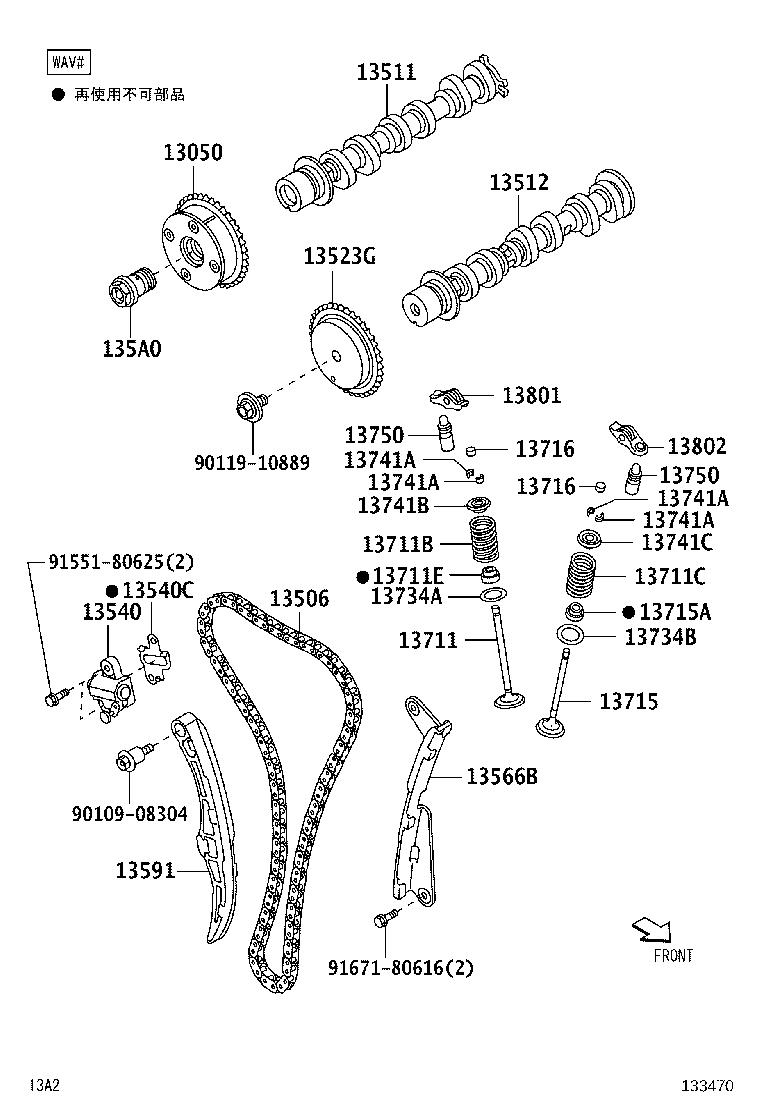

32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 13050 | Gear Assy, Camshaft Timing |
| 13506 | Chain Sub-assy |
| 13511 | Camshaft |
| 13512 | Camshaft, NO.2 |
| 13520 | Sprocket Assy, Camshaft Timing |
| 13523 | Gear OR Sprocket, Camshaft Timing |
| 13523F | Bolt(FOR CAMSHAFT TIMING GEAR) |
| 13523G | Sprocket, Camshaft Timing |
| 13540 | Tensioner Assy, Chain, NO.1 |
| 13540C | Gasket(FOR CHAIN TENSIONER) |
| 13566B | Guide, Timing Chain |
| 13576 | Bolt, Camshaft Timing Gear |
| 13591 | Arm, Timing Chain Tension |
| 135A0 | Bolt Assy, Camshaft Timing Gear, Center(FOR INTAKE) |
| 13711 | Valve, Intake |
| 13711B | Spring, Compression(FOR INNER) |
| 13711C | Spring, Compression(FOR OUTER) |
| 13711E | Seal, Intake Valve Stem Oil |
| 13715 | Valve, Exhaust |
| 13715A | Seal, Exhaust Valve Stem Oil |
| 13716 | Cap, Valve Stem |
| 13734 | Seat, Valve Spring |
| 13734A | Seat, Intake Valve Spring |
| 13734B | Seat, Exhaust Valve Spring |
| 13741 | Retainer, Valve Spring |
| 13741A | Lock, Valve Spring Retainer |
| 13741B | Retainer, Intake Valve Spring |
| 13741C | Retainer, Exhaust Valve Spring |
| 13750 | Adjuster Assy, Valve Lash |
| 13751 | Lifter, Valve |
| 13801 | Arm Sub-assy, Valve Rocker, NO.1 |
| 13802 | Arm Sub-assy, Valve Rocker, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
