Toyota Raize
2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan
Supported model
Data version 2021-11

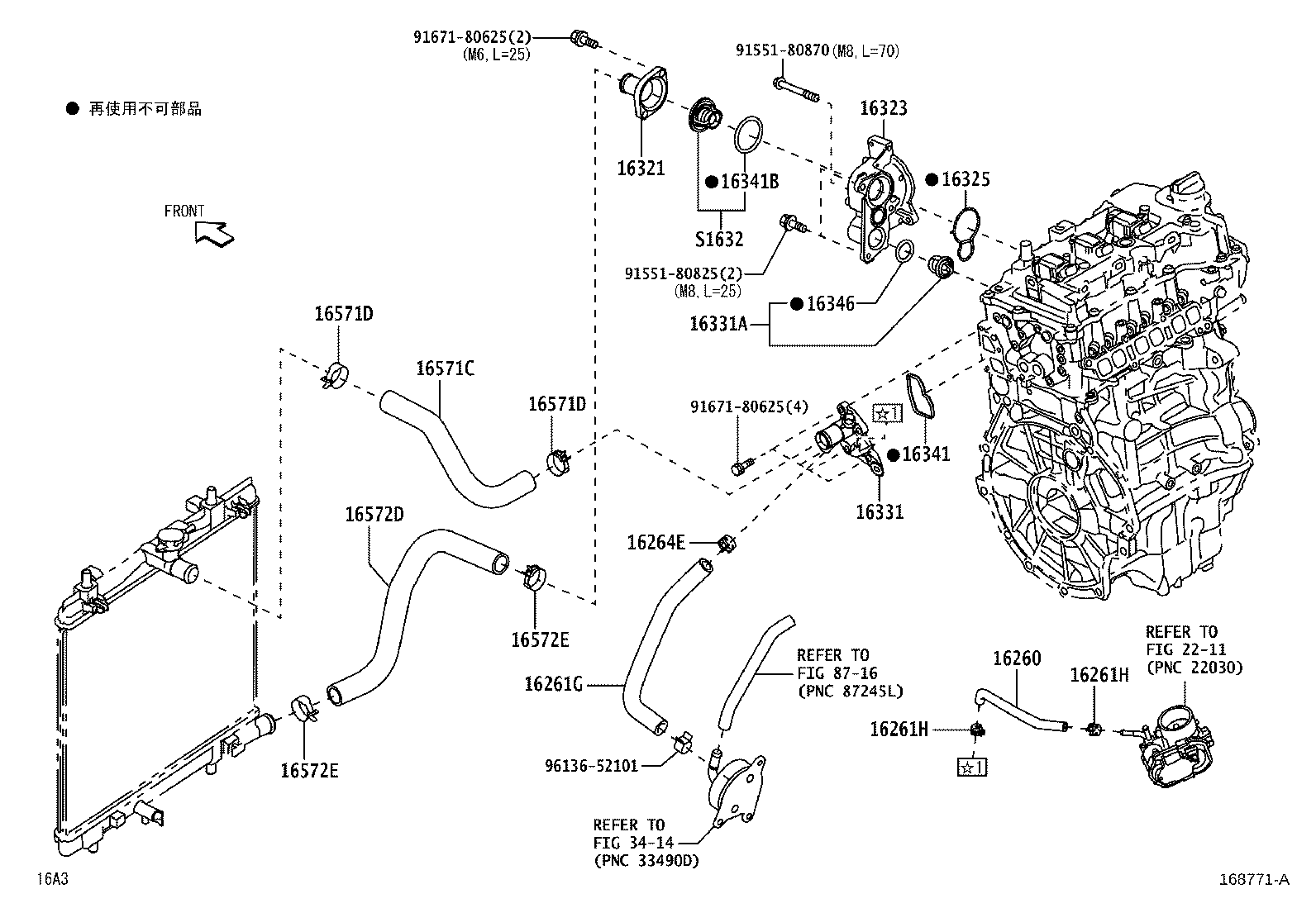

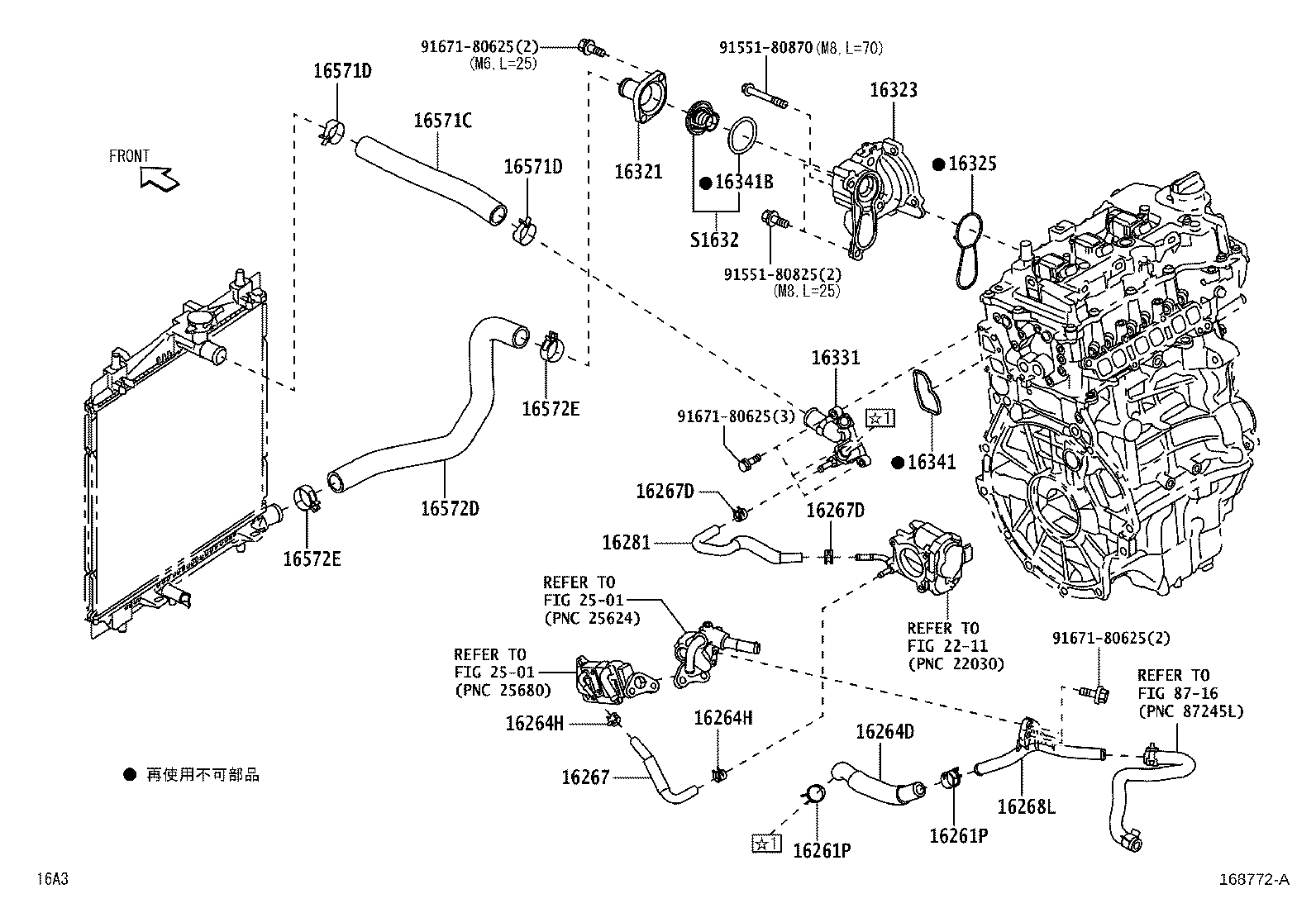

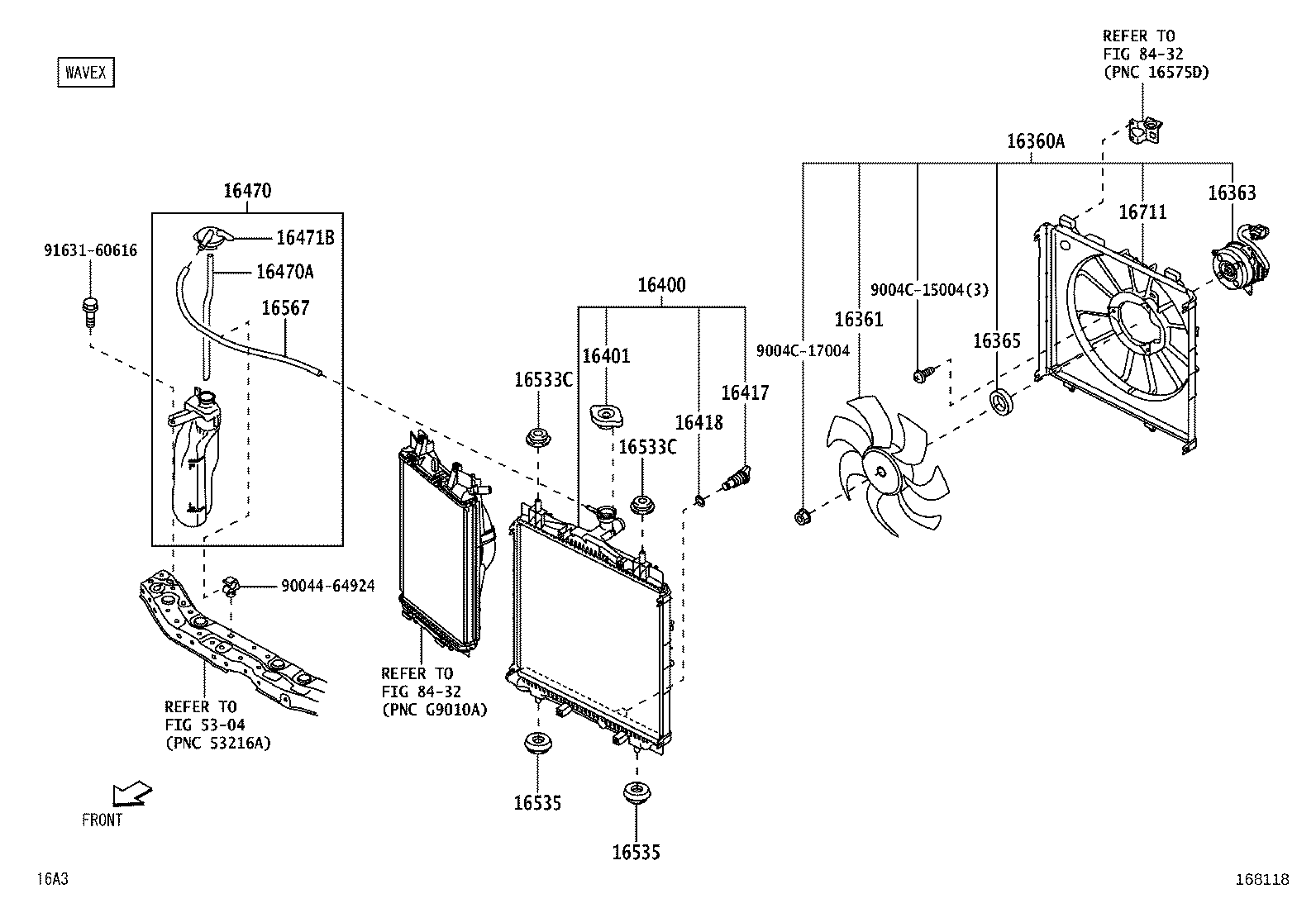

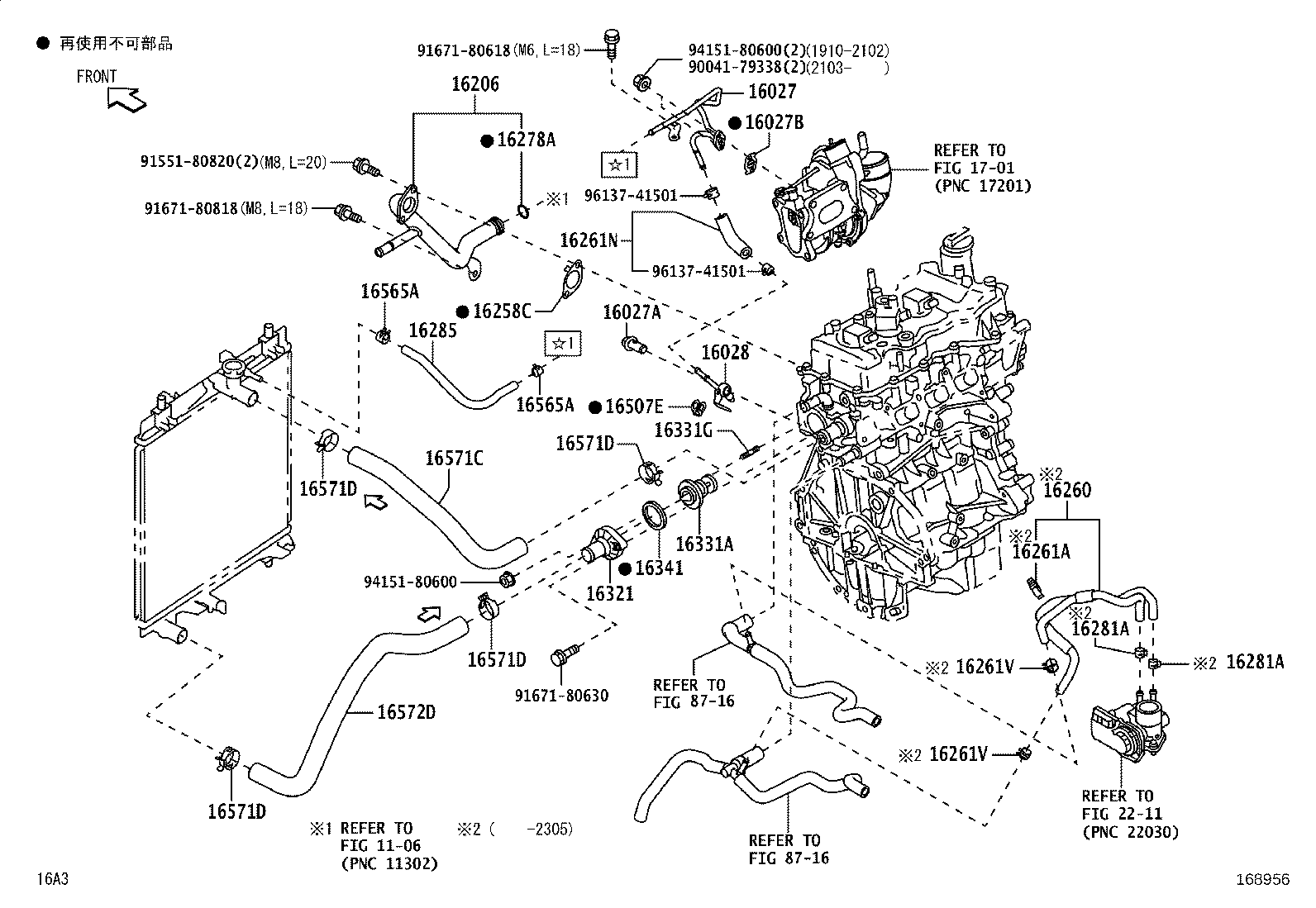

Radiator & Water Outlet
54 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 16027 | Pipe Sub-assy, Turbo Water, NO.1 |
| 16027A | Bolt, Union(FOR TURBO WATER PIPE) |
| 16027B | Gasket(FOR TURBO WATER PIPE) |
| 16028 | Pipe Sub-assy, Turbo Water, NO.2 |
| 16206 | Pipe Sub-assy, Water By-pass |
| 16258C | Gasket(FOR WATER BY-PASS PIPE) |
| 16260 | Hose Assy, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16261N | Hose, Water By-pass, NO.2 |
| 16261P | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16261V | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16264D | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264H | Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267D | Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16268L | Pipe, Water By-pass |
| 16278A | Gasket, Water By-pass |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16285 | Hose, Turbo Water, NO.2 |
| 16321 | Inlet, Water |
| 16323 | Housing, Water Inlet |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16331G | Bolt, Stud(FOR WATER INLET) |
| 16341 | Gasket, Water Outlet |
| 16341B | Gasket, Water Inlet |
| 16346 | Gasket, Thermostat |
| 16360A | Fan Assy, W/Motor |
| 16361 | Fan |
| 16363 | Motor, Cooling Fan |
| 16365 | Spacer, Fan |
| 16400 | Radiator Assy |
| 16401 | Cap Sub-assy, Radiator |
| 16417 | Cock |
| 16418 | Packing |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16471B | Cap, Reserve Tank |
| 16507E | Gasket |
| 16533C | Grommet(FOR RADIATOR SUPPORT) |
| 16535 | Support, Radiator, Lower |
| 16565A | Clip |
| 16567 | Hose(FOR RADIATOR RESERVE TANK) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16711 | Shroud, Fan |
| S1632 | Thermostat Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
