Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

7 part groups · 3 illustrations

Illustrations

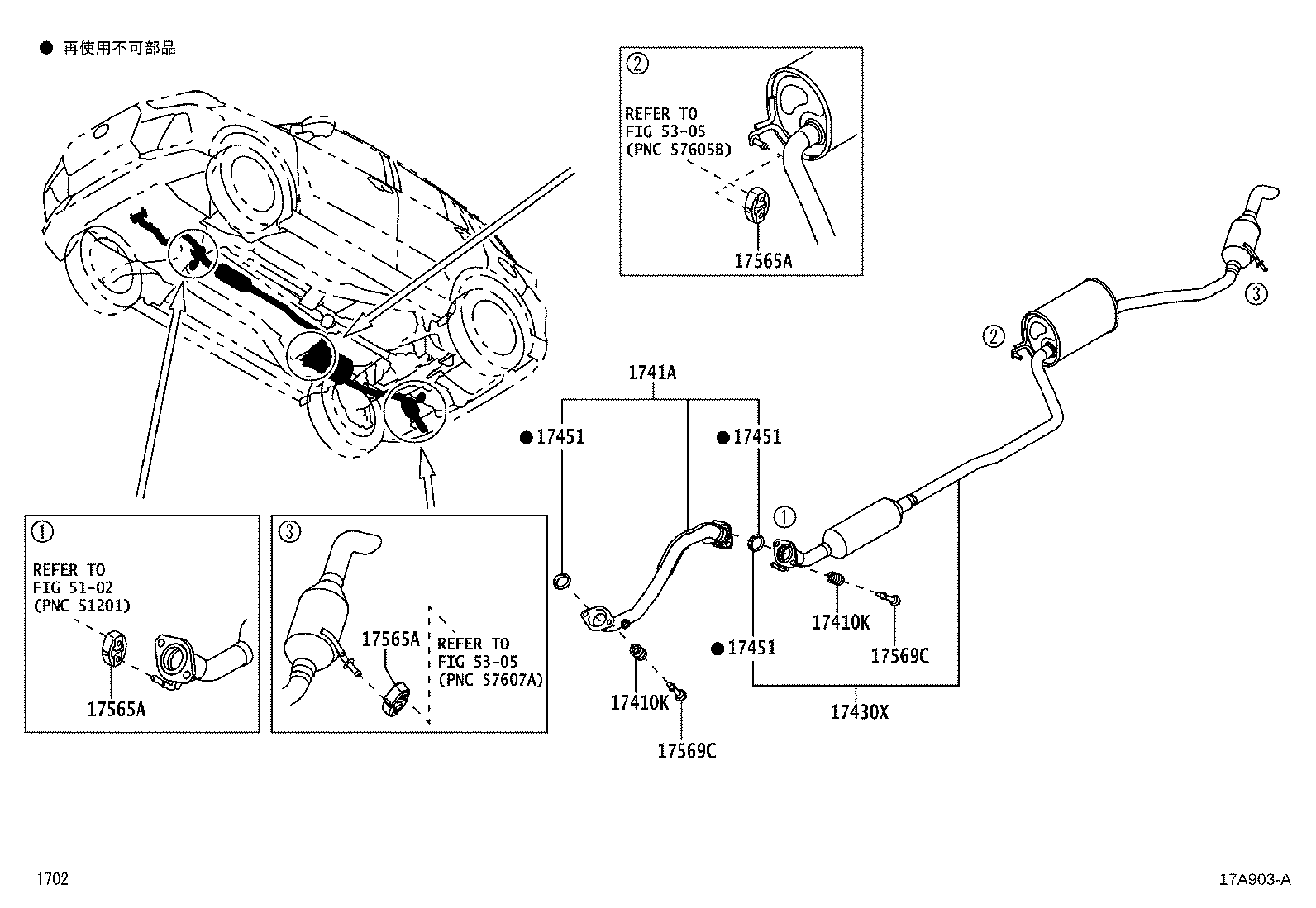

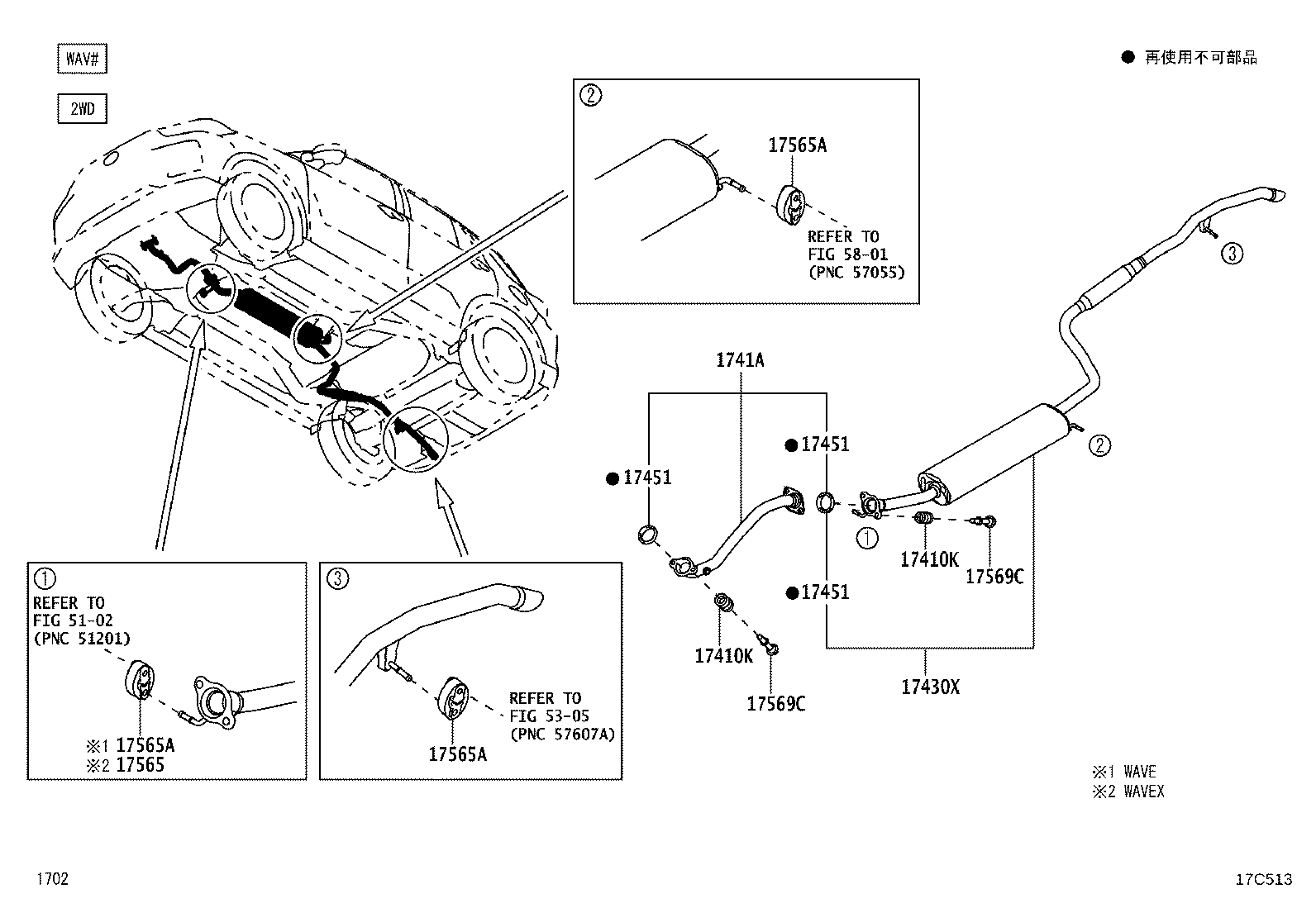

Figure 17A902A 17A902A 2019-10 → — Figure 17A903A 17A903A 2019-10 → — Figure 17C513 17C513 2021-11 → —

Part groups

PNCDescription
17410K Spring, Exhaust Pipe
1741A Pipe Set, Exhaust
17430X Pipe Set, Exhaust Tail
17451 Gasket, Exhaust Pipe
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17569C Bolt, Exhaust Pipe Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
