Toyota Raize
2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan
Supported model
Data version 2021-11

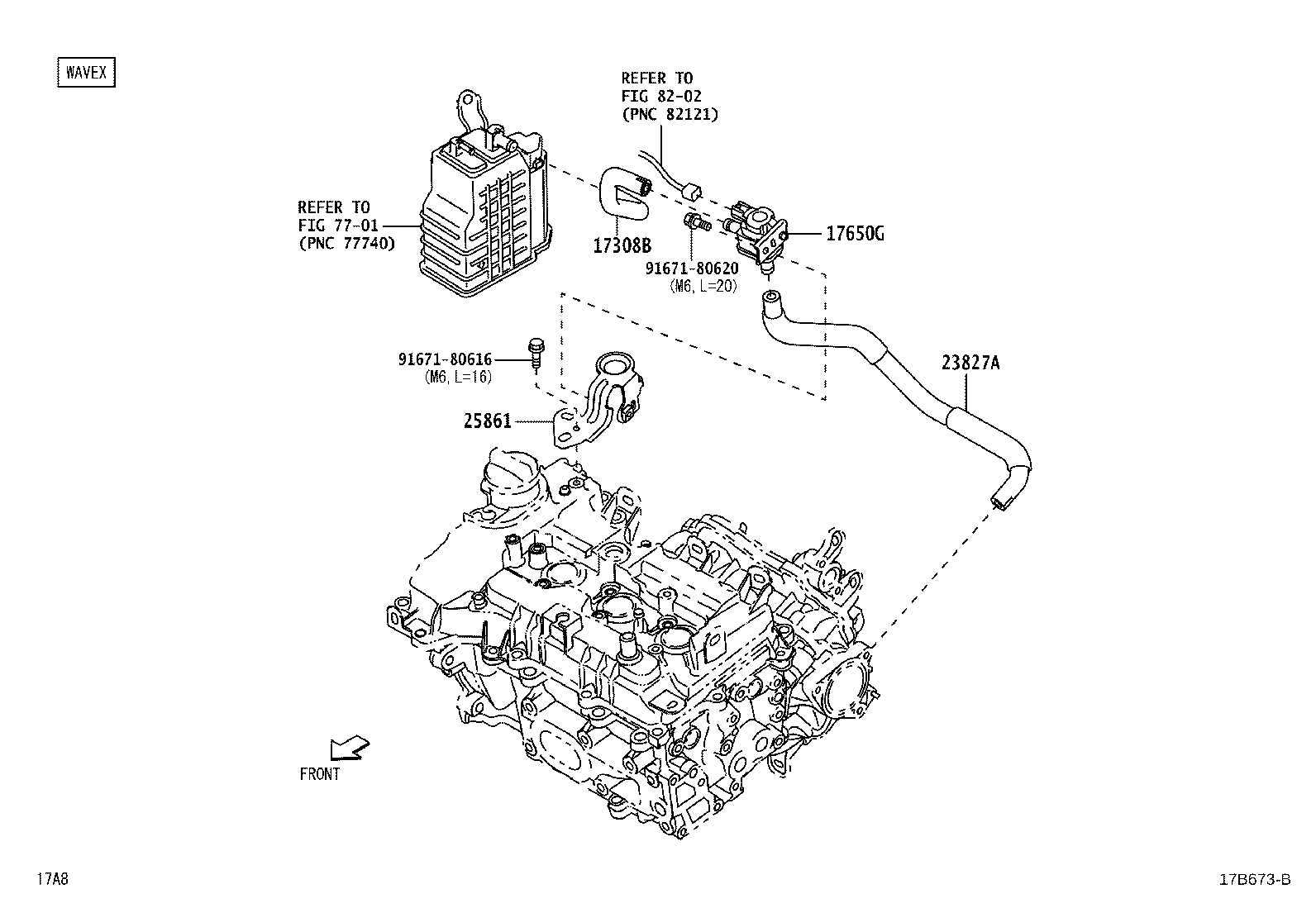

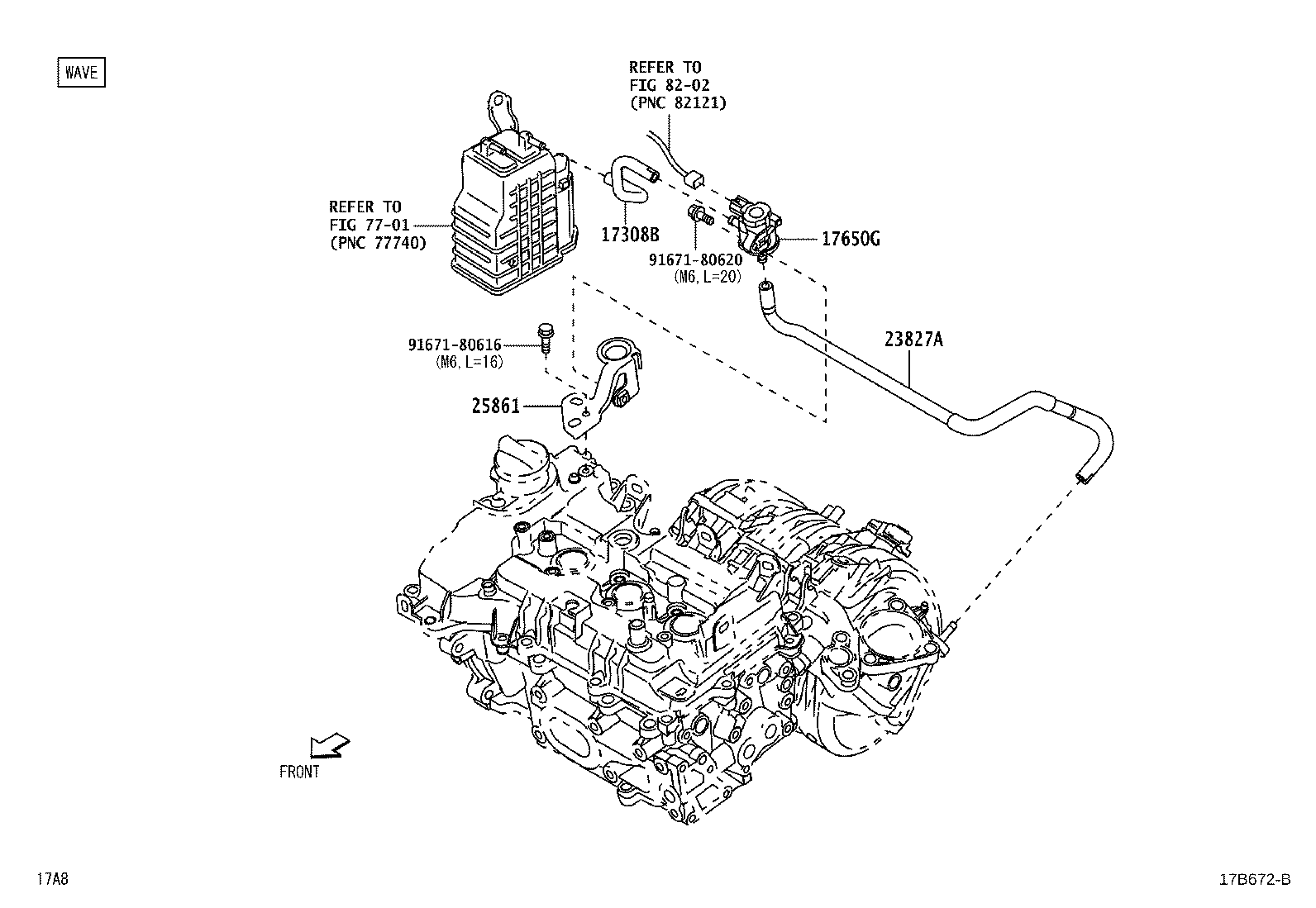

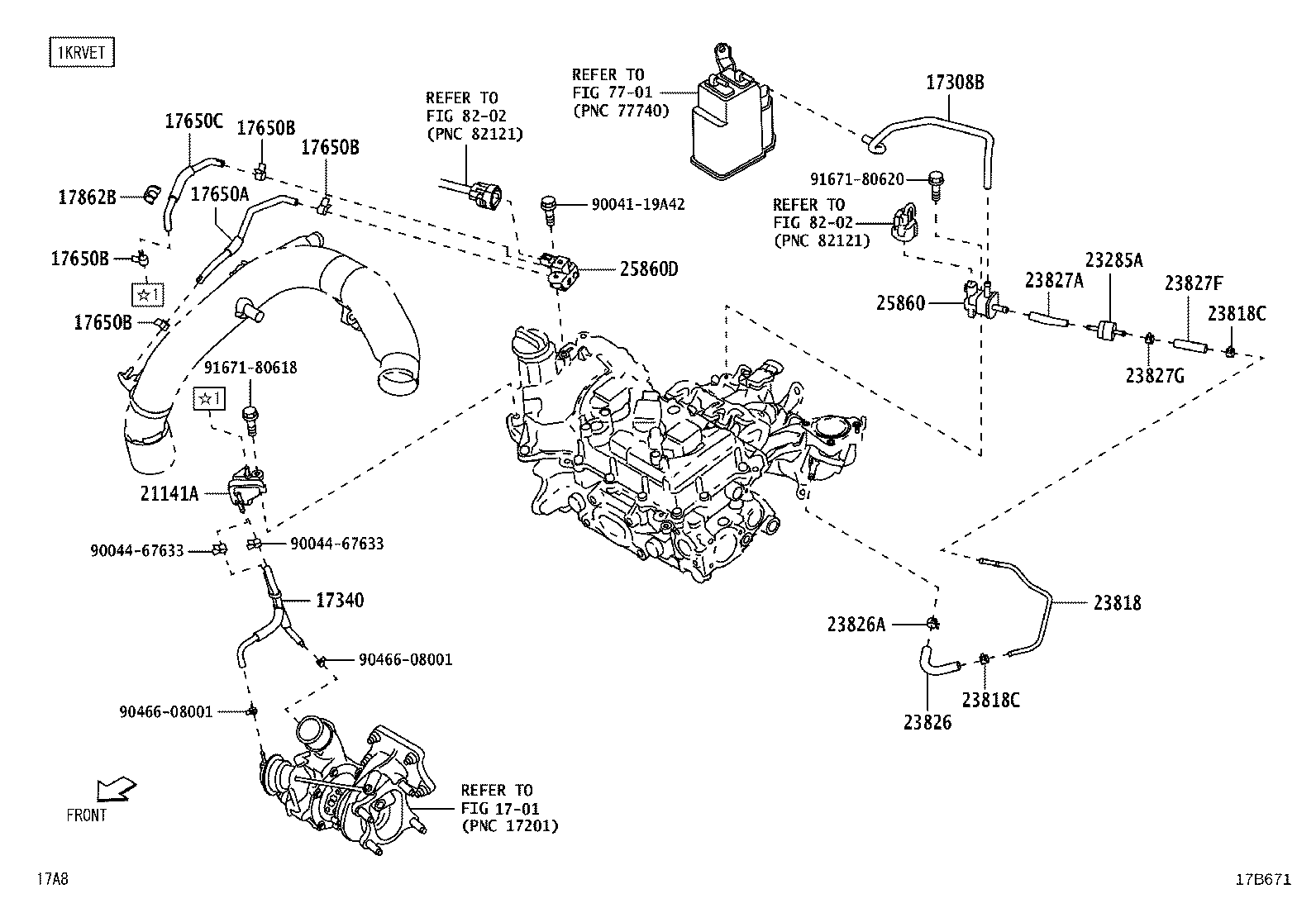

Vacuum Piping
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17308B | Hose Sub-assy, Vacuum |
| 17340 | Hose Assy, Vacuum Switching Valve |
| 17650A | Hose(FOR VACUUM SWITCHING VALVE) |
| 17650B | Clip(FOR VACUUM SWITCHING VALVE HOSE) |
| 17650C | Hose(FOR VACUUM SWITCHING VALVE TO MANIFOLD) |
| 17650G | Valve, Duty Vacuum Switching |
| 17862B | Clamp, Hose |
| 21141A | Chamber, Suction |
| 23285A | Valve, Check, NO.1 |
| 23818 | Pipe, Fuel Vapor Feed |
| 23818C | Clip(FOR FUEL VAPOR FEED HOSE) |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23827E | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23827F | Hose, Fuel Vapor Feed, NO.3 |
| 23827G | Clip(FOR FUEL VAPOR FEED HOSE, NO.3) |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860D | Valve Assy, Vacuum Switching, NO.2 |
| 25861 | Bracket, Vacuum Switching Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
