Toyota Raize
2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan
Supported model
Data version 2021-11

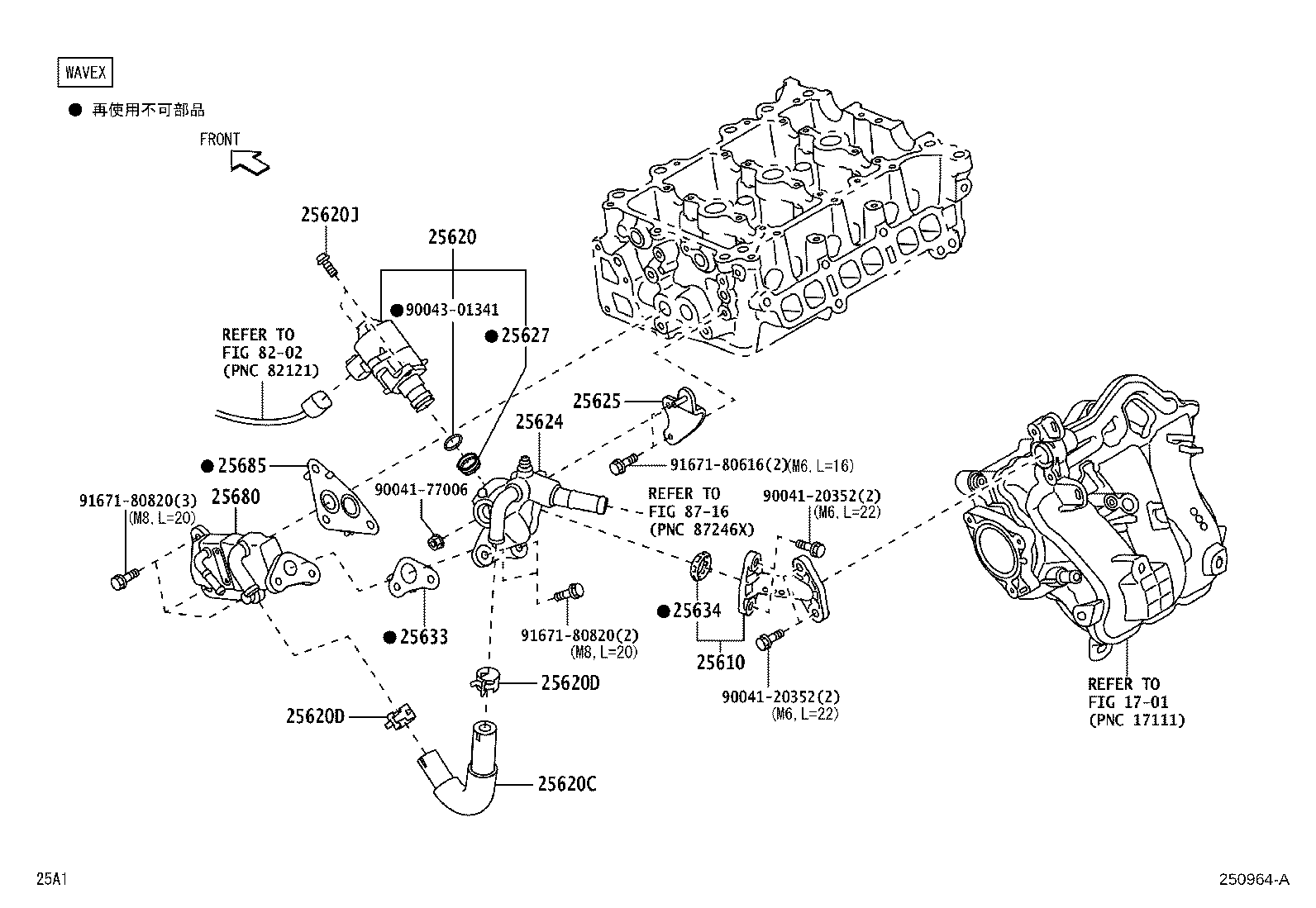

Exhaust Gas Recirculation System
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 25610 | Pipe Assy, Egr |
| 25620 | Valve Assy, Egr |
| 25620C | Hose, Water By-pass, NO.1 |
| 25620D | Clip(FOR WATER BY-PASS HOSE, NO.1) |
| 25620E | Hose, Water By-pass NO.2 |
| 25620F | Clip(FOR WATER BY-PASS HOSE, NO.2) |
| 25620J | Bolt(FOR EGR VALVE) |
| 25624 | Adapter, Egr Valve |
| 25625 | Bracket, Egr Valve |
| 25627 | Gasket, Egr Valve |
| 25633 | Gasket, Egr Valve |
| 25634 | Gasket, Egr Pipe |
| 25680 | Cooler Assy, Egr |
| 25685 | Gasket, Egr Cooler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
