Toyota Raize
2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan
Supported model
Data version 2021-11

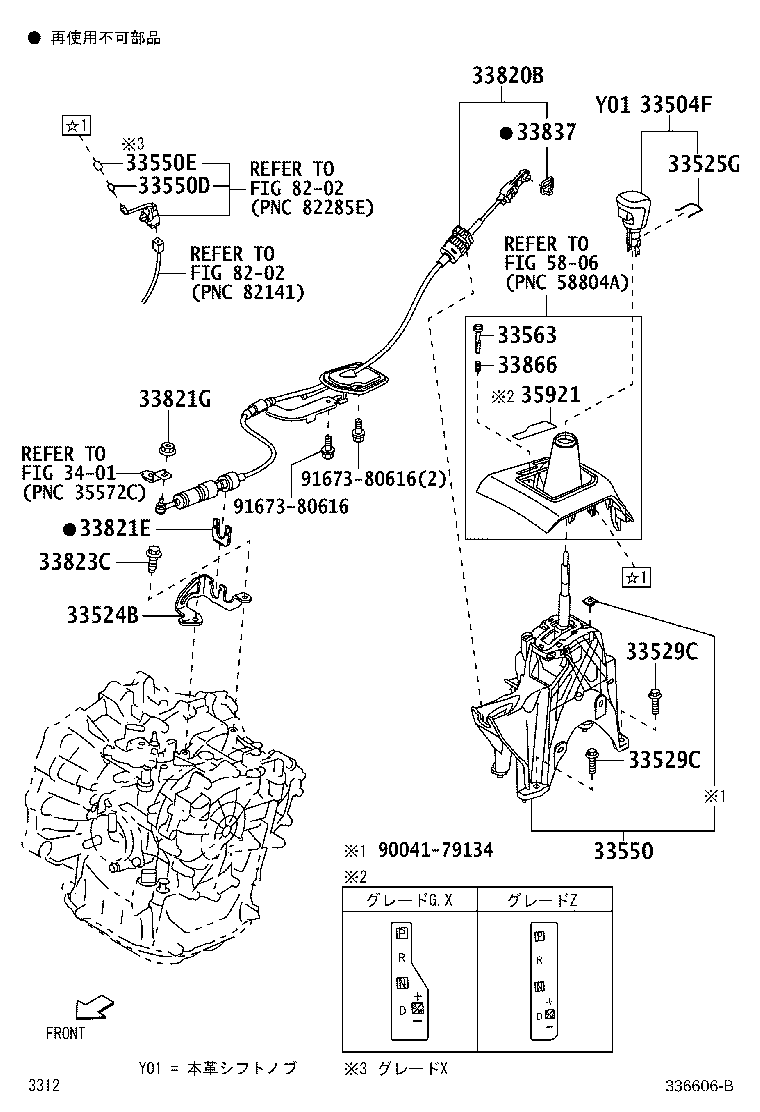

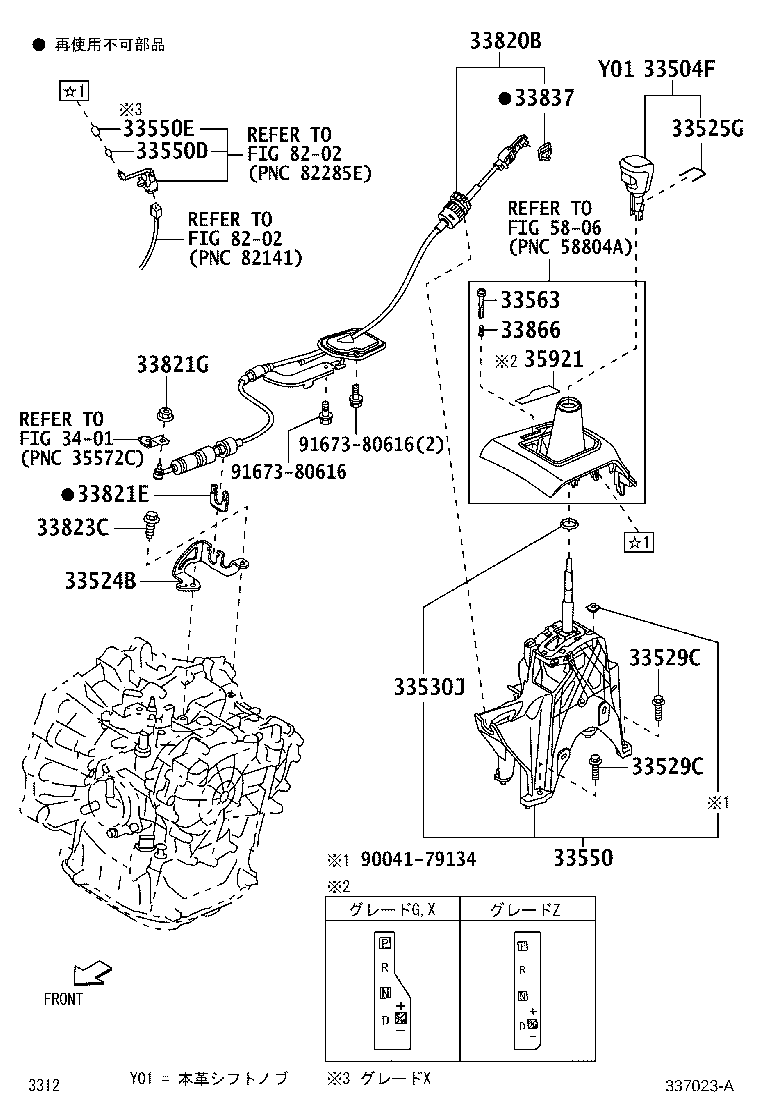

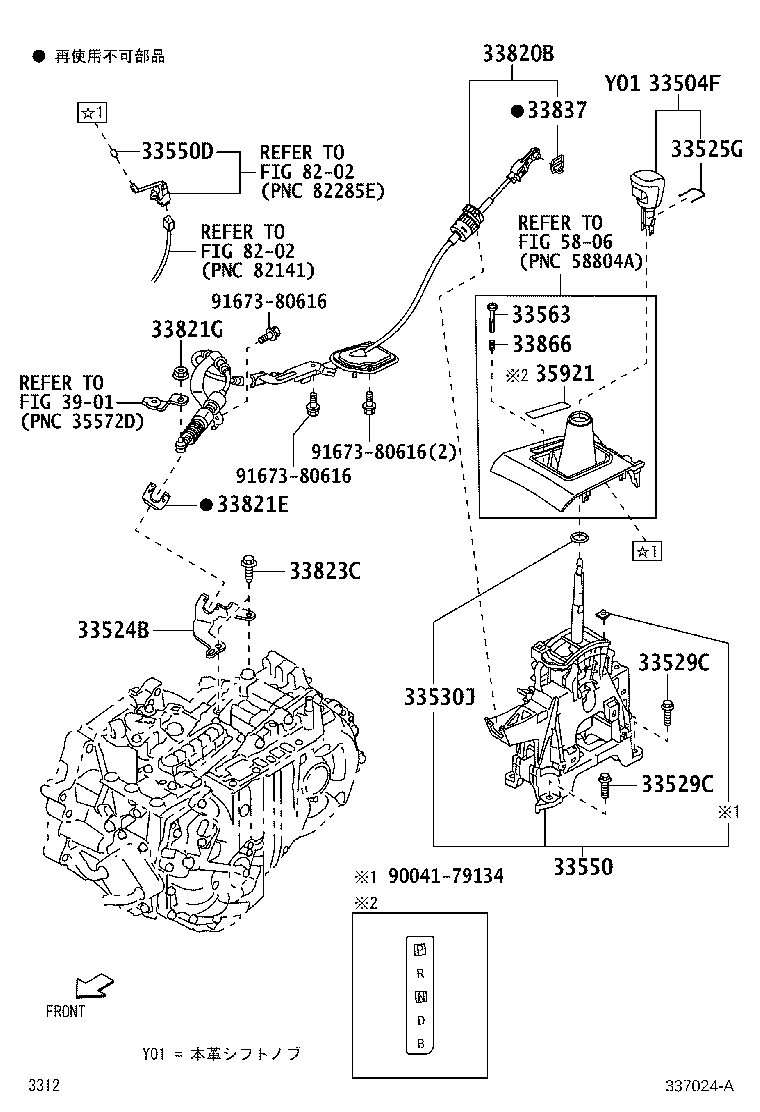

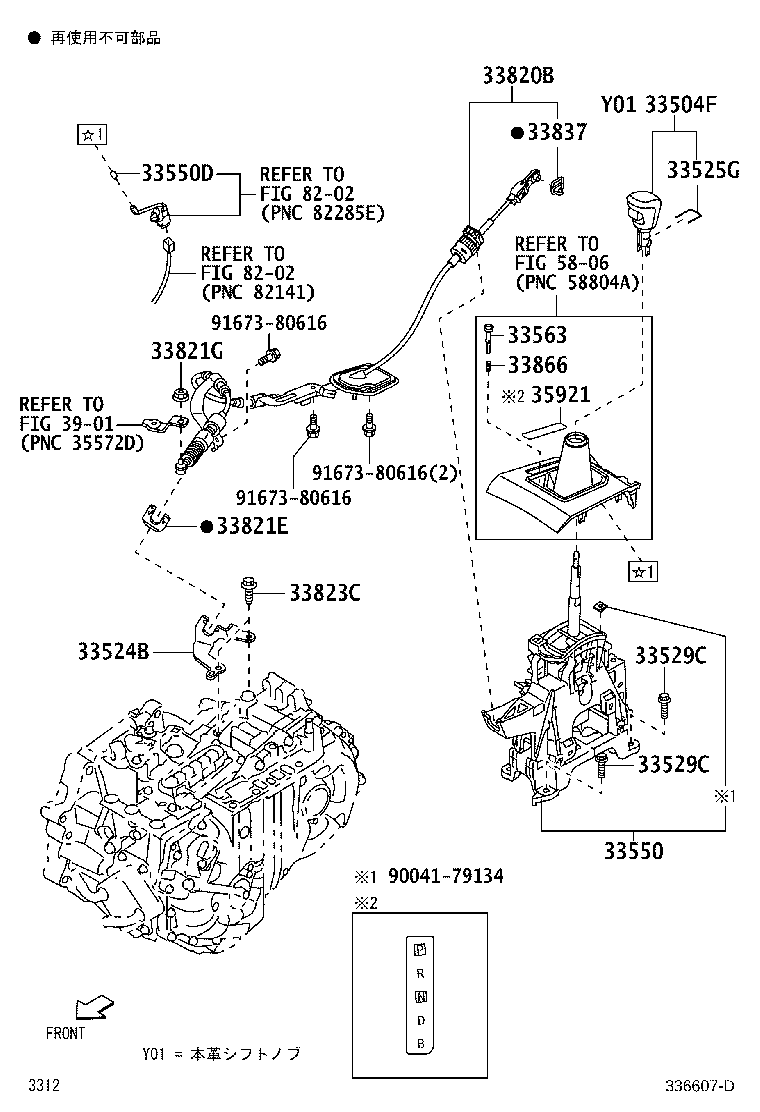

Shift Lever & Retainer
16 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 33504F | Knob Sub-assy, Shift Lever |
| 33524B | Bracket, Control Cable |
| 33525G | Ring, Shift Lever |
| 33529C | Bolt, Shift Lever |
| 33530J | Ring, O (FOR SHIFT LEVER) |
| 33550 | Floor Shift Assy, Transmission |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33563 | Button, Shift Lock Release |
| 33820B | Cable Assy, Transmission Control |
| 33821E | Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE) |
| 33821G | Nut (FOR TRANSMISSION CONTROL CABLE) |
| 33823C | Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET) |
| 33837 | Clip, Transmission Control Cable Adjust |
| 33866 | Spring, Shift Lock Release |
| 35921 | Plate, Control Position Indicator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
