Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube(CVT)

3 part groups · 2 illustrations

Illustrations

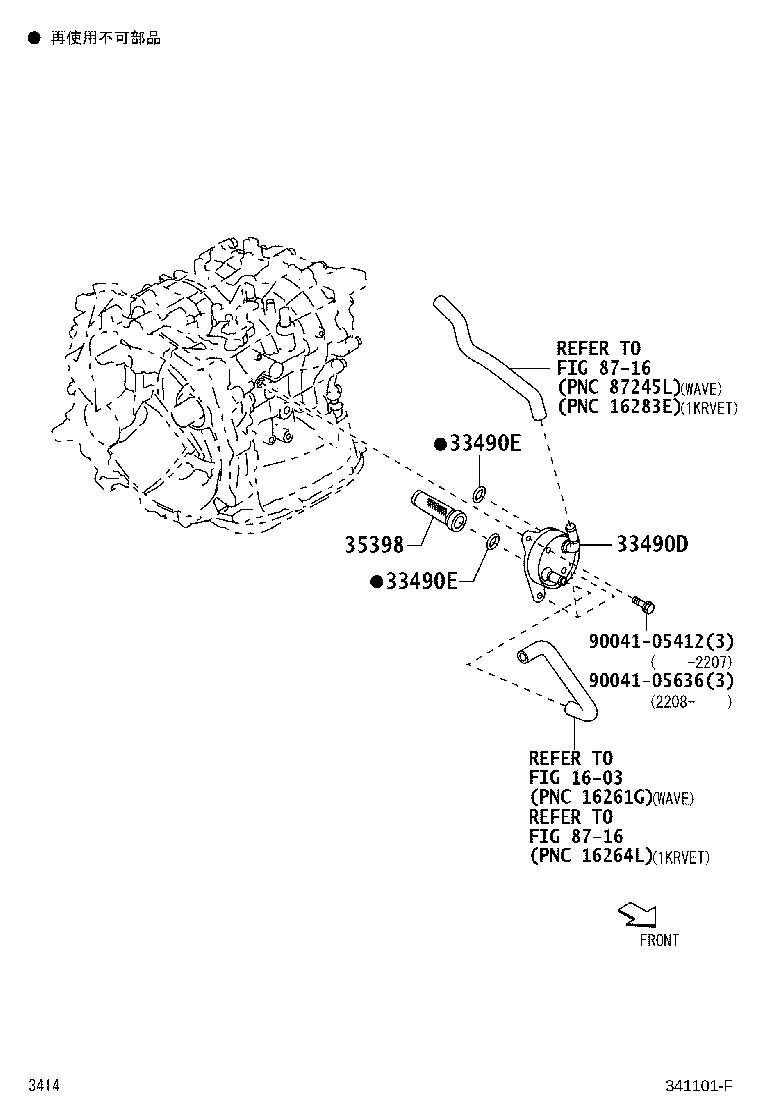

Figure 341100E 341100E 2019-10 → 2021-11 Figure 341101F 341101F 2021-11 → —

Part groups

PNCDescription
33490D Cooler Assy, Transmission Oil
33490E Ring, O (FOR TRANSMISSION OIL COOLER)
35398 Strainer, Lubrication Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
