Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Case & Extension Housing

13 part groups · 2 illustrations

Illustrations

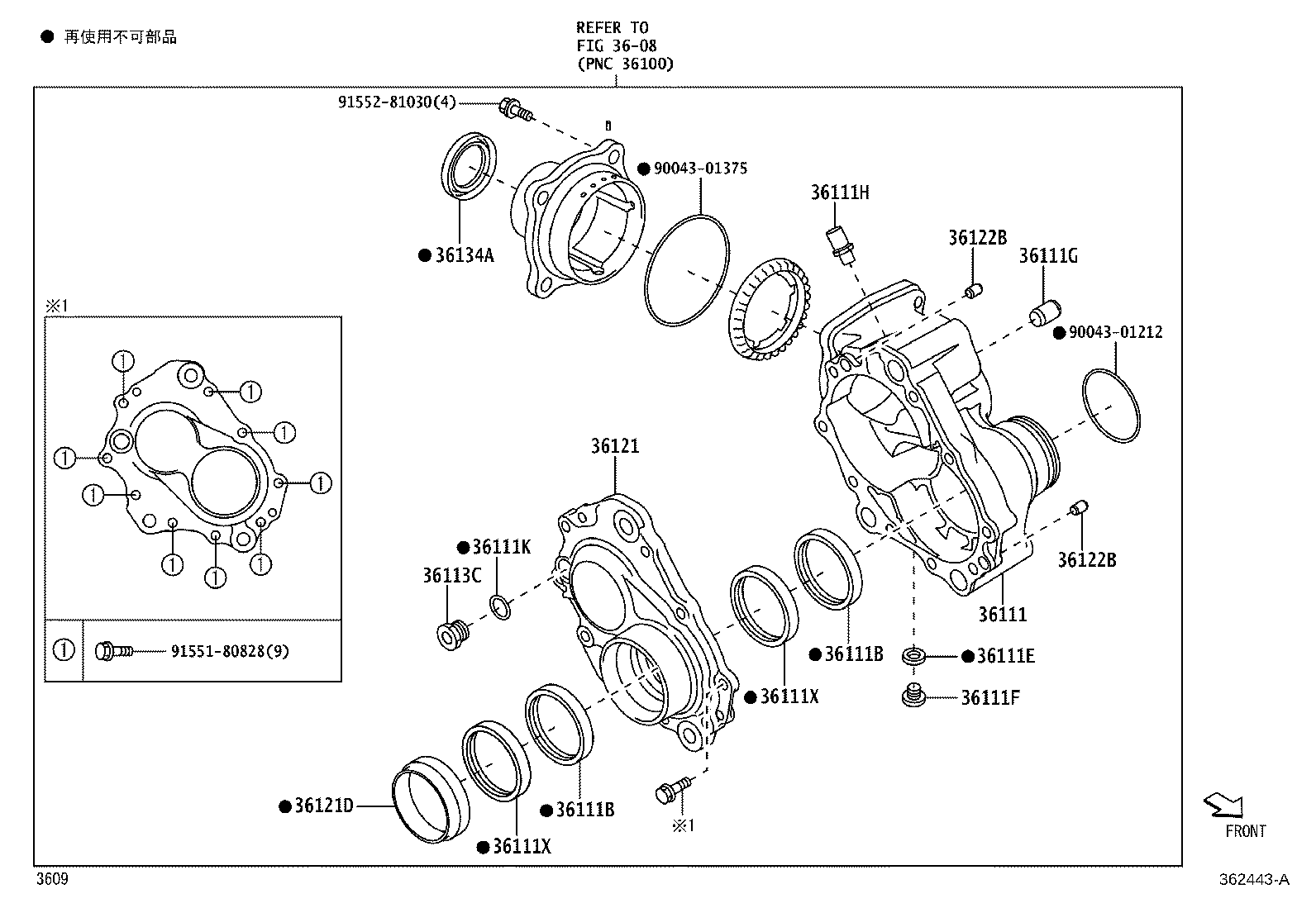

Figure 362323D 362323D 2019-10 → 2021-11 Figure 362443A 362443A 2021-11 → —

Part groups

PNCDescription
36111 Case, Transfer
36111B Seal, Oil (FOR TRANSFER CASE)
36111E Gasket (FOR TRANSFER CASE)
36111F Plug (FOR TRANSFER CASE)
36111G Pin, Straight (FOR TRANSFER CASE)
36111H Plug, Breather (FOR TRANSFER CASE)
36111K Gasket (FOR TRANSFER CASE)
36111X Seal, Oil (FOR TRANSFER CASE), NO.2
36113C Plug (FOR TRANSFER CASE)
36121 Cover, Transfer Case, NO.1
36121D Seal, Oil(FOR TRANSFER CASE COVER)
36122B Pin, Straight(FOR TRANSFER CASE COVER)
36134A Seal, Oil (FOR OUTPUT SHAFT BEARING FRONT RETAINER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
