Toyota Raize
2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan
Supported model
Data version 2021-11

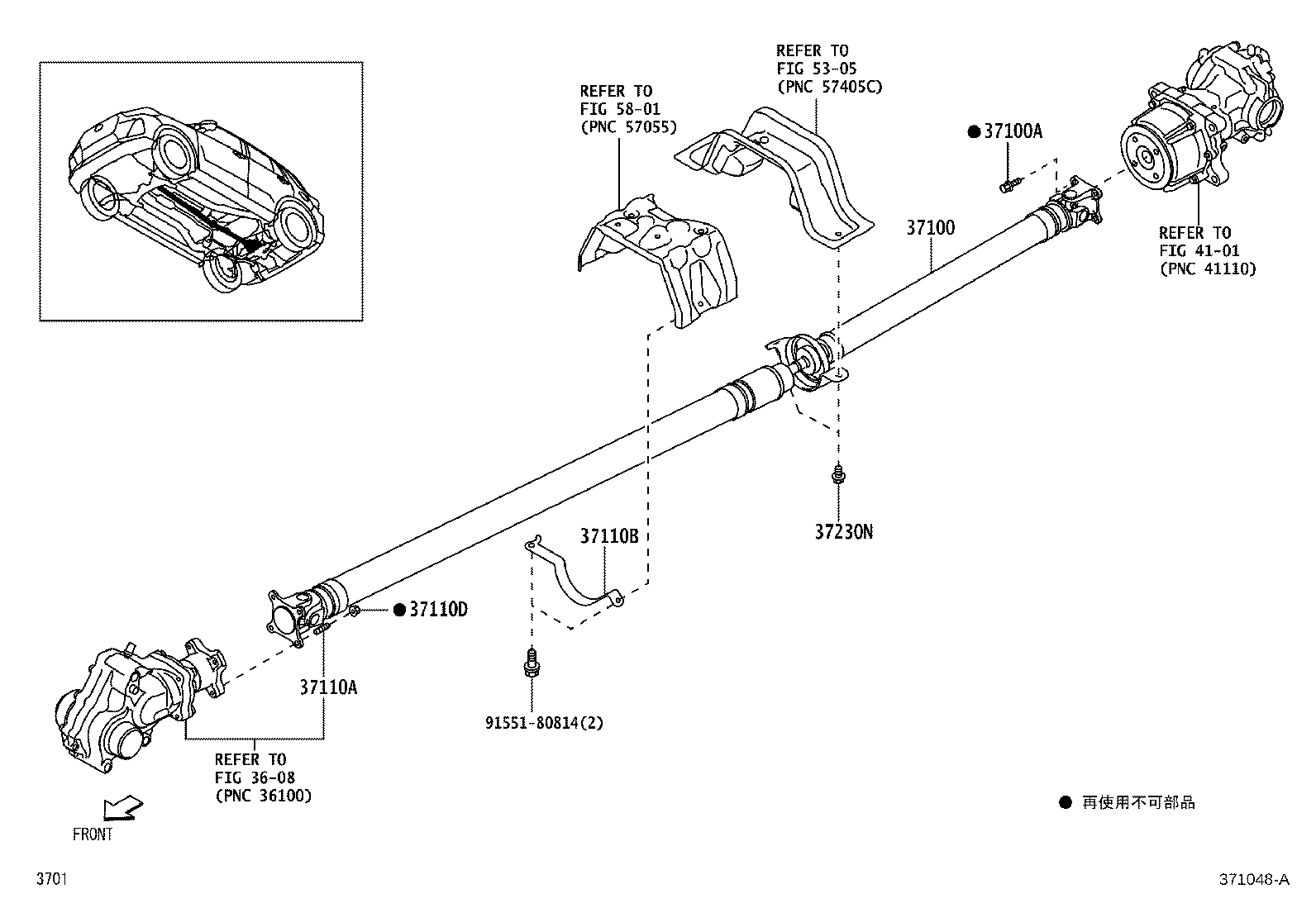

Propeller Shaft & Universal Joint
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 37100 | Shaft Assy, Propeller W/Center Bearing |
| 37100A | Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) |
| 37110A | Bolt (FOR PROPELLER SHAFT) |
| 37110B | Guard, Propeller Shaft |
| 37110D | Nut (FOR PROPELLER SHAFT) |
| 37230N | Bolt, NO.2 (FOR CENTER SUPPORT BEARING) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
