Toyota Raize
2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan
Supported model
Data version 2021-11
Rear Axle Housing & Differential
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

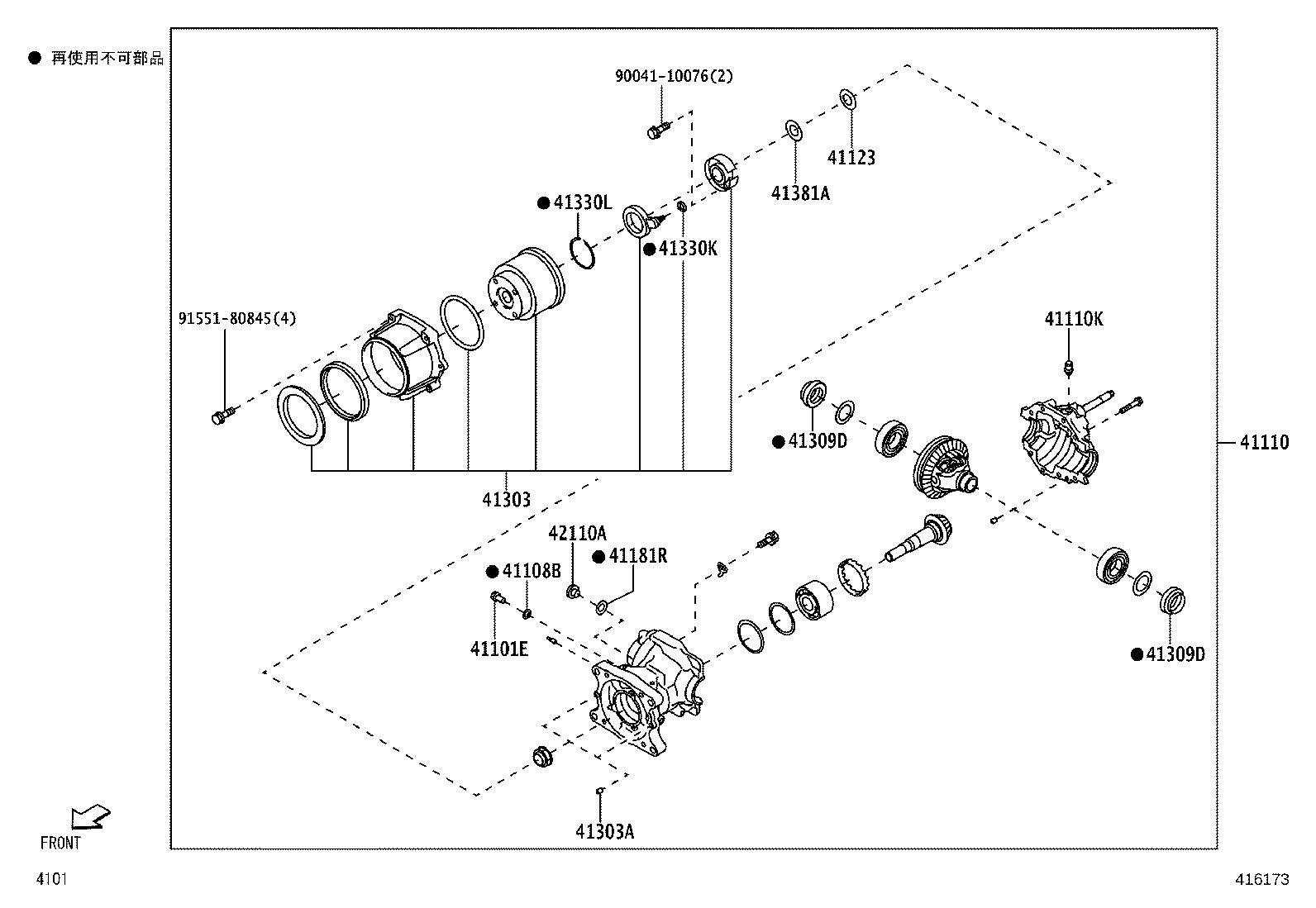

| 41101E | Bolt (FOR REAR DIFFERENTIAL CARRIER) |
| 41108B | Gasket (FOR REAR DIFFERENTIAL CARRIER COVER) |
| 41110 | Carrier Assy, Differential, Rear |
| 41110K | Plug, Breather (FOR REAR DIFFERENTIAL) |
| 41123 | Shim, Differential Drive Pinion Carrier |
| 41181R | Gasket(FOR REAR DIFFERENTIAL CARRIER PLUG) |
| 41303 | Coupling Sub-assy, Electro Magnetic Control |
| 41303A | Pin, Straight (FOR ELECTRO MAGNETIC CONTROL COUPLING) |
| 41309D | Seal Oil (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41330K | Ring, O (FOR TRANSMISSION COUPLING) |
| 41330L | Ring, Snap (FOR TRANSMISSION COUPLING) |
| 41381A | Washer, Conical Spring |

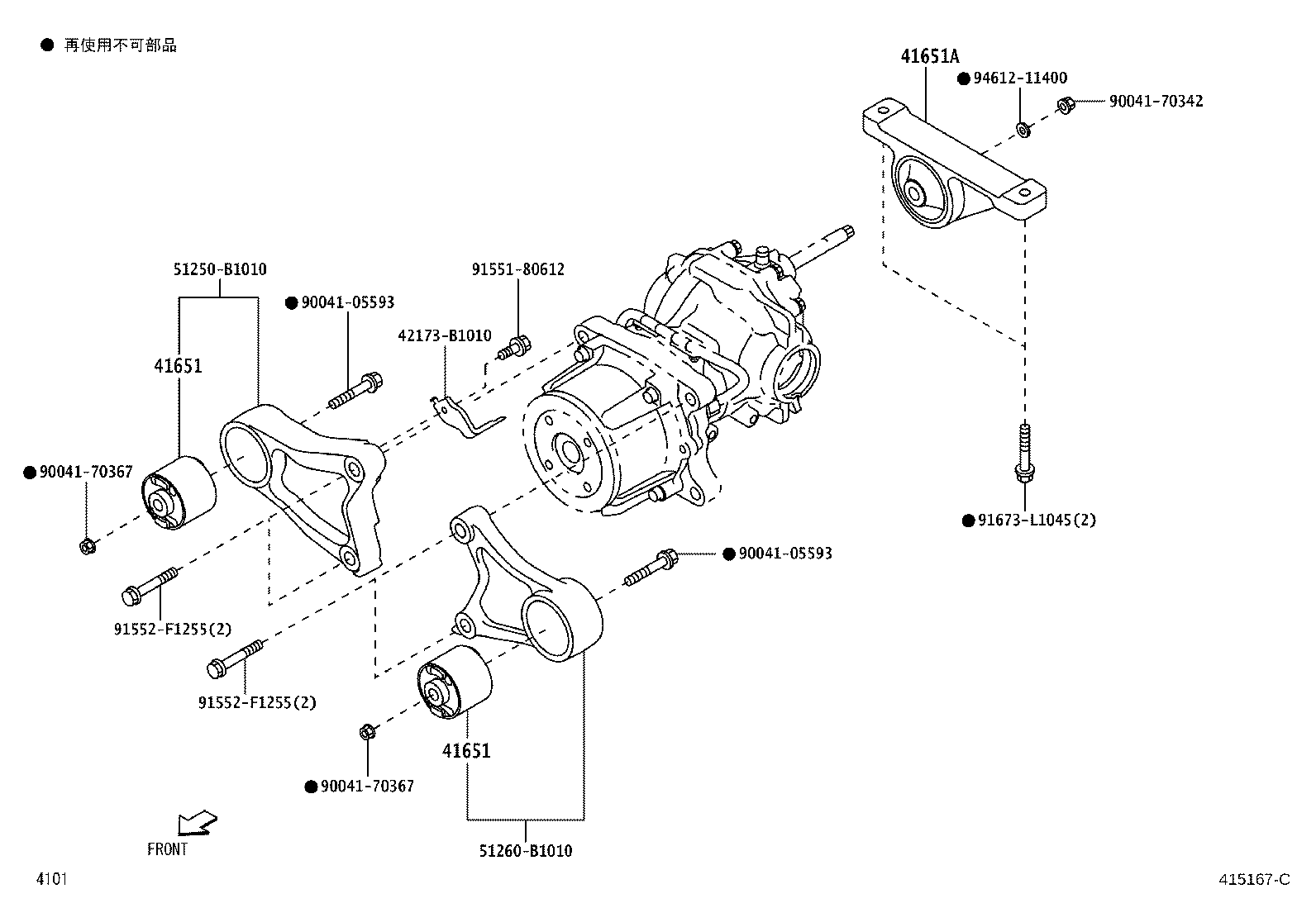

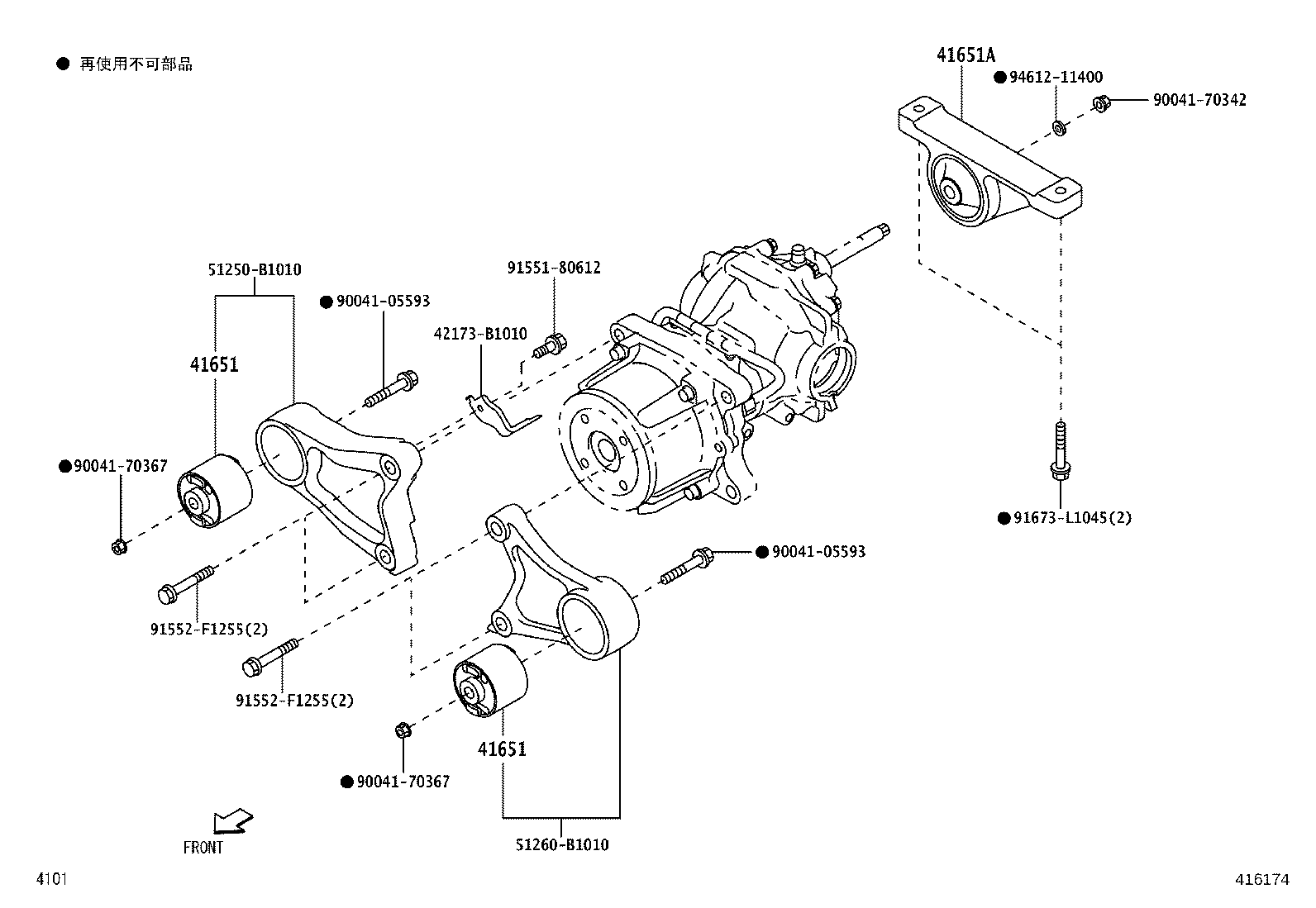

| 41651 | Cushion, Rear Differential Mount, NO.1 |
| 41651A | Cushion, Rear Differential Mount, NO.2 |
| 42110A | Plug (FOR REAR AXLE HOUSING FILLER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
