Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

21 part groups · 5 illustrations

Illustrations

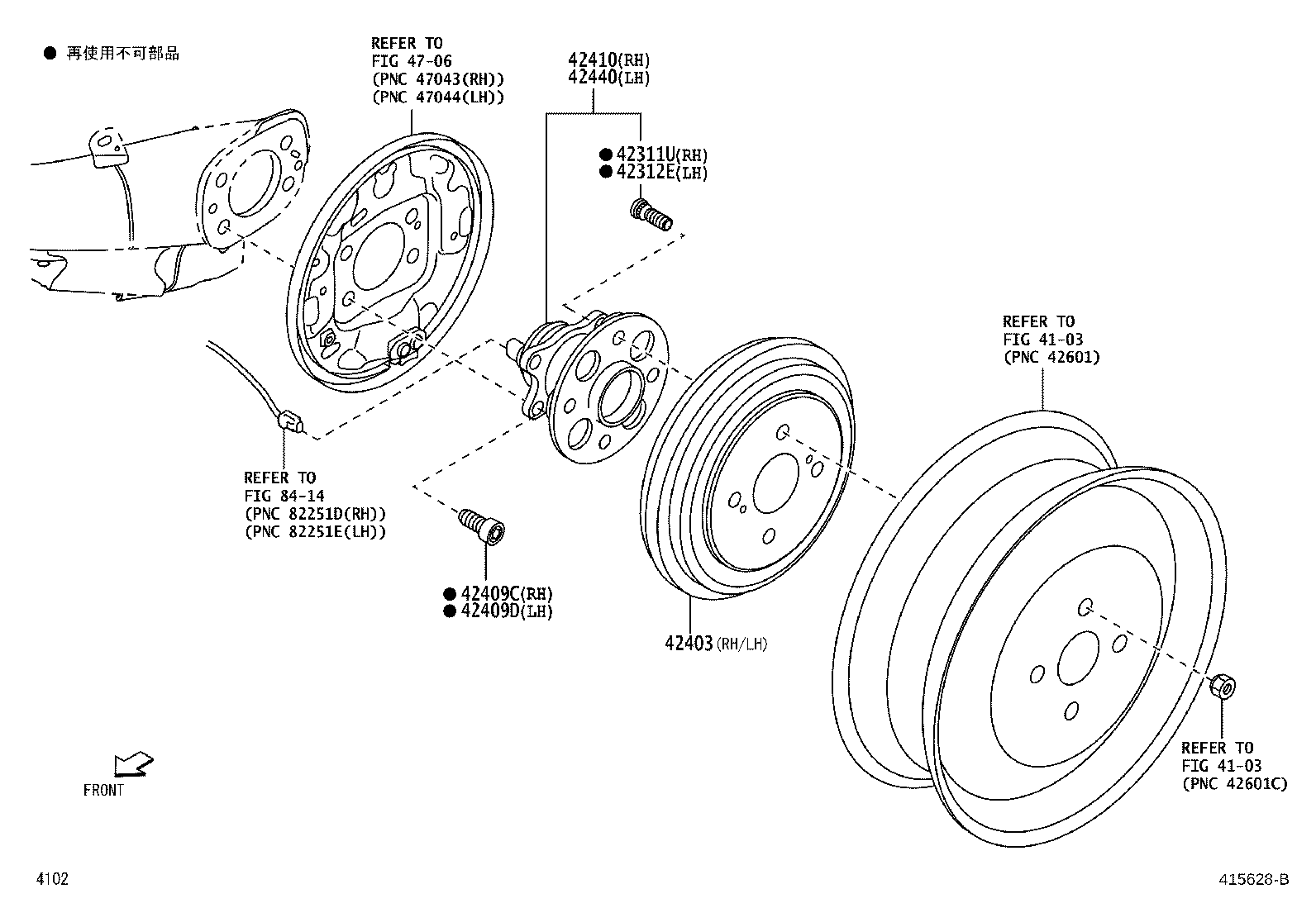

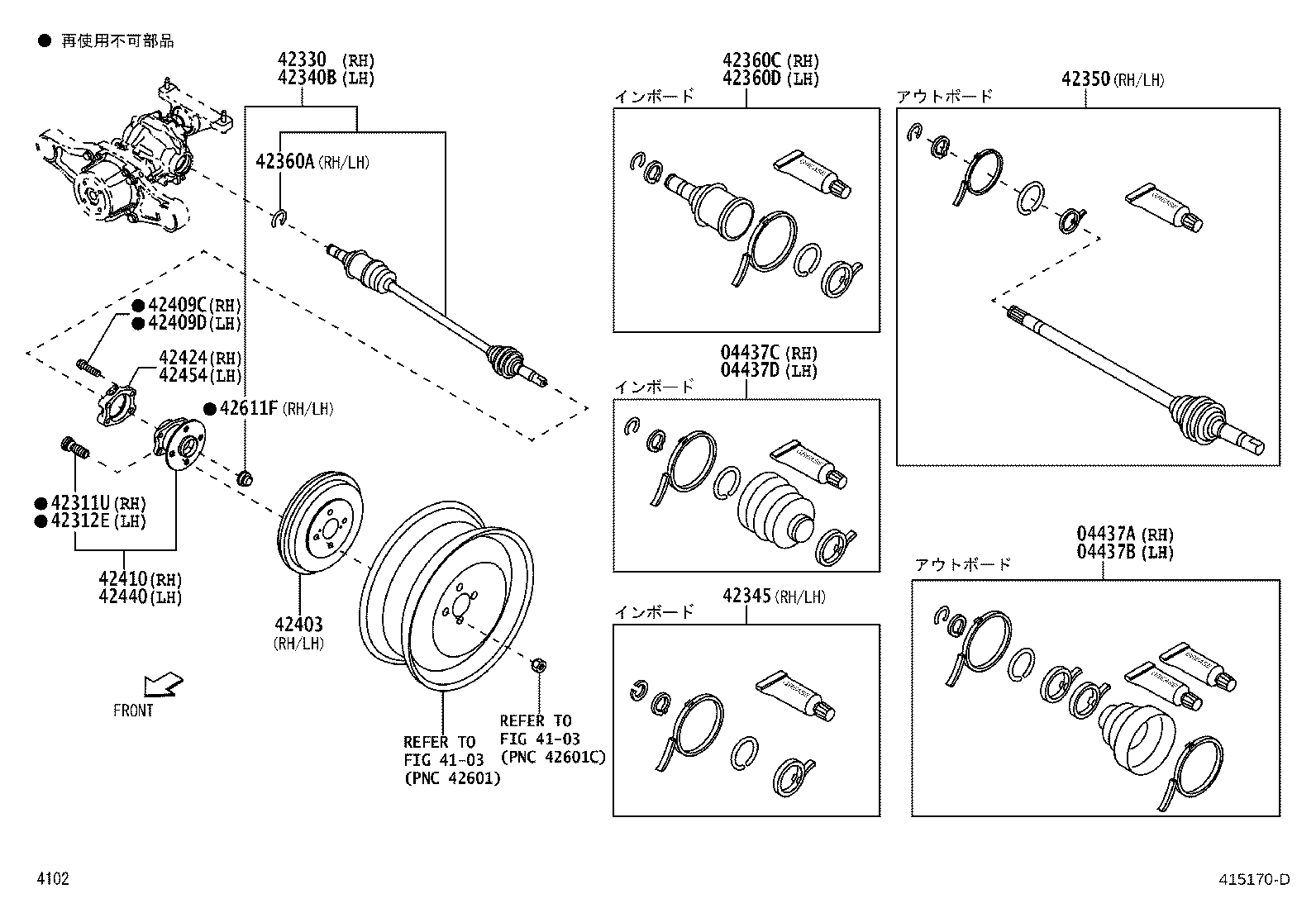

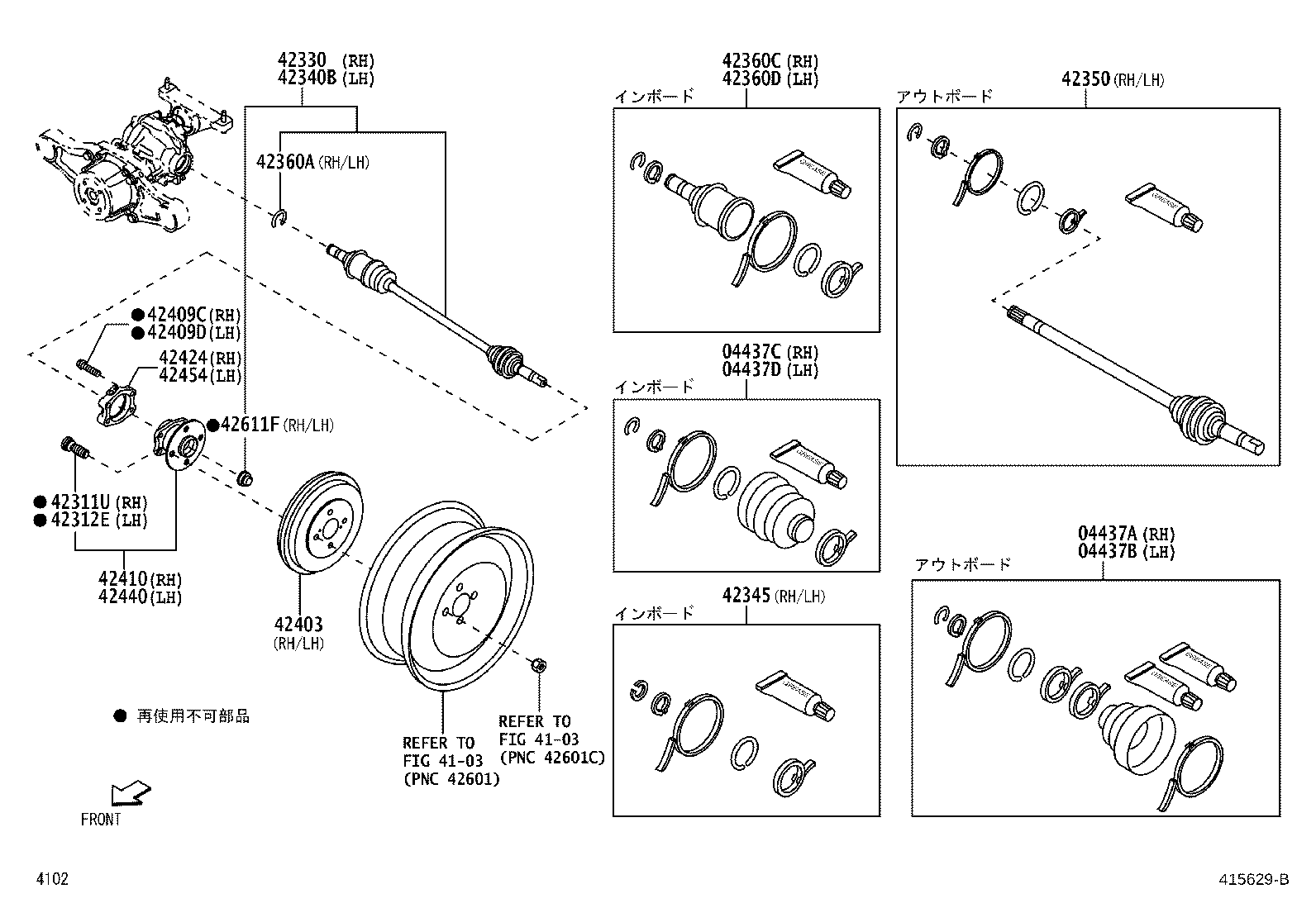

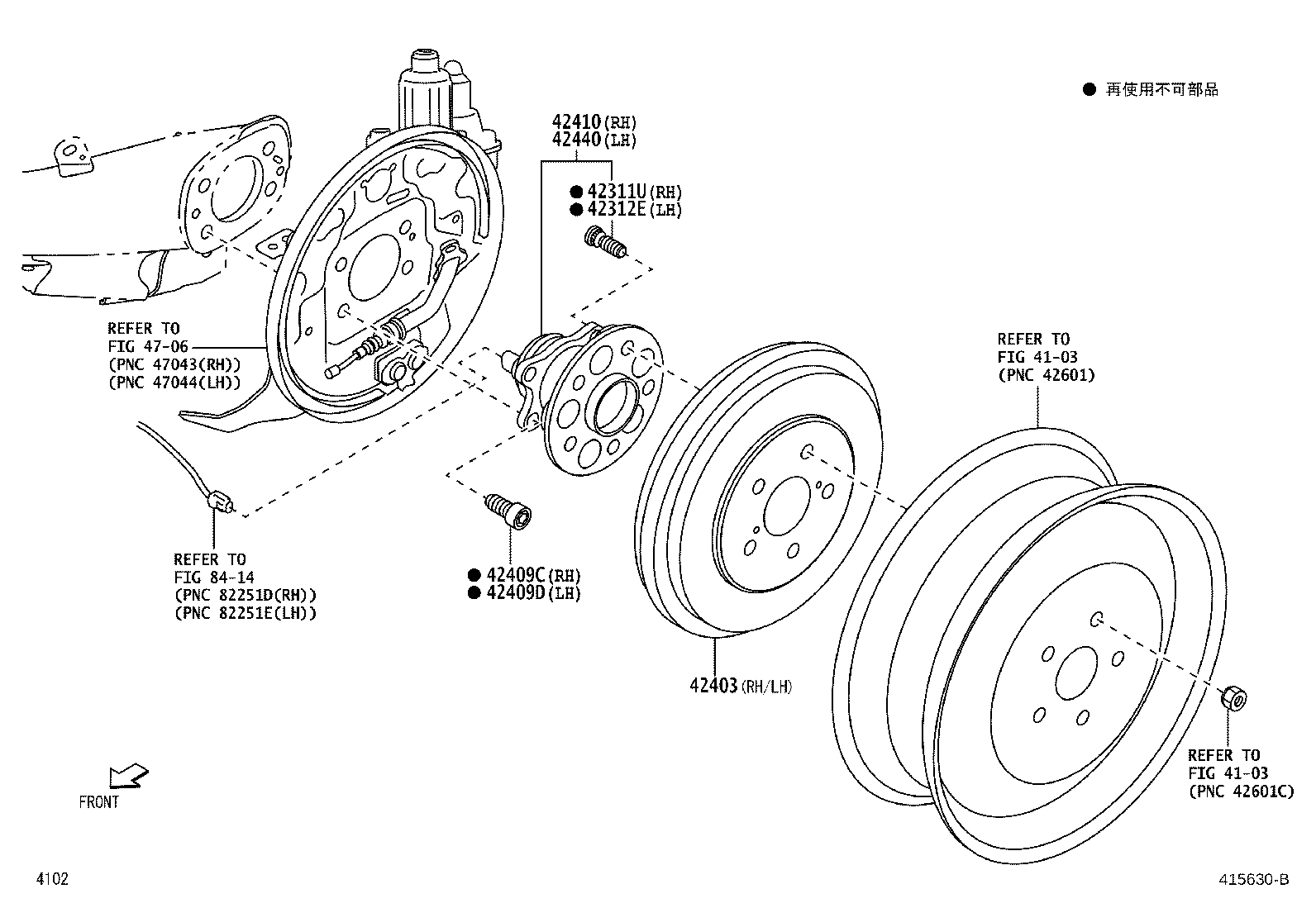

Figure 415169B 415169B 2019-10 → 2021-11 Figure 415628B 415628B 2021-11 → — Figure 415170D 415170D 2019-10 → 2021-11 Figure 415629B 415629B 2021-11 → — Figure 415630B 415630B 2021-11 → —

Part groups

PNCDescription
04437A Boot Kit, Rear Drive Shaft, RH
04437B Boot Kit, Rear Drive Shaft, LH
04437C Boot Kit, Rear Drive Shaft Inboard Joint, RH
04437D Boot Kit, Rear Drive Shaft Inboard Joint, LH
42311U Bolt, Hub(FOR REAR AXLE RH)
42312E Bolt, Hub(FOR REAR AXLE LH)
42330 Shaft Assy, Rear Drive, RH
42340B Shaft Assy, Rear Drive, LH
42345 Clamp, Rear Drive Shaft Boot
42350 Joint Assy, Rear Drive Shaft Outboard
42360A Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT)
42360C Joint Assy, Rear Drive Shaft Inboard, RH
42360D Joint Assy, Rear Drive Shaft Inboard, LH
42403 Drum Sub-assy, Rear Brake
42409C Bolt (FOR REAR AXLE BEARING RH)
42409D Bolt (FOR REAR AXLE BEARING LH)
42410 Hub & Bearing Assy, Rear Axle, RH
42424 Retainer, Rear Axle Bearing, Outer, RH
42440 Hub & Bearing Assy, Rear Axle, LH
42454 Retainer, Rear Axle Bearing, Outer, LH
42611F Nut, Hub (FOR REAR AXLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
