Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 3 illustrations

Illustrations

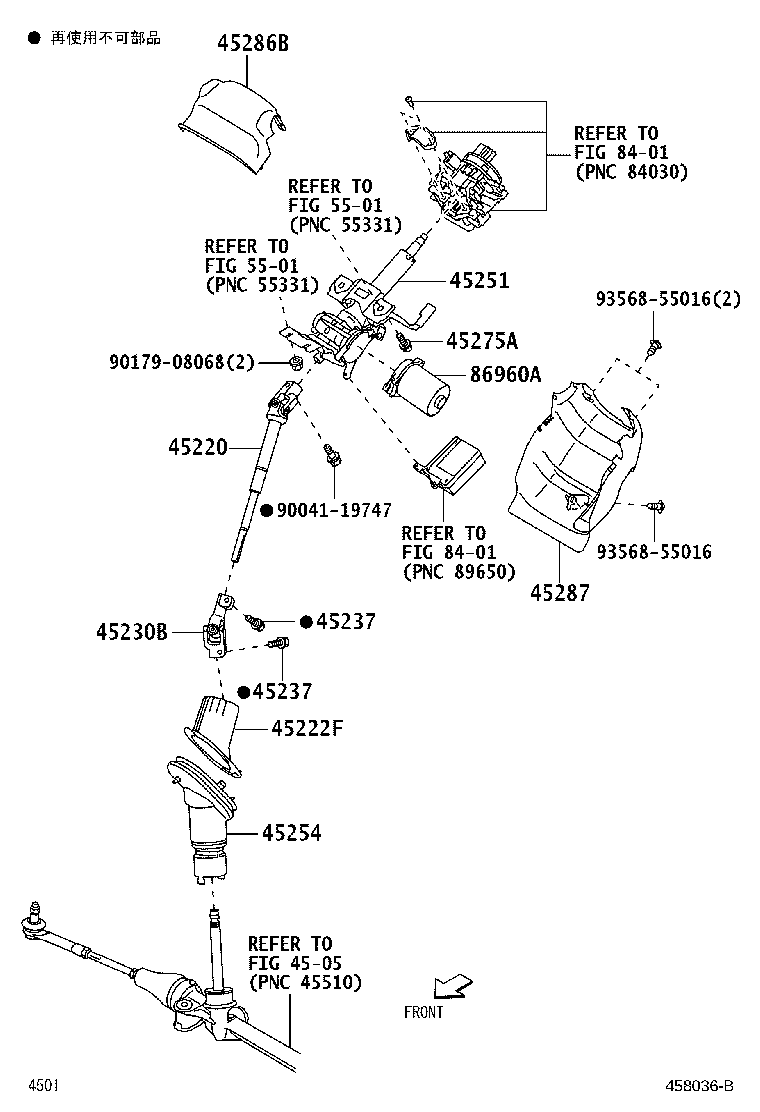

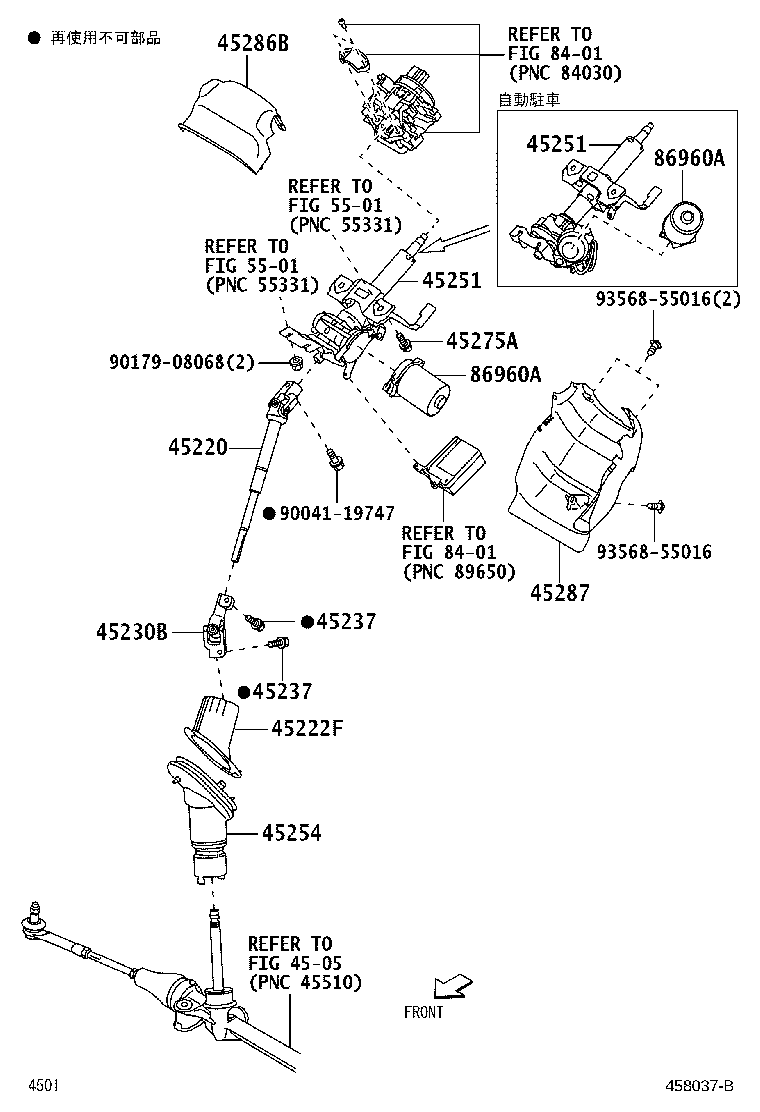

Figure 457649C 457649C 2019-10 → 2021-11 Figure 458036B 458036B 2021-11 → — Figure 458037B 458037B 2021-11 → —

Part groups

PNCDescription
45220 Shaft Assy, Steering Intermediate
45222F Cover, Dust
45230B Joint Assy, Steering Shaft Universal
45237 Bolt, Flexible Attaching(FOR STEERING MAIN SHAFT)
45251 Tube Set, Steering Column
45254 Shield, Steering Column Hole
45275A Bolt, Hexagon(FOR STEERING COLUMN BRACKET)
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45870 Tube Assy, Steering Column
86960A Motor Set, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
