Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

9 part groups · 3 illustrations

Illustrations

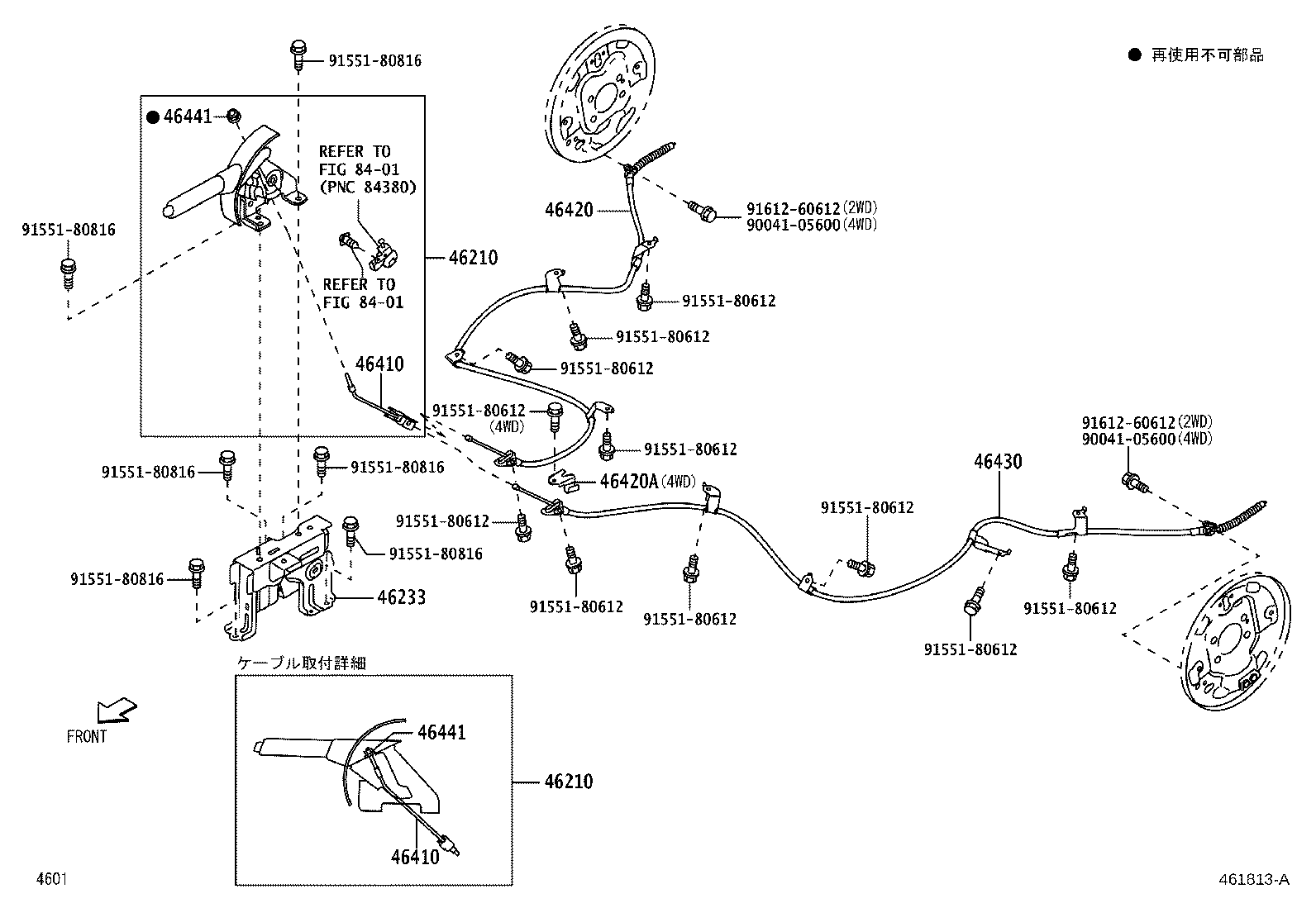

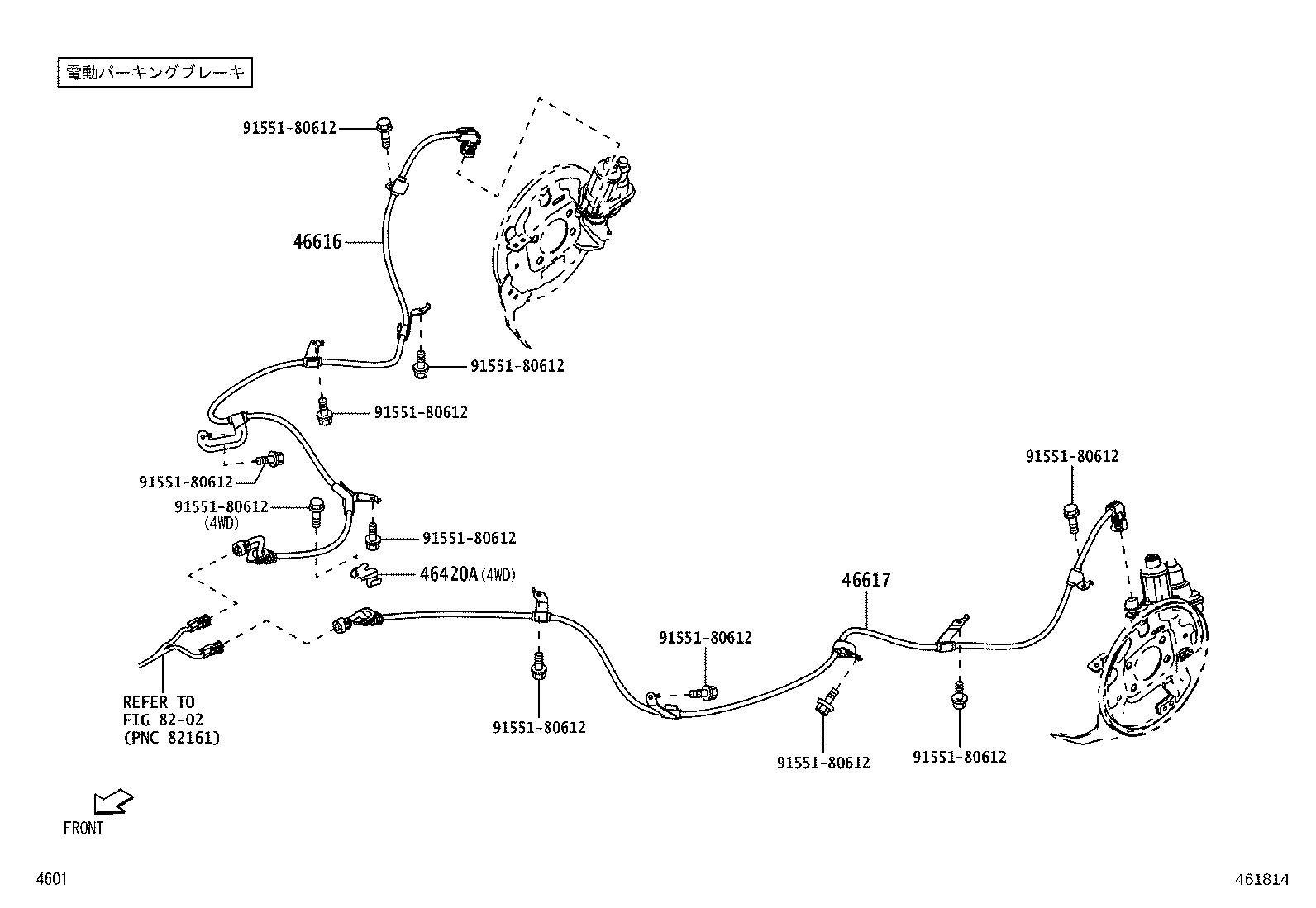

Figure 461695D 461695D 2019-10 → 2021-11 Figure 461813A 461813A 2021-11 → 2029-12 Figure 461814 461814 2021-11 → 2029-12

Part groups

PNCDescription
46210 Lever Assy, Parking Brake
46233 Support, Parking Brake Center
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
46616 Wire, Parking Brake, RH
46617 Wire, Parking Brake, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
