Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Arm & Steering Knuckle

14 part groups · 2 illustrations

Illustrations

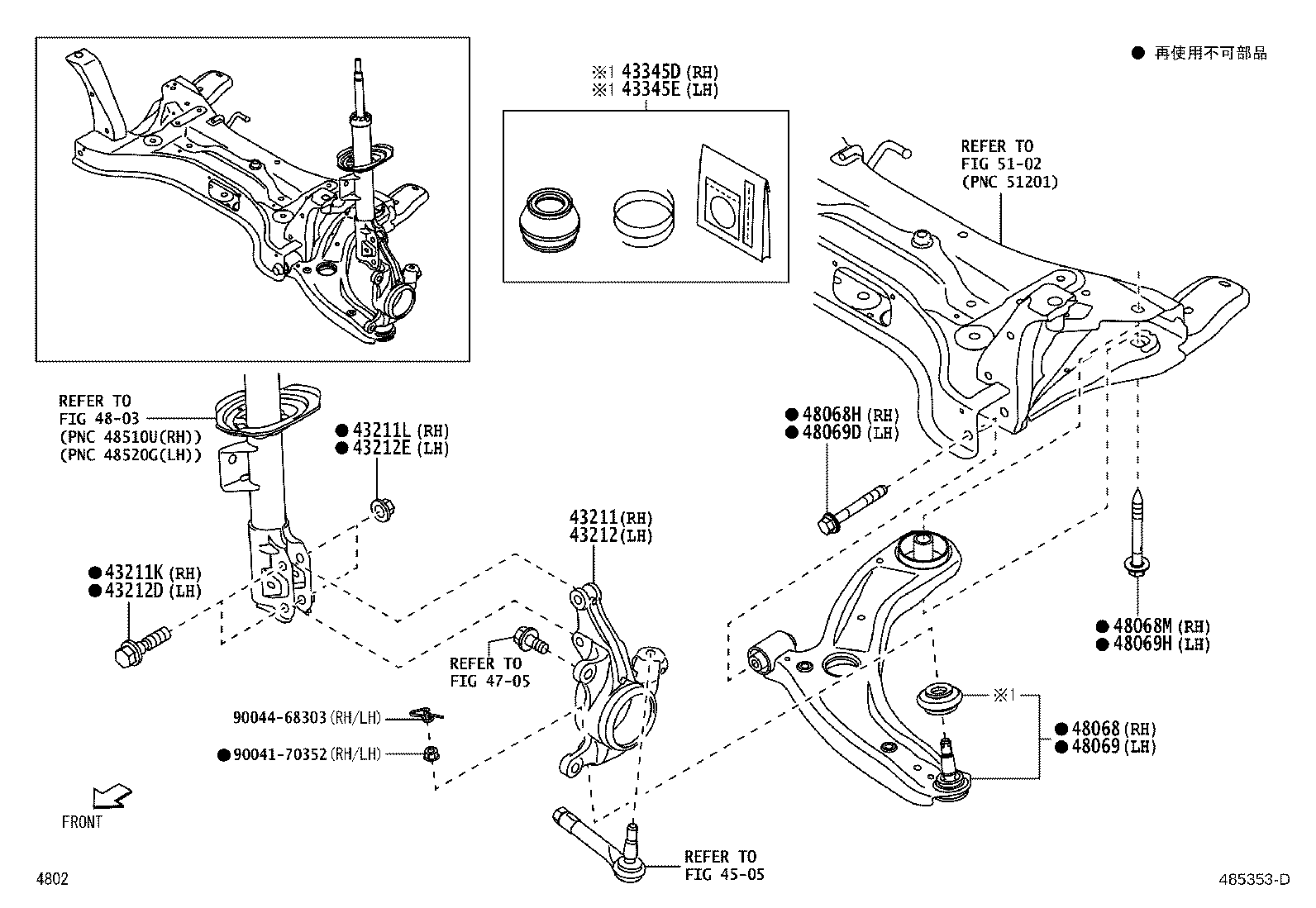

Figure 484959C 484959C 2019-10 → 2021-11 Figure 485353D 485353D 2021-11 → —

Part groups

PNCDescription
43211 Knuckle, Steering, RH
43211K Bolt (FOR STEERING KNUCKLE RH)
43211L Nut (FOR STEERING KNUCKLE RH)
43212 Knuckle, Steering, LH
43212D Bolt (FOR STEERING KNUCKLE LH)
43212E Nut (FOR STEERING KNUCKLE LH)
43345D Cover, Lower Ball Joint Dust, RH
43345E Cover, Lower Ball Joint Dust, LH
48068 Arm Sub-assy, Front Suspension, Lower NO.1 RH
48068H Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068M Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48069 Arm Sub-assy, Front Suspension, Lower NO.1 LH
48069D Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069H Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
