Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

10 part groups · 2 illustrations

Illustrations

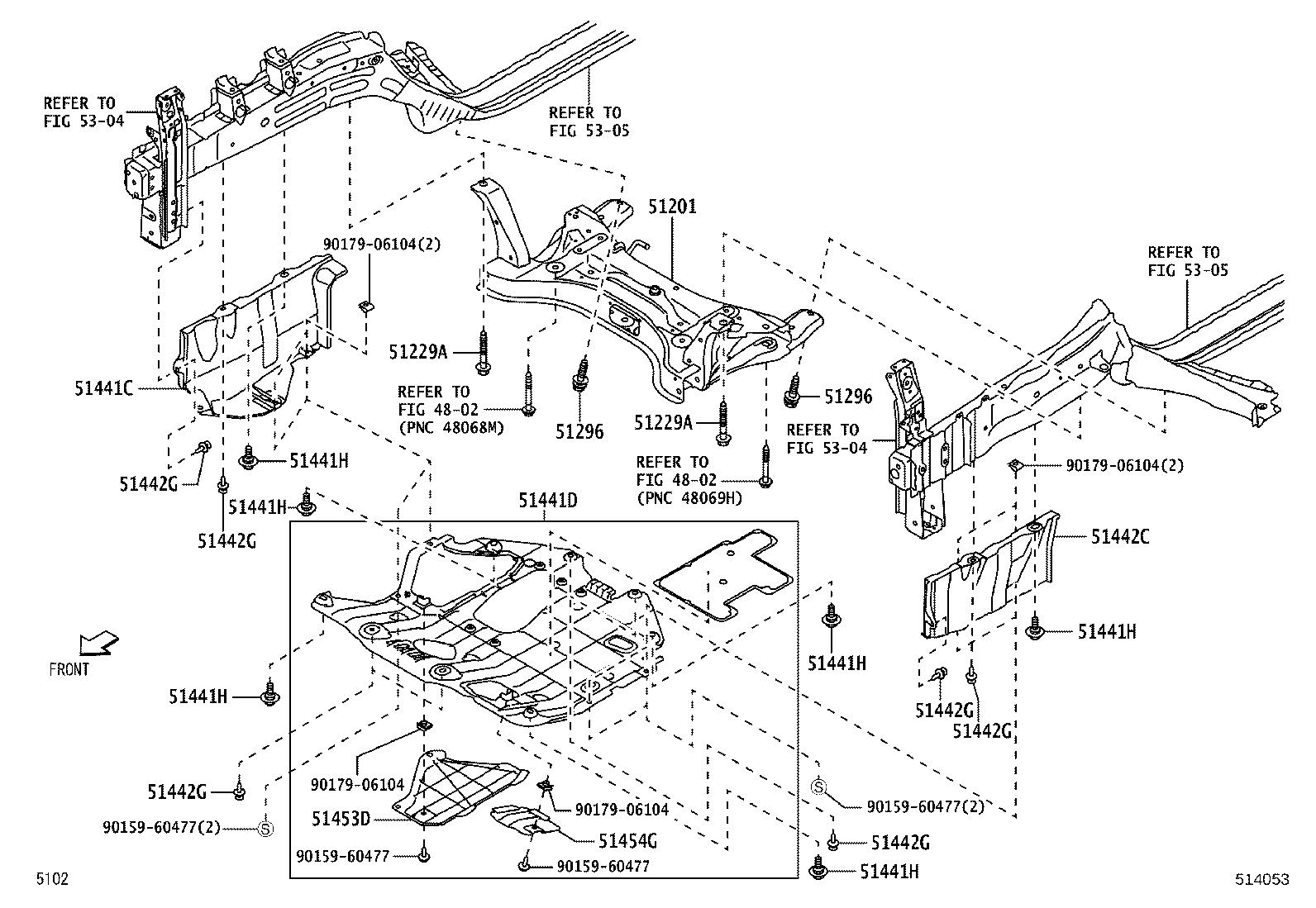

Figure 513620E 513620E 2019-10 → 2021-11 Figure 514053 514053 2021-11 → 2029-12

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51229A Bolt, Front Suspension Member Mounting
51296 Bolt, Front Suspension Member Mounting
51441C Cover, Engine Under, RH
51441D Cover, Engine Under
51441H Bolt, W/Washer(FOR ENGINE UNDER COVER)
51442C Cover, Engine Under, LH
51442G Clip, Engine Under Cover, NO.1
51453D Cover, Engine Room Under, RH
51454G Cover, Engine Room Under, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
