Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

13 part groups · 2 illustrations

Illustrations

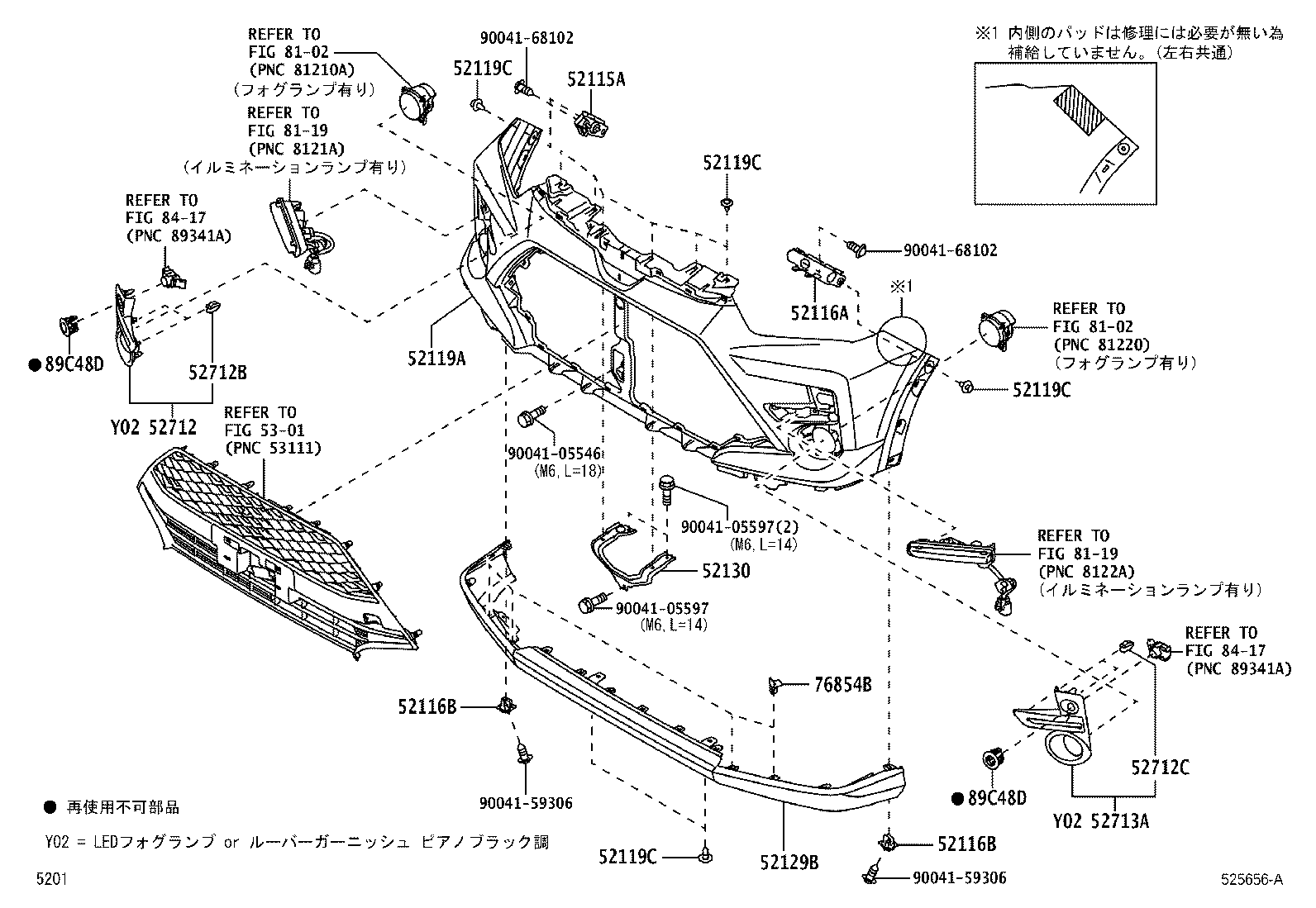

Figure 524125J 524125J 2019-10 → 2021-11 Figure 525656A 525656A 2021-11 → 2029-12

Part groups

PNCDescription
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52116B Retainer, Front Bumper
52119A Cover, Front Bumper
52119C Clip, Front Bumper Cover
52129B Cover, Front Bumper, Lower
52130 Bracket Assy, Front Bumper Side Mounting, RH
52712 Moulding, Front Bumper Side, RH
52712B Clip, Front Bumper Moulding
52712C Clip, Front Bumper Moulding, NO.2
52713A Moulding, Front Bumper Side, LH
76854B Retainer, Front Spoiler,NO.2
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
