Toyota Raize
2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan
Supported model
Data version 2021-11

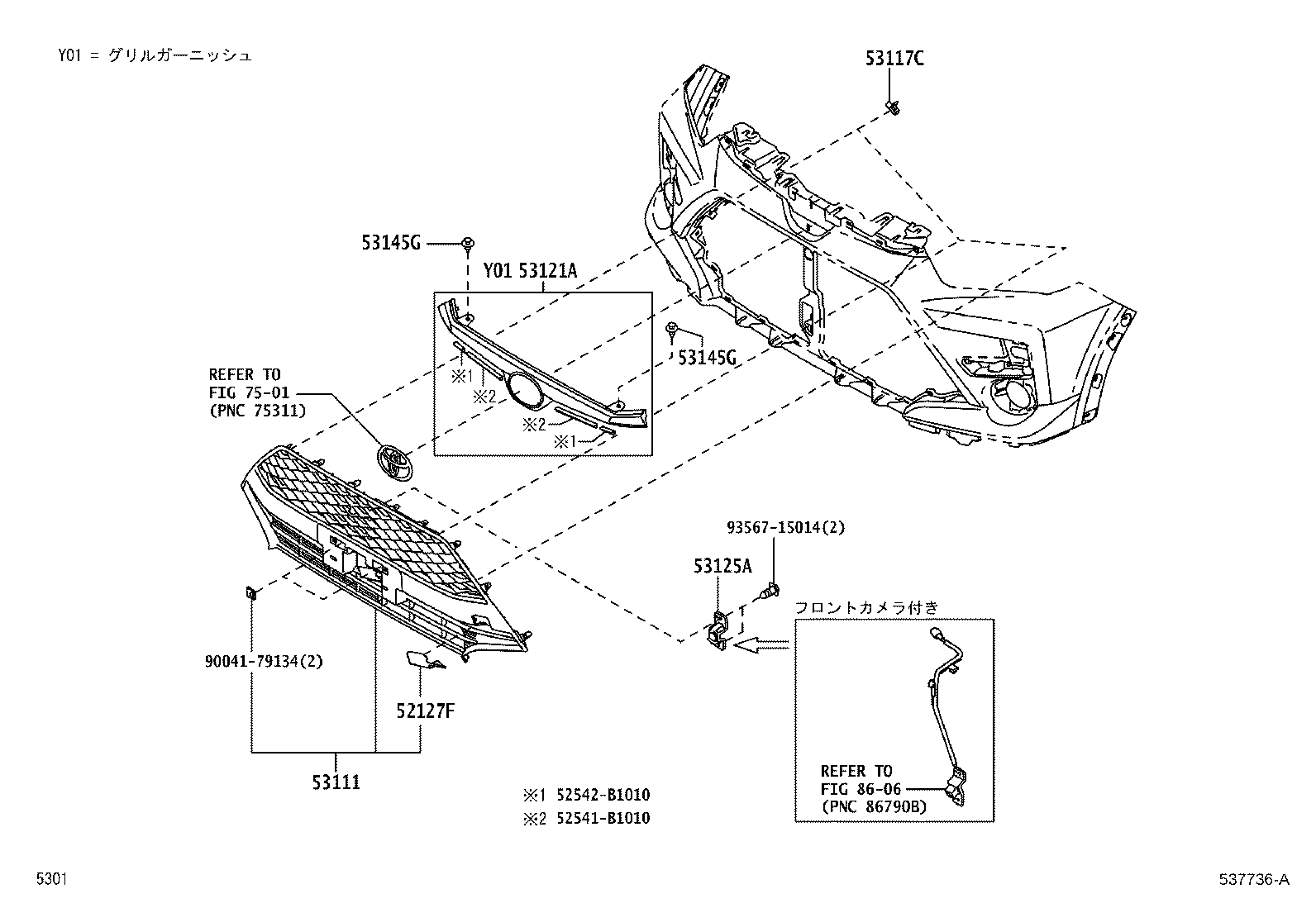

Radiator Grille
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52127F | Cover, Front Bumper Hole |
| 53111 | Grille, Radiator |
| 53117C | Retainer, Radiator Grille, NO.1 |
| 53121A | Moulding, Radiator Grille |
| 53125A | Moulding, Radiator Grille, Center RH |
| 53145G | Clip, Radiator Grille |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
