Toyota Raize
2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan
Supported model
Data version 2021-11

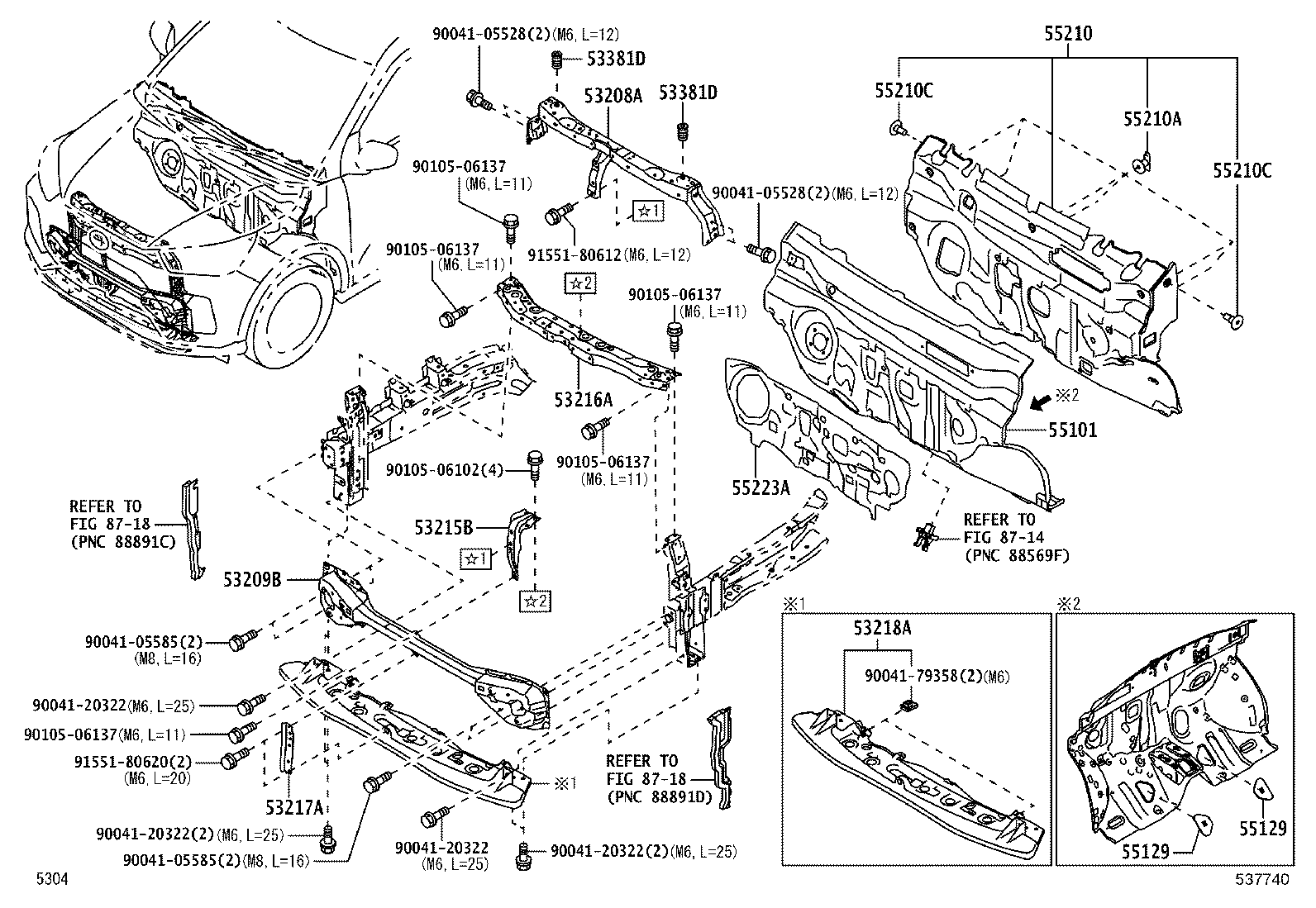

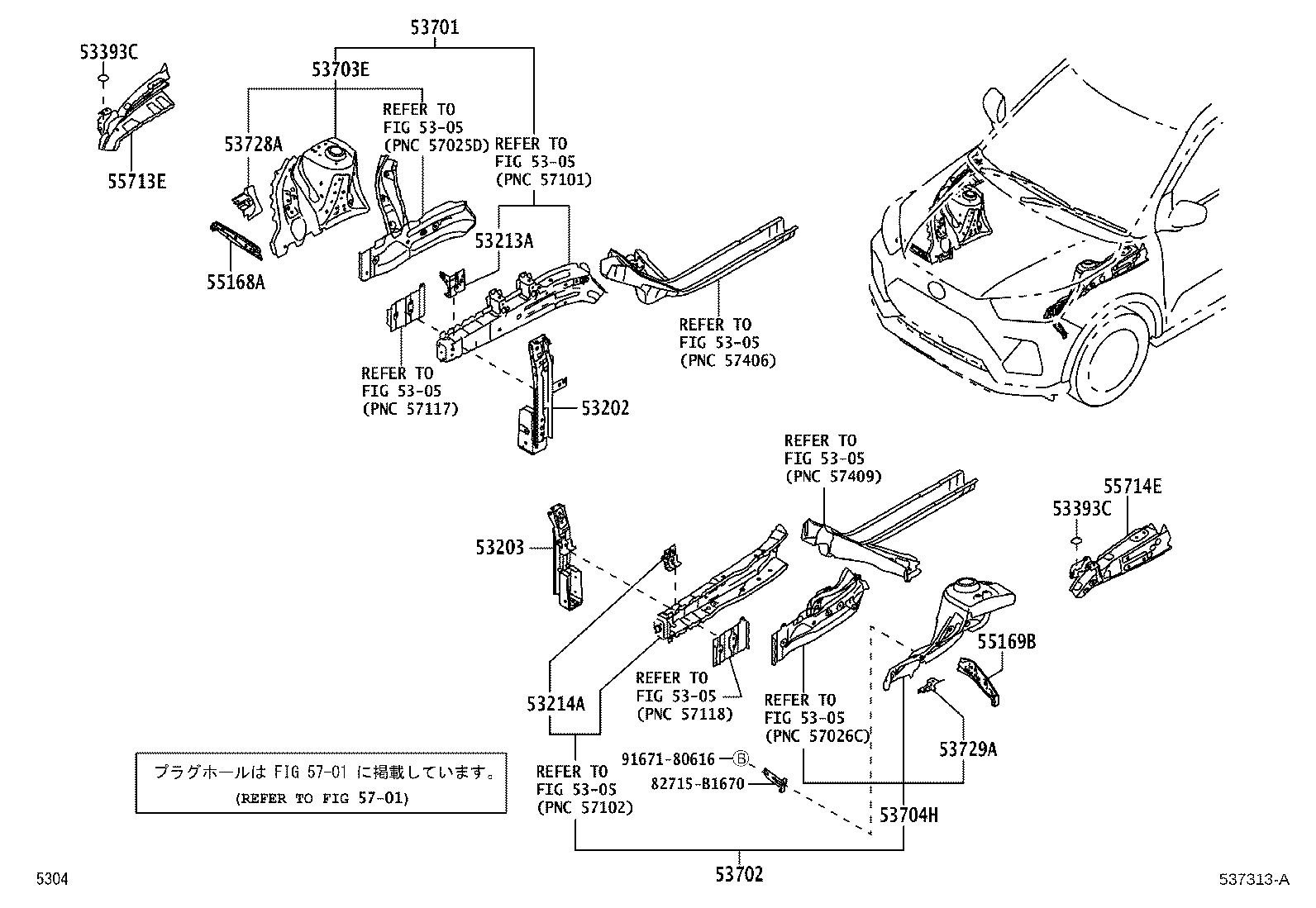

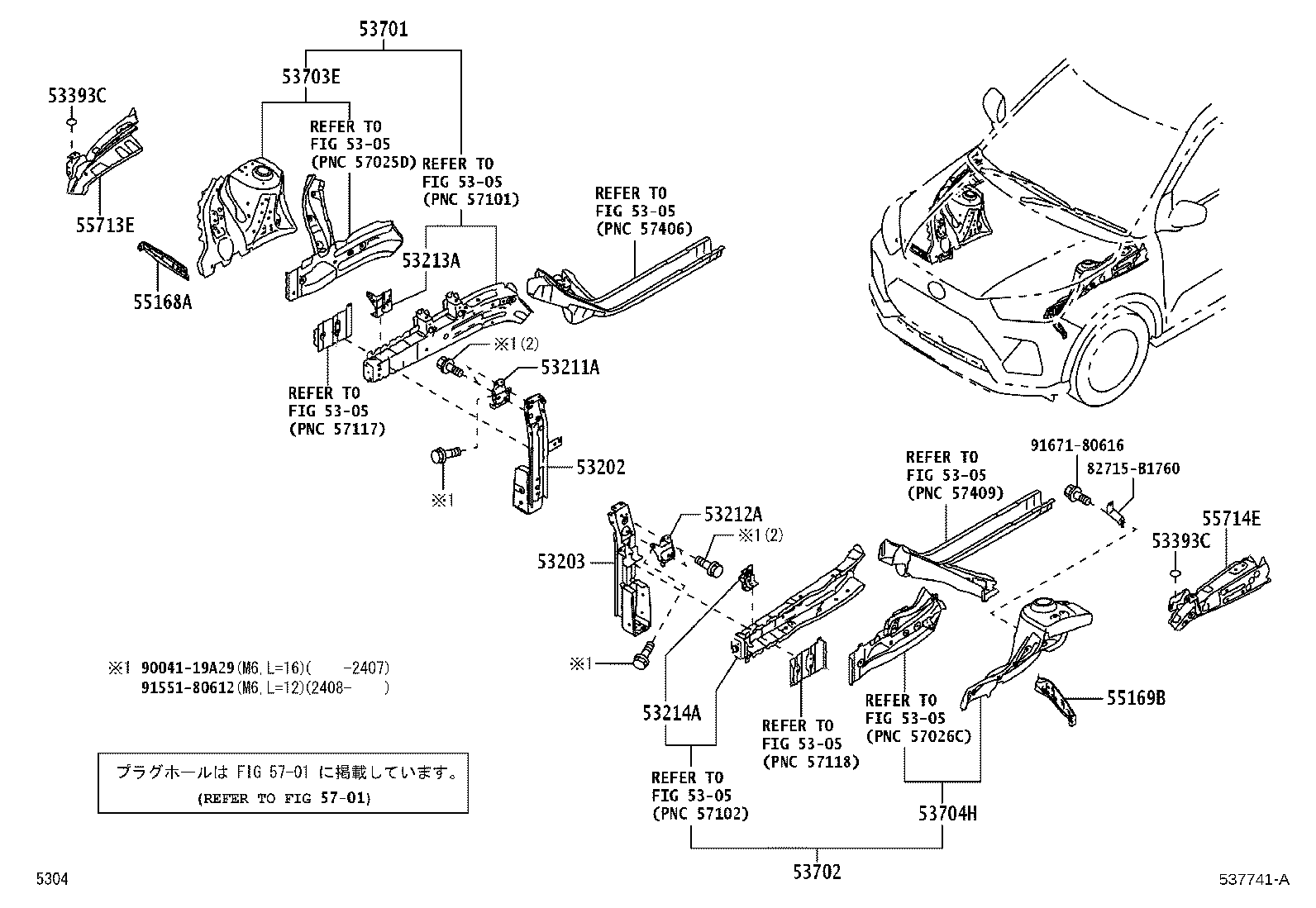

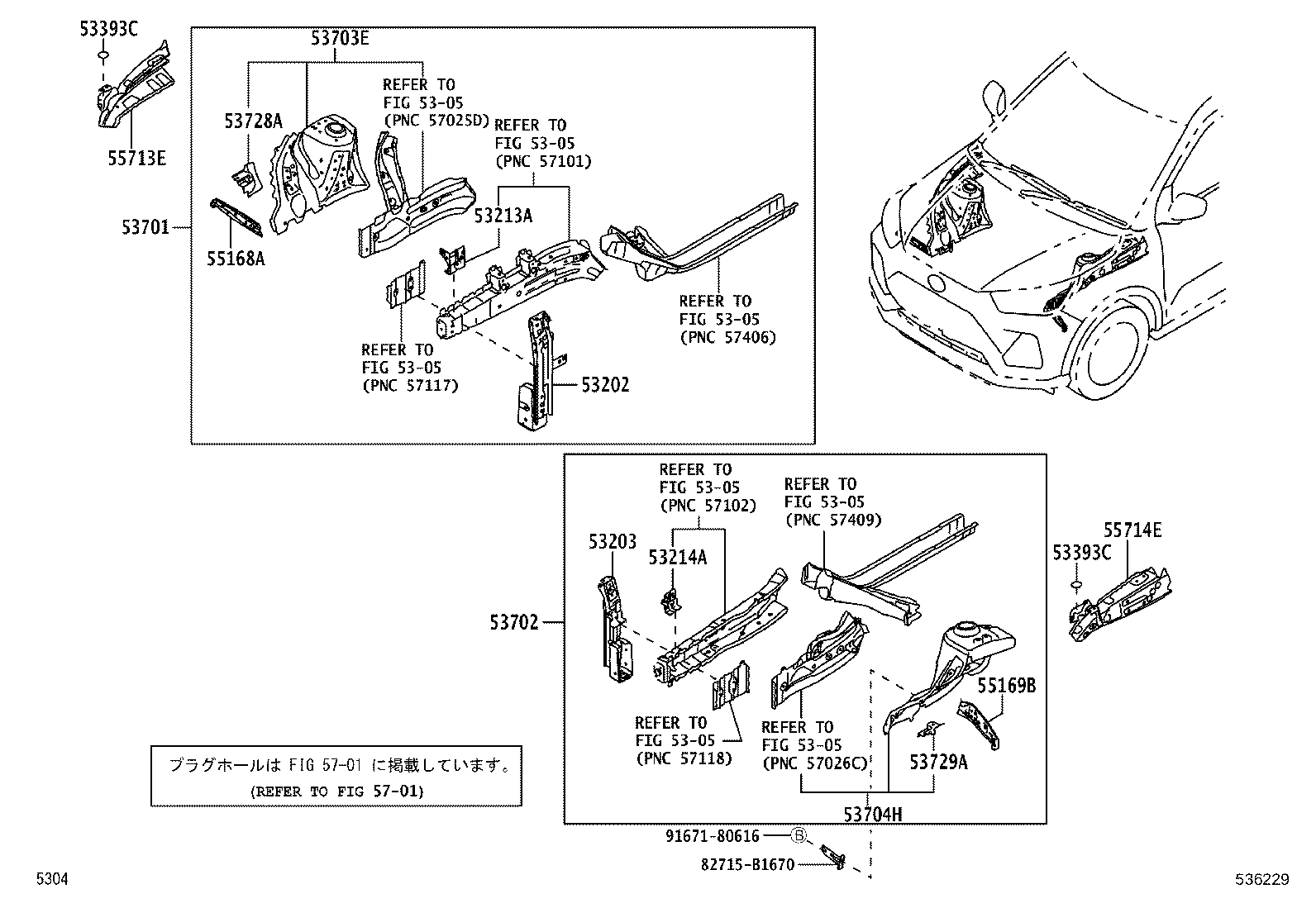

Front Fender Apron & Dash Panel
32 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 53202 | Support Sub-assy, Radiator, RH |
| 53203 | Support Sub-assy, Radiator, LH |
| 53208A | Support Sub-assy, Hood Lock |
| 53209B | Brace Sub-assy, Hood Lock Support |
| 53211A | Bracket, Radiator Support, RH |
| 53212A | Bracket, Radiator Support, LH |
| 53213A | Support, Radiator, Upper RH |
| 53214A | Support, Radiator, Upper LH |
| 53215B | Support, Hood Lock |
| 53216A | Support, Radiator, Upper |
| 53217A | Brace, Hood Lock Support |
| 53218A | Support, Radiator, Lower |
| 53381D | Bumper, Hood TO Front Shroud |
| 53393C | Protector, Hood, Front |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53703E | Apron Sub-assy, Front Fender, Rear RH |
| 53704H | Apron Sub-assy, Front Fender, Rear LH |
| 53705F | Brace Sub-assy, Fender Apron, RH |
| 53706A | Brace Sub-assy, Fender Apron, LH |
| 53728A | Bracket, Fender Apron, RH |
| 53729A | Bracket, Fender Apron, LH |
| 55101 | Panel Sub-assy, Dash |
| 55129 | Cover, Dash Panel Hole |
| 55168A | Bracket, Front Fender Mounting, RH |
| 55169B | Bracket, Front Fender Mounting, LH |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55210C | Clip |
| 55223A | Insulator, Dash Panel, Outer |
| 55713E | Panel, Cowl Top Side, RH |
| 55714E | Panel, Cowl Top Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
