Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

30 part groups · 3 illustrations

Illustrations

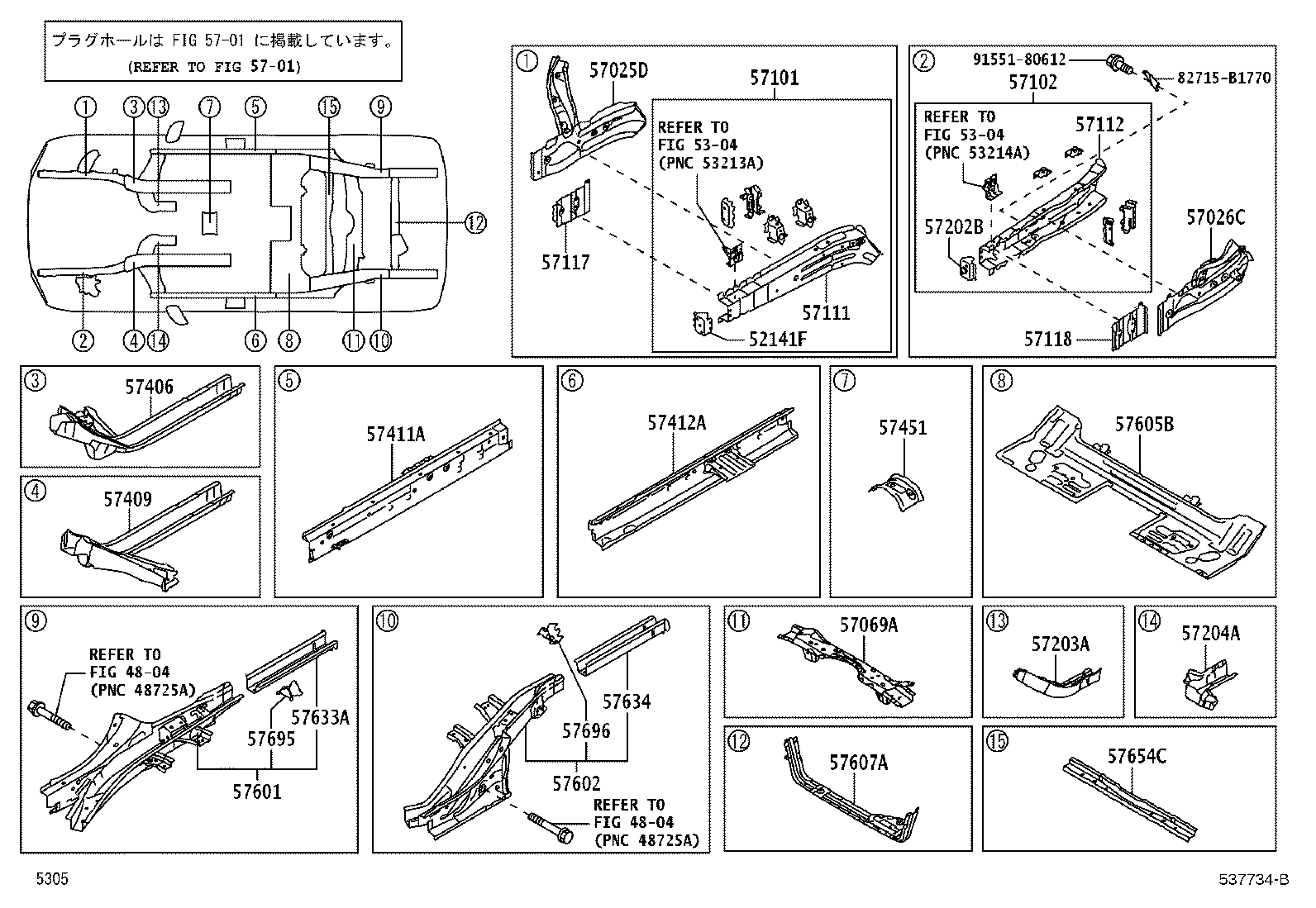

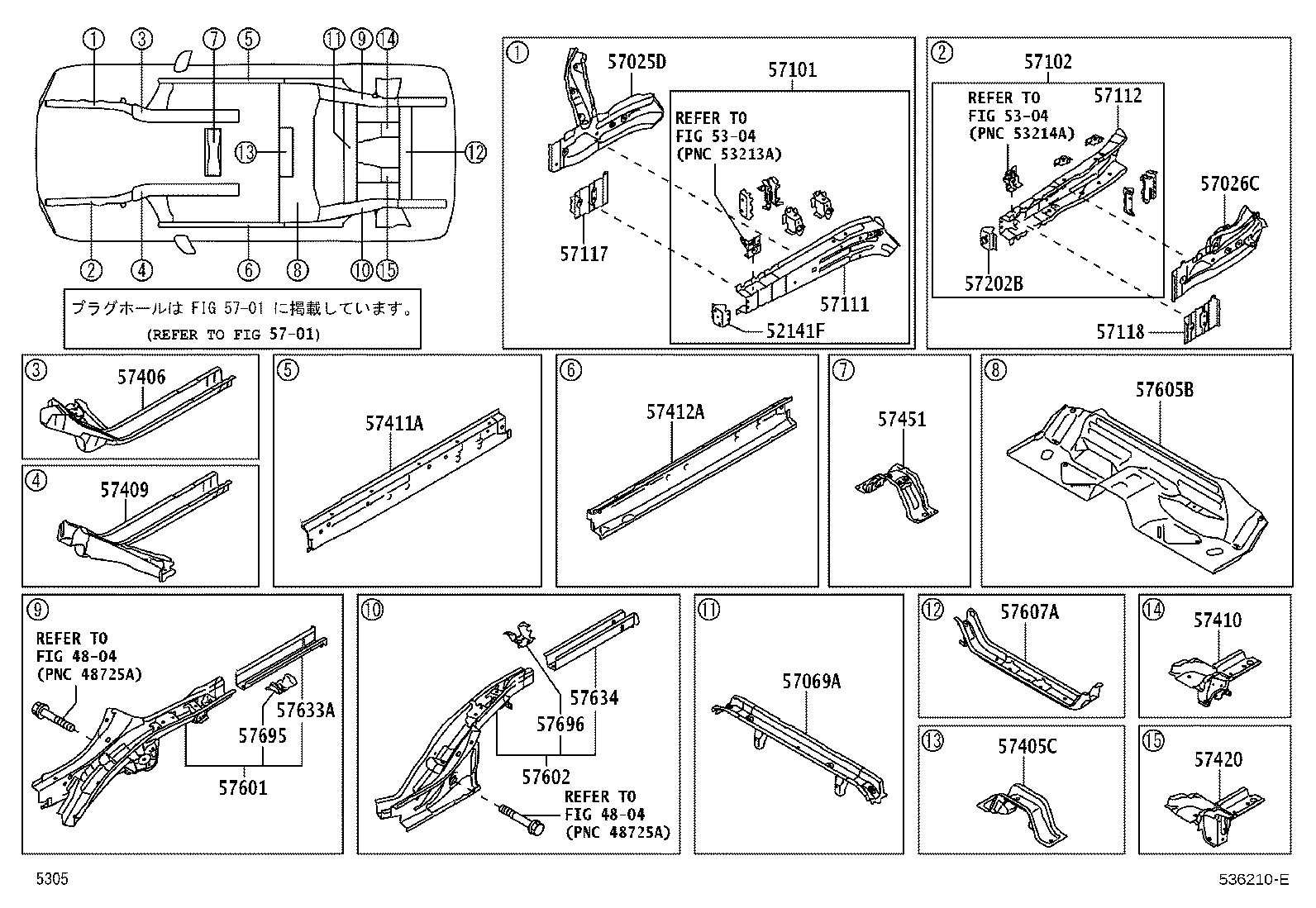

Figure 536209E 536209E 2019-10 → — Figure 536210E 536210E 2019-10 → — Figure 537734B 537734B 2021-11 → —

Part groups

PNCDescription
52141F Arm, Front Bumper, RH
57025D Member Sub-assy, Front Side, Outer RH
57026C Member Sub-assy, Front Side, Outer LH
57069A Member, Rear Floor, Center
57101 Member Sub-assy, Front Side, RH
57102 Member Sub-assy, Front Side, LH
57111 Member, Front Side, RH
57112 Member, Front Side, LH
57117 Plate Sub-assy, Front Side Member, Front RH
57118 Plate Sub-assy, Front Side Member, Front LH
57202B Extension Sub-assy, Front Side Member, LH
57203A Extension Sub-assy, Front Side Member, NO.2 RH
57204A Extension Sub-assy, Front Side Member, NO.2 LH
57405C Member Sub-assy, Center Floor Cross, Rear
57406 Member Sub-assy, Main Floor Side, RH
57409 Member Sub-assy, Main Floor Side, LH
57410 Member Assy, Floor Side, RH
57411A Member, Floor Side, Inner RH
57412A Member, Floor Side, Inner LH
57420 Member Assy, Floor Side, LH
57451 Member, Front Floor Cross
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57605B Member Sub-assy, Rear Floor Cross, NO.1
57607A Member Sub-assy, Rear Floor Cross, NO.3
57633A Extension, Rear Floor Side Member, Rear RH
57634 Extension, Rear Floor Side Member, Rear LH
57654C Member, Rear Floor Cross, NO.3
57695 Extension, Rear Floor Cross Rear Side, RH
57696 Extension, Rear Floor Cross Rear Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
