Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

42 part groups · 6 illustrations

Illustrations

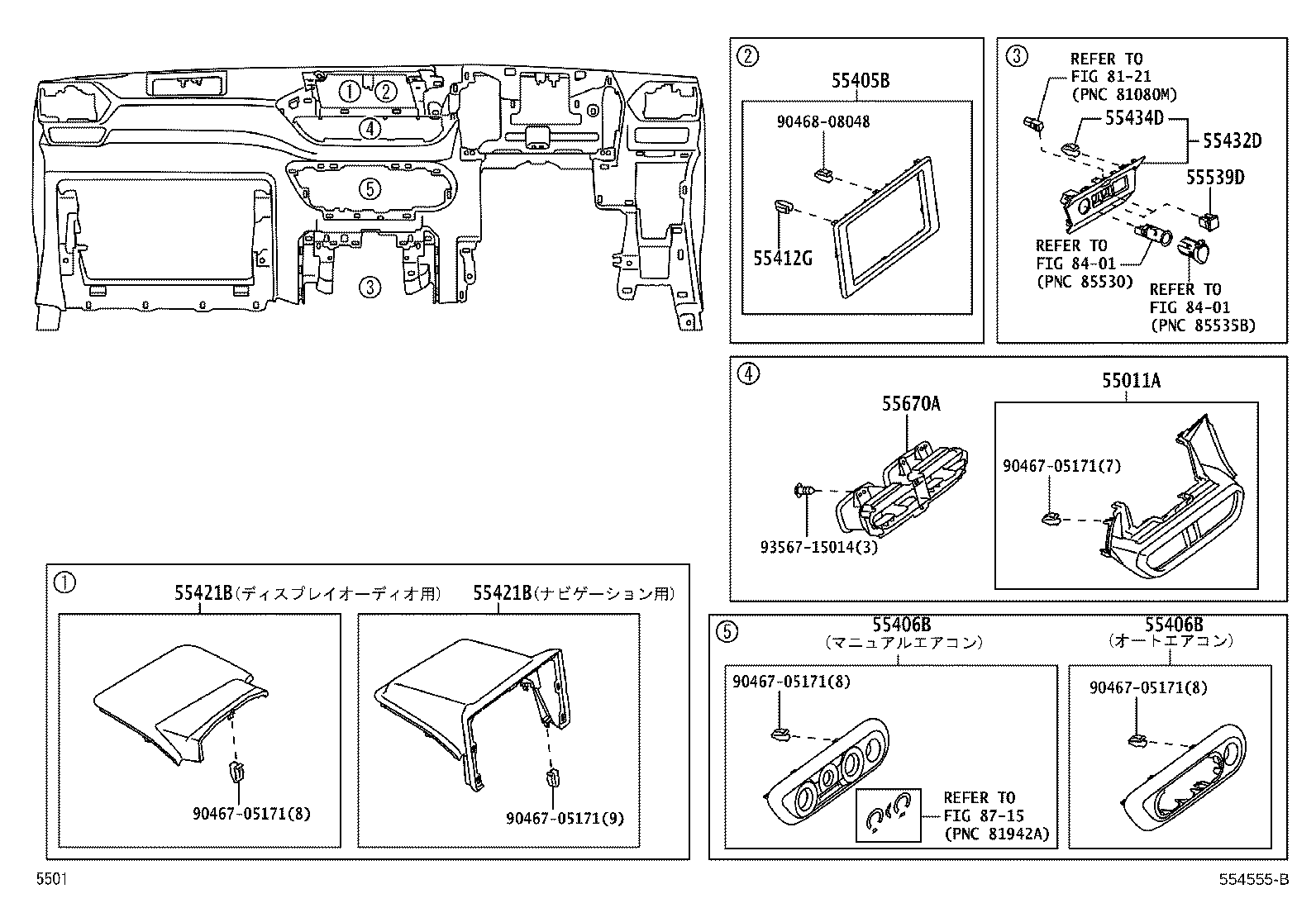

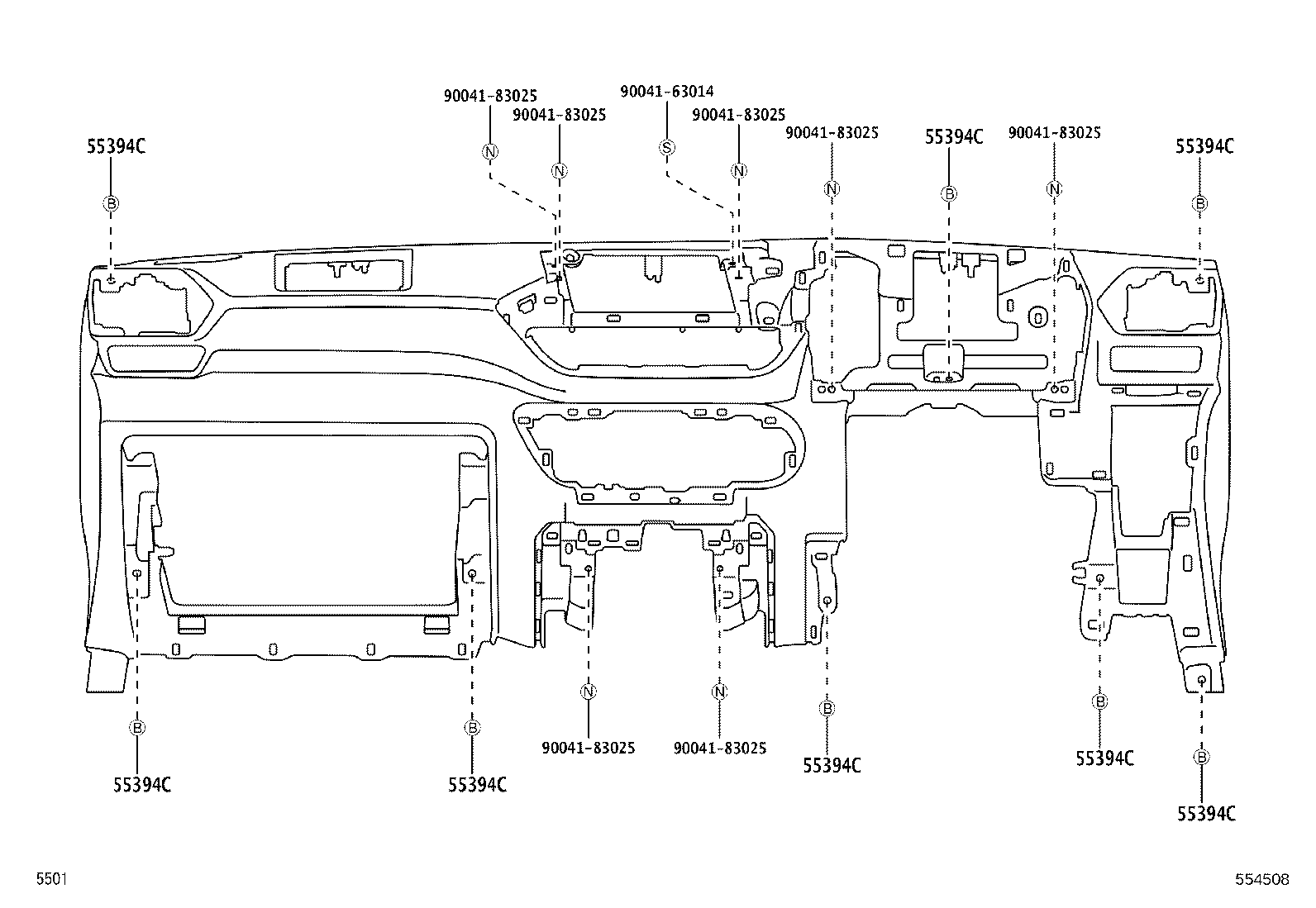

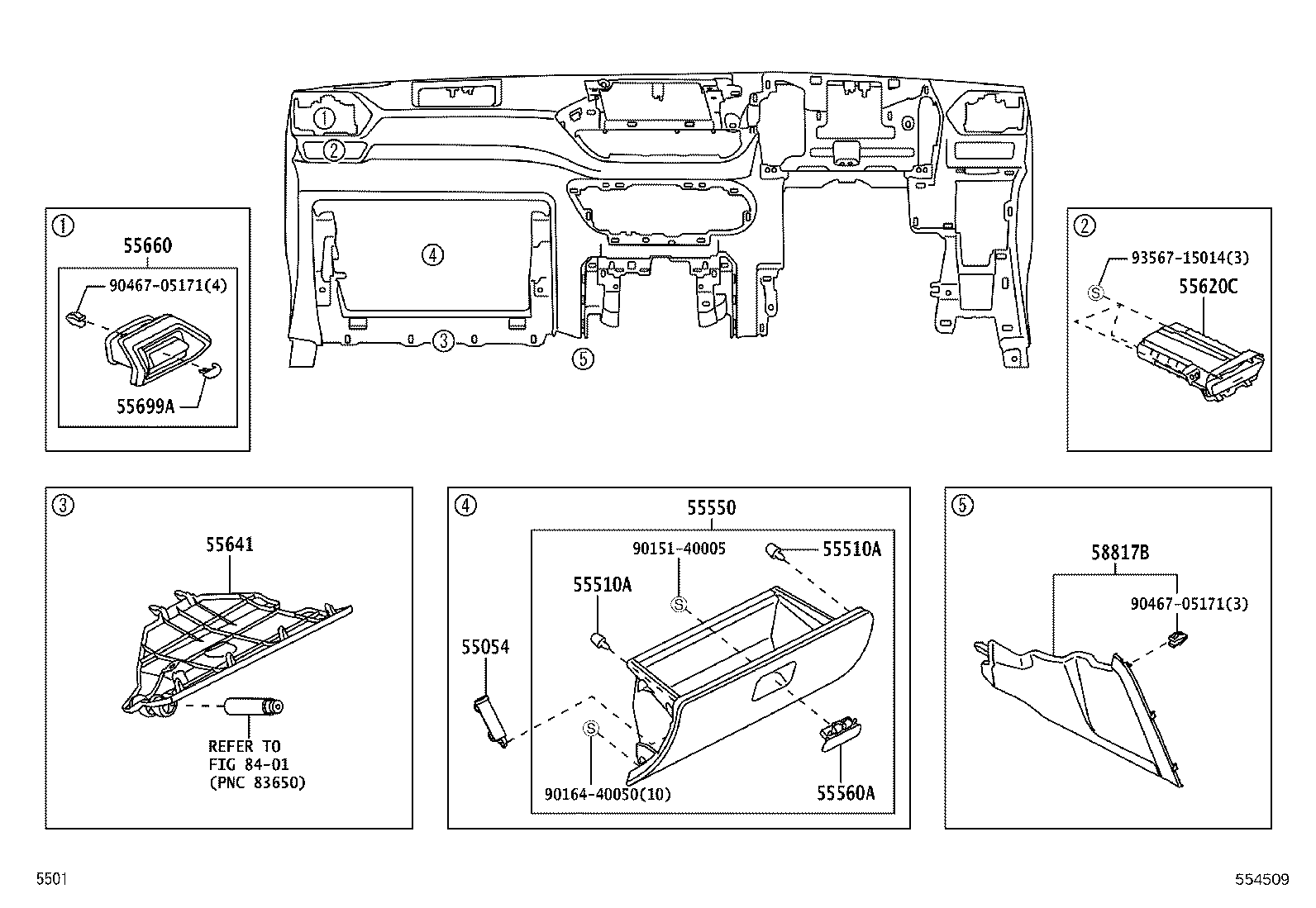

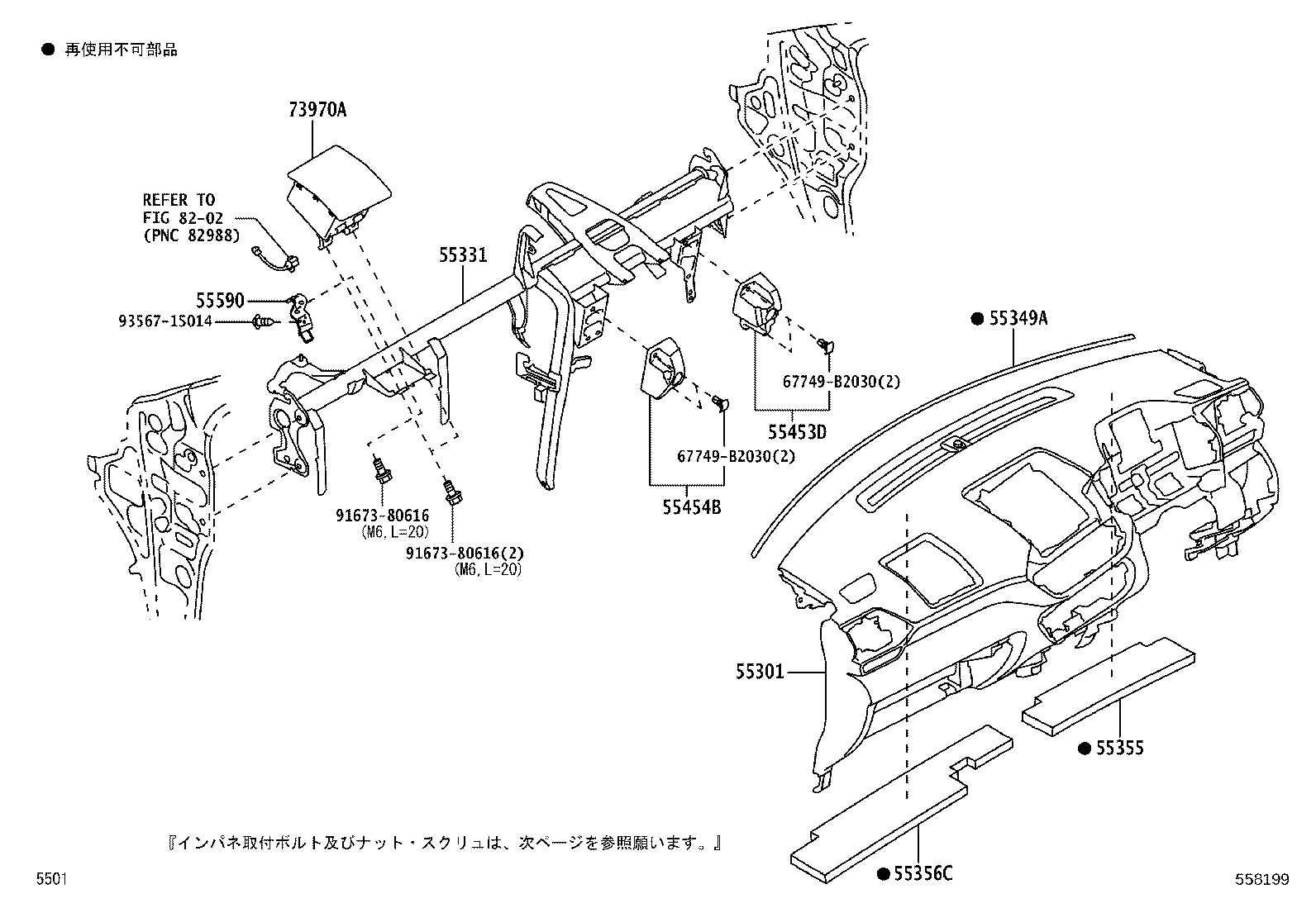

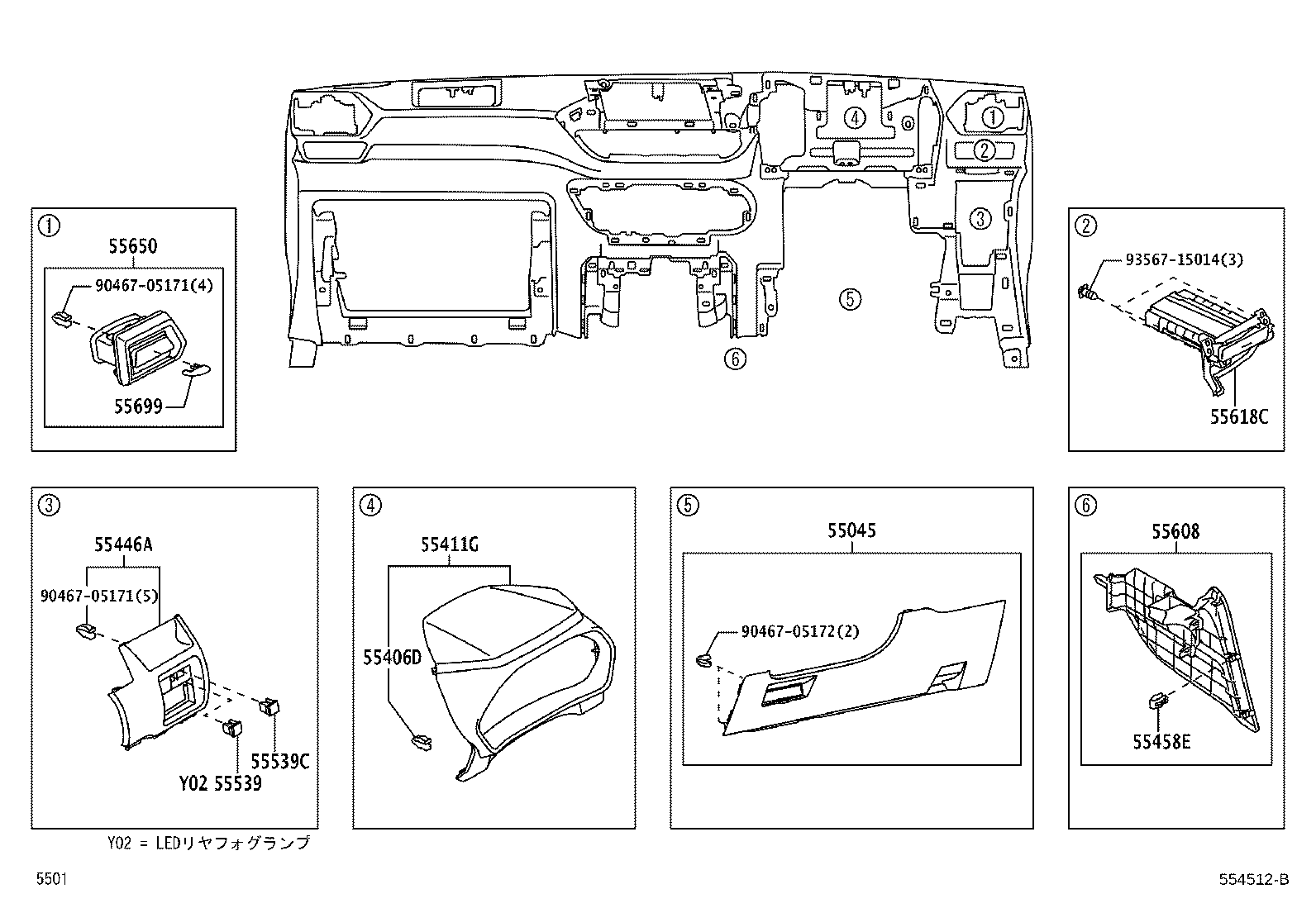

Figure 554507A 554507A 2019-10 → 2021-11 Figure 558199 558199 2021-11 → 2029-12 Figure 554508 554508 2019-10 → — Figure 554509 554509 2019-10 → — Figure 554555B 554555B 2019-10 → 2029-12 Figure 554512B 554512B 2019-10 → 2029-12

Part groups

PNCDescription
55011A Garnish Sub-assy, Instrument Panel, NO.1
55045 Panel Sub-assy, Instrument Panel Finish, Lower
55054 Stopper Sub-assy, Glove Compartment Door
55301 Panel Sub-assy, Instrument
55315A Spacer, Instrument Panel, NO.1
55331 Reinforcement, Instrument Panel
55349A Cushion, Instrument Panel
55355 Cushion, Instrument Panel, NO.1
55356C Cushion, Instrument Panel, NO.2
55394B Bolt, Instrument Panel
55394C Bolt, Instrument Panel
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55406D Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
55409C Plug, Hole
55411G Panel, Instrument Cluster Finish, NO.1
55412G Clip(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL)
55421B Panel, Instrument Cluster Finish, Upper
55432D Panel, Instrument Panel Finish, Lower NO.1
55434D Clip, Instrument Panel Finish, Lower Center
55446A Base, Switch Hole, NO.1
55453D Pad, Instrument Panel Safety, NO.1
55454B Pad, Instrument Panel Safety, NO.2
55458E Clip(FOR INSTRUMENT LOWER COVER)
55510A Cushion(FOR GLOVE COMPARTMENT DOOR)
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55539D Cover, Spare Switch Hole
55550 Door Assy, Glove Compartment
55560A Lock Assy, Glove Compartment Door
55590 Plate Assy, Grove Compartment Door Lock Striker
55608 Cover Sub-assy, Instrument Panel Under, NO.3
55618C Holder, Instrument Panel Cup
55620C Holder, Instrument Panel Cup
55641 Cover, Instrument Panel Under, NO.1
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670A Register Assy, Instrument Panel, Center
55699 Knob, Instrument Panel Register Control
55699A Knob, Instrument Panel Register Control NO.2
58817B Insert, Console Box, Front NO.2
73970A Airbag Assy, Instrument Panel Passenger
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
