Toyota Raize
2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan
Supported model
Data version 2021-11
Mat & Carpet
9 part groups · 2 illustrations

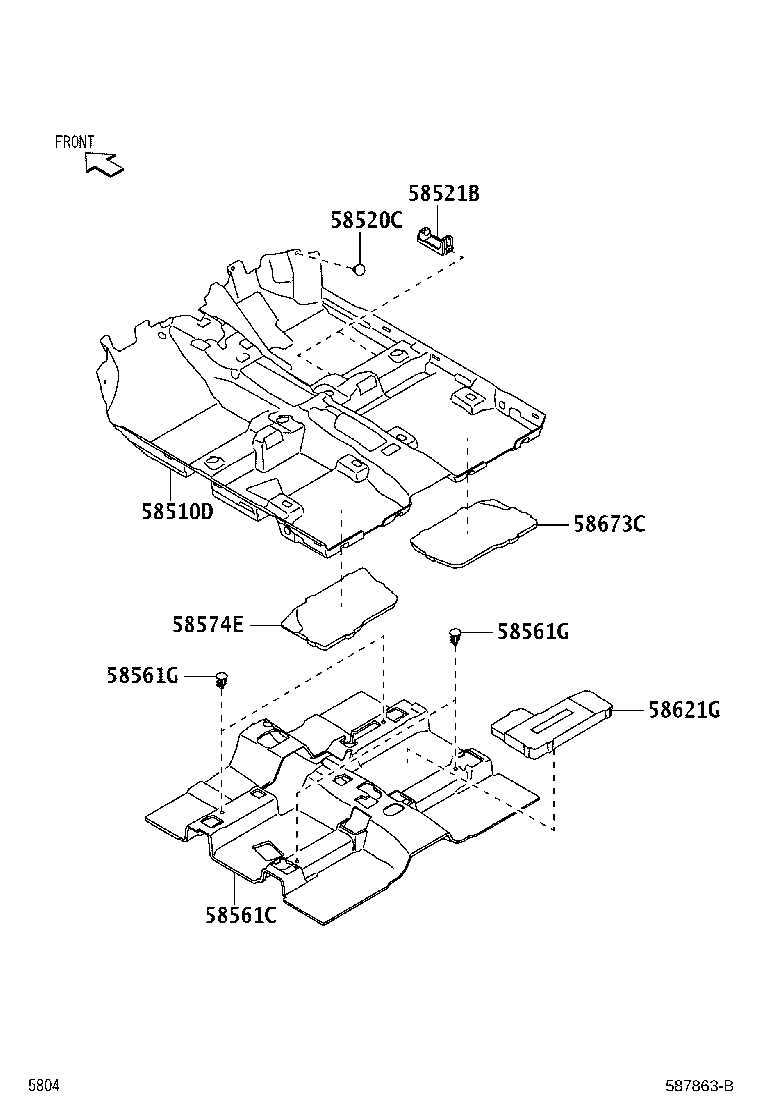

Part groups
| PNC | Description |
|---|---|
| 58510D | Carpet Assy, Floor, Front |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58521B | Hook, Floor Carpet |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58561C | Silencer, Front Floor, NO.1 |
| 58561G | Clip(FOR FRONT FLOOR SILENCER) |
| 58574E | Pad, Rear Floor Silencer, NO.1 |
| 58621G | Pad, Front Floor Silencer, RH |
| 58673C | Pad, Rear Floor Silencer, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
