Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

17 part groups · 9 illustrations

Illustrations

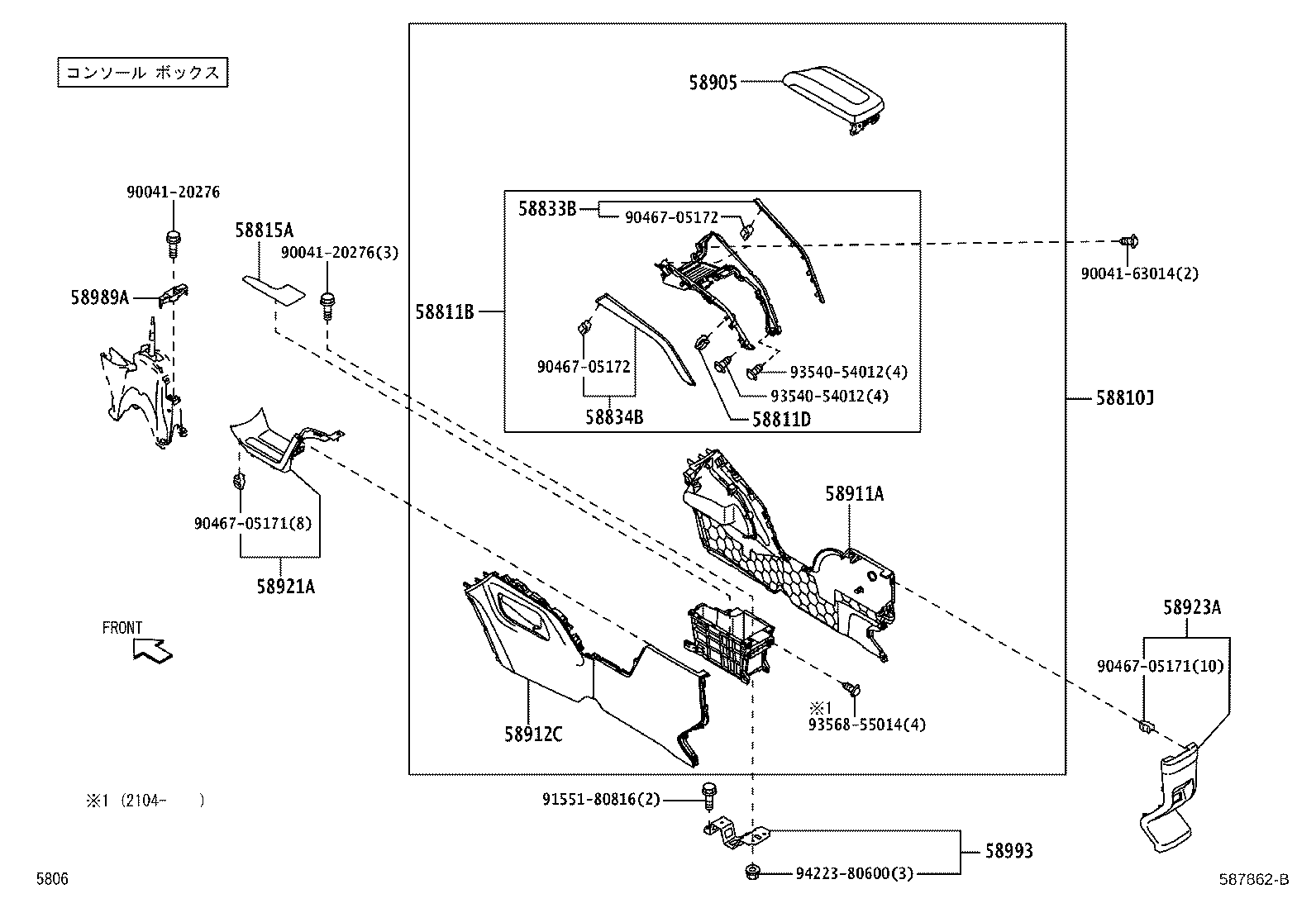

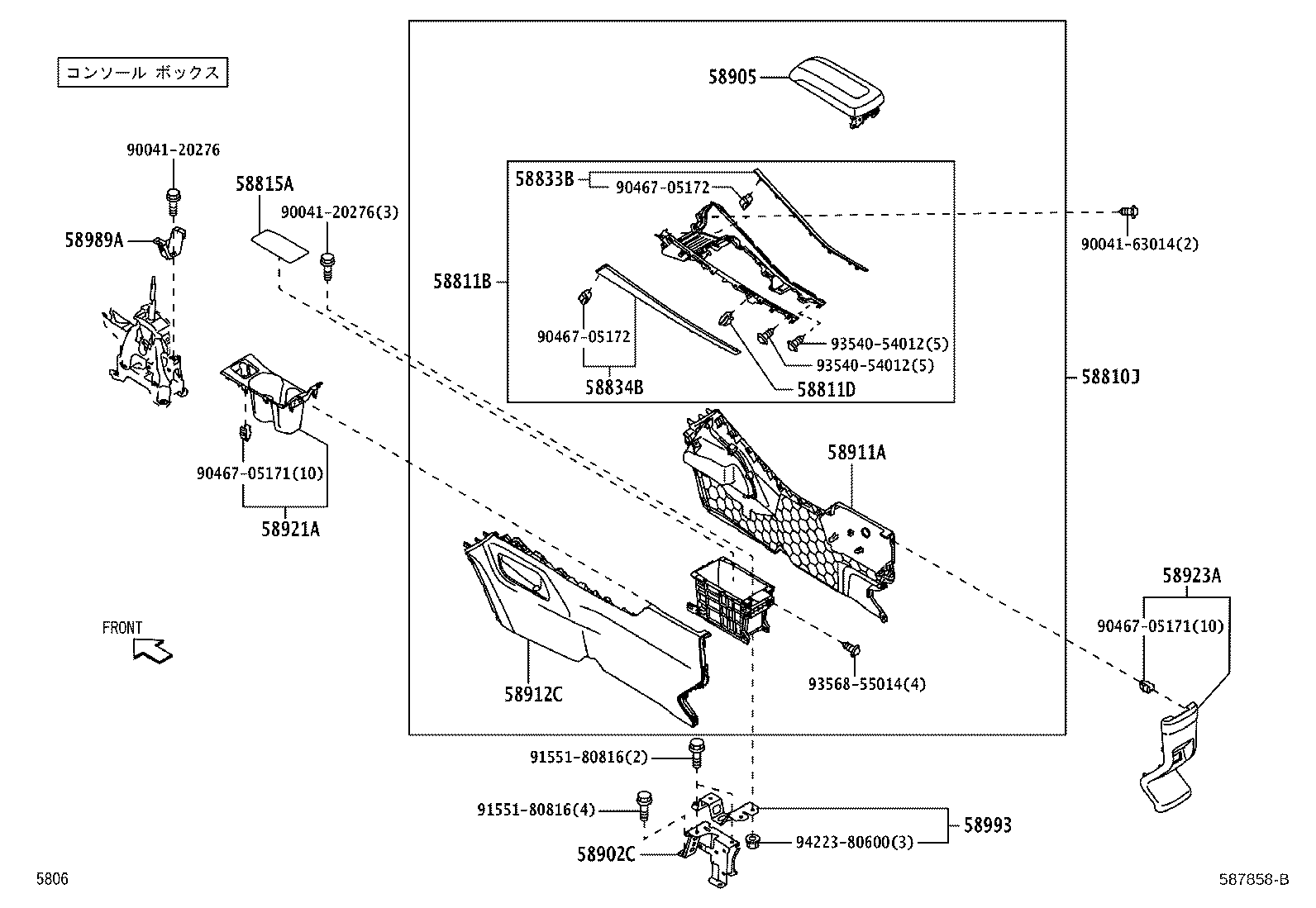

Figure 587756A 587756A 2019-10 → 2021-11 Figure 587757A 587757A 2019-10 → 2021-11 Figure 587852A 587852A 2021-11 → 2029-12 Figure 587854B 587854B 2021-11 → — Figure 587854B 587854B 2024-12 → — Figure 587856A 587856A 2021-11 → 2024-12 Figure 587862B 587862B 2019-10 → 2021-11 Figure 587862B 587862B 2021-11 → — Figure 587858B 587858B 2021-11 → 2029-12

Part groups

PNCDescription
58804A Panel Sub-assy, Console, Upper
58810J Box Assy, Console
58811B Box, Console
58811D Clip(FOR CONSOLE BOX)
58815A Carpet, Console Box
58821C Panel, Console, Upper
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58840K Cover Assy, Shifting Hole
58902C Bracket Sub-assy, Console Box Mounting
58905 Door Sub-assy, Console Compartment
58911A Panel, Box Side, NO.1
58912C Panel, Box Side, NO.2
58921A Panel, Rear Console, Upper
58923A Panel, Console Rear End
58989A Retainer, Console Box
58993 Bracket, Console Box Mounting, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
