Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Quarter Window

10 part groups · 2 illustrations

Illustrations

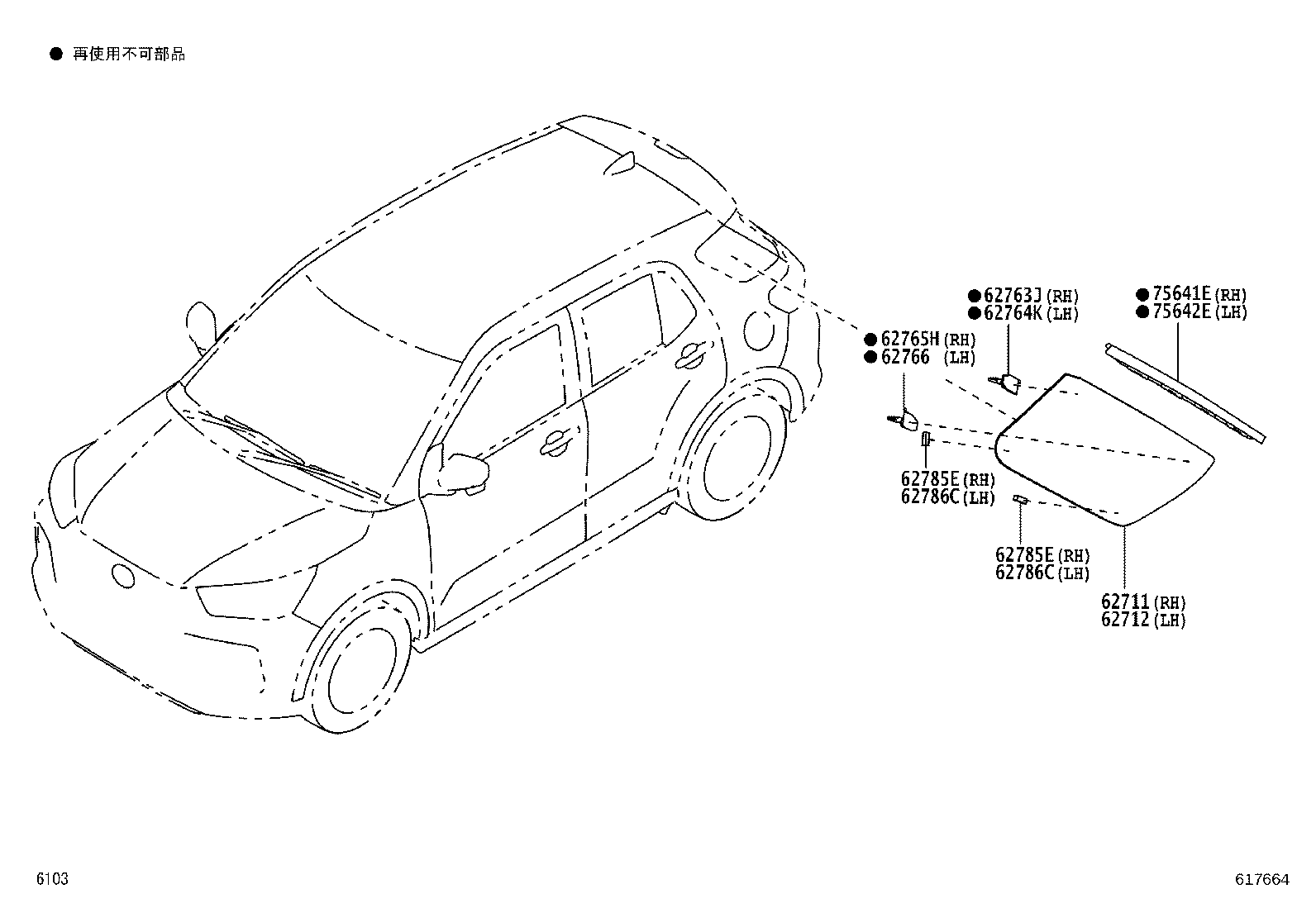

Figure 616428A 616428A 2019-10 → 2021-11 Figure 617664 617664 2021-11 → —

Part groups

PNCDescription
62711 Glass, Quarter Window, RH
62712 Glass, Quarter Window, LH
62763J Retainer, Quarter Window Glass, Upper
62764K Retainer, Quarter Window Glass, Upper
62765H Retainer, Quarter Window Glass, Lower
62766 Retainer, Quarter Window Glass, Lower LH
62785E Spacer, Quarter Window Glass, RH
62786C Spacer, Quarter Window Glass, LH
75641E Moulding, Quarter Window, RH
75642E Moulding, Quarter Window, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
