Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

14 part groups · 3 illustrations

Illustrations

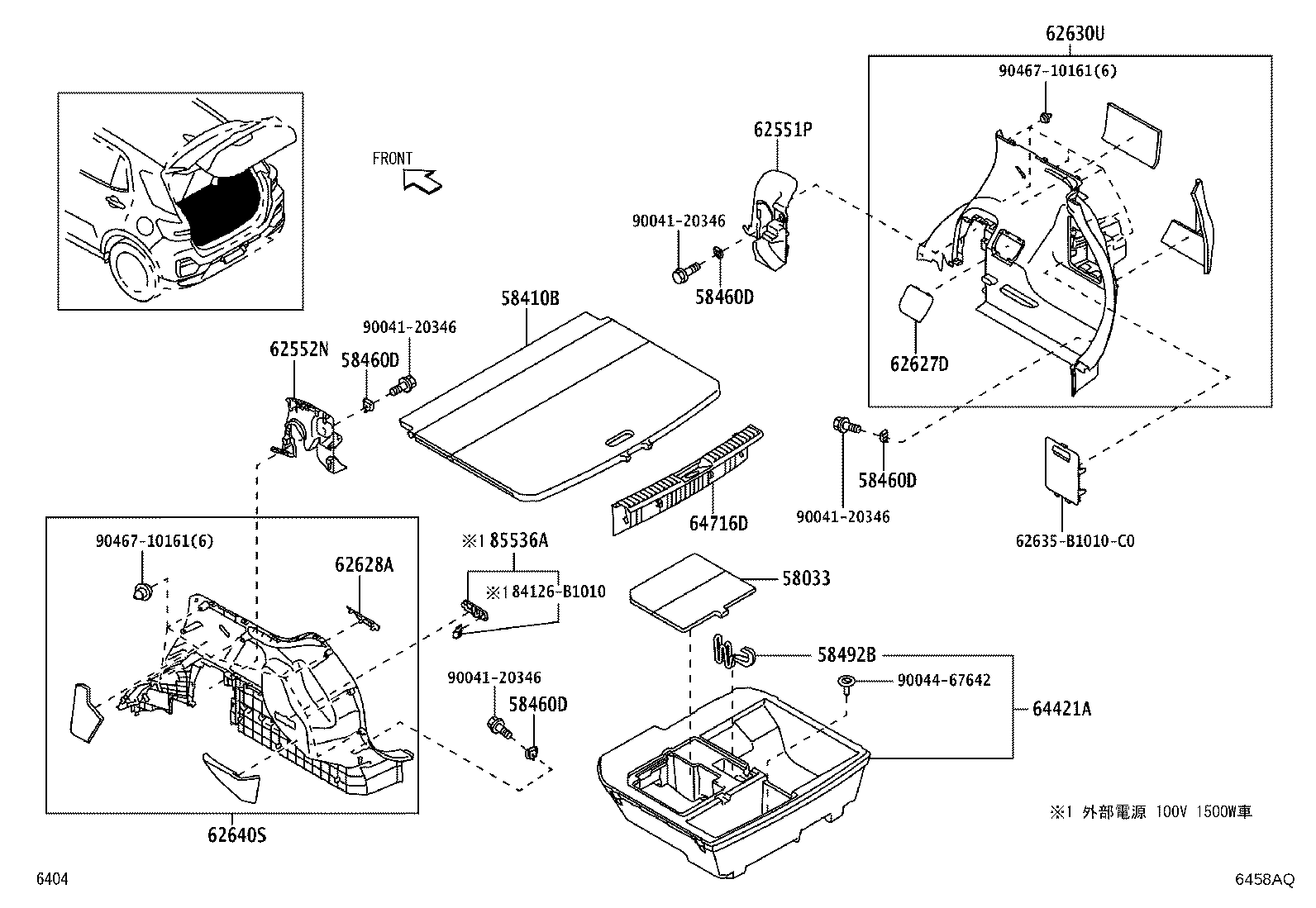

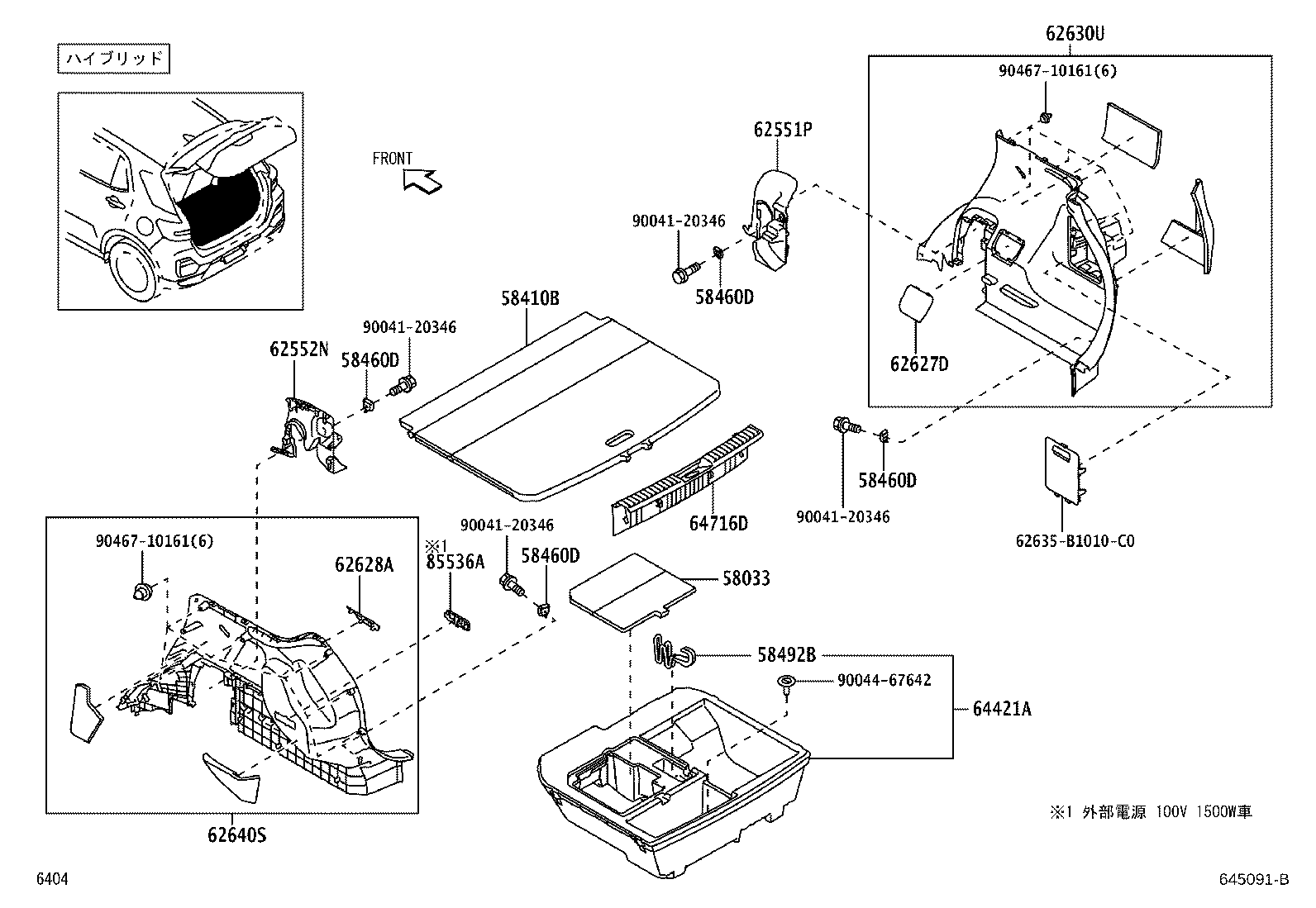

Figure 644699D 644699D 2019-10 → — Figure 645091B 645091B 2021-11 → 2024-04 Figure 6458AQ 6458AQ 2024-04 → —

Part groups

PNCDescription
58033 Board Sub-assy, Rear Floor
58410B Board Assy, Deck
58460D Striker Assy, Luggage Hold Belt
58492B Hook, Deck Board Lock
58582D Mat, Rear Floor, Rear
62551P Cover, Rear Seat Side, RH
62552N Cover, Rear Seat Side, LH
62627D Cover, Side Trim, RH
62628A Cover, Side Trim, LH
62630U Panel Assy, Quarter Trim, Rear RH
62640S Panel Assy, Quarter Trim, Rear LH
64421A Tray, Luggage Compartment
64716D Cover, Deck Trim, Rear
85536A Bezel, Power Outlet Socket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
