Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

16 part groups · 5 illustrations

Illustrations

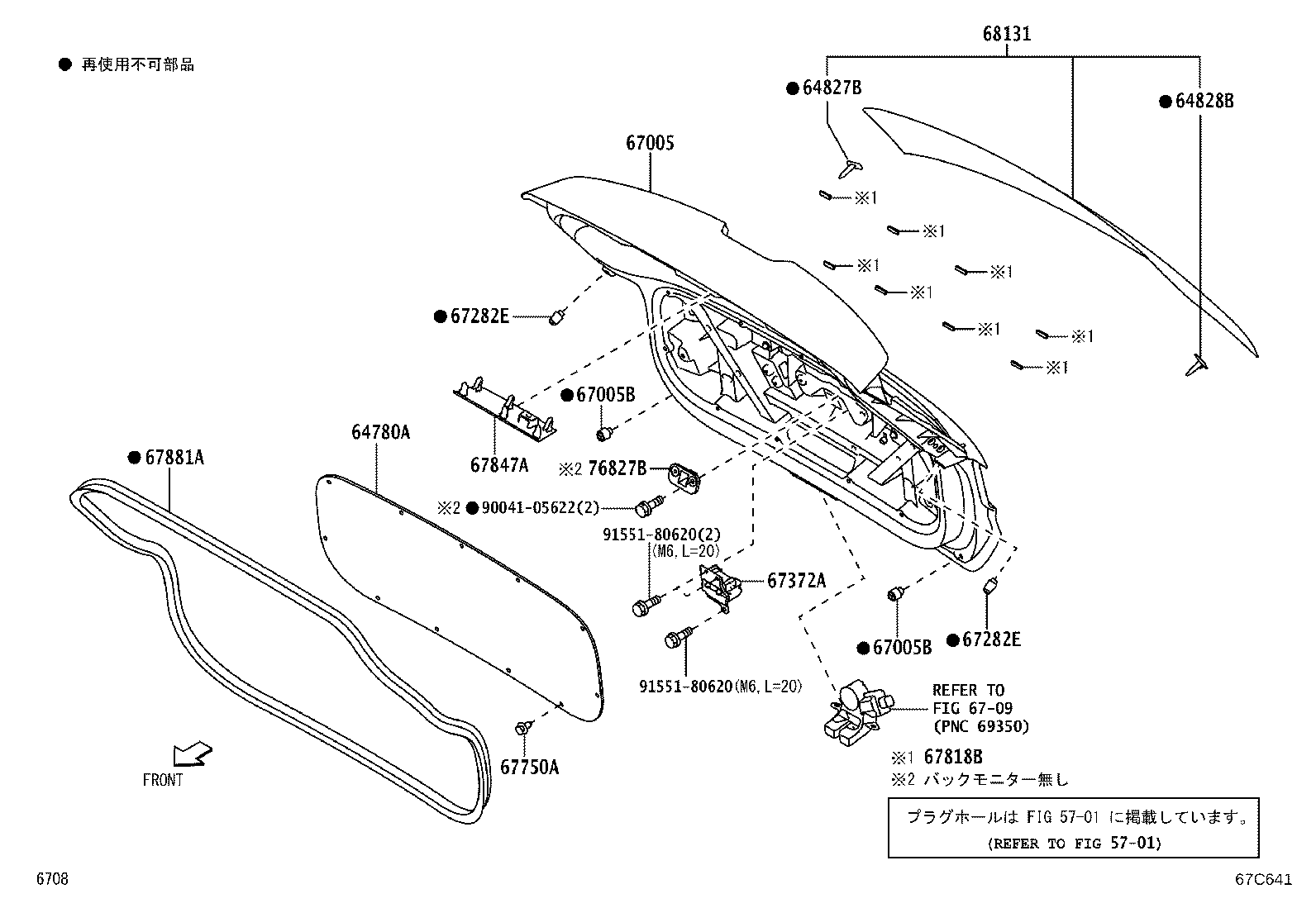

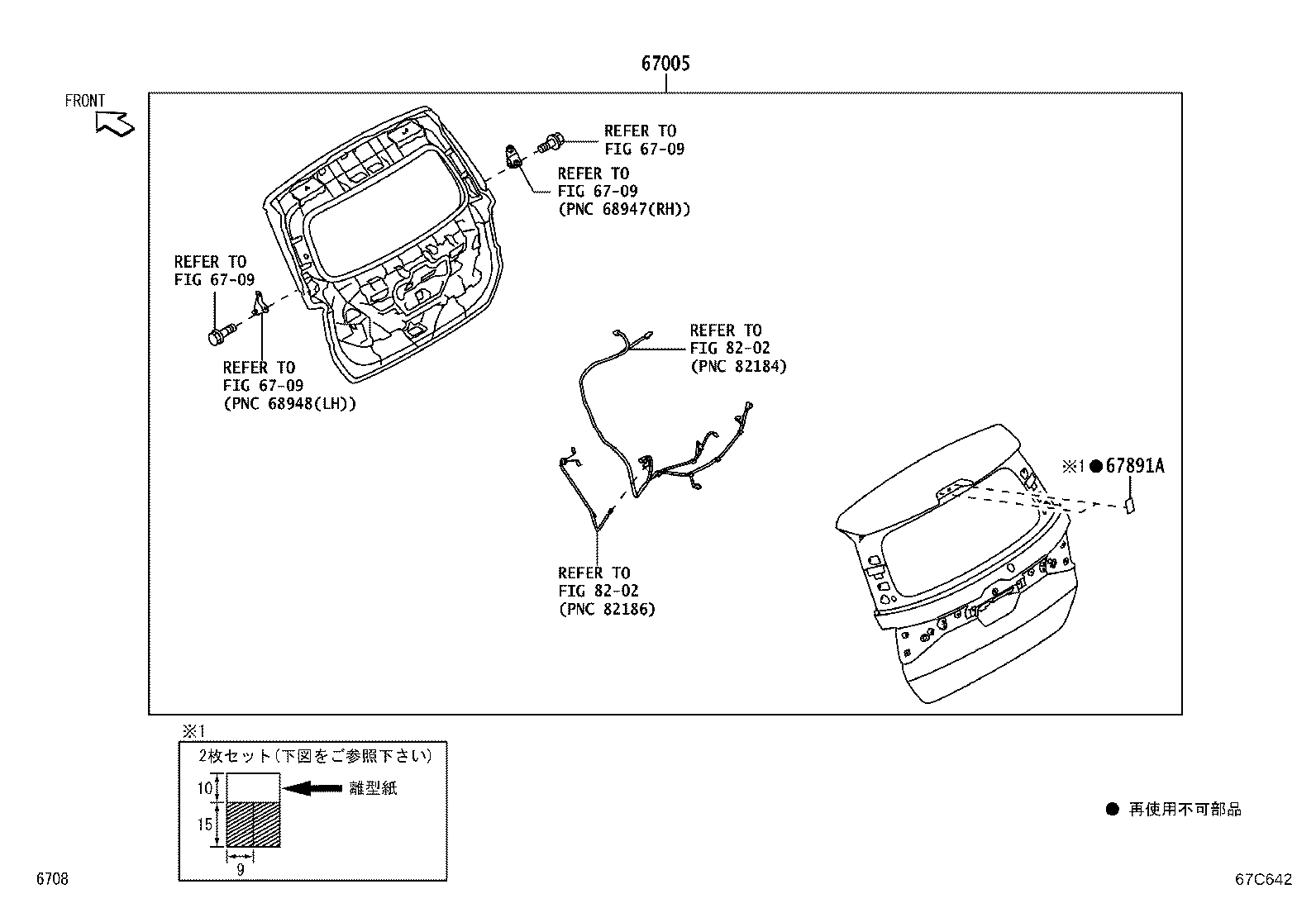

Figure 67A642D 67A642D 2019-10 → 2021-11 Figure 67C641 67C641 2021-11 → 2029-12 Figure 67C642 67C642 2019-10 → — Figure 67A857 67A857 2019-10 → 2021-11 Figure 67B482A 67B482A 2021-11 → —

Part groups

PNCDescription
64780A Panel Assy, Back Door Trim
64827B Clip, Back Window Glass, RH
64828B Clip, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67282E Cushion, Back Door Stopper, NO.3
67372A Weight, Back Door
67750A Clip(FOR BACK DOOR TRIM)
67818B Spacer, Back Window Glass
67847A Cover, Back Door Service Hole
67881A Weatherstrip, Back Door
67891A Seal, Back Door
67939C Clip(FOR BACK DOOR CENTER GARNISH)
68131 Glass, Back Door
76811A Garnish, Back Door, Outside
76827B Retainer, Back Door Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
