Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

13 part groups · 3 illustrations

Illustrations

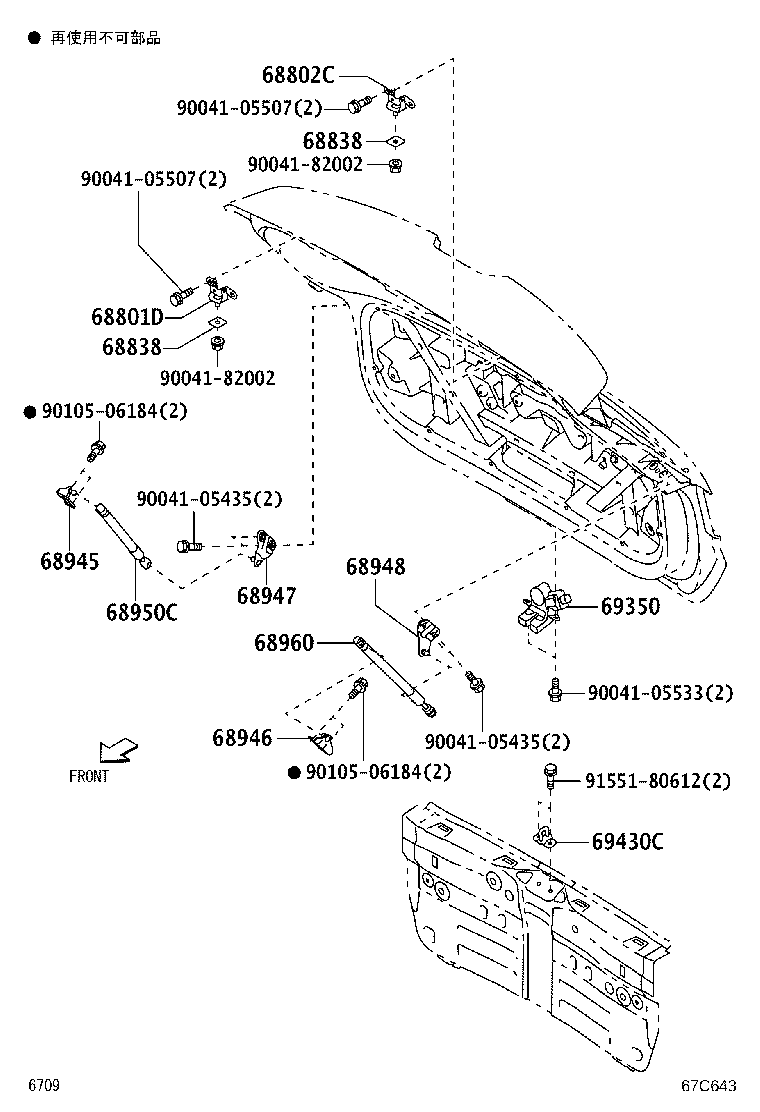

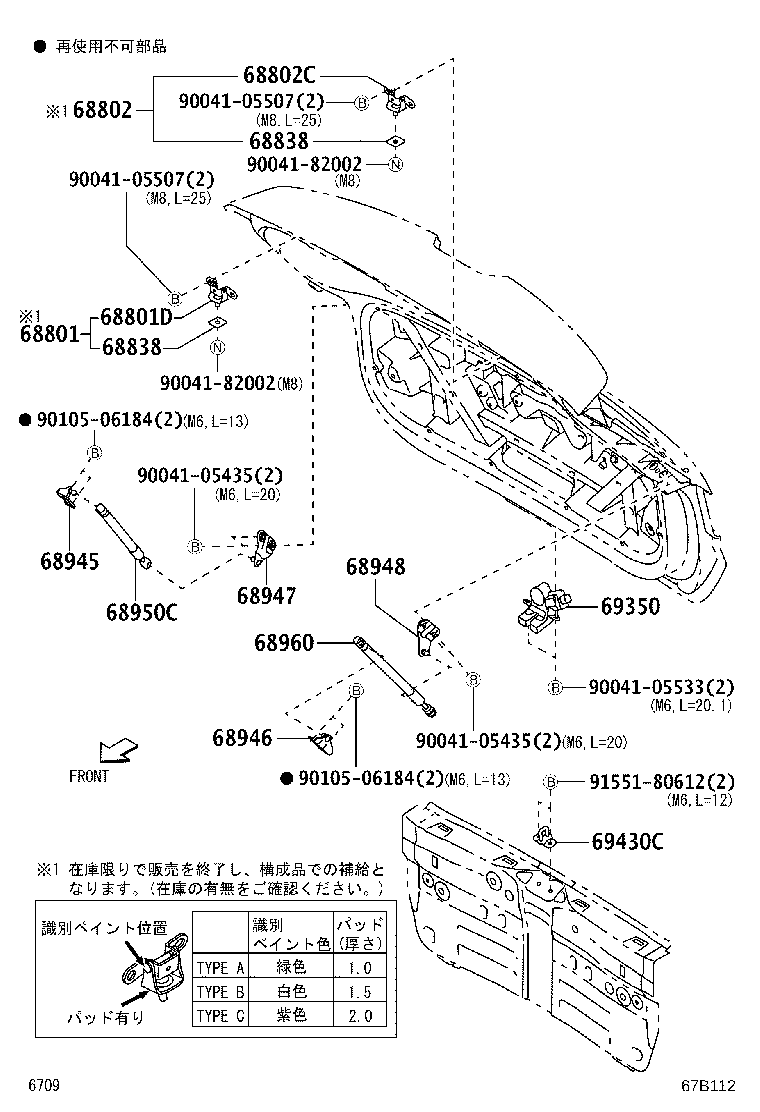

Figure 67A549A 67A549A 2019-10 → 2020-05 Figure 67B112 67B112 2020-05 → 2021-11 Figure 67C643 67C643 2021-11 → —

Part groups

PNCDescription
68801 Hinge Sub-assy, Back Door, Upper RH
68801D Hinge Sub-assy, Back Door, RH
68802 Hinge Sub-assy, Back Door, Upper LH
68802C Hinge Sub-assy, Back Door, LH
68838 Pad, Back Door Hinge, NO.1
68945 Bracket, Back Door Damper Stay, Upper RH
68946 Bracket, Back Door Damper Stay, Upper LH
68947 Bracket, Back Door Damper Stay, Lower RH
68948 Bracket, Back Door Damper Stay, Lower LH
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
69350 Lock Assy, Back Door
69430C Striker Assy, Back Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
