Toyota Raize
2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan
Supported model
Data version 2021-11
Armrest & Visor
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74233B | Panel, Front Door Armrest Base, Lower RH |
| 74234B | Panel, Front Door Armrest Base, Lower LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |

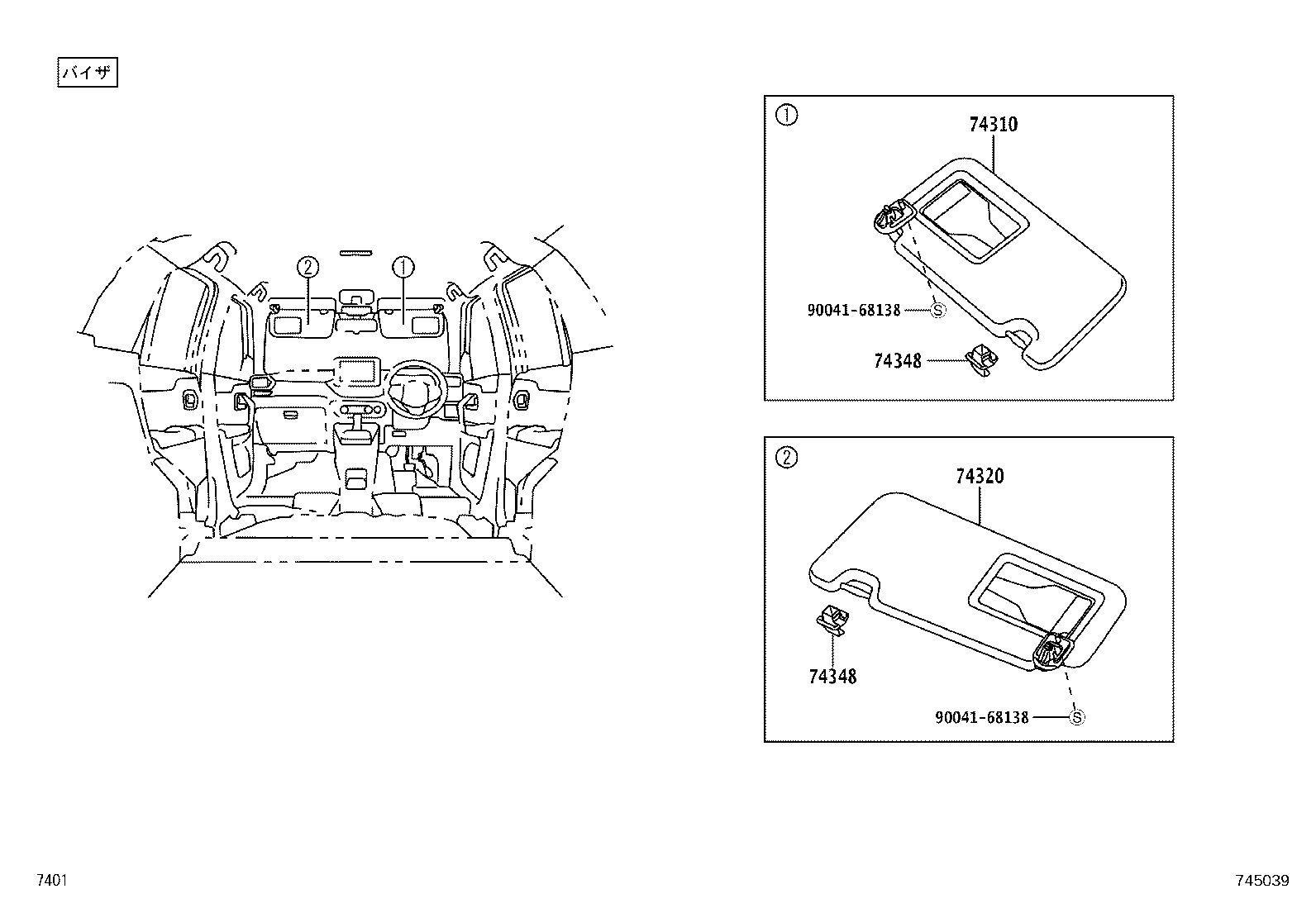

| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74610S | Grip Assy, Assist |
| 74612D | Cover, Assist Grip |
| 74615 | Base, Assist Grip |
| 74645A | Cover, Door Assist Grip, RH |
| 74646 | Cover, Door Assist Grip, LH |
| 74647 | Base, Door Assist Grip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
