Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

5 part groups · 2 illustrations

Illustrations

746880 2019-10 → —

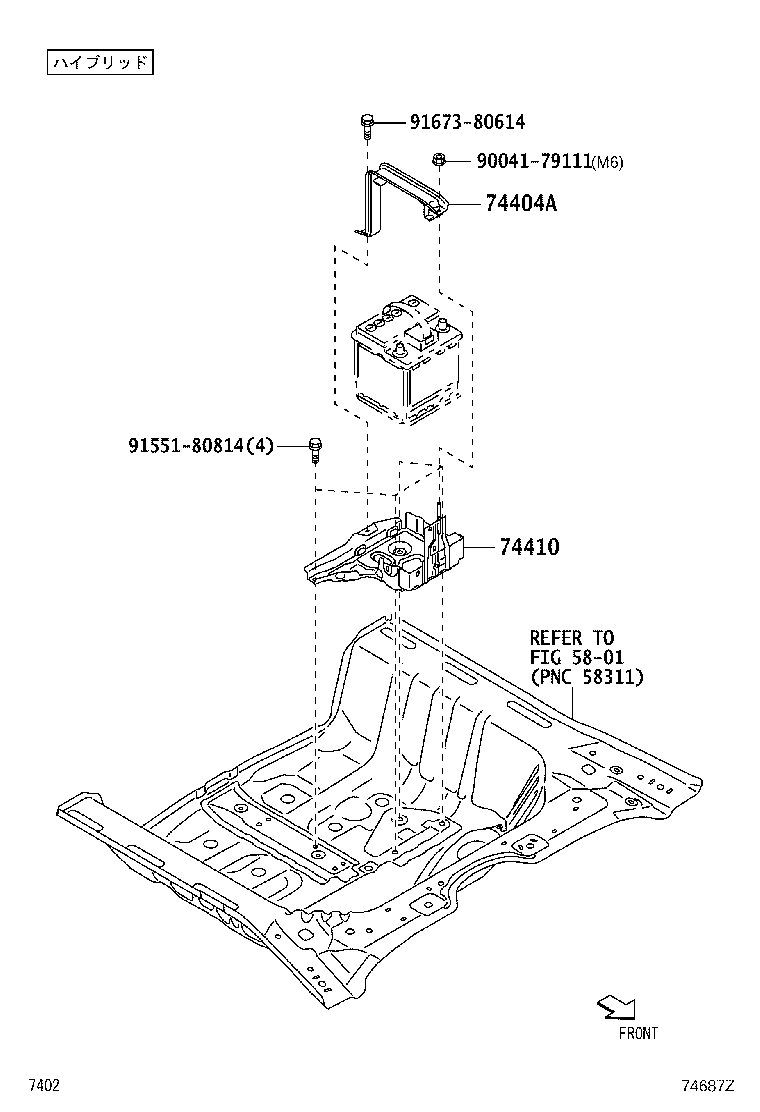

Figure 74687Z

74687Z 2021-11 → —

Part groups

PNC	Description
74404A	Clamp Sub-assy, Battery
74410	Carrier Assy, Battery
74411	Carrier, Battery
74451B	Bolt, Battery Clamp
74461	Cover, Battery

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
