Toyota Raize
2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan
Supported model
Data version 2021-11

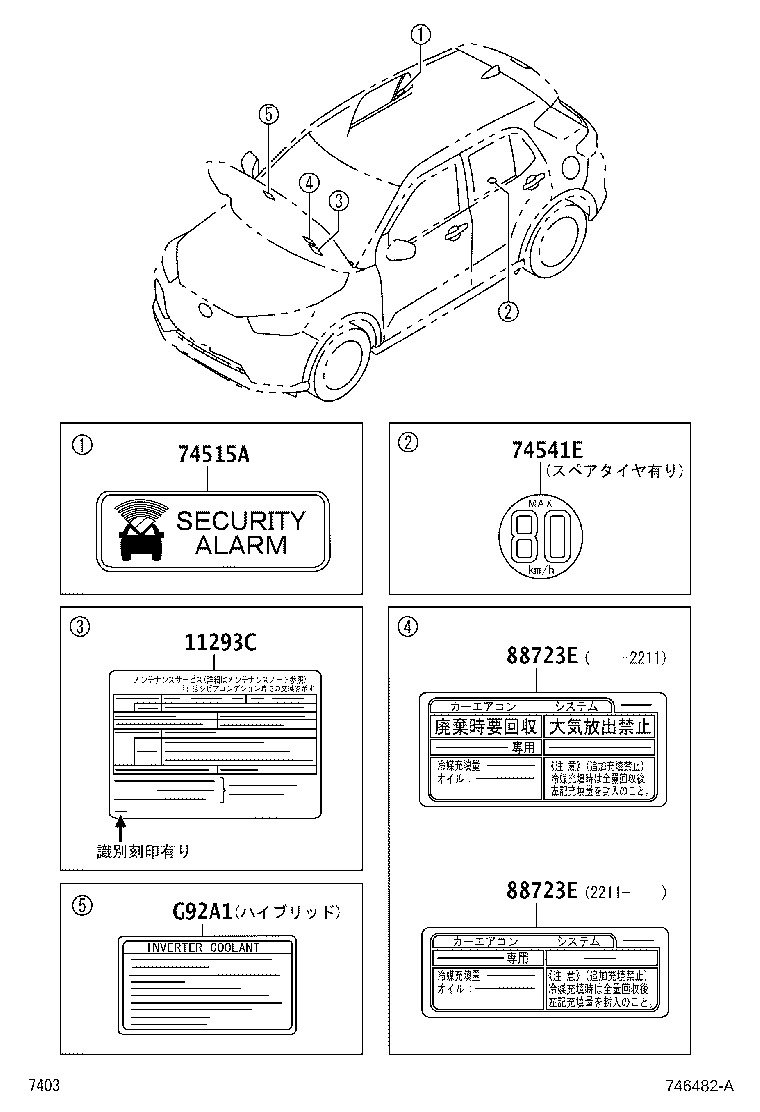

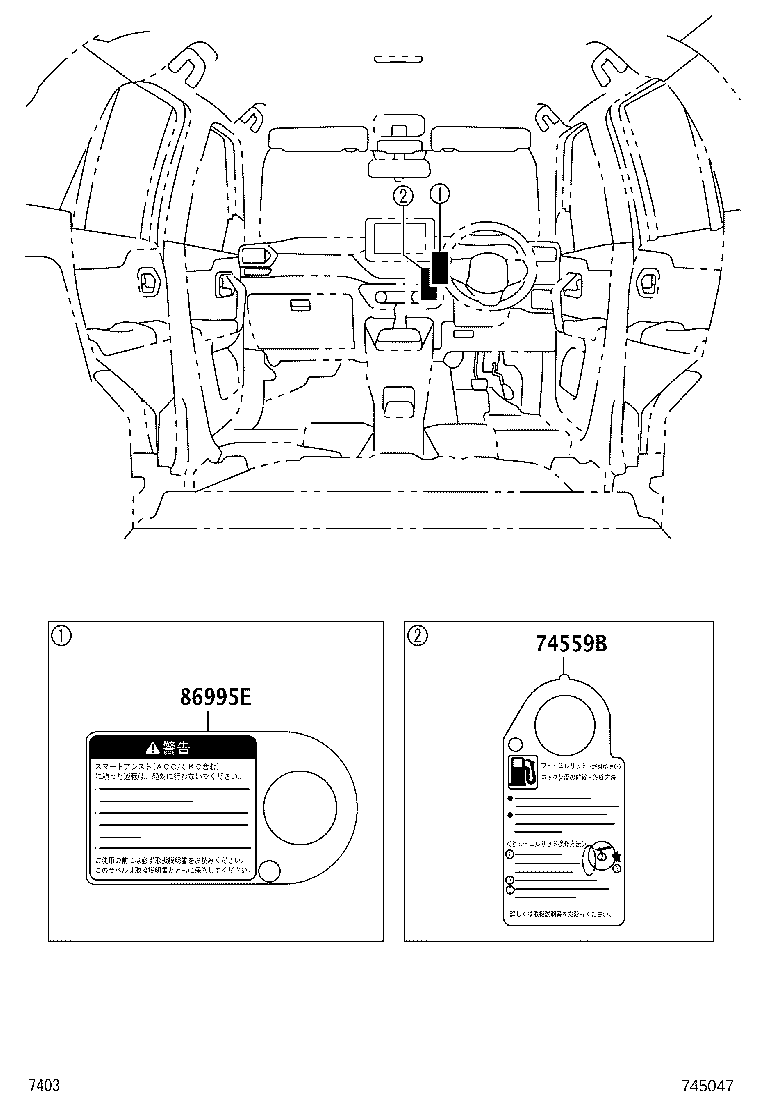

Caution Plate (EXTERIOR & INTERIOR)
13 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 11293C | Label, Tune-up Specification Information |
| 16793E | Label, Cooling Fan Caution |
| 36369 | Label, Transfer Information |
| 41992 | Label, Differential Notice |
| 74515A | Plate, Theft Warning |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559B | Label, Fuel Information |
| 74561A | Label, Fuel Consumption Information |
| 74562B | Label, Emission Information |
| 74751 | Label, Tire Pressure Information |
| 86995E | Label, Caution |
| 88723E | Label, Cooler Service Caution |
| G92A1 | Label, Hybrid Coolant System Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
