Toyota Raize
2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan
Supported model
Data version 2021-11

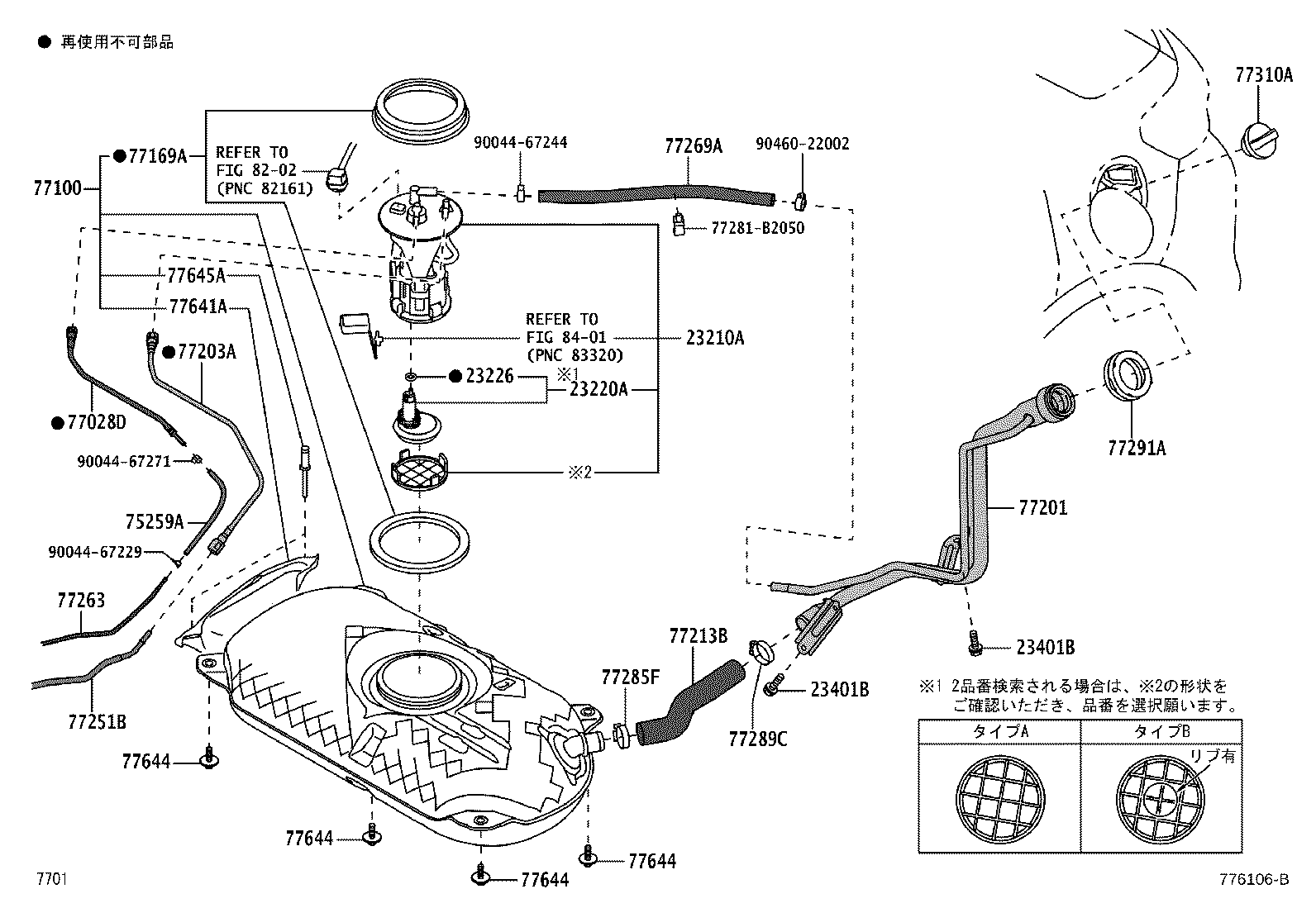

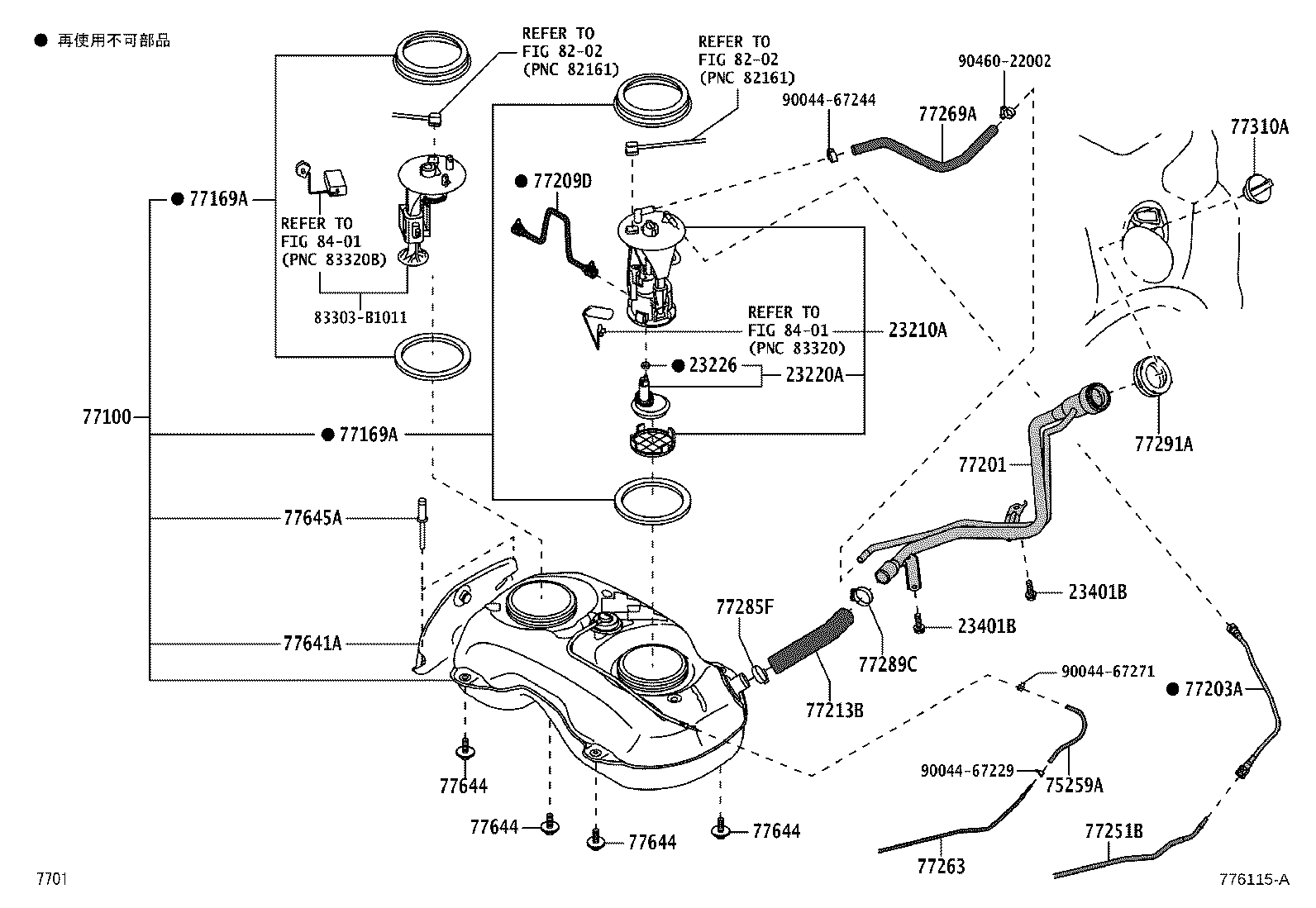

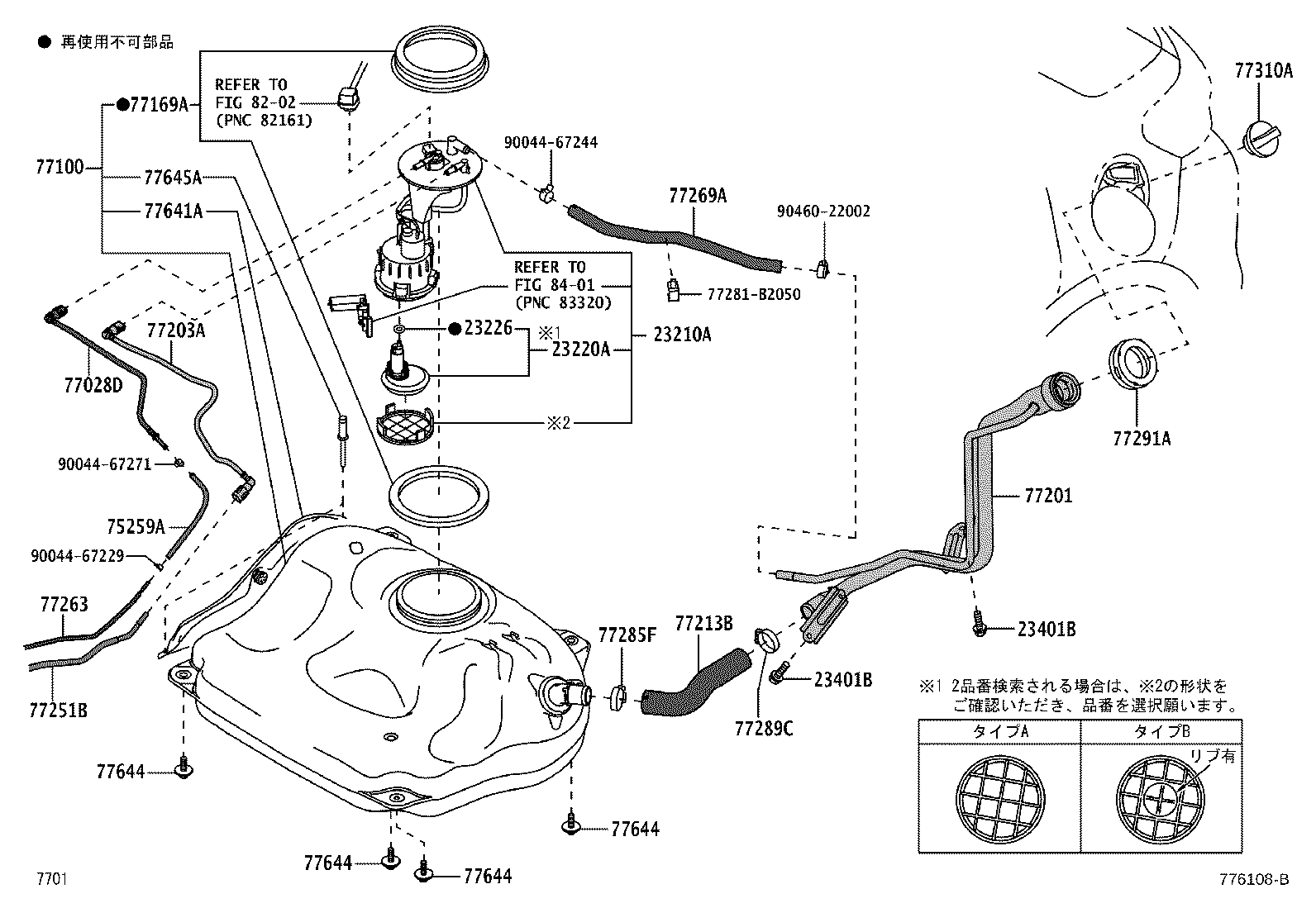

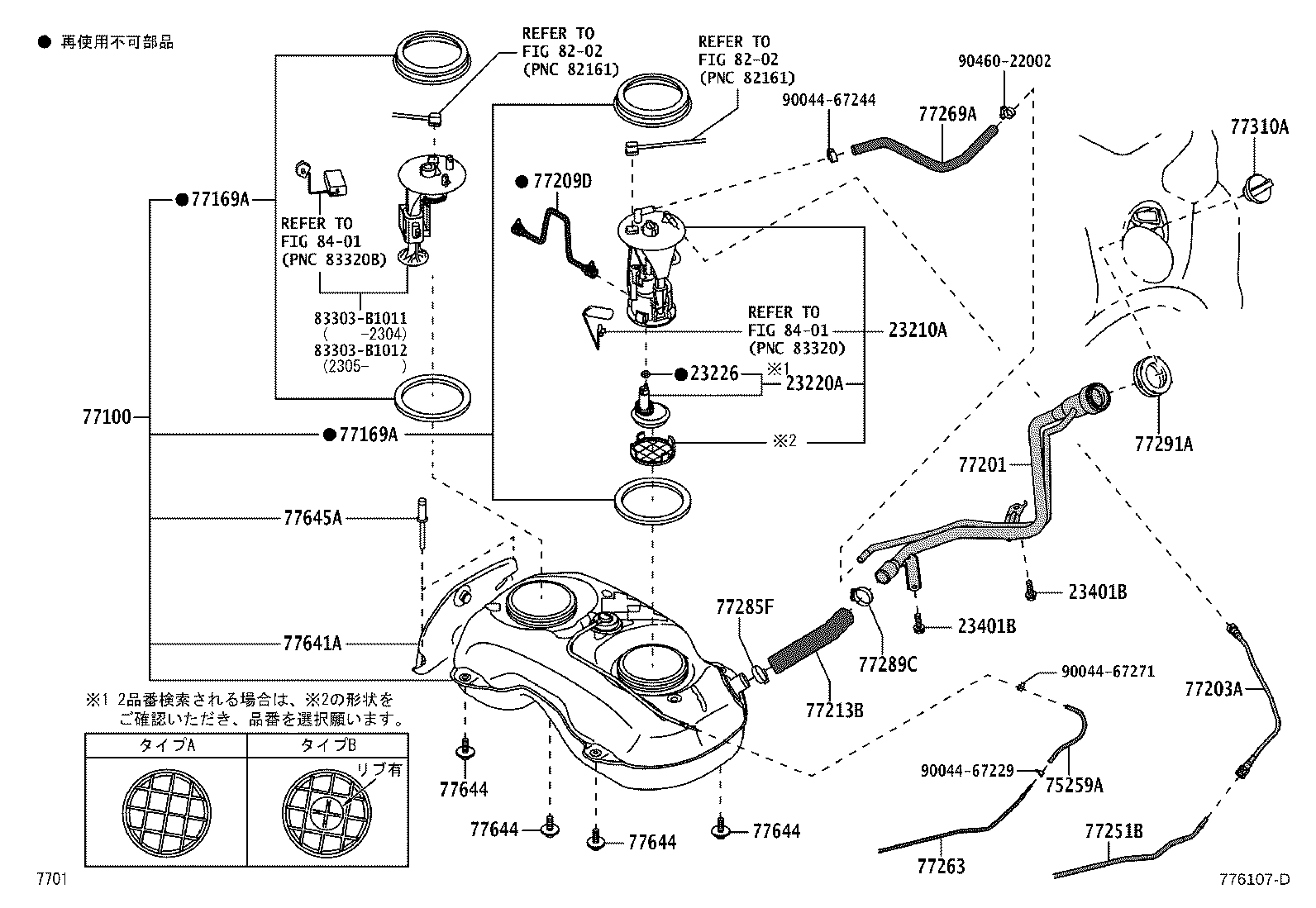

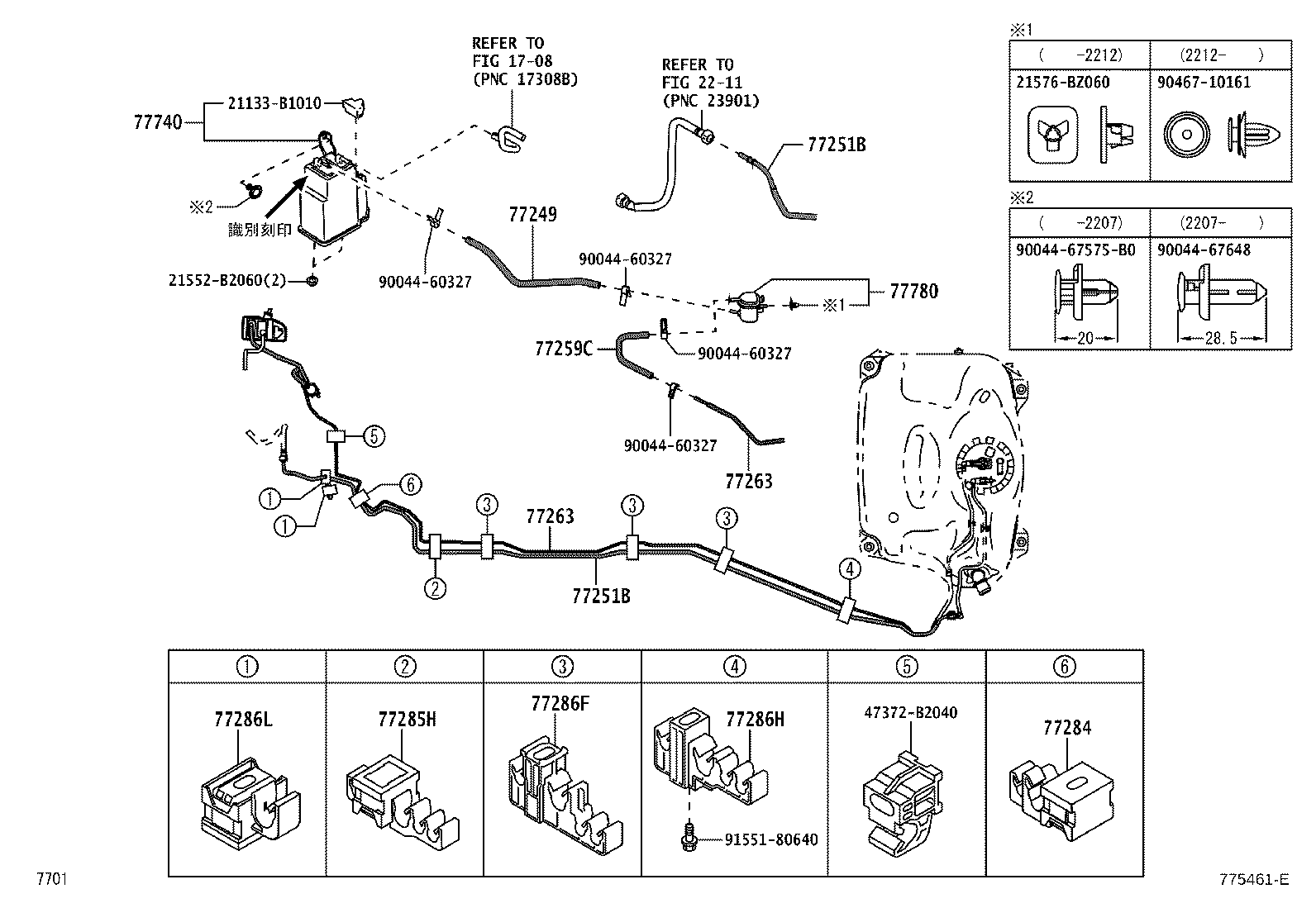

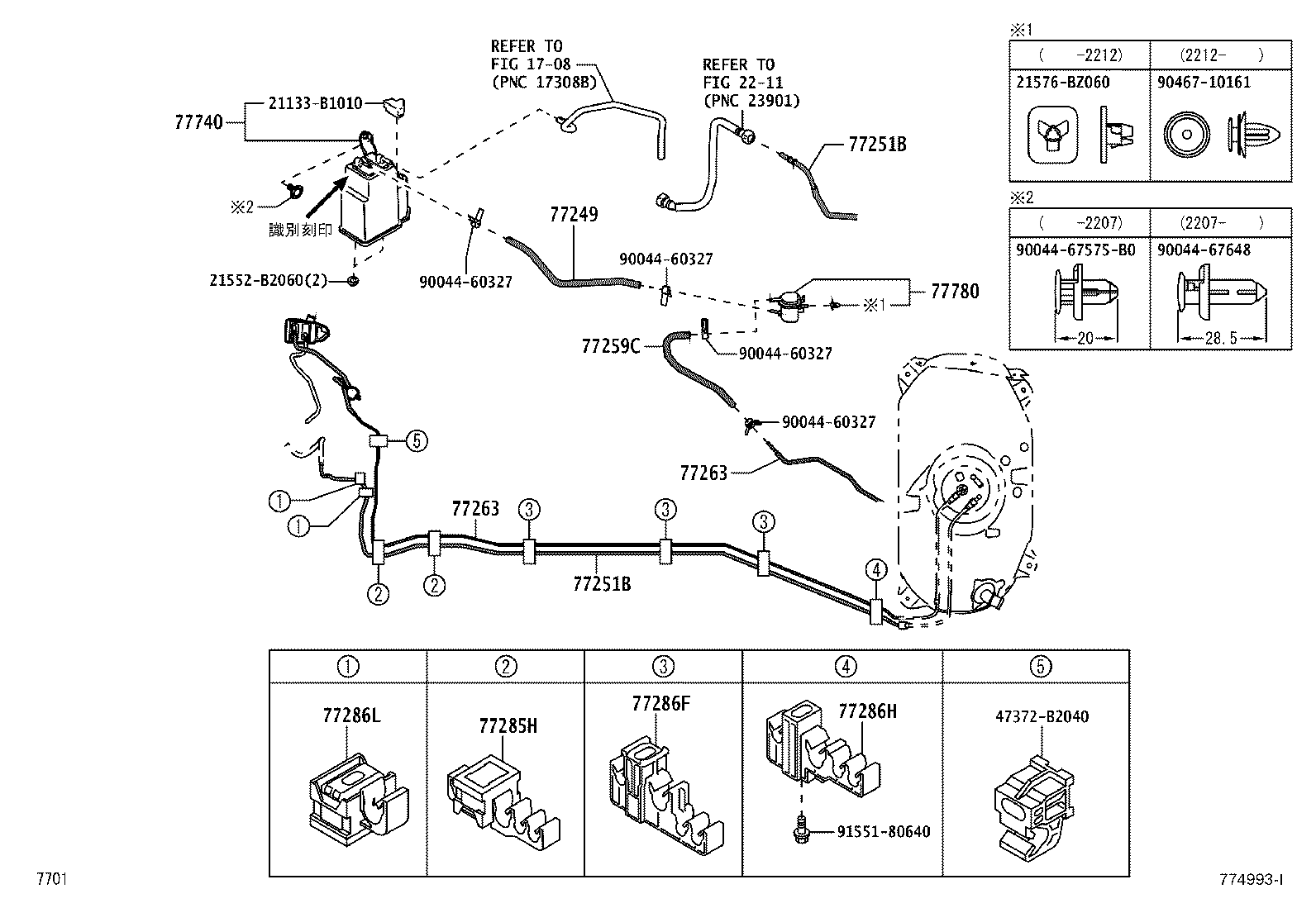

Fuel Tank & Tube
34 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 23210A | Pump Assy, Fuel W/Motor & Bracket |
| 23220A | Pump Assy, Fuel W/Filter |
| 23226 | Ring, O(FOR FUEL PUMP) |
| 23401B | Bolt |
| 75259A | Hose, Fuel |
| 77028D | Tube Sub-assy, Fuel Emission, Rear |

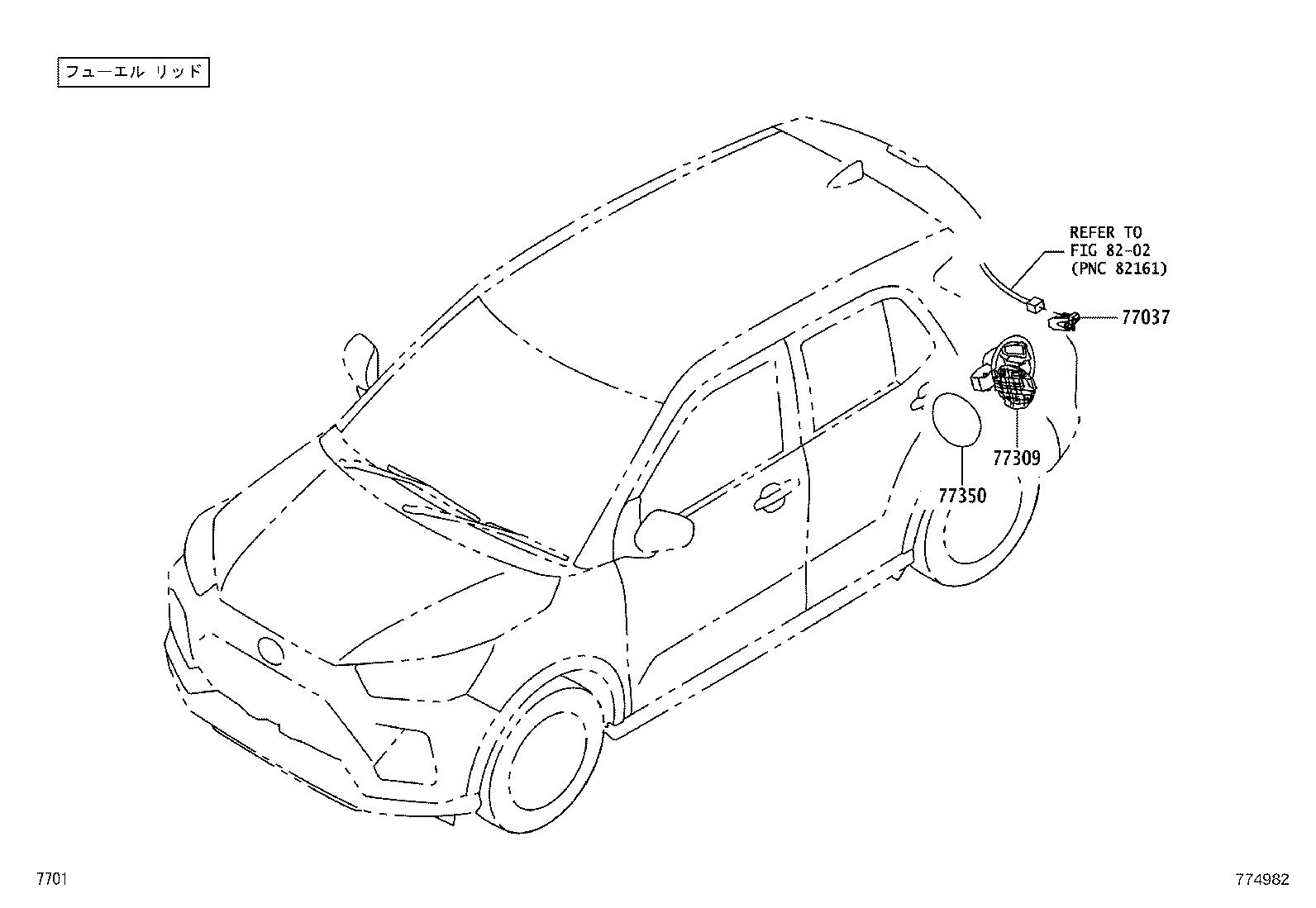

| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77100 | Tank Assy, Fuel |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77203A | Tube Sub-assy, Fuel Suction |
| 77209D | Tube Sub-assy, Fuel Tank Main |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77249 | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77259C | Hose, Fuel |
| 77263 | Tube, Fuel Tank TO Canister, NO.3 |
| 77269A | Hose, Fuel Tank Breather |
| 77284 | Clamp, Fuel Tube |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77285H | Clamp, Fuel Tube, NO.1 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77286L | Clamp, Fuel Tube, NO.5 |
| 77289C | Clamp, Fuel Tube, NO.4 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77309 | Hinge Sub-assy, Fuel Inlet Box Cover |
| 77310A | Cap Assy, Fuel Tank |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77644 | Bolt, Fuel Tank |
| 77645A | Retainer, Fuel Tank Protector |
| 77740 | Canister Assy, Charcoal |
| 77780 | Valve Assy, Purge Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
