Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

13 part groups · 2 illustrations

Illustrations

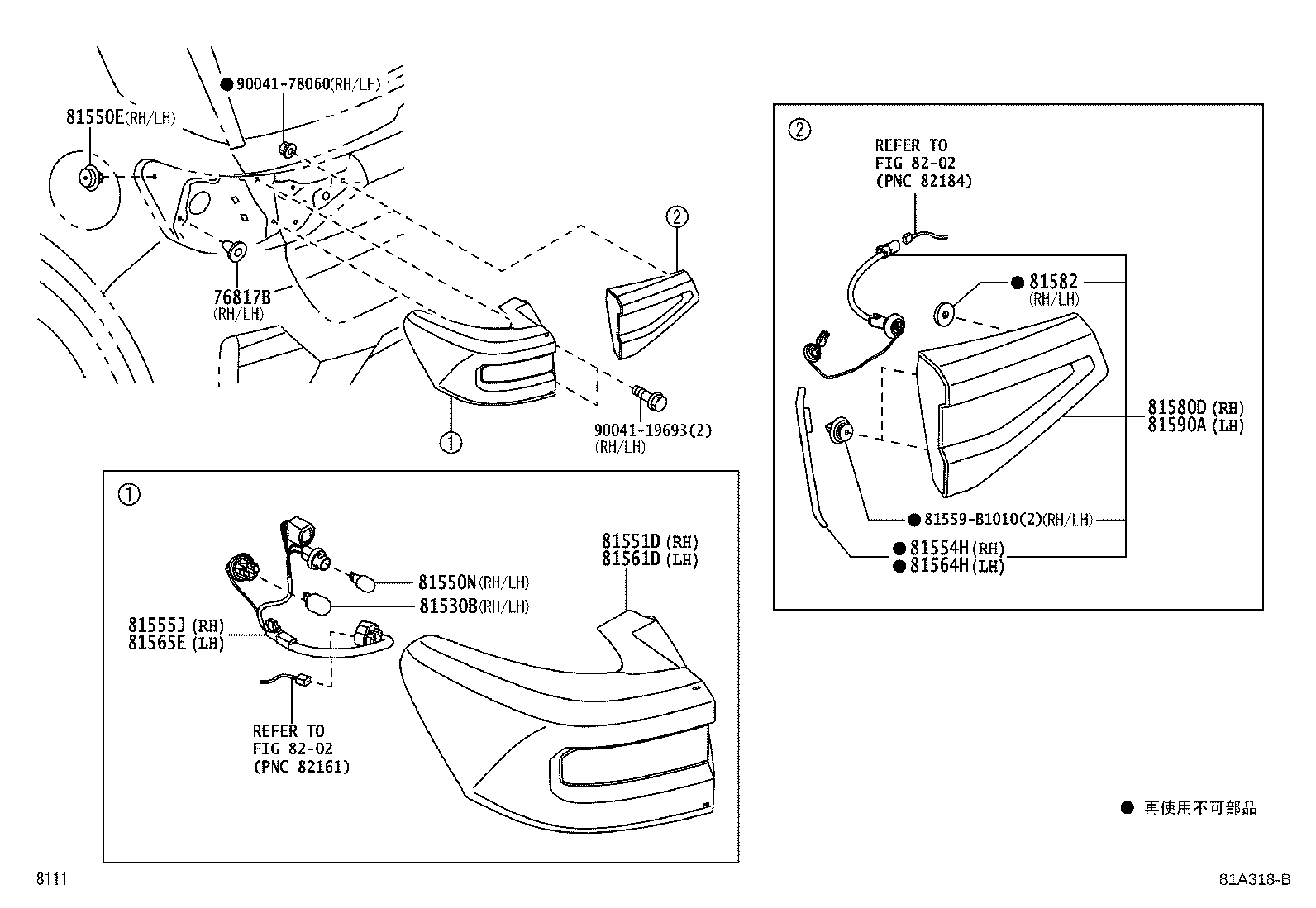

Figure 819607C 819607C 2019-10 → 2021-11 Figure 81A318B 81A318B 2021-11 → —

Part groups

PNCDescription
76817B Clip, Rear Lamp
81530B Bulb, Rear Turn Signal Lamp
81550E Clip(FOR REAR COMBINATION LAMP)
81550N Bulb, Back UP Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81554H Packing, Rear Combination Lamp, RH
81555J Socket & Wire, Rear Combination Lamp, RH
81561D Lens & Body, Rear Combination Lamp, LH
81564H Packing, Rear Combination Lamp, LH
81565E Socket & Wire, Rear Combination Lamp, LH
81580D Lamp Assy, Rear, RH
81582 Gasket, Rear Lamp
81590A Lamp Assy, Rear, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
