Toyota Raize
2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan
Supported model
Data version 2021-11
Wiring & Clamp
34 part groups · 17 illustrations

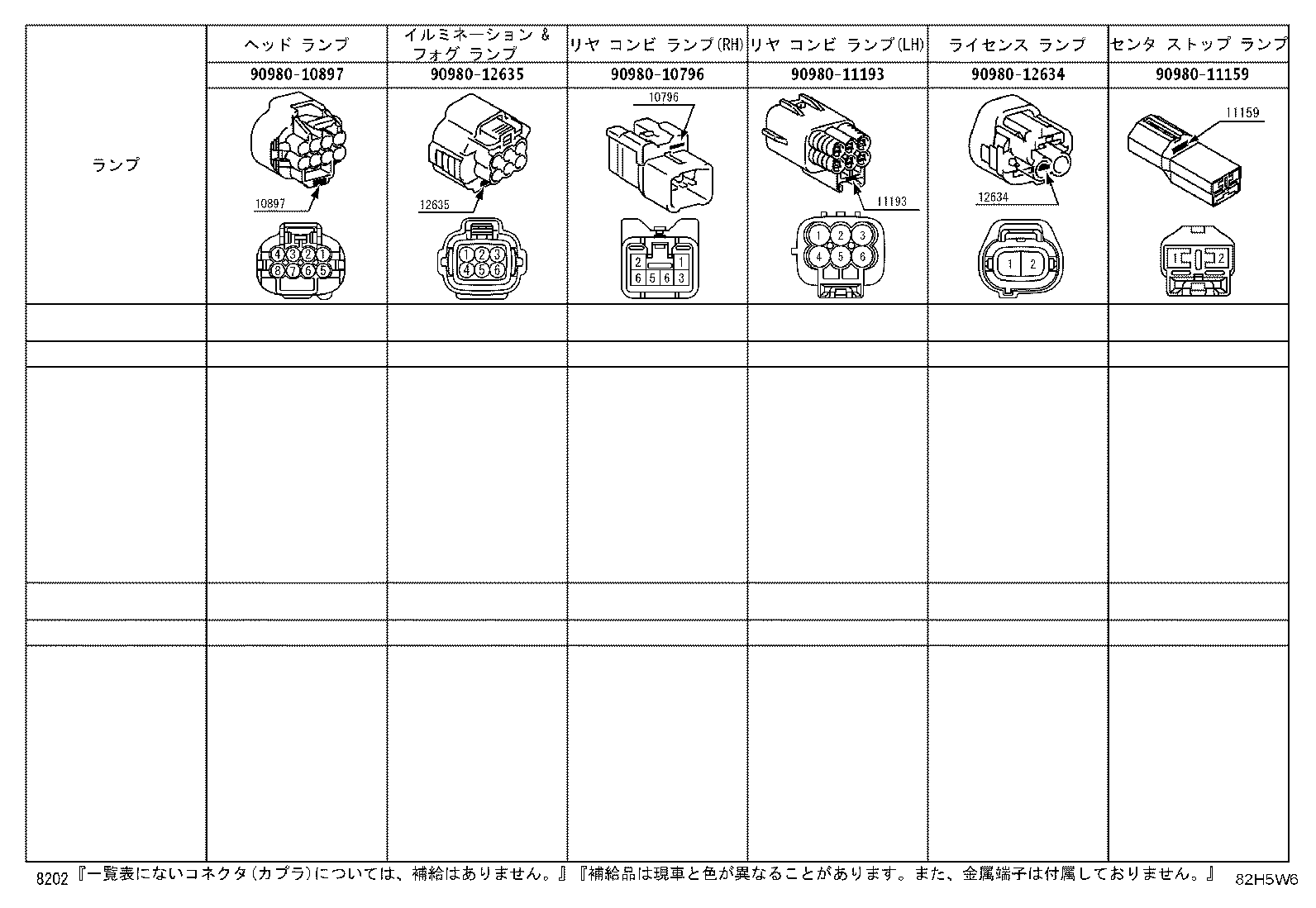

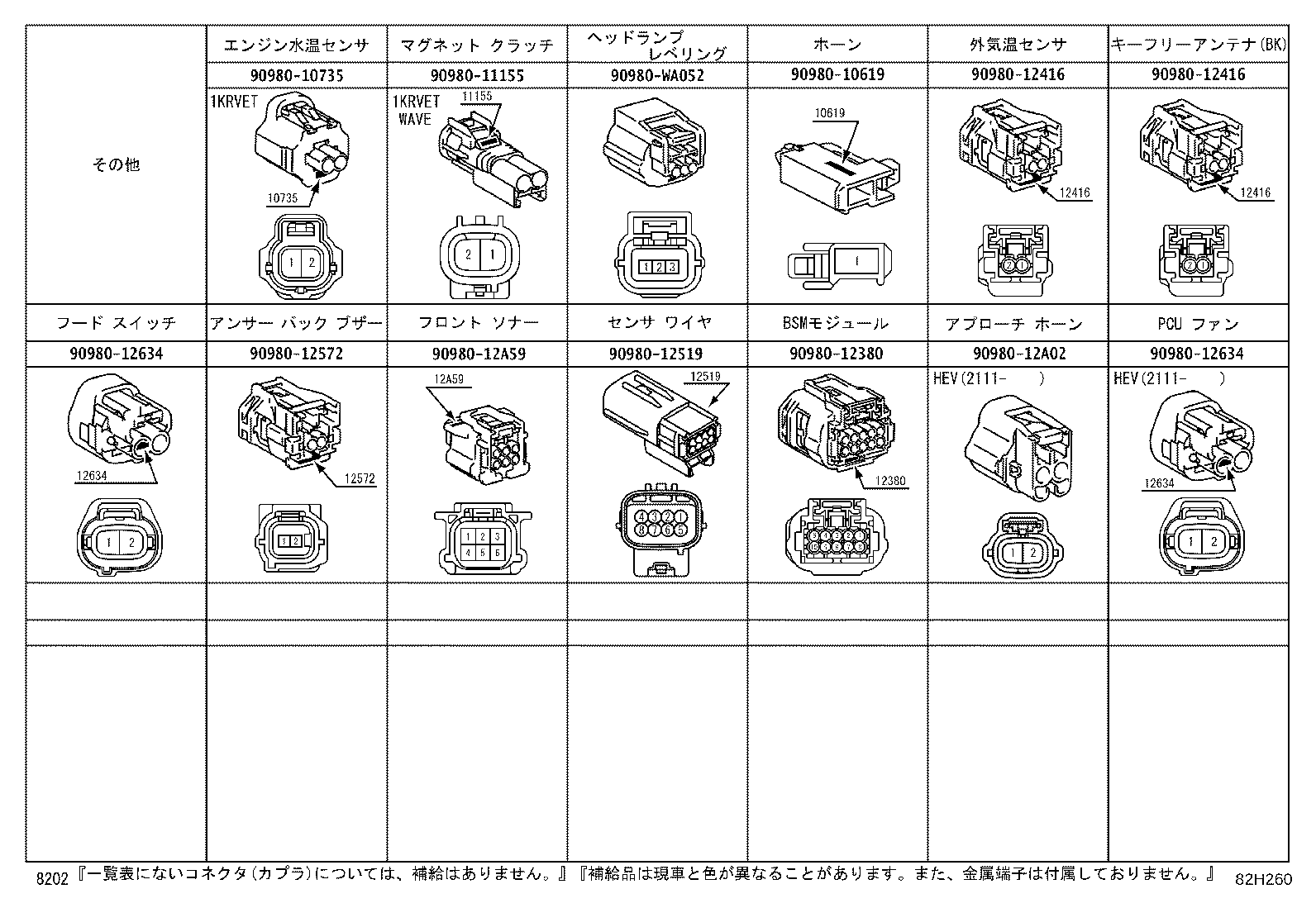

Illustrations
Part groups

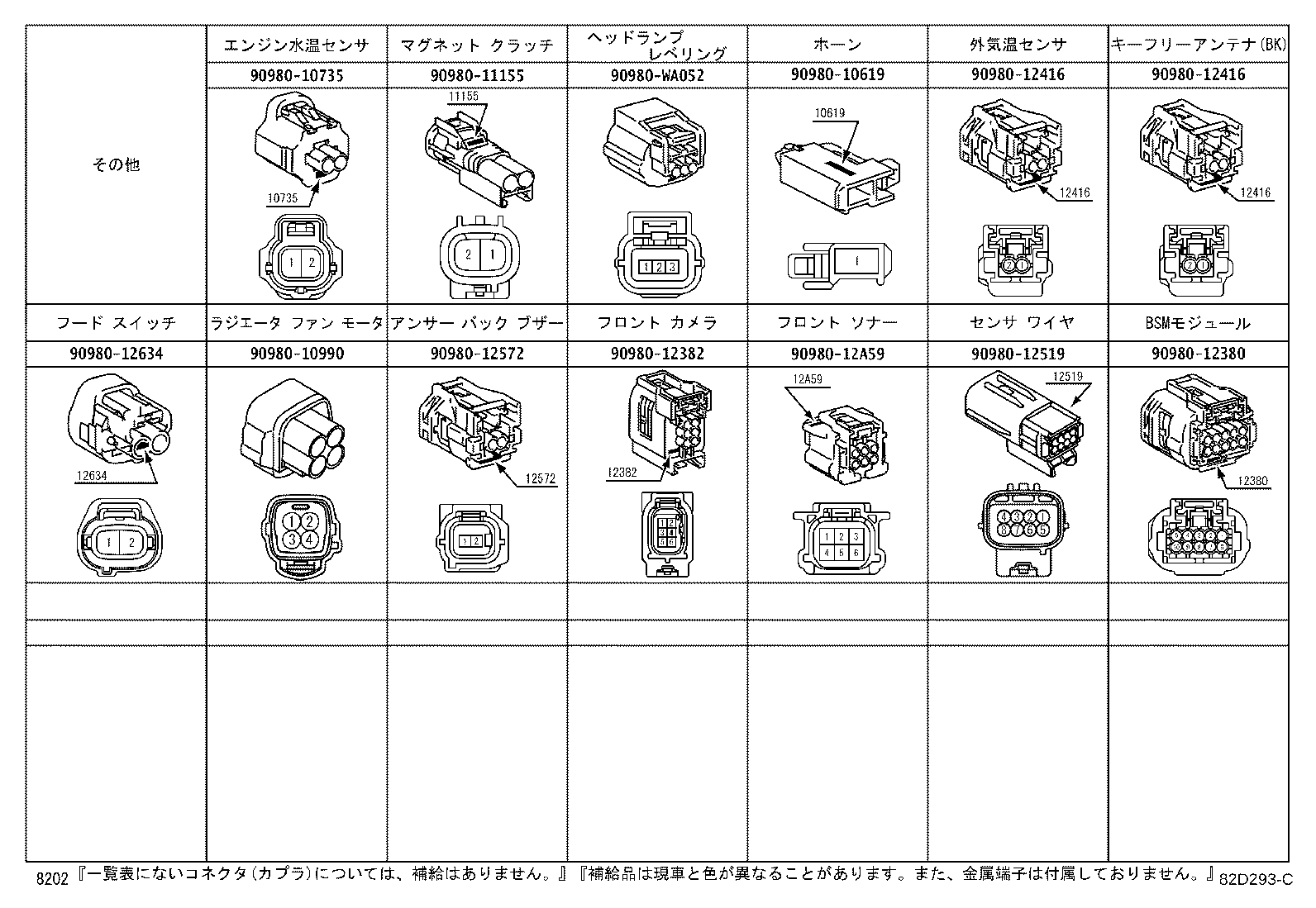

| PNC | Description |
|---|---|

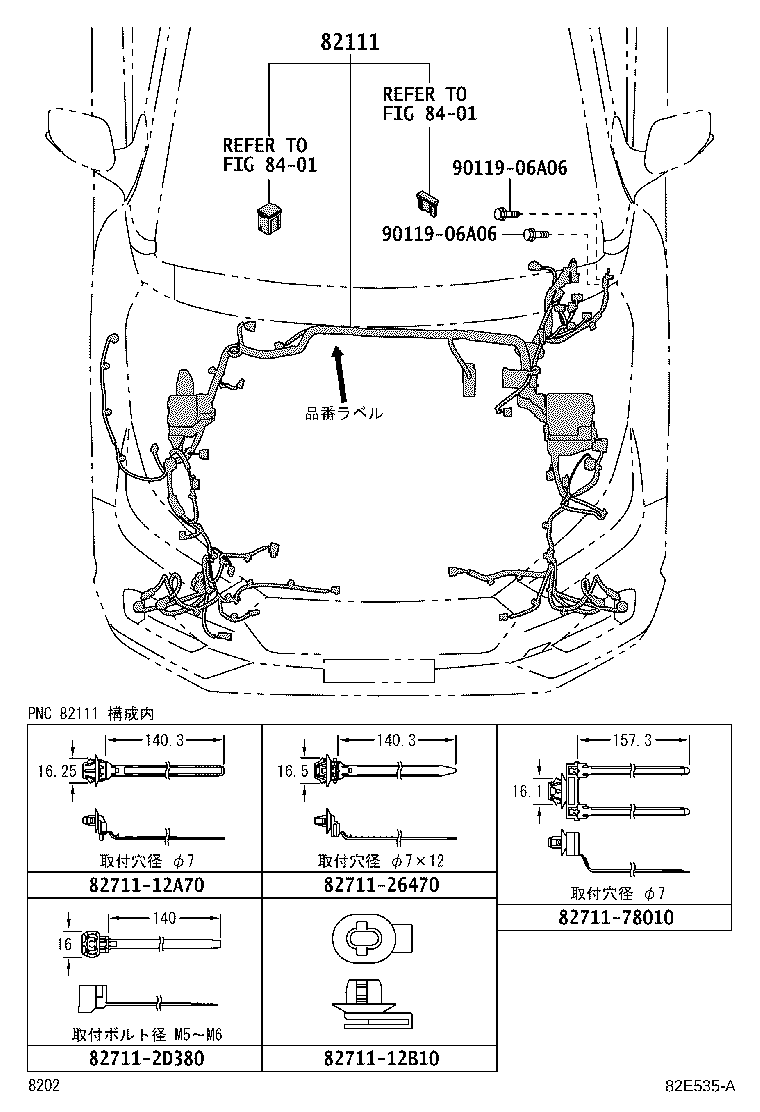

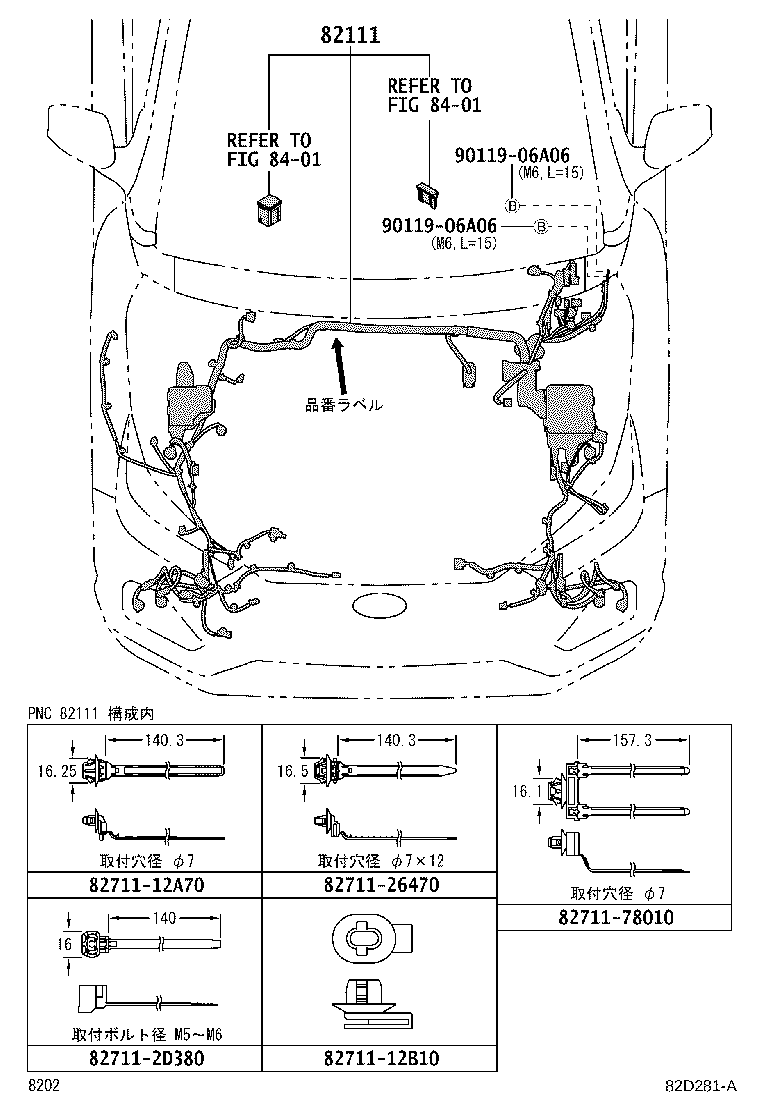

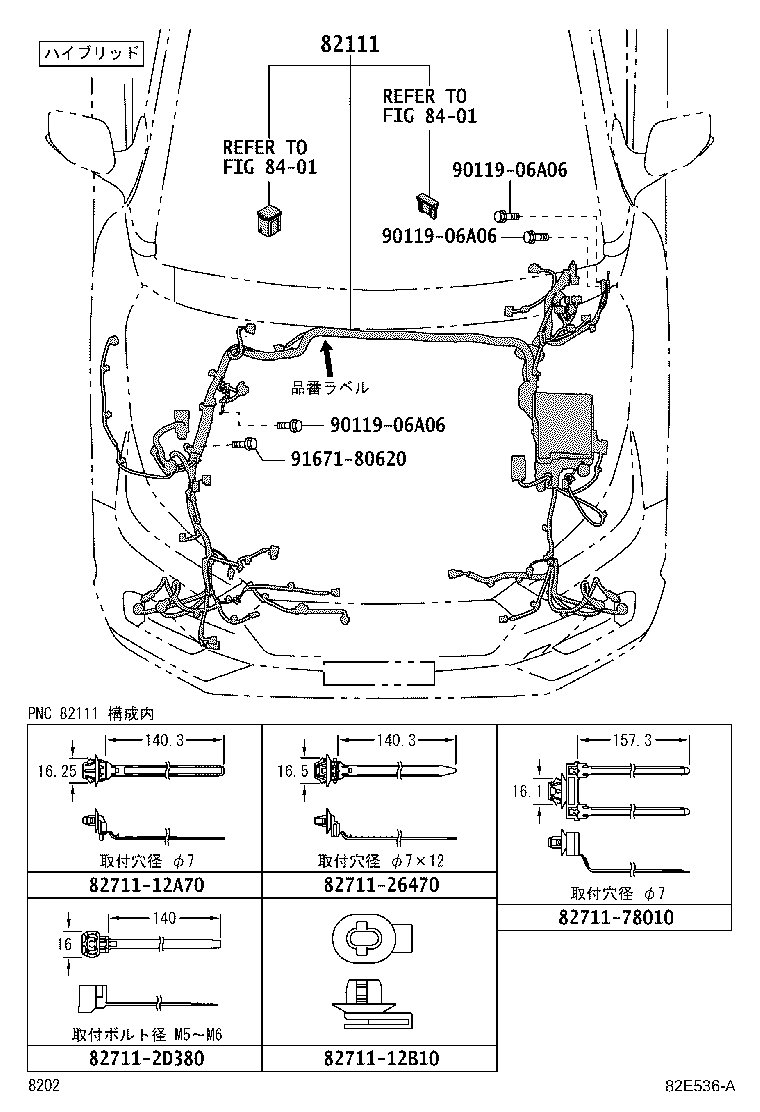

| 82111 | Wire, Engine Room Main |

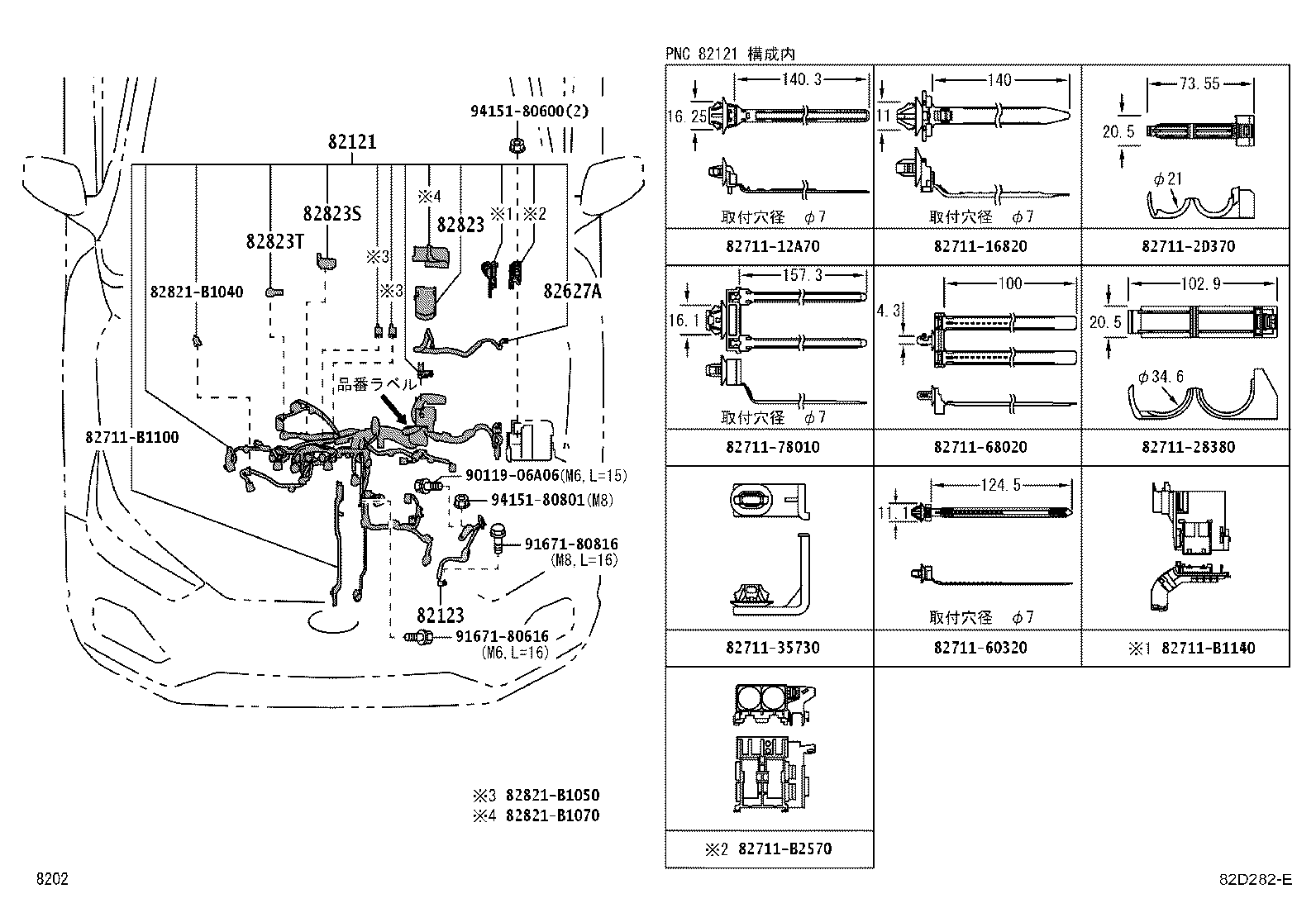

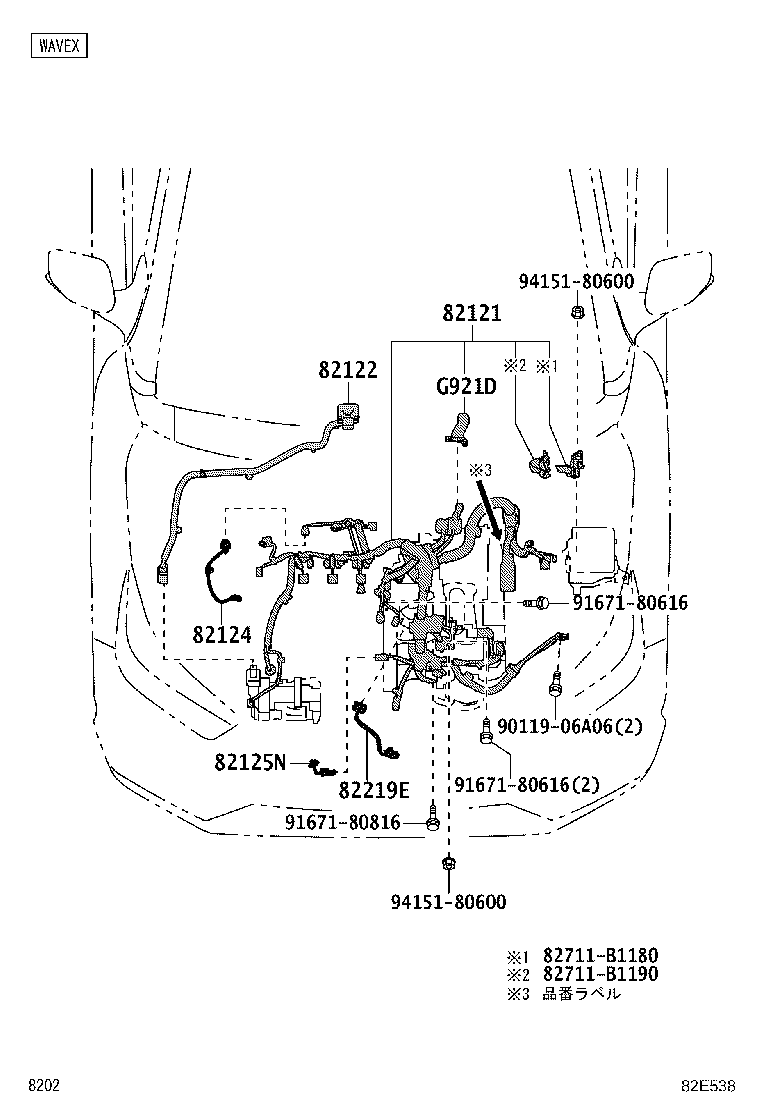

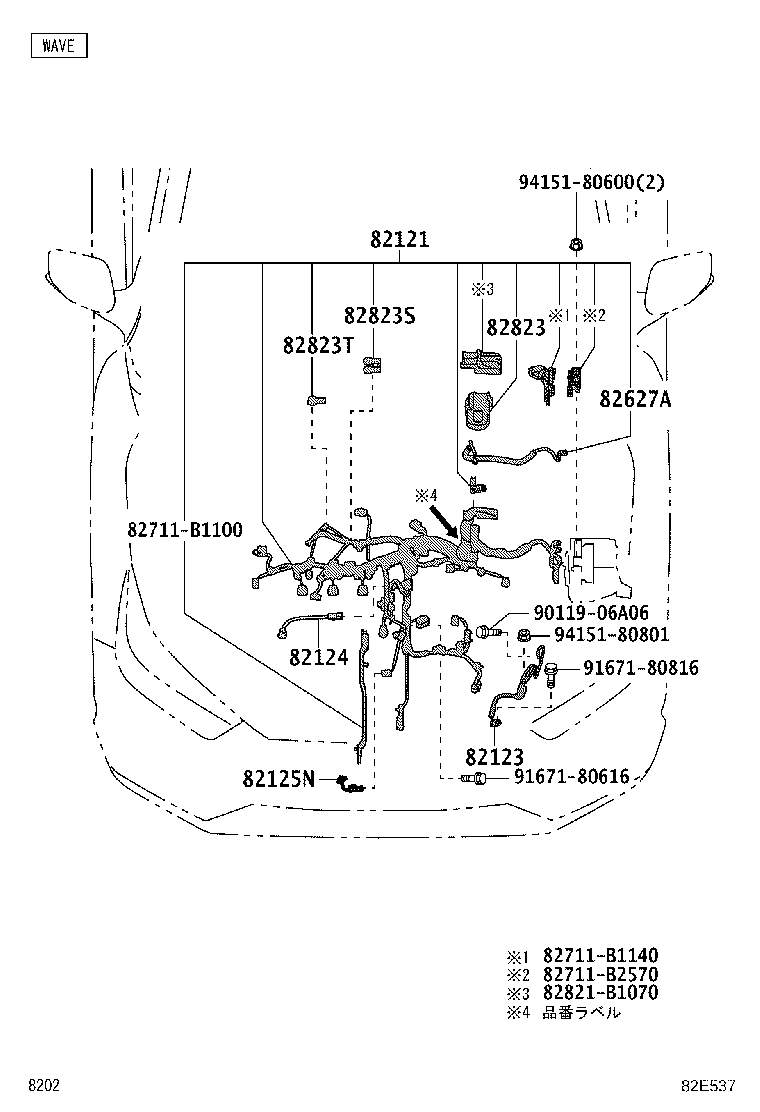

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82123 | Wire, Engine, NO.3 |
| 82124 | Wire, Engine, NO.4 |
| 82125N | Wire, Engine, NO.5 |
| 82127 | Wire, Differential |

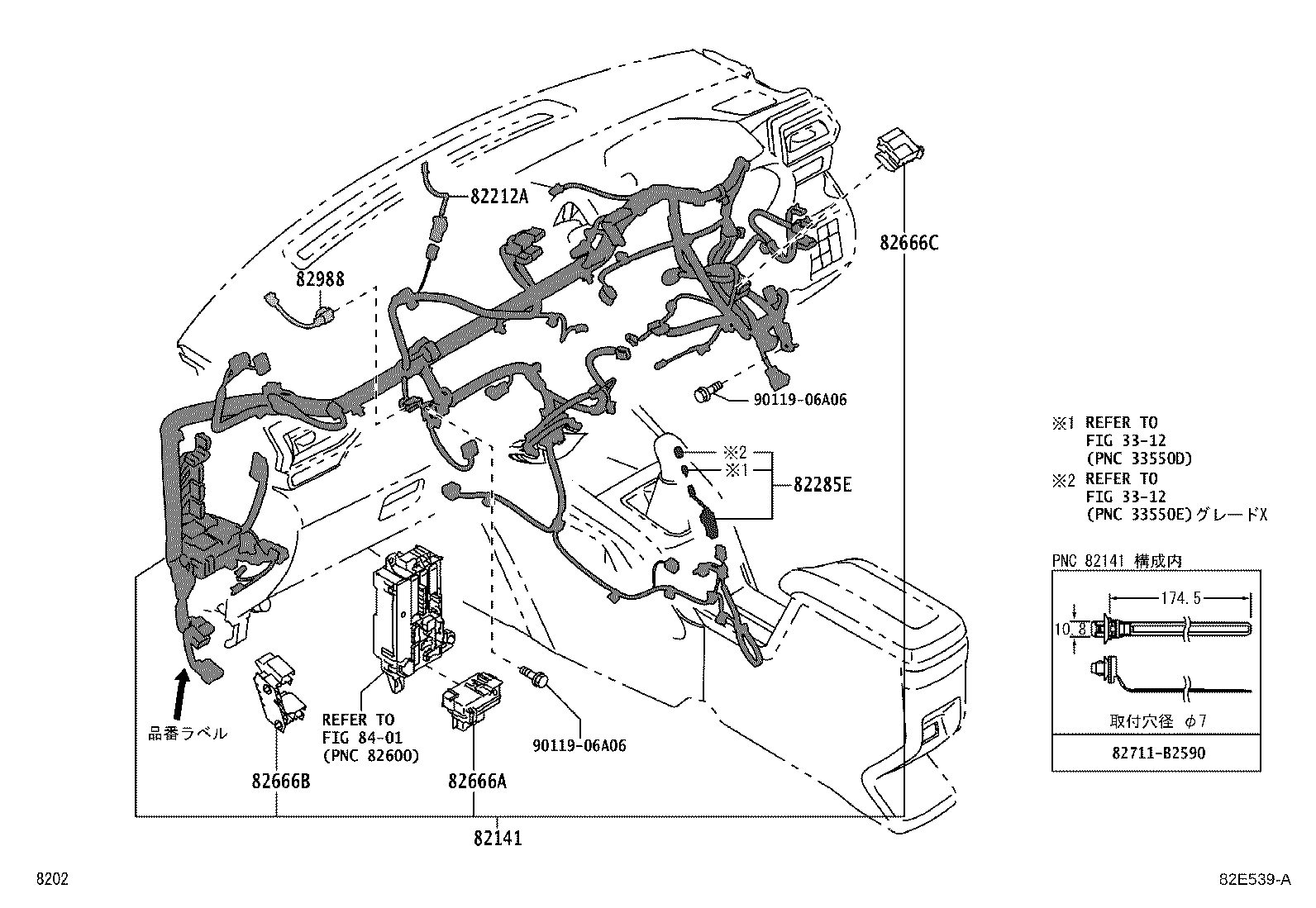

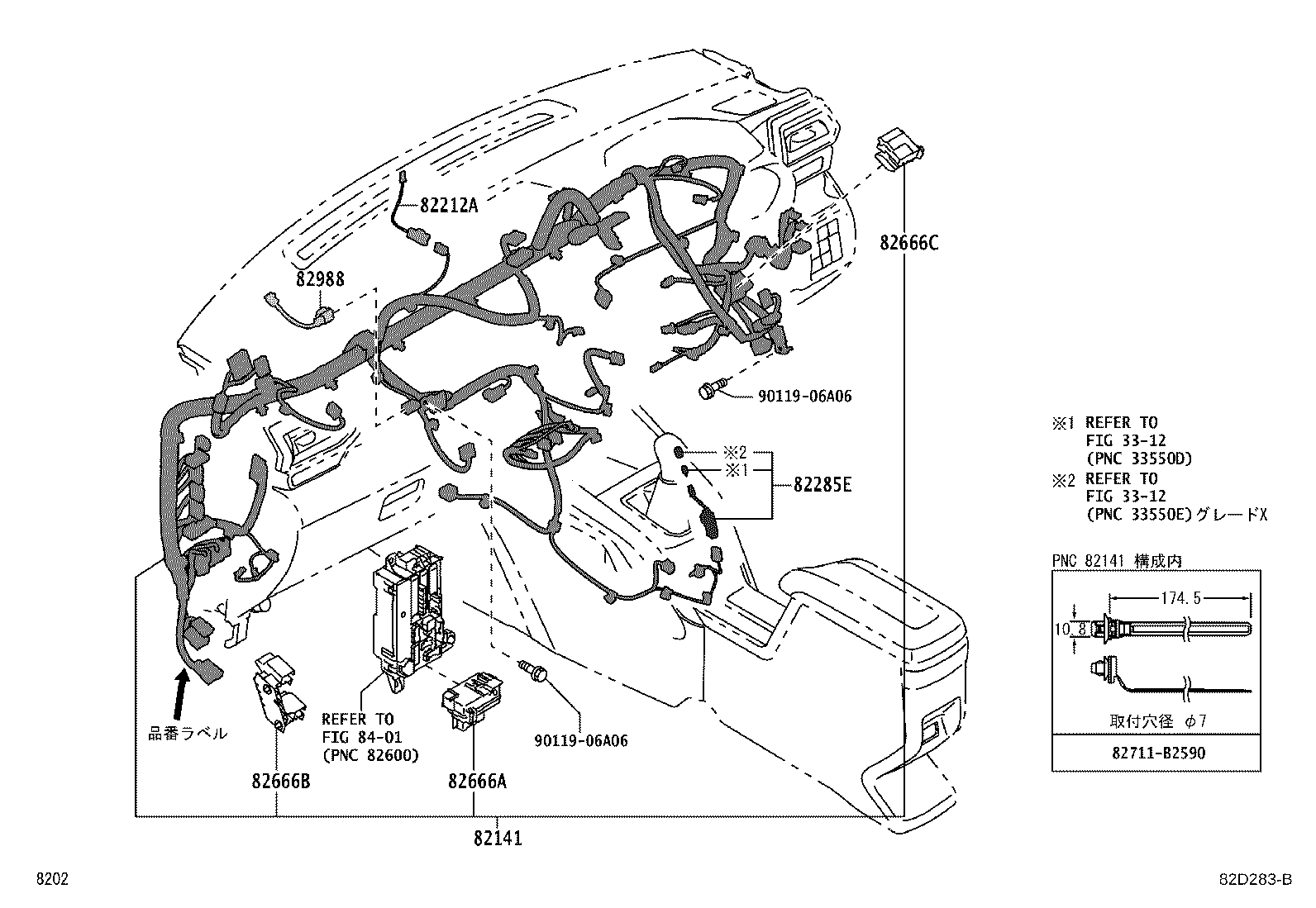

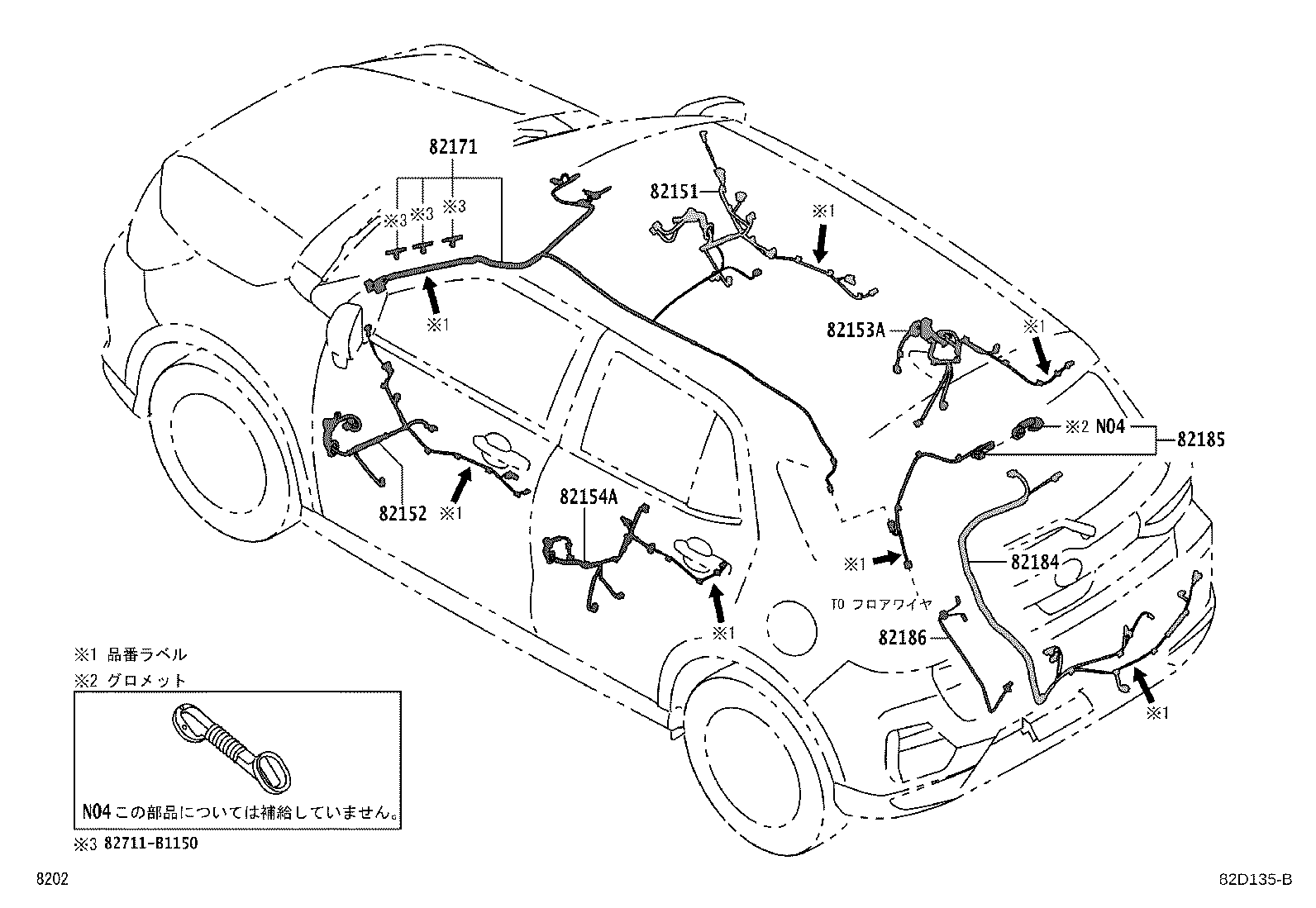

| 82141 | Wire, Instrument Panel |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153A | Wire, Rear Door, RH |
| 82154A | Wire, Rear Door, LH |

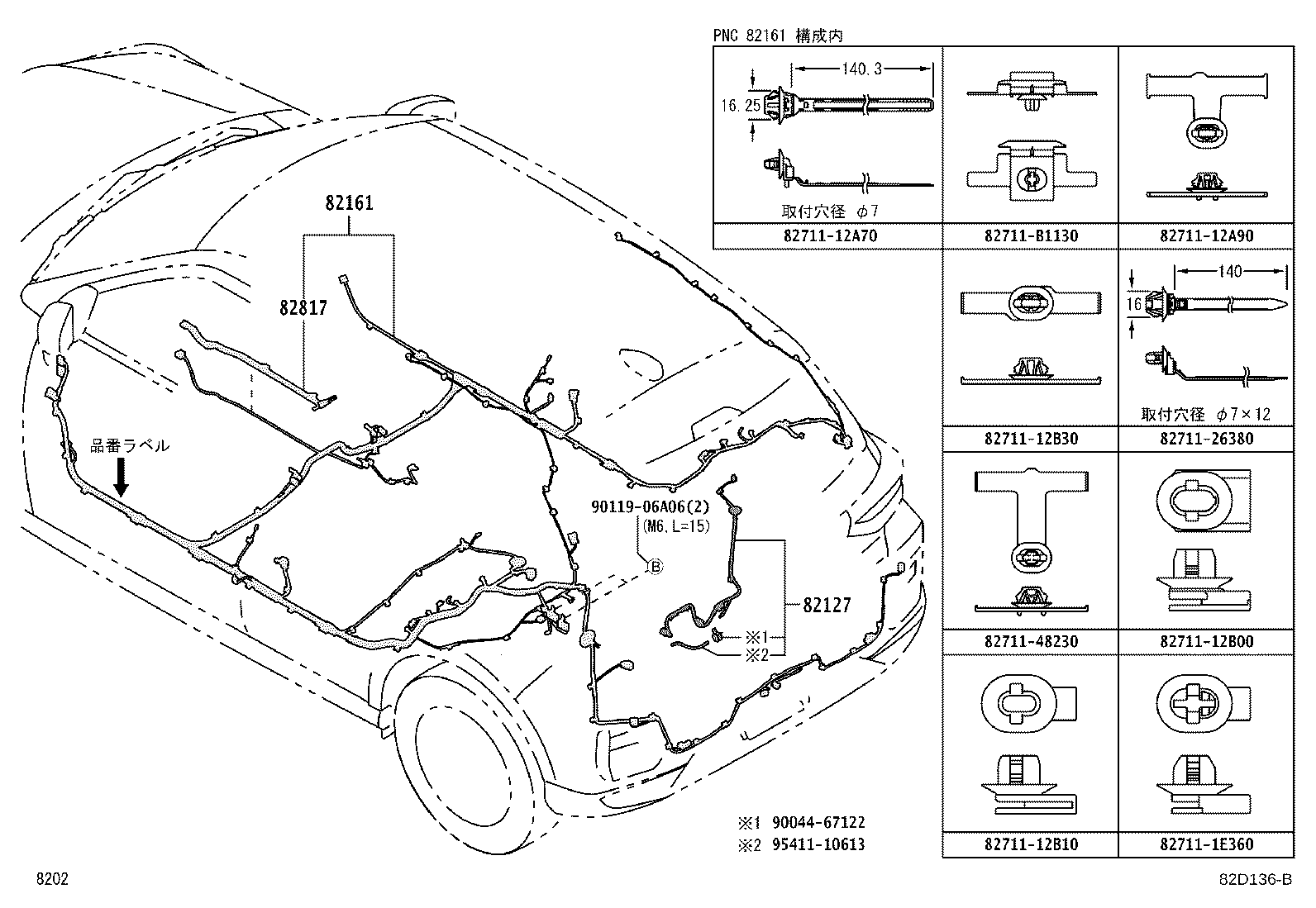

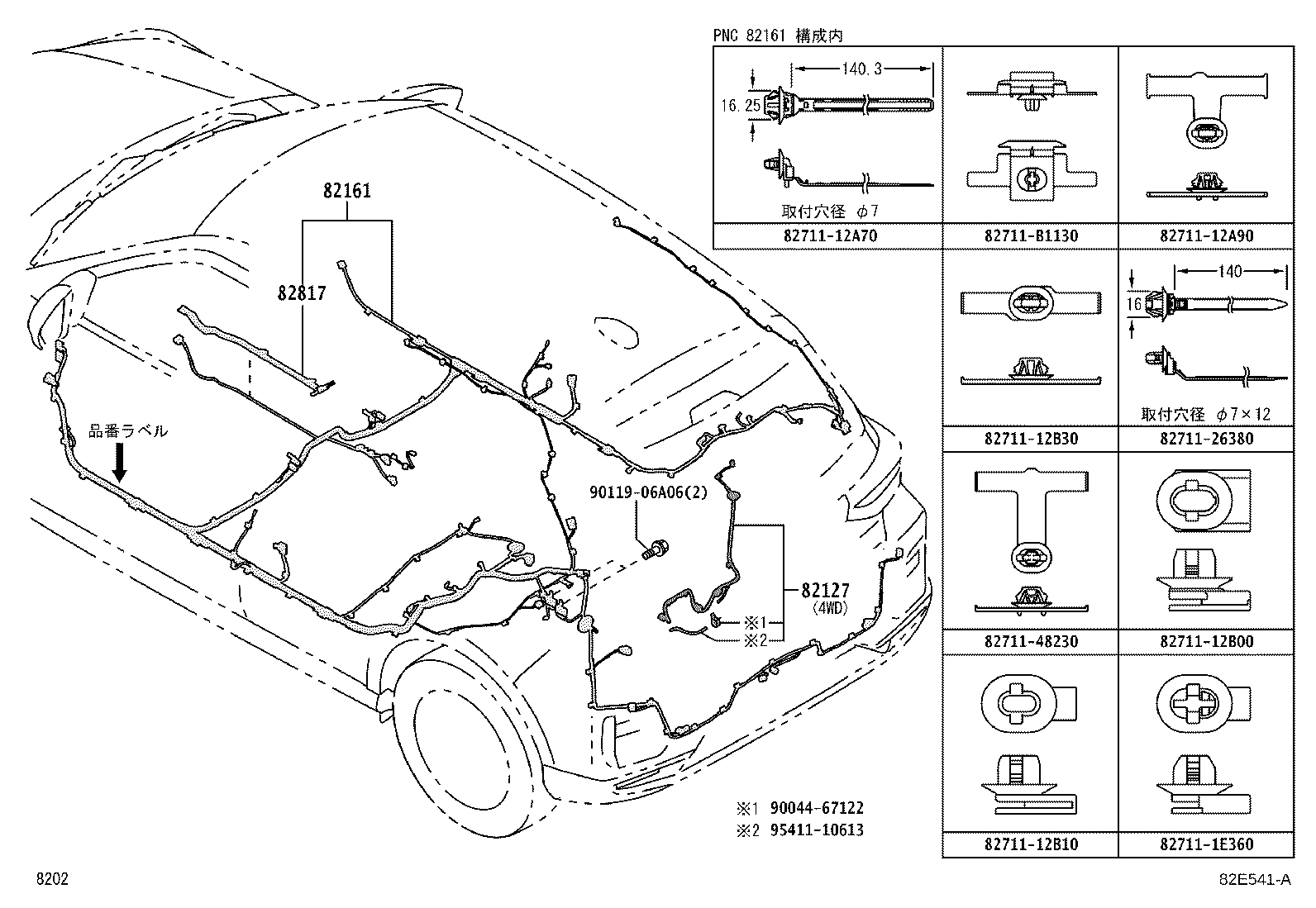

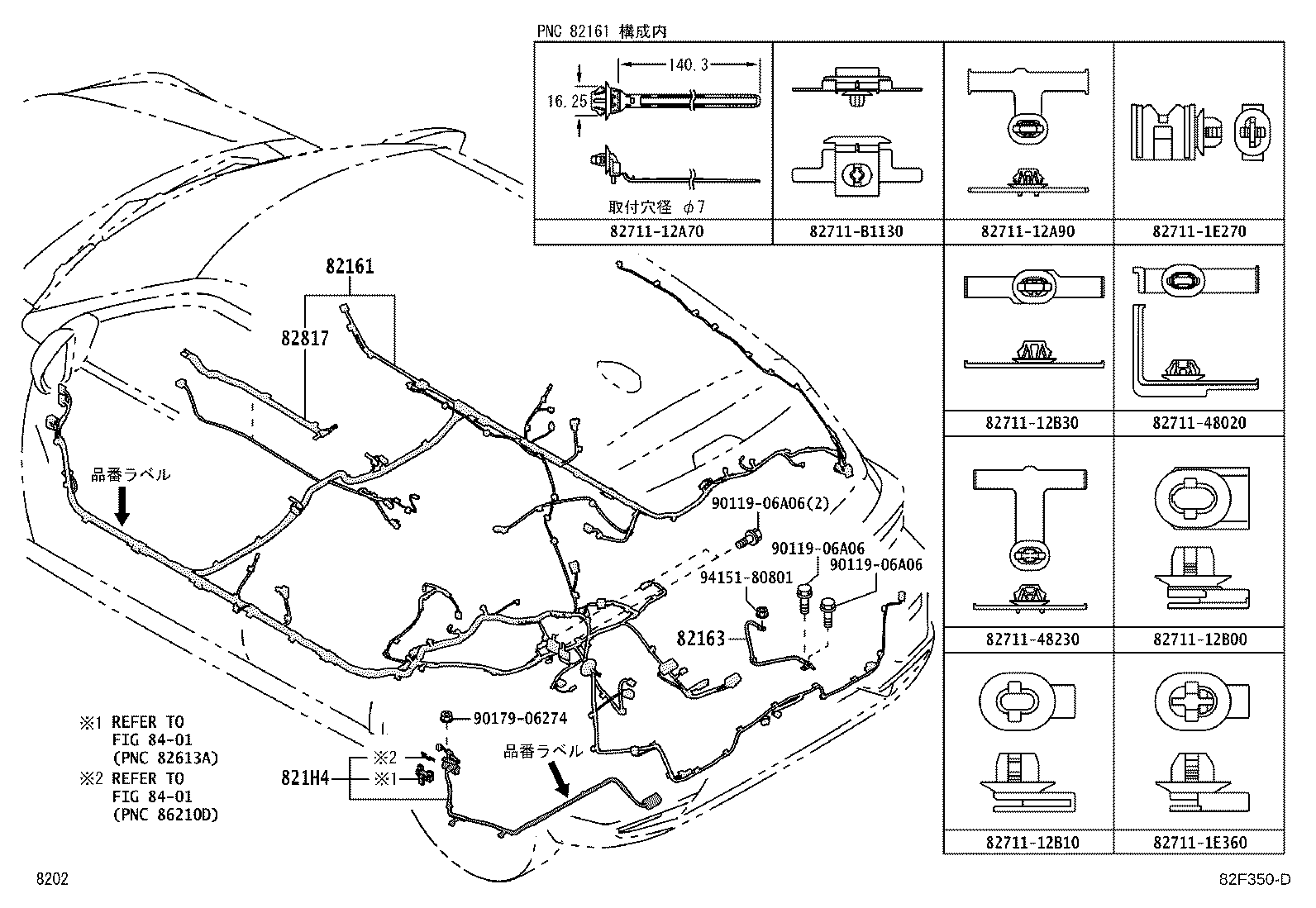

| 82161 | Wire, Floor |
| 82163 | Wire, Floor, NO.3 |

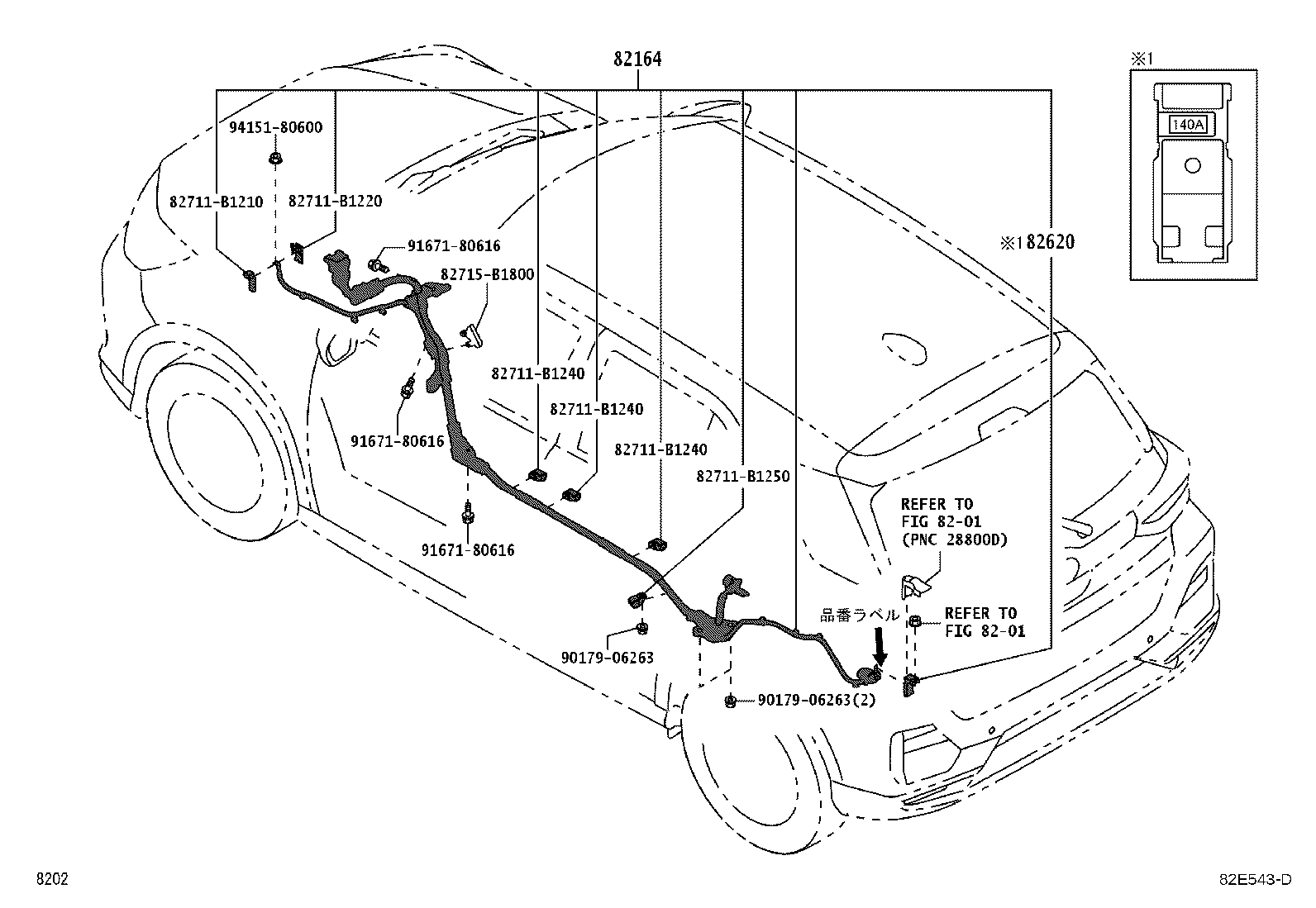

| 82164 | Wire, Frame |
| 82171 | Wire, Roof, NO.1 |
| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |
| 82186 | Wire, Rear Window, NO.1 |
| 821H4 | Wire, HV Socket Inverter |
| 82212A | Harness, Air Conditioner |
| 82219E | Wire, Sensor |
| 82285E | Wire, Illumination |
| 82620 | Block Assy, Fusible Link |
| 82627A | Wire, Fusible Link |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82823 | Cap, Terminal, NO.1 |
| 82823S | Cap, Starter Terminal |
| 82823T | Cap, Alternator Terminal |
| 82988 | Wire, Airbag Repair |
| G921D | Protector, Inverter Connector Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
