Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

68 part groups · 17 illustrations

Illustrations

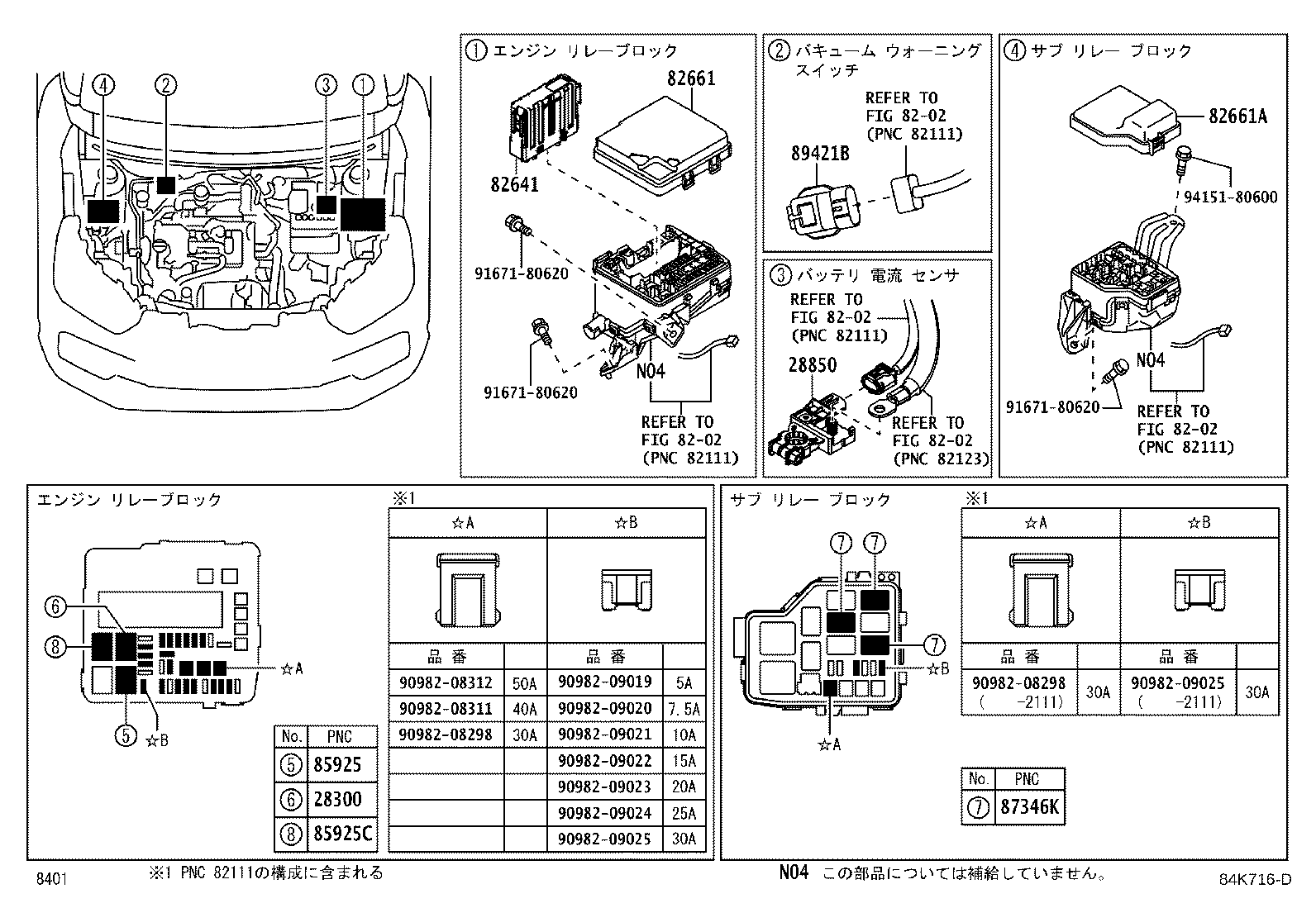

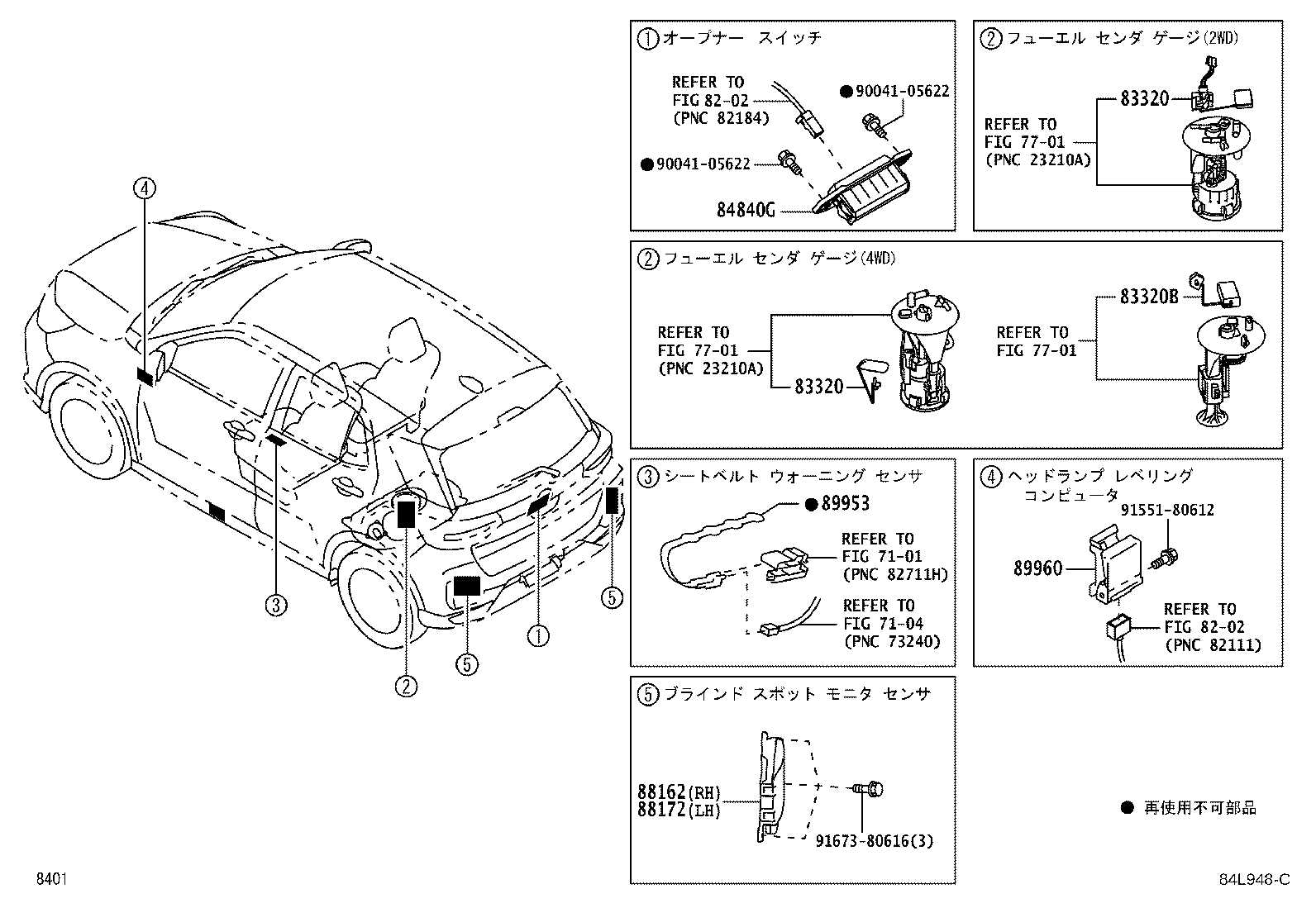

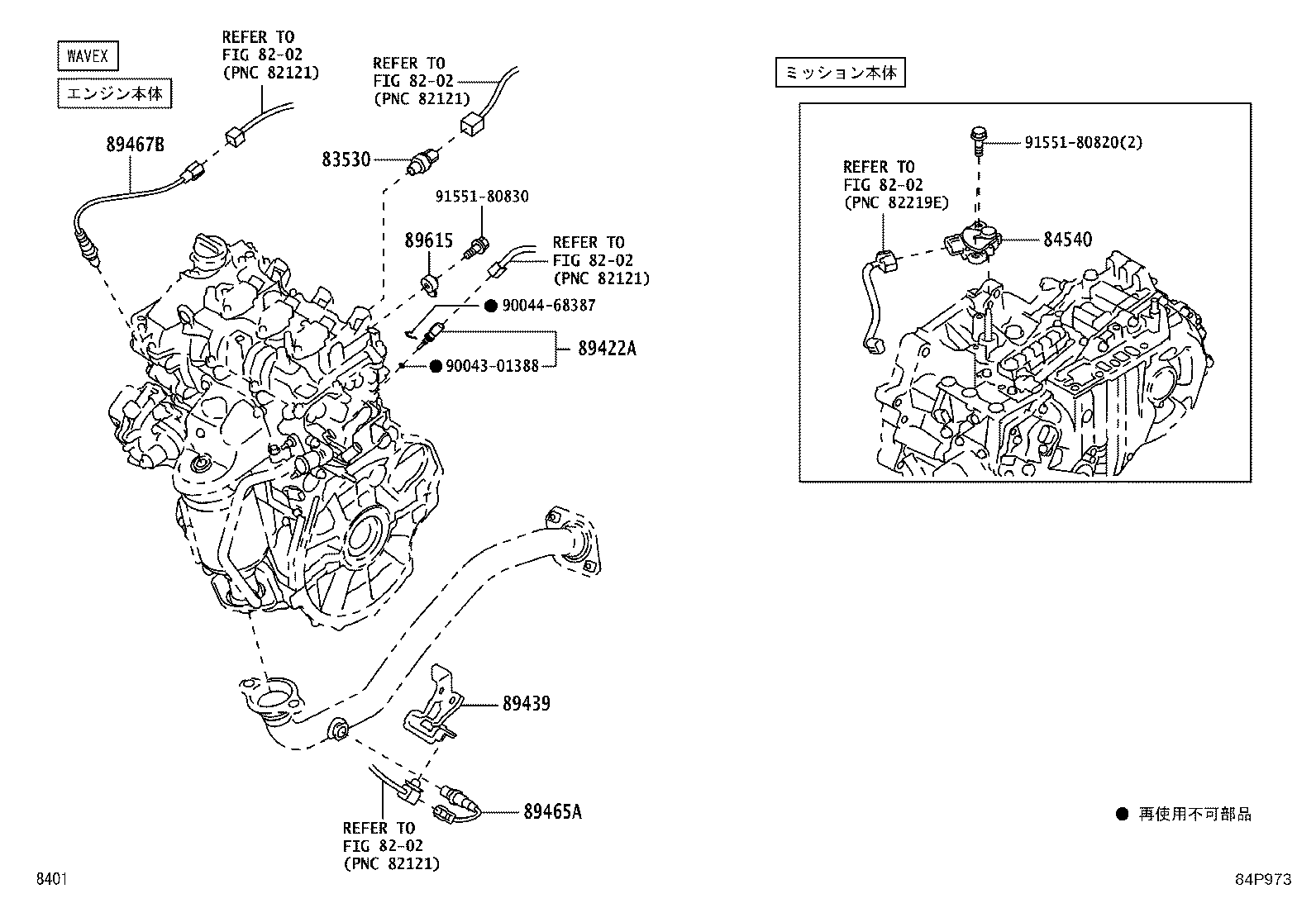

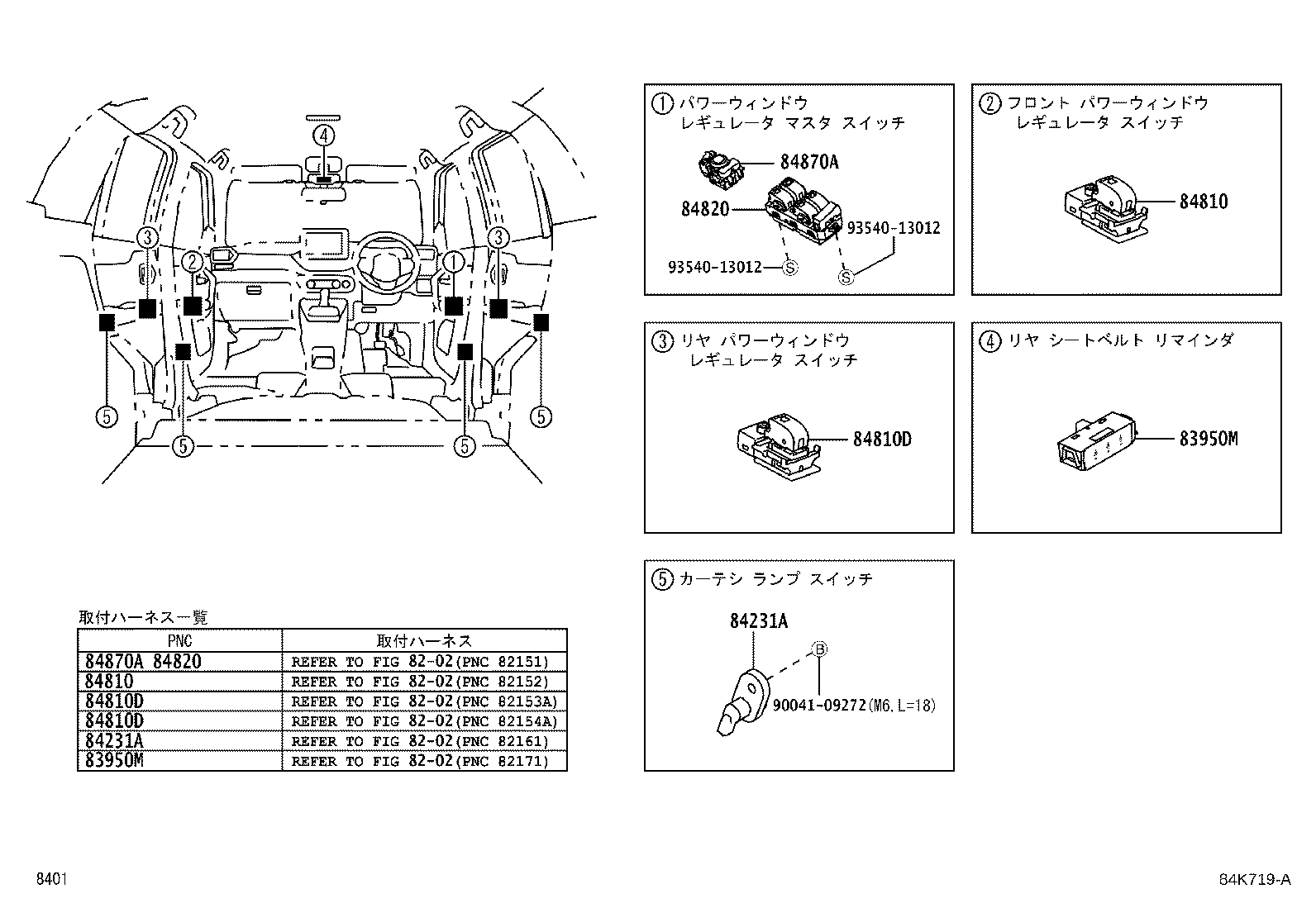

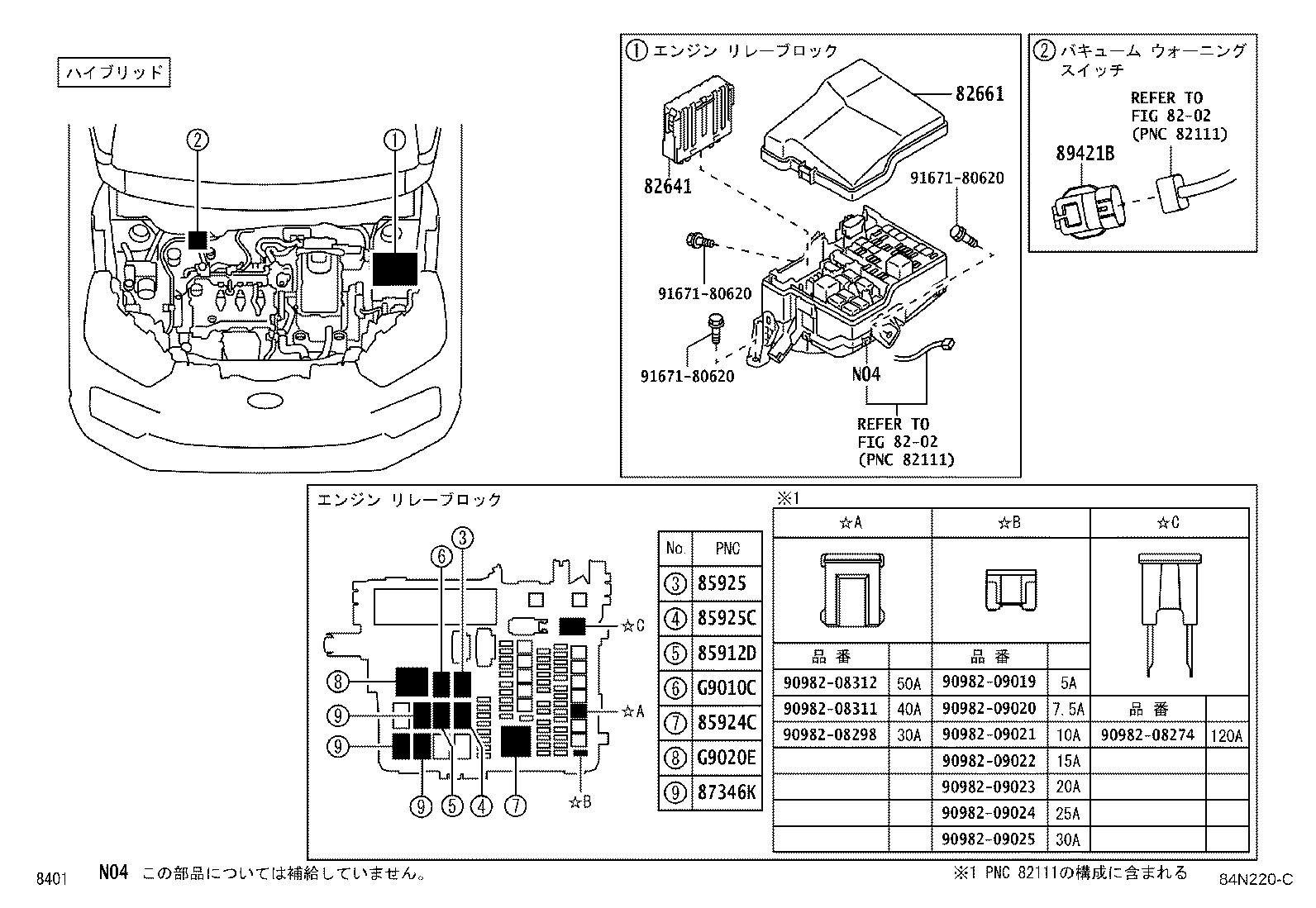

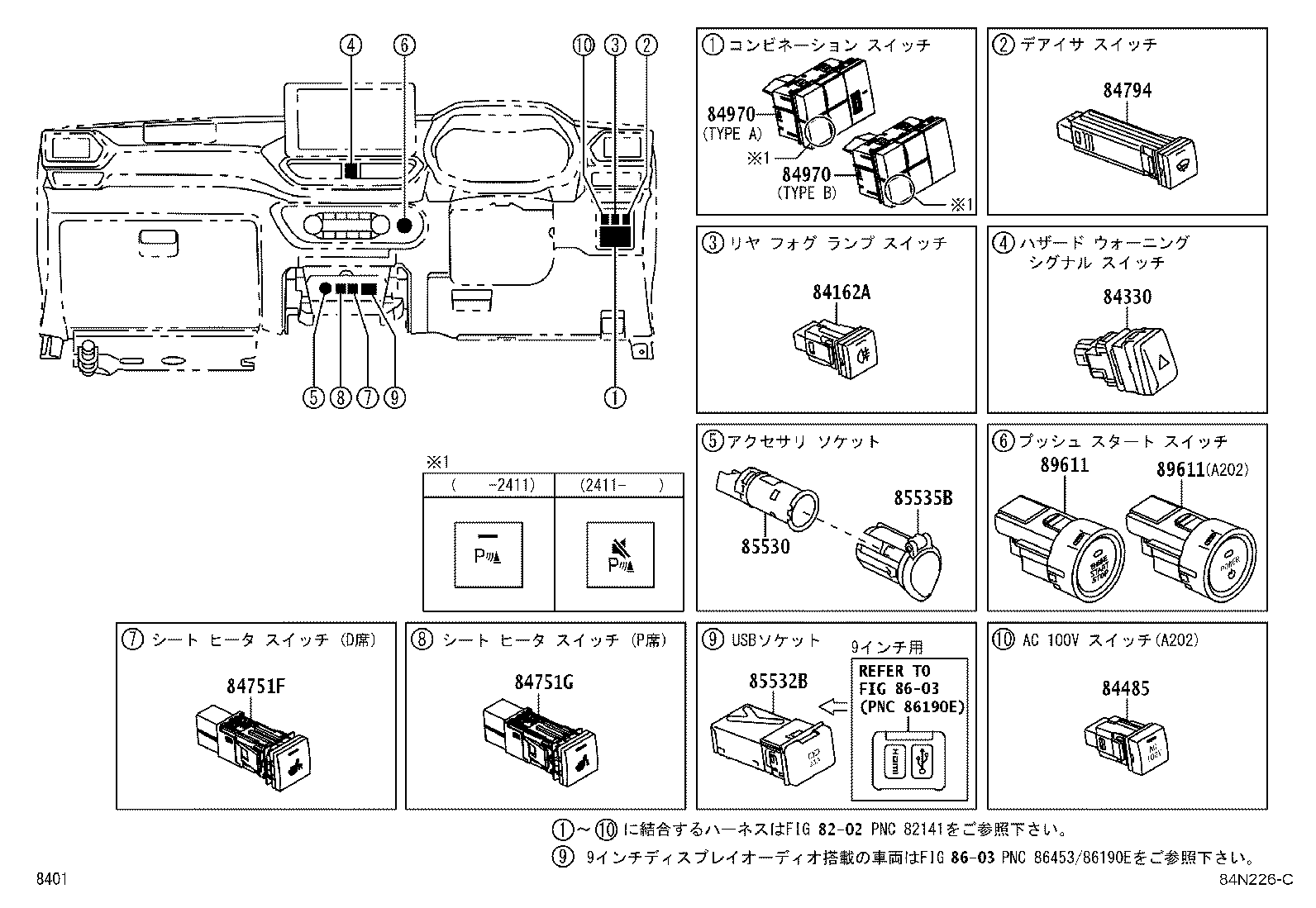

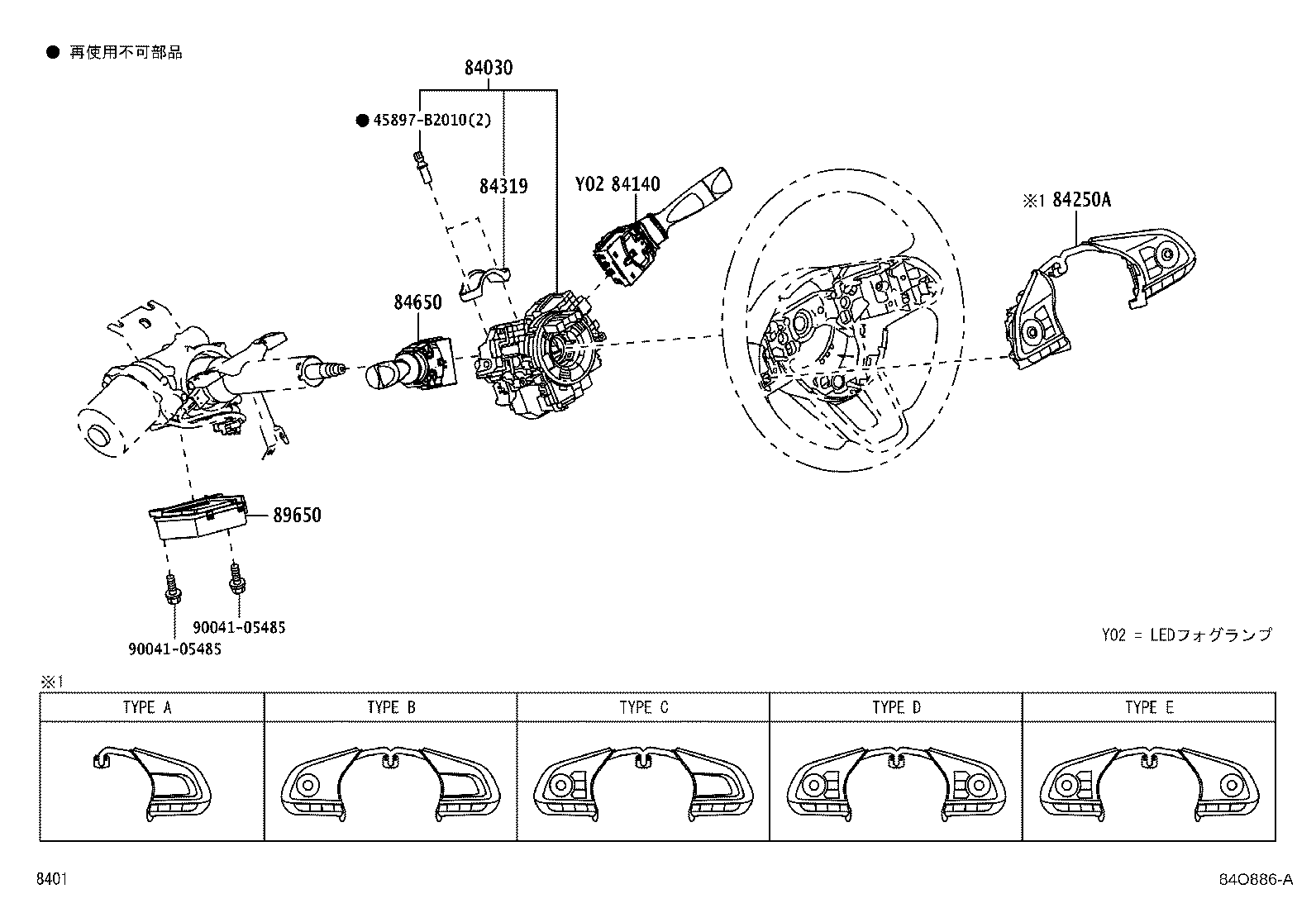

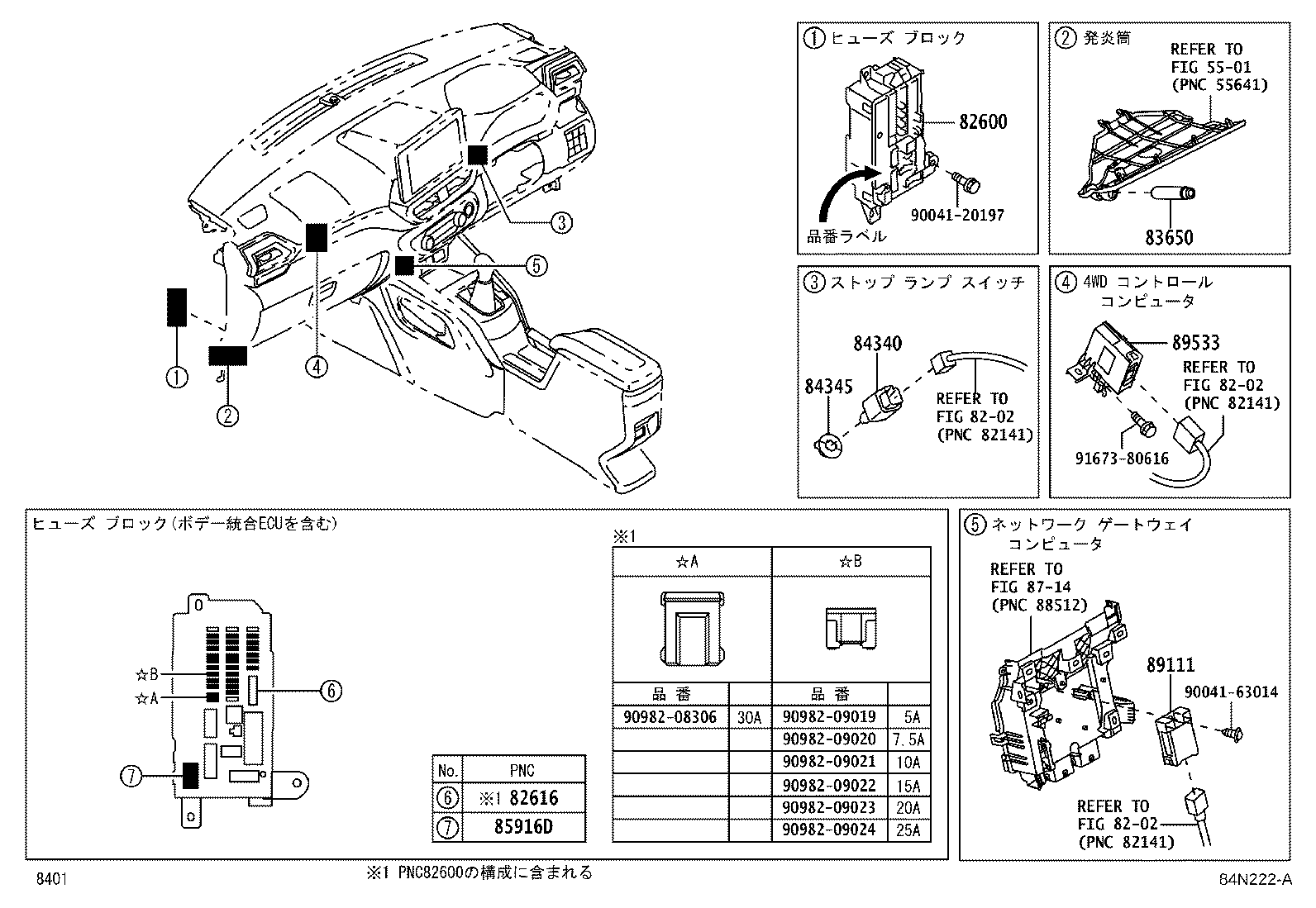

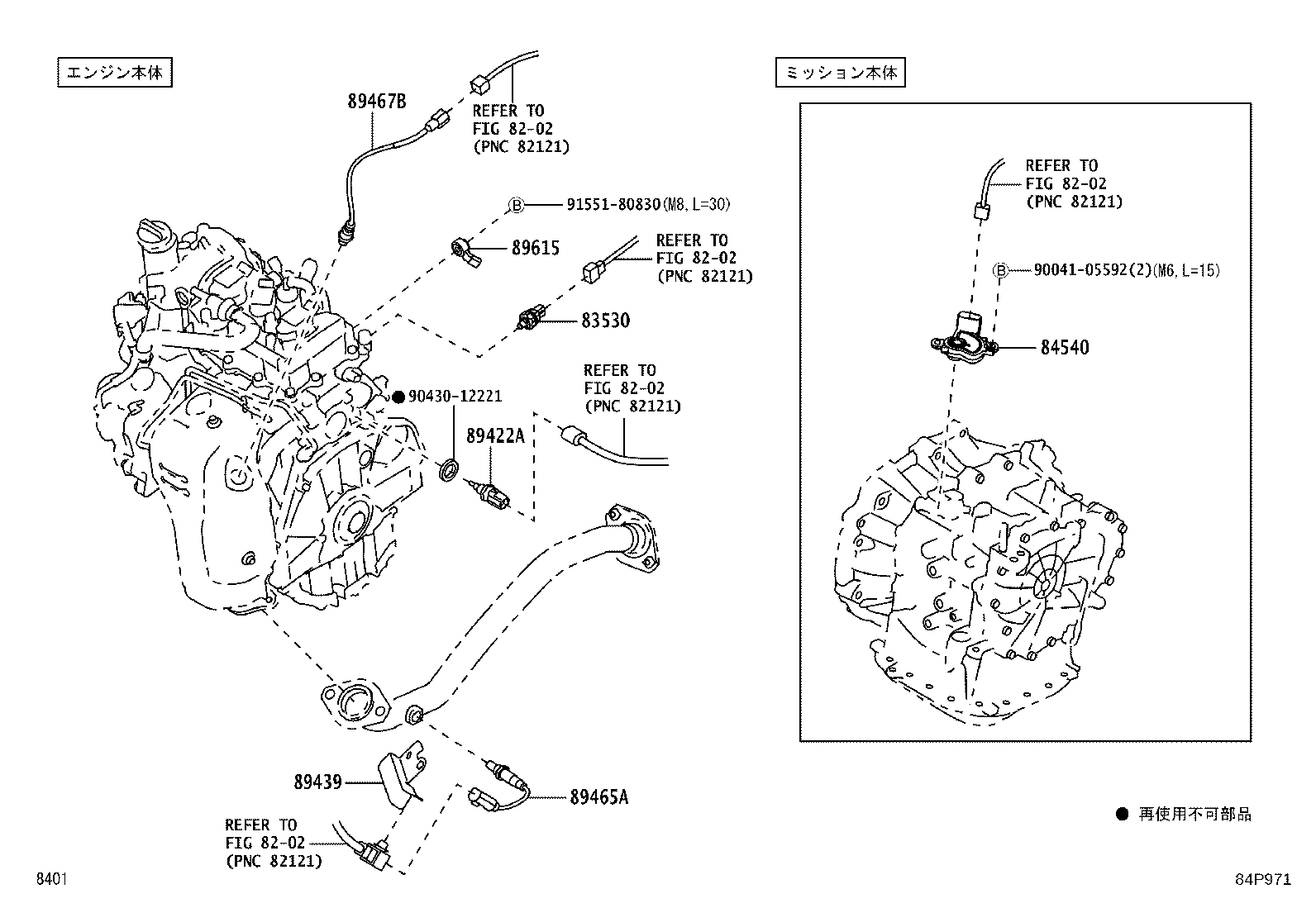

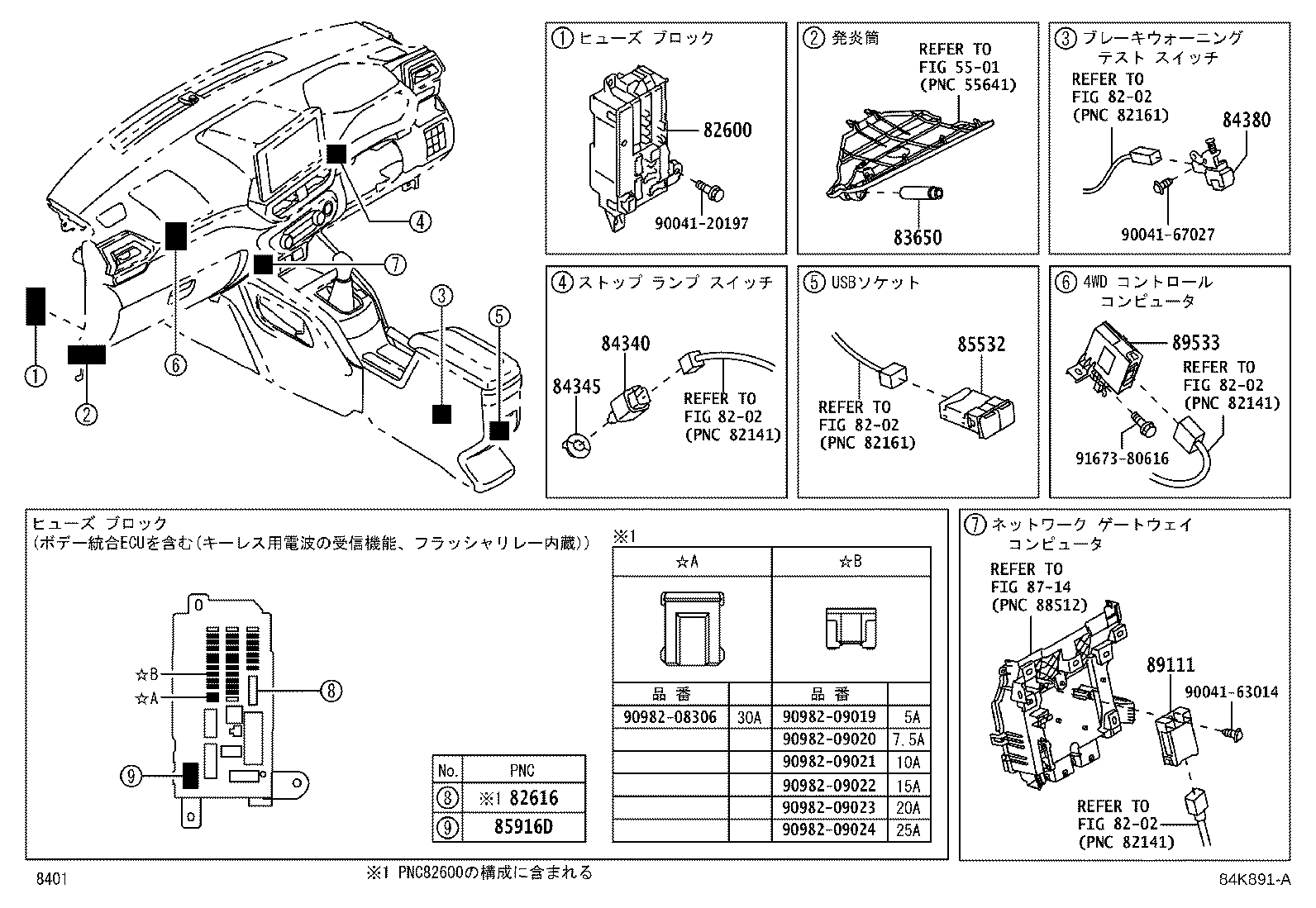

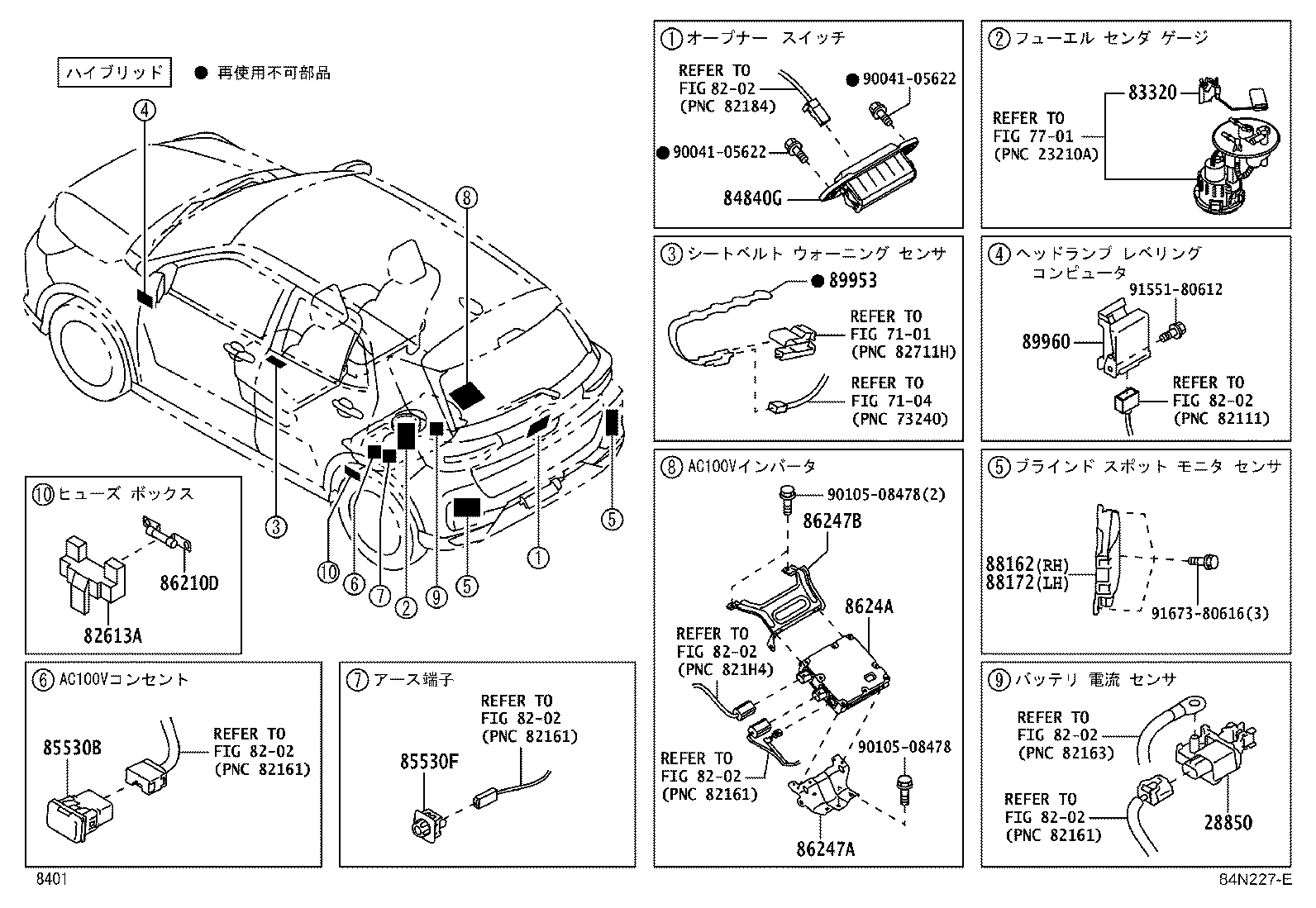

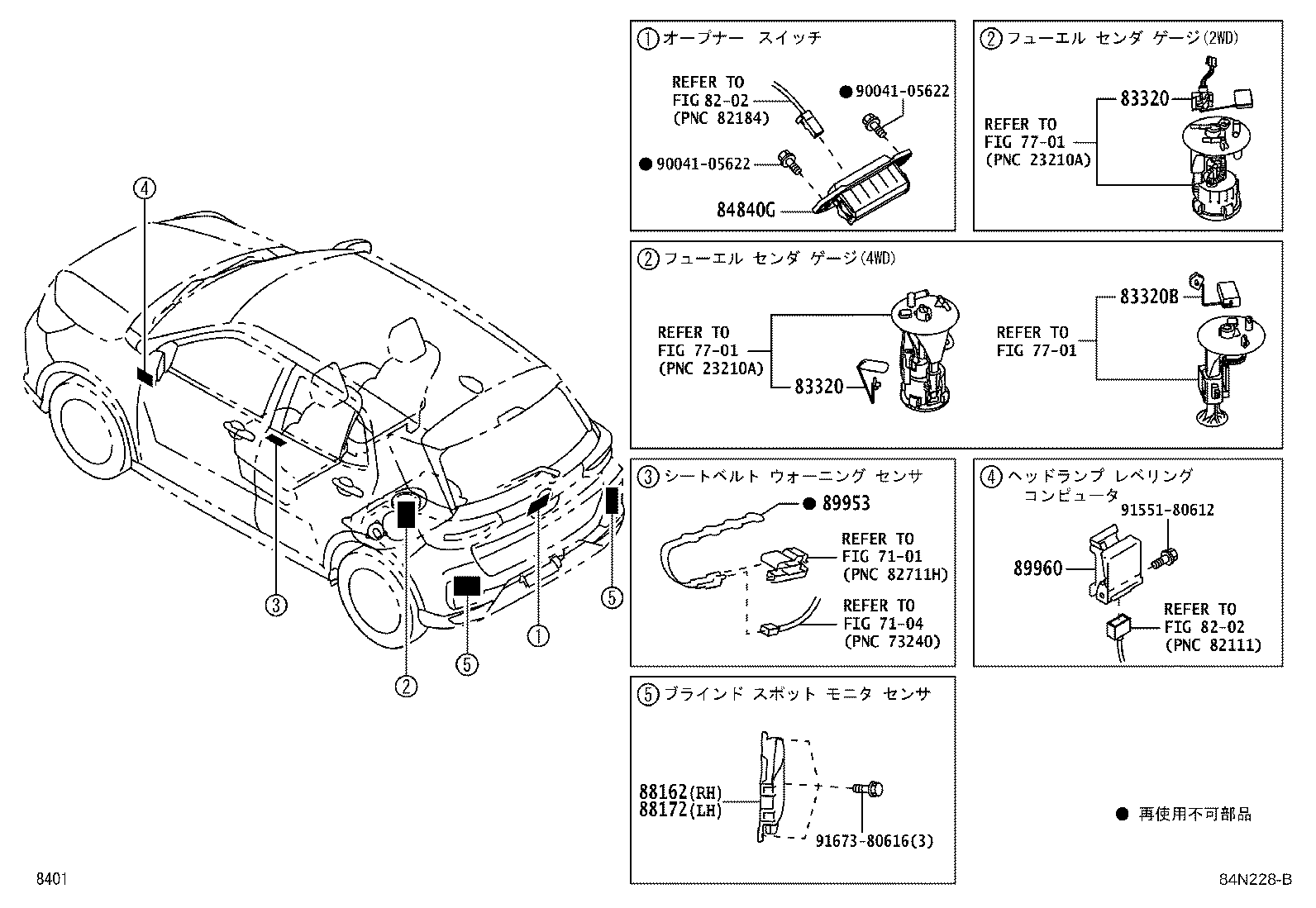

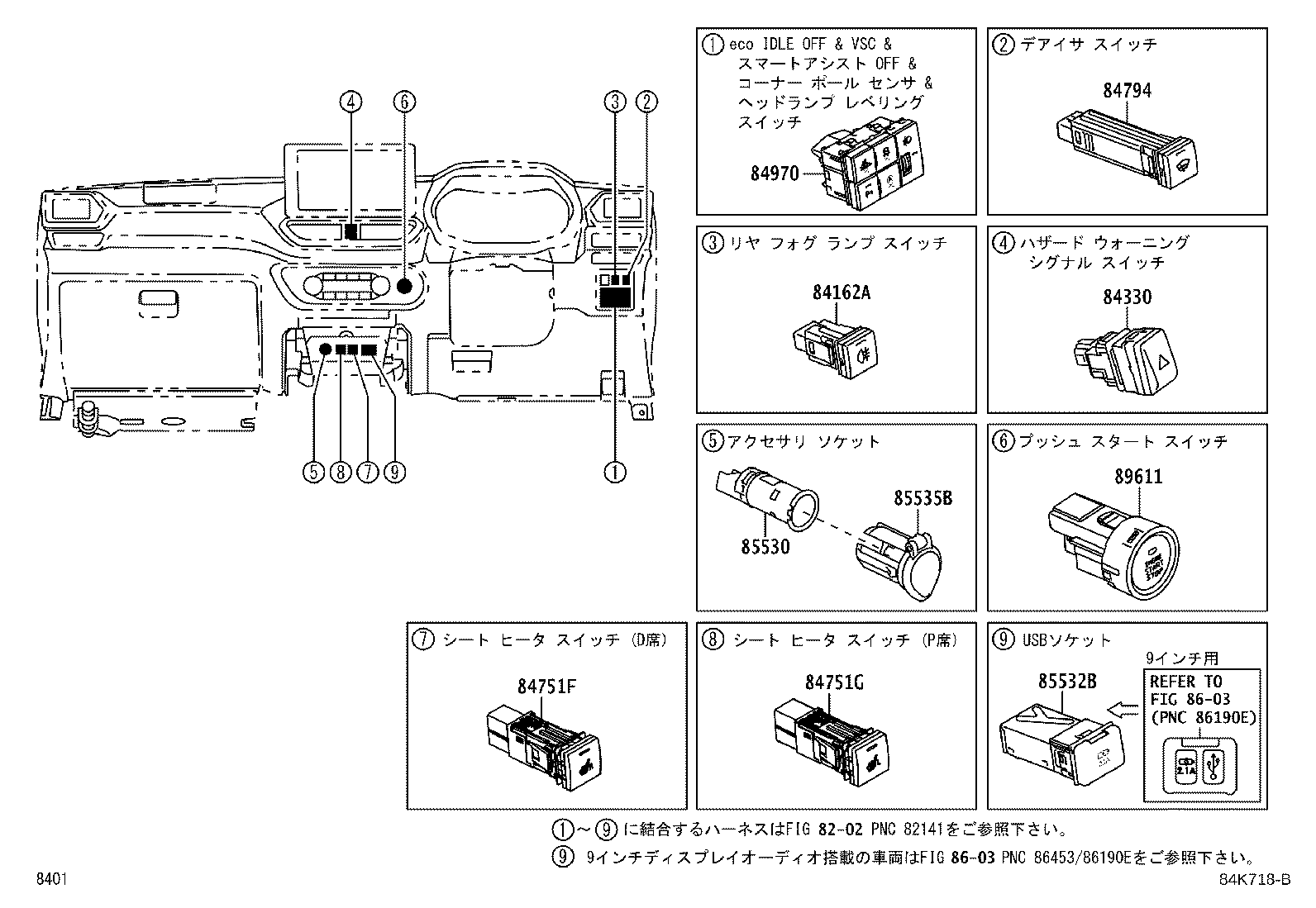

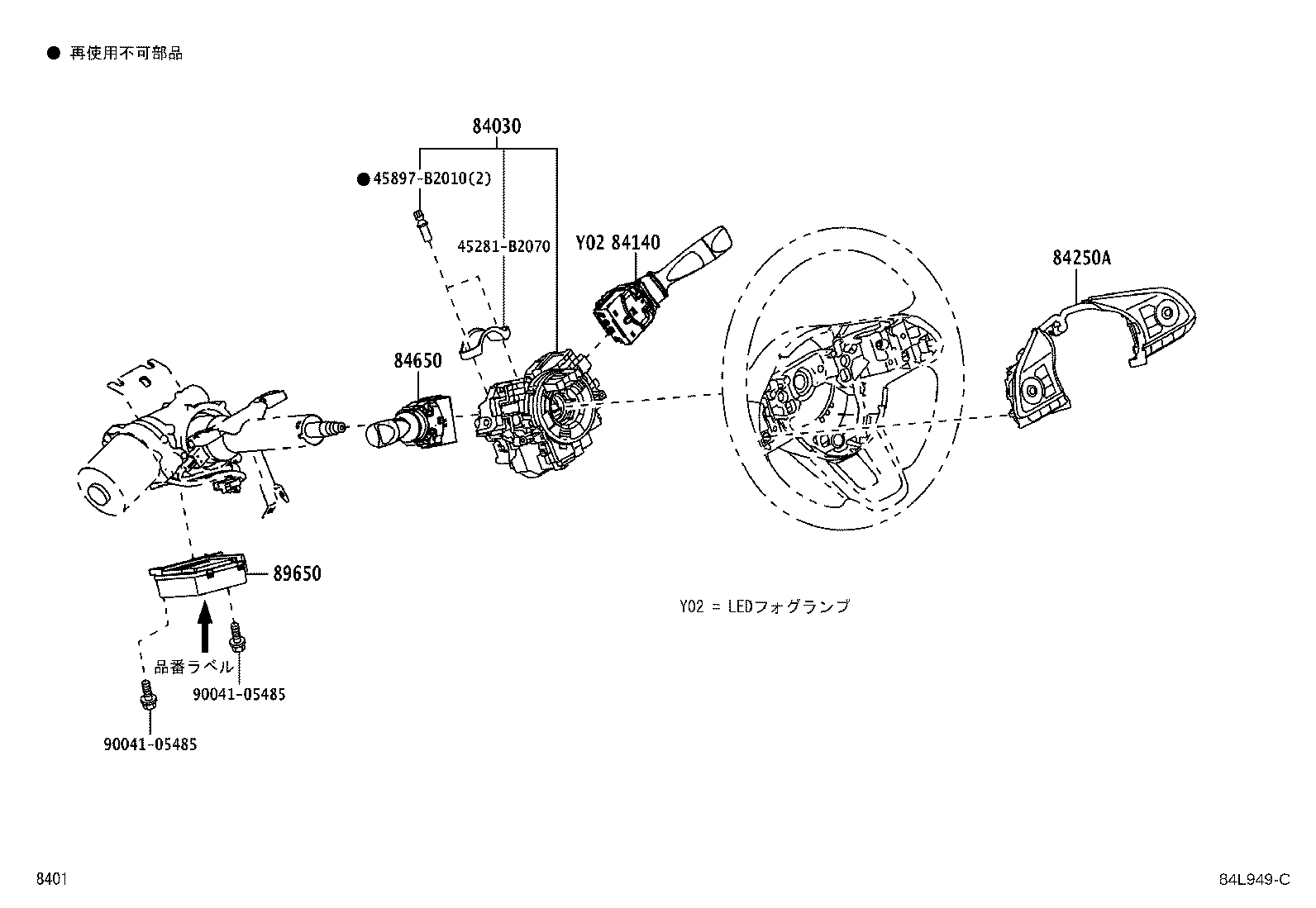

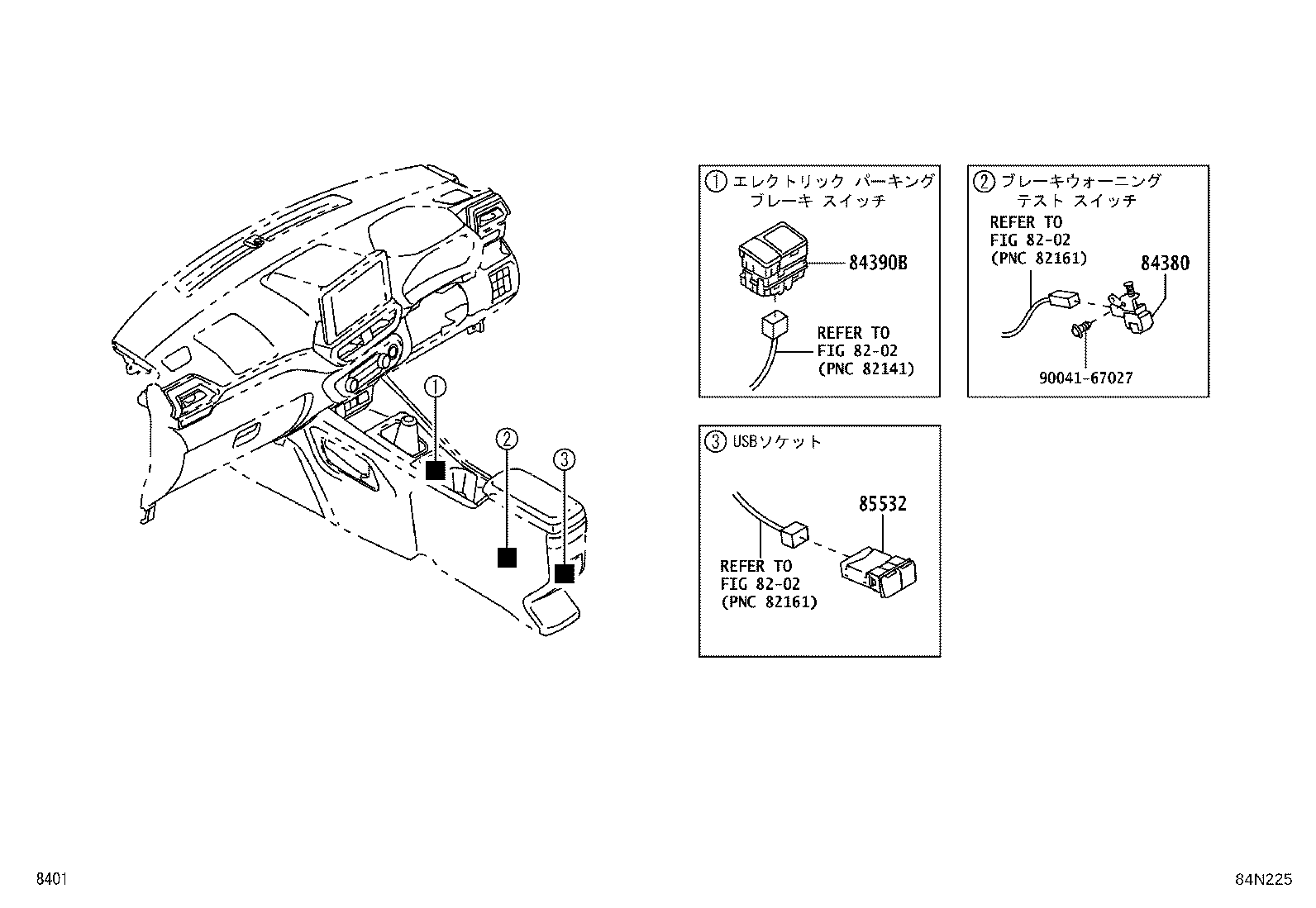

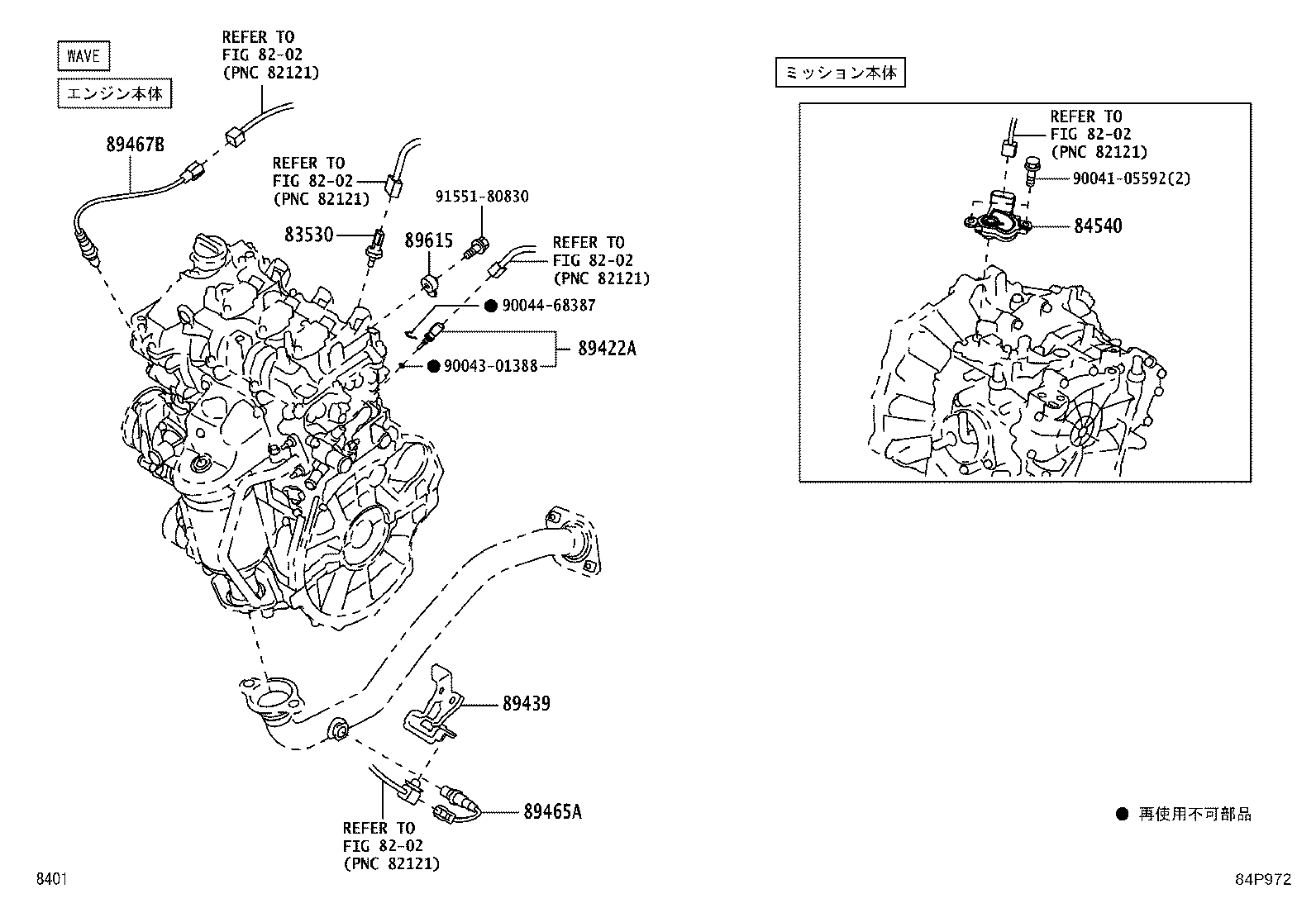

Figure 84L947 84L947 2019-10 → 2021-11 Figure 84P971 84P971 2021-11 → — Figure 84P972 84P972 2021-11 → — Figure 84P973 84P973 2021-11 → — Figure 84K716D 84K716D 2019-10 → — Figure 84N220C 84N220C 2021-11 → — Figure 84K891A 84K891A 2019-10 → 2021-11 Figure 84N222A 84N222A 2021-11 → — Figure 84N225 84N225 2021-11 → — Figure 84K718B 84K718B 2019-10 → 2021-11 Figure 84N226C 84N226C 2021-11 → — Figure 84K719A 84K719A 2019-10 → — Figure 84L948C 84L948C 2019-10 → 2021-11 Figure 84N228B 84N228B 2021-11 → — Figure 84N227E 84N227E 2021-11 → — Figure 84L949C 84L949C 2019-10 → 2021-11 Figure 84O886A 84O886A 2021-11 → 2029-12

Part groups

PNCDescription
28300 Relay Assy, Starter
28850 Sensor Assy, Battery Current
82600 Block Assy, Fuse
82613A Block, Fuse Base
82616 Puller, Fuse
82641 Relay, Integration NO.1
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
83950M Lamp Assy, Telltale
84030 Switch Assy,Multiplex Network
84140 Switch Assy, Headlamp Dimmer
84162A Switch, Rear Fog Lamp
84231A Switch, Courtesy Lamp
84250A Switch Assy, Steering Pad
84319 Housing, Steering Wheel Switch
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84380 Switch Assy, Brake Warning Test
84390B Switch Assy, Electric Parking Brake
84485 Switch, Power Outlet(AC100V ACCESSORY SOCKET)
84540 Switch Assy, Neutral Start
84650 Switch Assy, Windshield Wiper
84751F Switch, Seat Heater
84751G Switch, Seat Heater
84794 Switch, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84970 Switch Assy, Combination
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85530F Socket Assy, Power Outlet, Rear NO.2
85532 Socket, Usb Charger
85532B Socket, Usb Charger
85535B Cover, Power Outlet Socket, NO.1
85912D Relay
85916D Relay, Fog Lamp
85924C Relay, Igct
85925 Relay, Radiator Fan
85925C Relay, Radiator Fan, NO.2
86210D Fuse, High Voltage
86247A Bracket, Voltage Inverter
86247B Bracket, Voltage Inverter
8624A Inverter, Voltage
87346K Relay, Ptc Heater
88162 Sensor, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
89111 Computer, Network Gateway
89421B Sensor, Vacuum
89422A Sensor, Water Temperature
89439 Bracket, Sensor
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89533 Computer, 4 Wheel Drive Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89953 Sensor, Belt Warning Occupant Detection
89960 Computer Assy, Headlamp Leveling
G9010C Relay, Pcu Radiator Fan
G9020E Relay, Hybrid Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
