Toyota Raize
2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan
Supported model
Data version 2021-11
Overdrive & Electronic Controlled Transmission

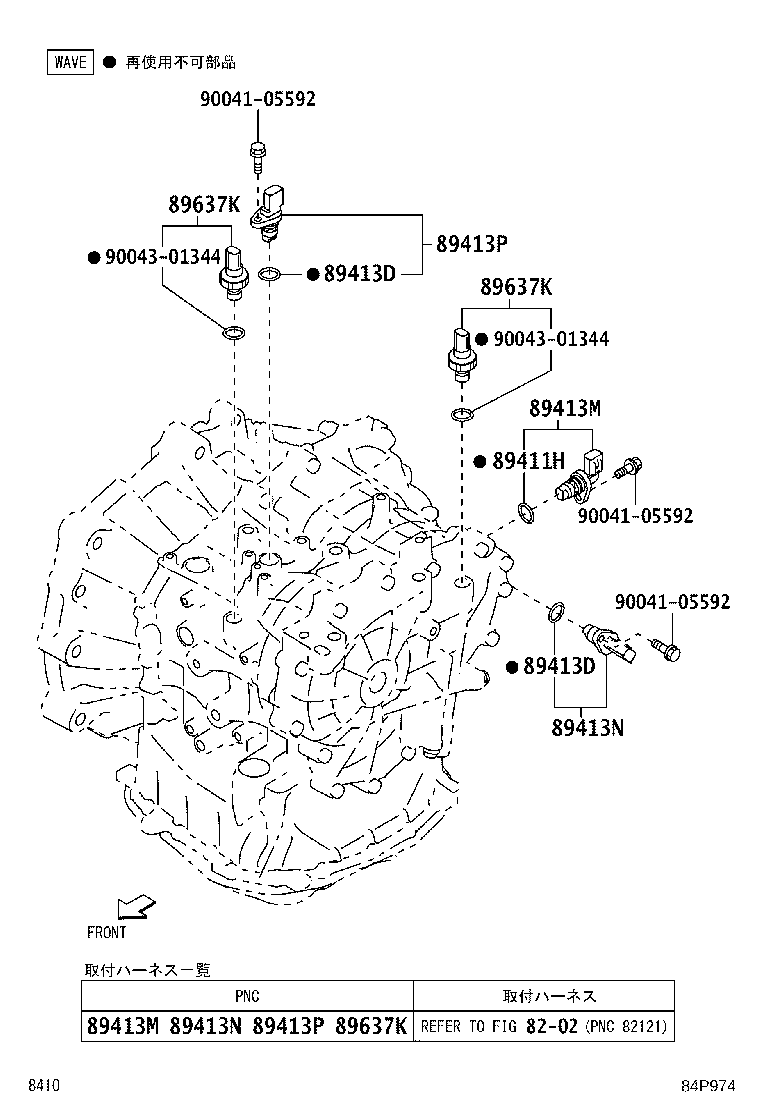

6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89411H | Ring, O |
| 89413D | Ring, O(FOR TRANSMISSION REVOLUTION SENSOR) |
| 89413M | Sensor, Transmission Revolution, (NOUT) |
| 89413N | Sensor, Transmission Revolution, (NT) |
| 89413P | Sensor, Transmission Revolution, (NIN) |
| 89637K | Sensor, Oil Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
