Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

6 part groups · 3 illustrations

Illustrations

Figure 84N395A

84N395A 2019-10 → —

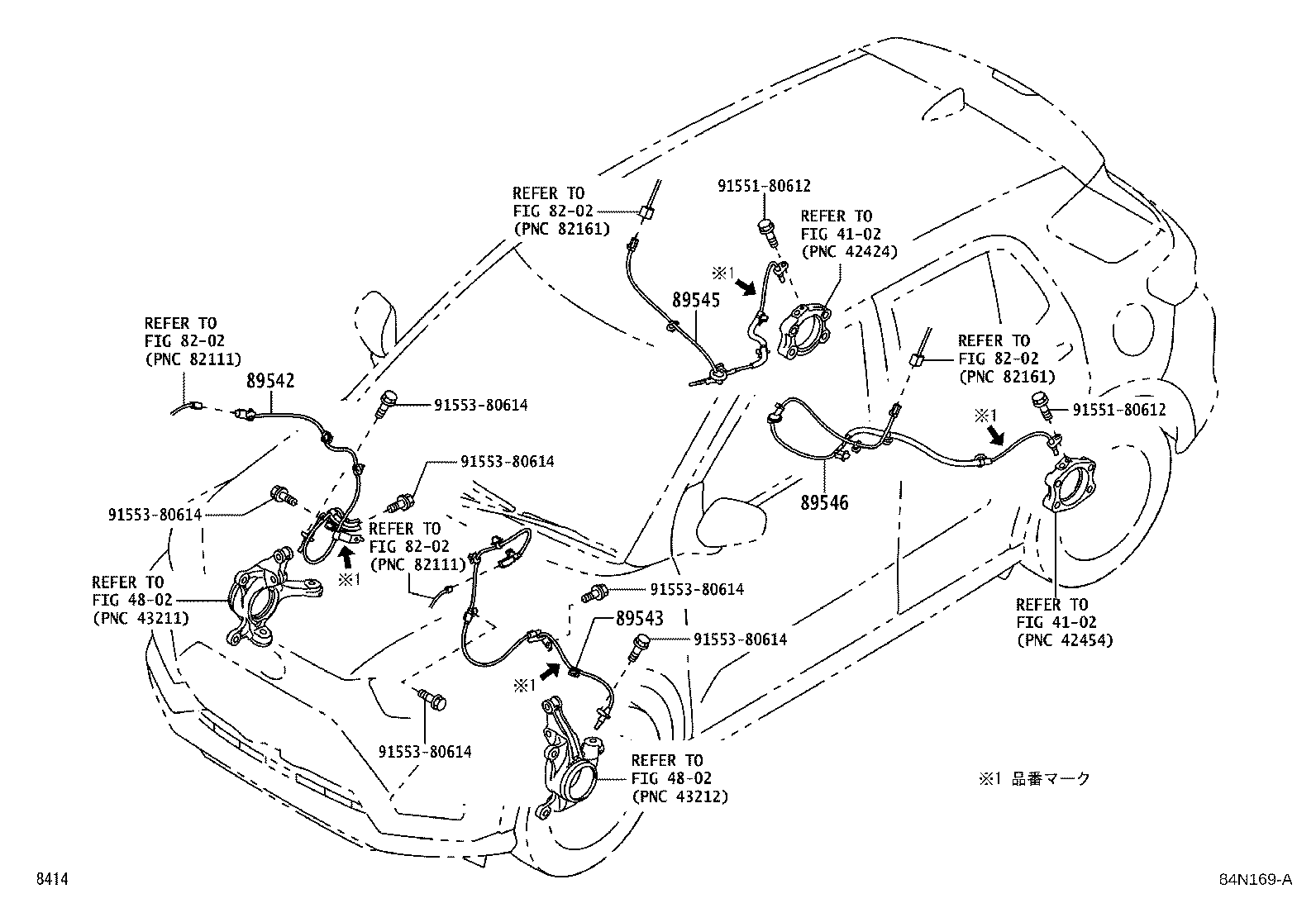

Figure 84N169A

84N169A 2019-10 → —

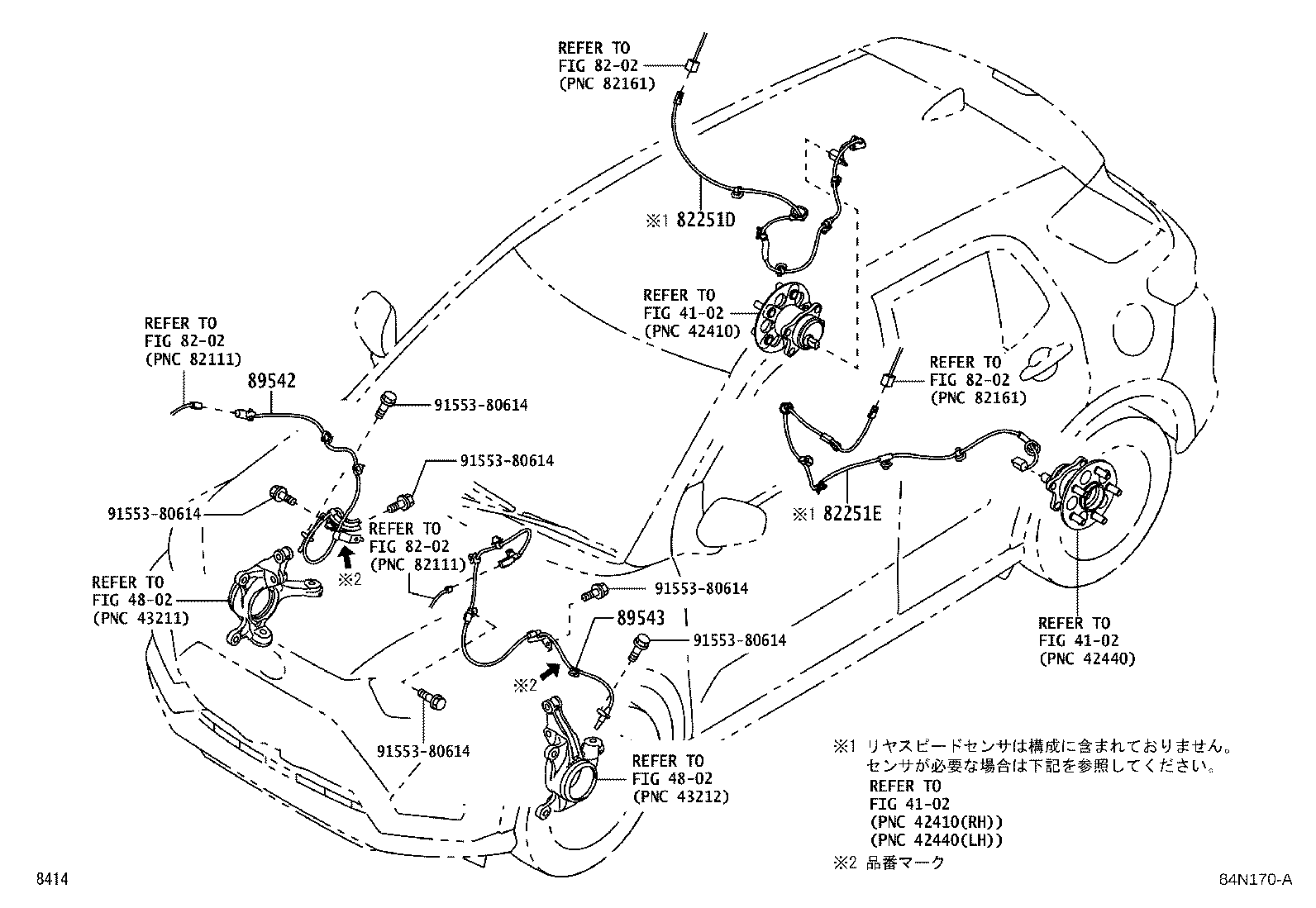

Figure 84N170A

84N170A 2021-11 → —

Part groups

PNC	Description
82251D	Wire, Speed Sensor, RH
82251E	Wire, Speed Sensor, LH
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
