Toyota Raize
2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan
Supported model
Data version 2021-11

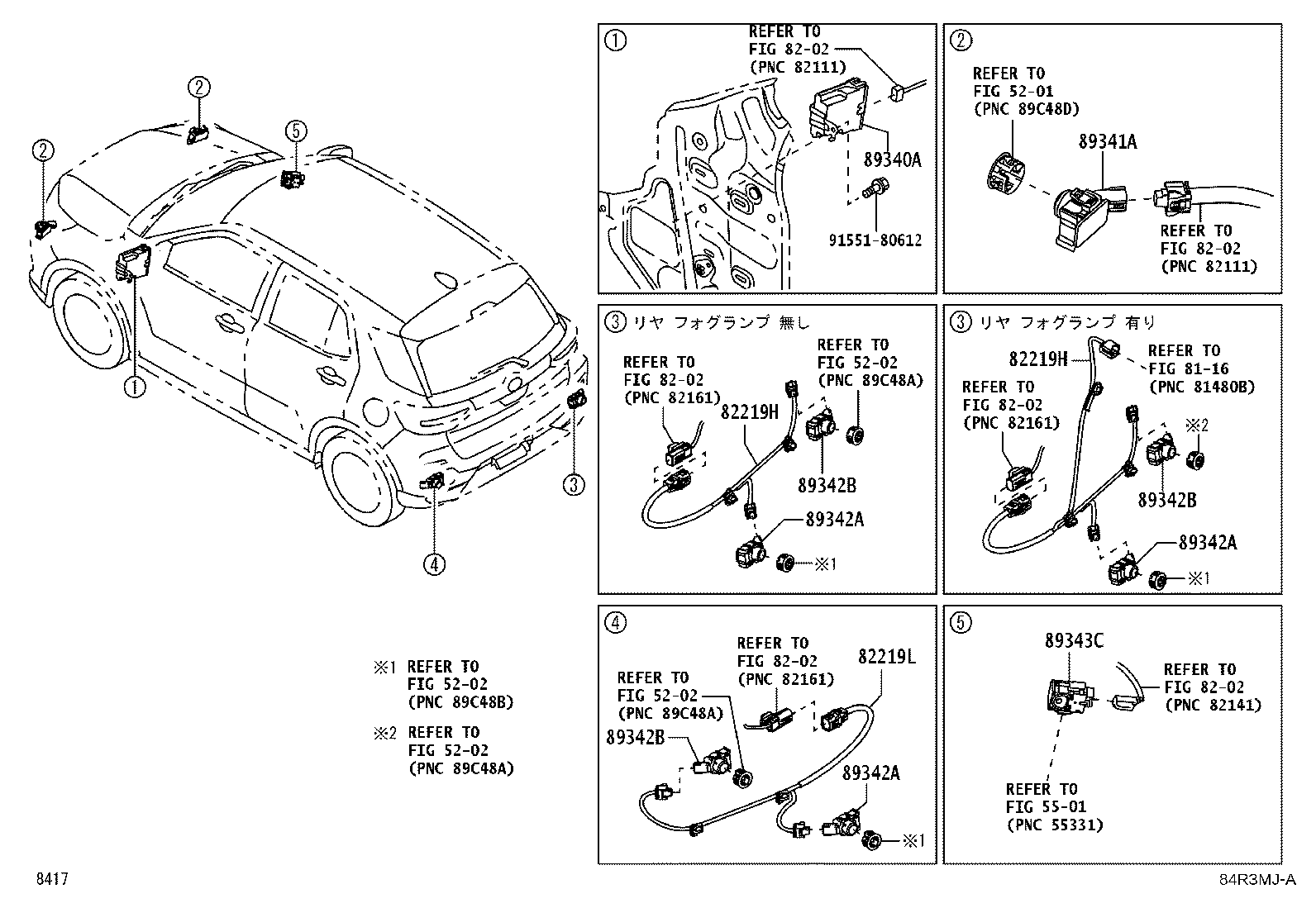

Clearance & Back Sonar
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82219H | Wire, Sensor |
| 82219L | Wire, Sensor |
| 89340A | Computer Assy, Clearance Warning |
| 89341A | Sensor, Ultrasonic, NO.1 |
| 89342A | Sensor, Ultrasonic, Rear Center |
| 89342B | Sensor, Ultrasonic, Rear Side |
| 89343C | Buzzer, Clearance Warning, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
