Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

7 part groups · 2 illustrations

Illustrations

Figure 84N165B

84N165B 2019-10 → —

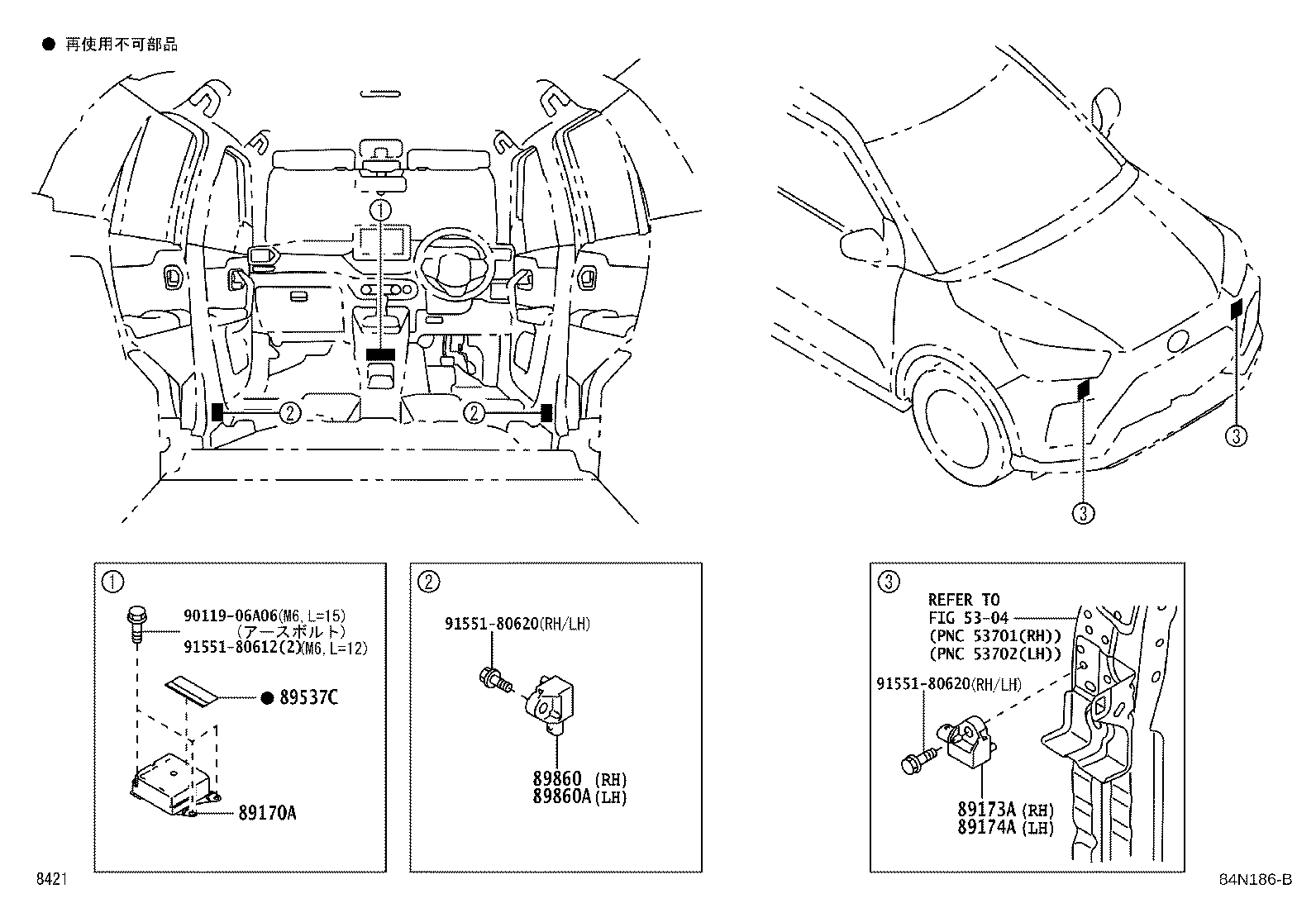

Figure 84N186B

84N186B 2021-11 → —

Part groups

PNC	Description
89170A	Computer Assy, Airbag
89173	Sensor, Airbag, Front
89173A	Sensor, Airbag, Front RH
89174A	Sensor, Airbag, Front LH
89537C	Cover, Computer
89860	Sensor Assy, Side Airbag, RH
89860A	Sensor Assy, Side Airbag, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
