Toyota Raize
2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan
Supported model
Data version 2021-11
Inverter Cooling

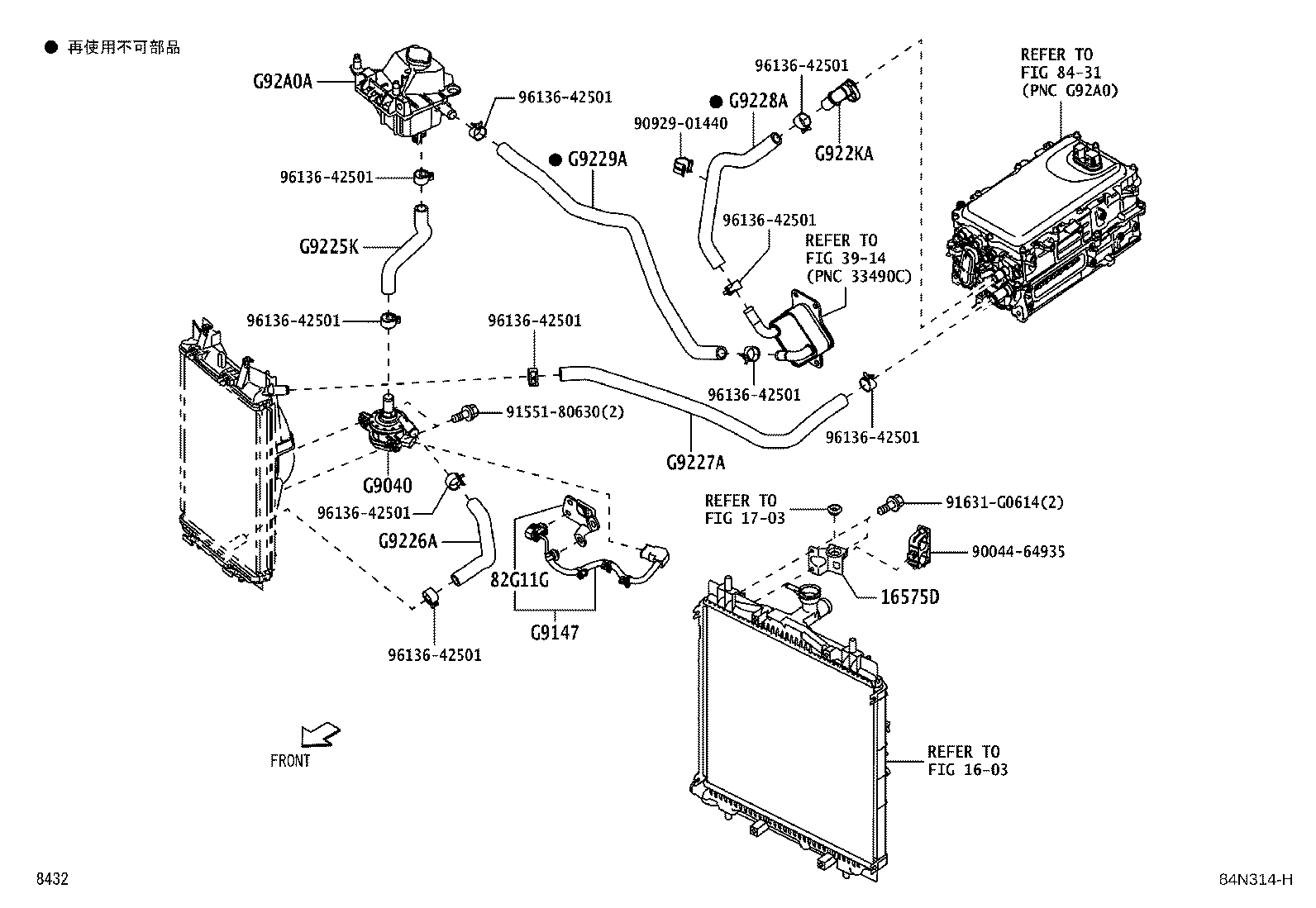

29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16418C | Packing, Radiator Drain |
| 16465C | Packing, Radiator, NO.1 |
| 16465E | Packing, Radiator, NO.3 |
| 16466A | Packing, Radiator, NO.2 |
| 16466B | Packing, Radiator, NO.4 |
| 16467A | Packing, Radiator, NO.5 |
| 16475 | Cap, Reserve Tank |
| 16510F | Cock Assy, Drain |
| 16575D | Bracket, Water Hose Clamp, NO.1 |
| 53037C | Seal Sub-assy, Radiator |
| 82G11G | Clamp, Wiring Harness |
| 88619D | Packing, Cooler, NO.2 |
| 88629A | Packing, Cooler, NO.3 |
| 88E78B | Packing, Cooler, NO.1 |
| G9010A | Radiator Assy |
| G9040 | Inverter Water Pump Assy(W/MOTOR) |
| G9147 | Wire, HV Water Pump |
| G9160 | Fan Assy, Inverter Cooling W/Motor & Bracket |
| G9161 | Motor, Inverter Cooling Fan |
| G9162 | Fan, Inverter Cooling |
| G9165 | Frame, Inverter Cooling Fan |
| G9219B | Protector, Inverter Radiator |
| G9225K | Hose, Inverter Cooling, NO.1 |
| G9226A | Hose, Inverter Cooling, NO.2 |
| G9227A | Hose, Inverter Cooling, NO.3 |
| G9228A | Hose, Inverter Cooling, NO.4 |
| G9229A | Hose, Inverter Cooling, NO.5 |
| G922KA | Connector, Hybrid Water Hose, NO.1 |
| G92A0A | Tank Assy, Inverter Reserve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
