Toyota Raize
2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan
Supported model
Data version 2021-11
Mirror
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

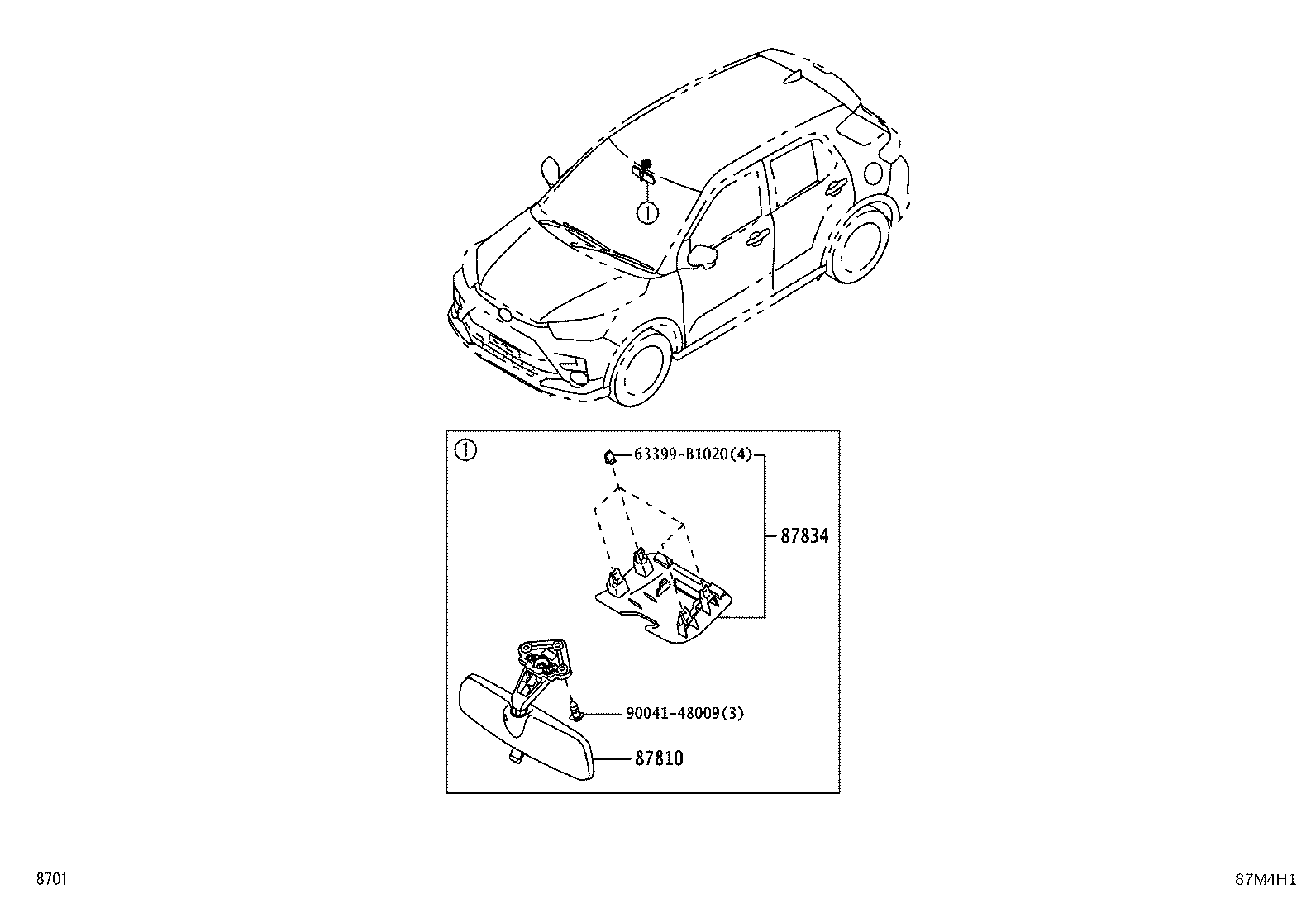

| 87810 | Mirror Assy, Inner Rear View |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |

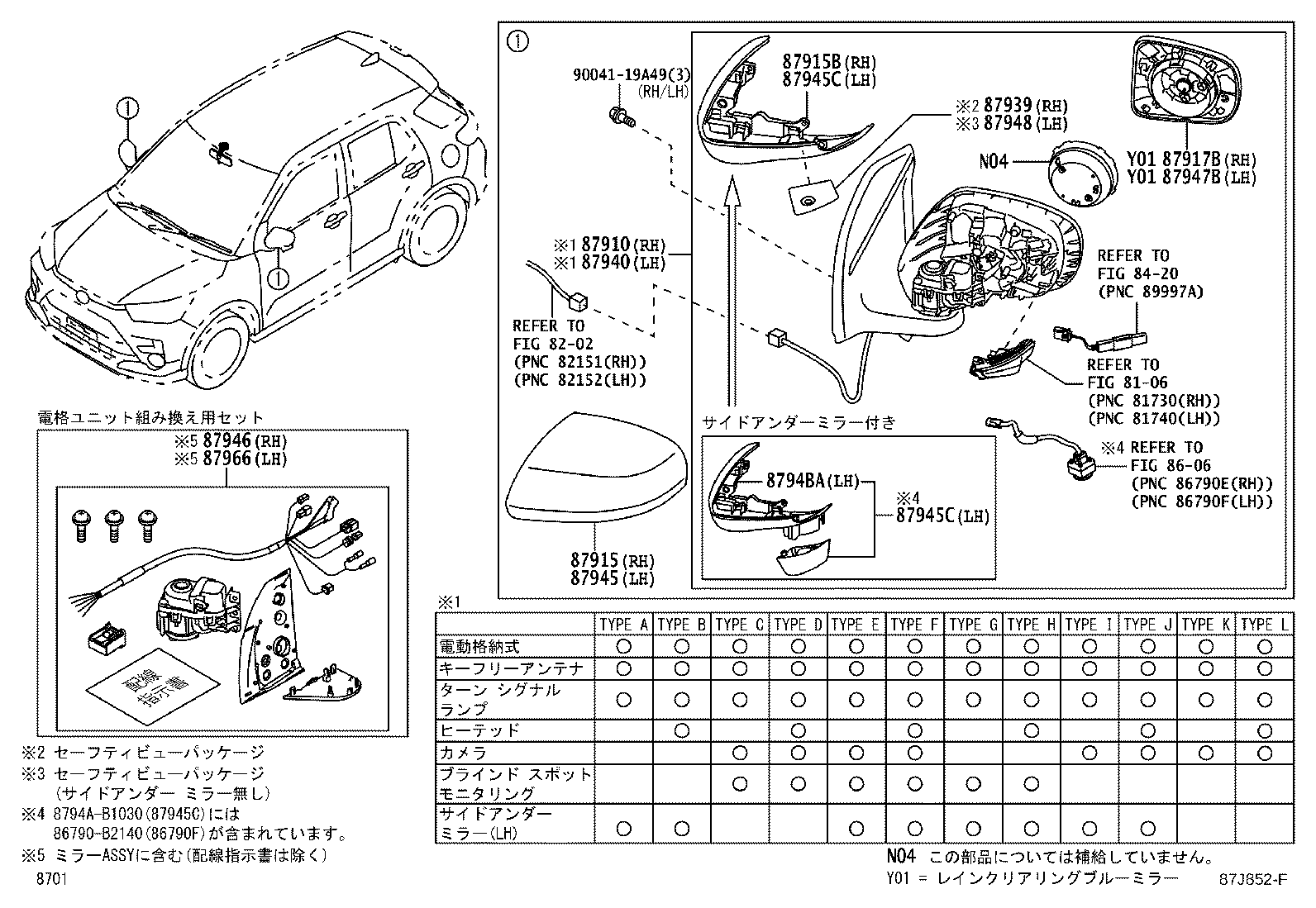

| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915 | Cover, Outer Mirror, RH |
| 87915B | Cover, Outer Mirror, Lower RH |
| 87917B | Mirror, Outer Rear View, RH |
| 87939 | Cover, Outer Mirror Hole, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87945C | Cover, Outer Mirror, Lower LH |
| 87946 | Retractor, Outer Mirror, RH |
| 87947B | Mirror, Outer Rear View, LH |
| 87948 | Cover, Outer Mirror Hole, LH |
| 8794BA | Cover, Outer Mirror, LH NO.3 |
| 87966 | Retractor, Outer Mirror, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
