Toyota Raize
2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan
Supported model
Data version 2021-11
Heating & Air Conditioning - Cooler Unit

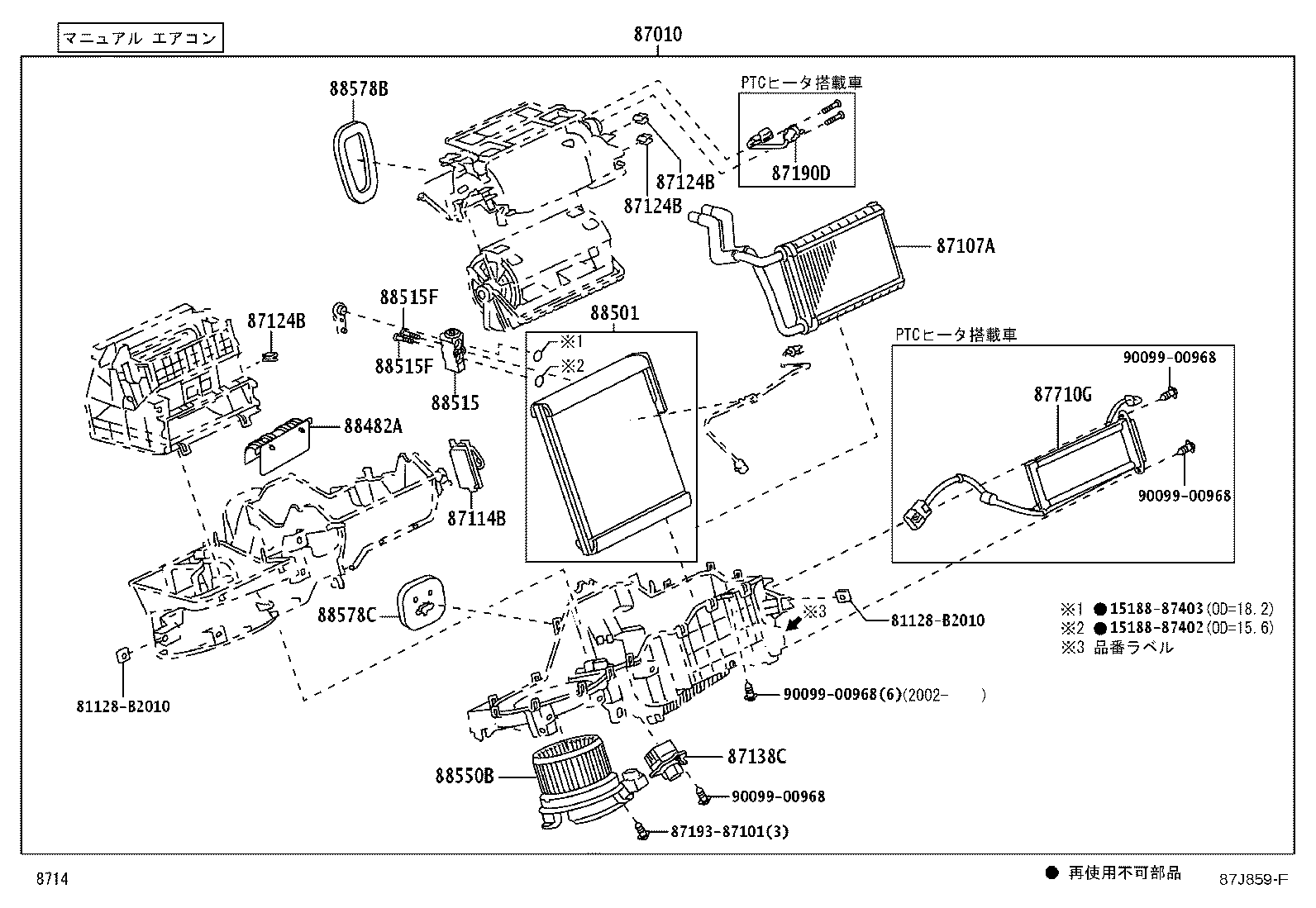

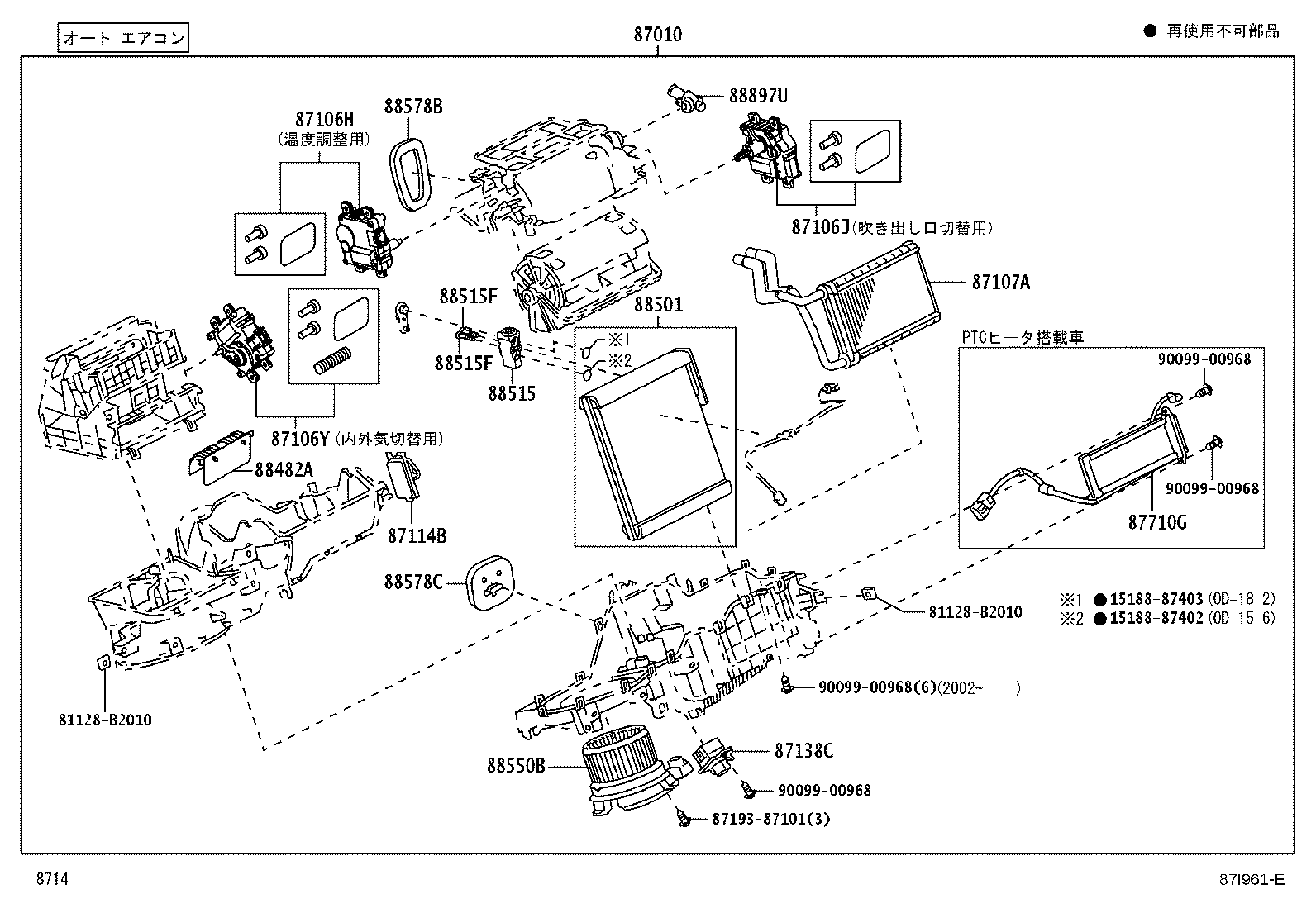

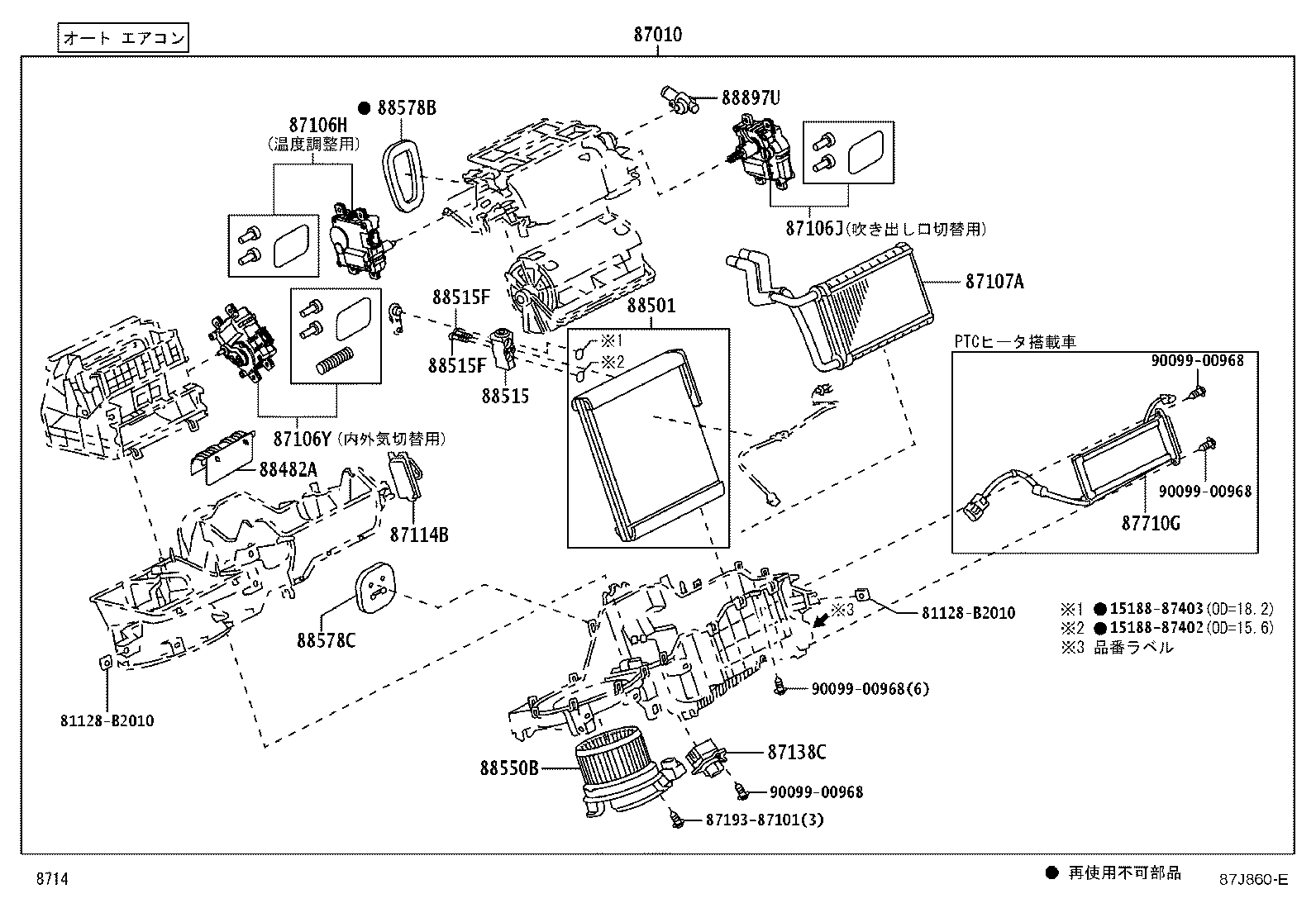

26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 87010 | Unit Assy, Air Conditioner |
| 87106H | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87106J | Servo Sub-assy, Damper(FOR MODE) |
| 87106Y | Servo Sub-assy, Damper(FOR RECIRCULATION & FRESH) |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87114B | Cover, Heater |
| 87114L | Cover, Heater, NO.2 |
| 87124B | Clamp, Heater |
| 87138C | Resistor, Blower |
| 87139D | Element, Air Refiner |
| 87190D | Switch Assy, Temperature Control |
| 87710G | Quick Heater Assy |
| 88482A | Cover |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88512 | Duct, Air |
| 88515 | Valve, Cooler Expansion |
| 88515F | Bolt(FOR COOLER EXPANSION VALVE) |
| 88539J | Hose, Drain Cooler |
| 88548B | Case, Air Filter |
| 88550B | Motor Assy, Blower |
| 88569F | Clamp |
| 88578B | Packing, Cooling Unit, NO.1 |
| 88578C | Packing, Cooling Unit, NO.2 |
| 88648P | Wire,Air Conditioner,NO.1 |
| 88650N | Amplifier Assy, Air Conditioner |
| 88897U | Pipe, Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
