Toyota Raize

2019-10 → present · chassis A200A,A201A,A202A,A210A · catalogue 105110 · Japan

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

27 part groups · 6 illustrations

Illustrations

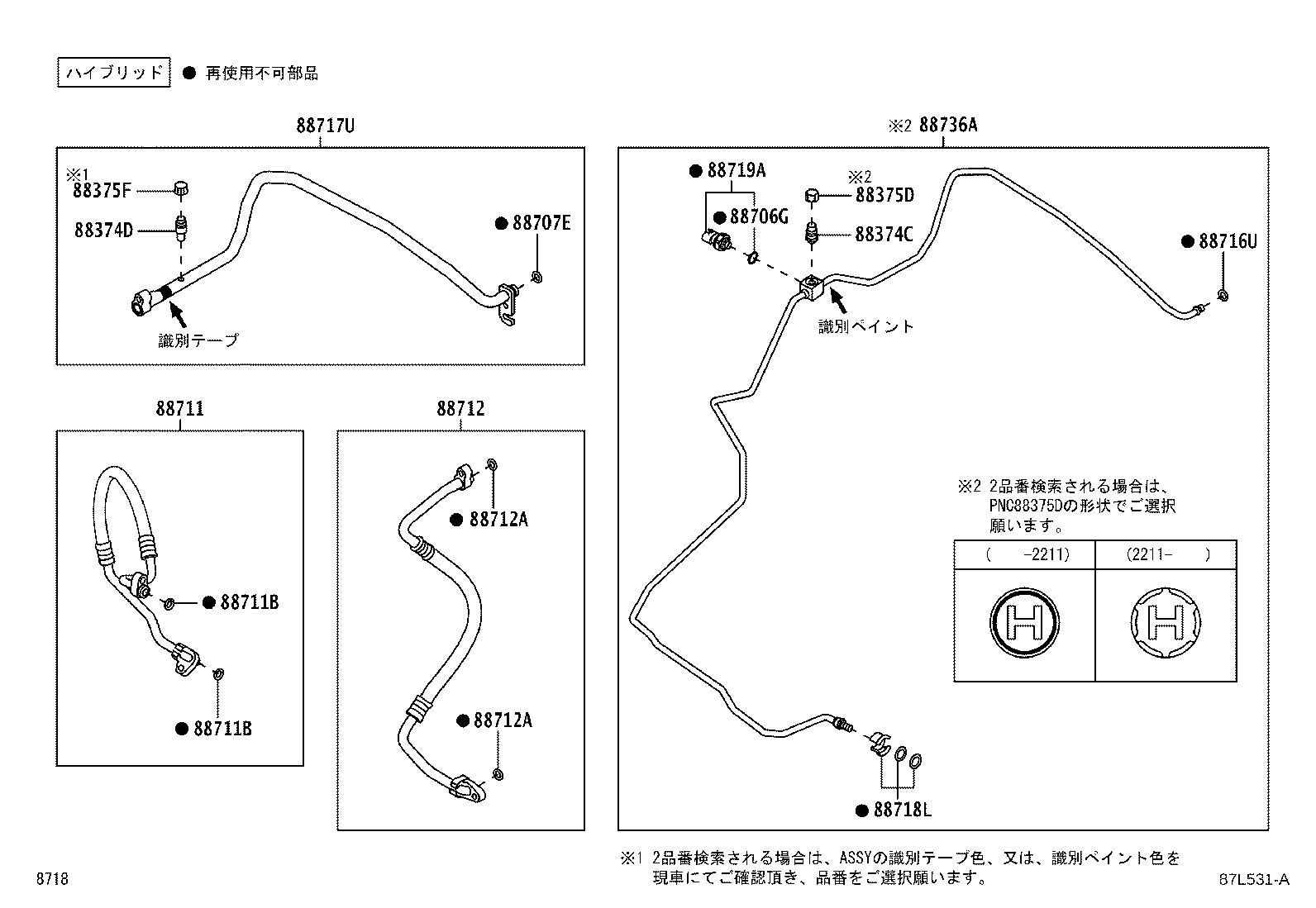

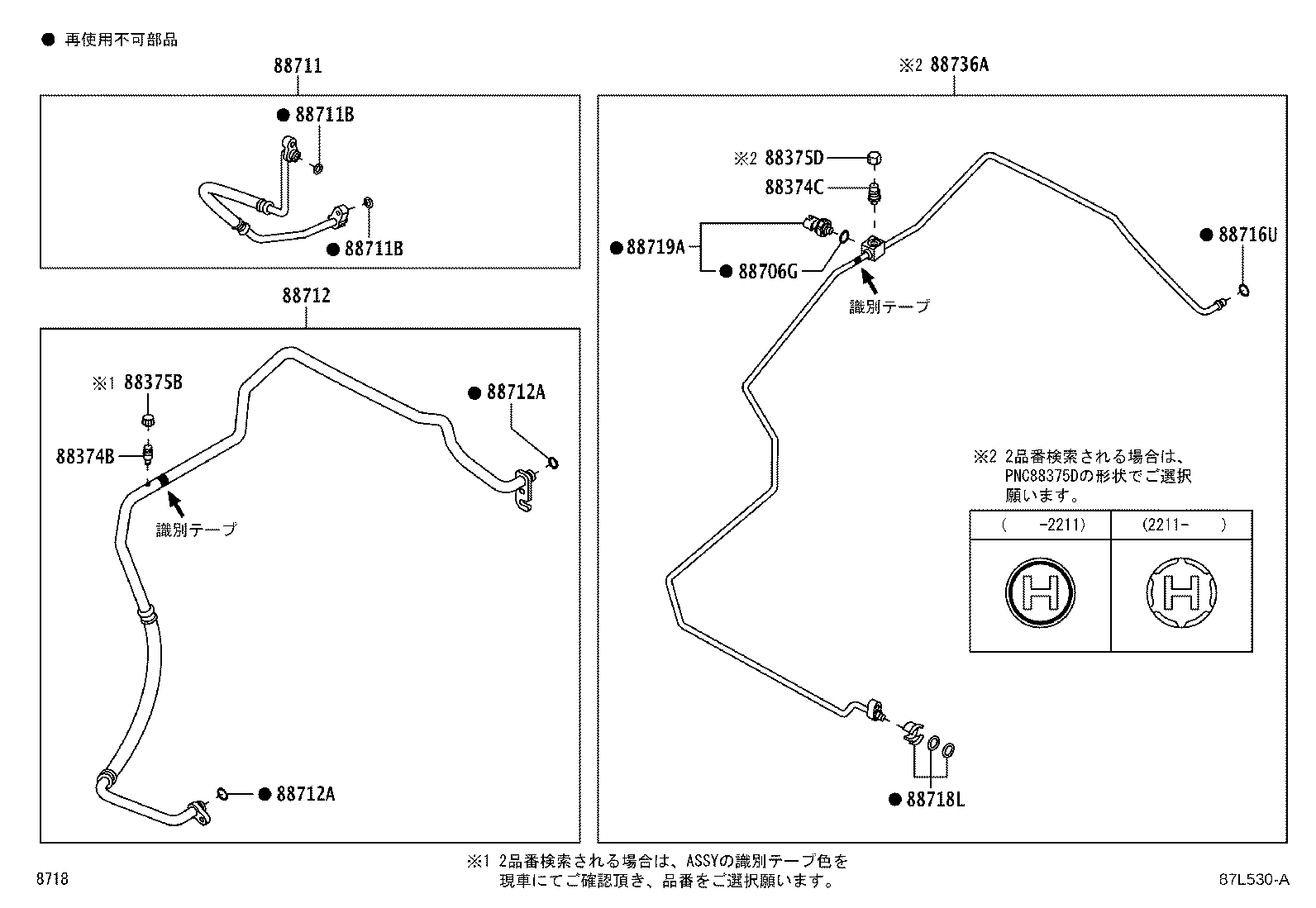

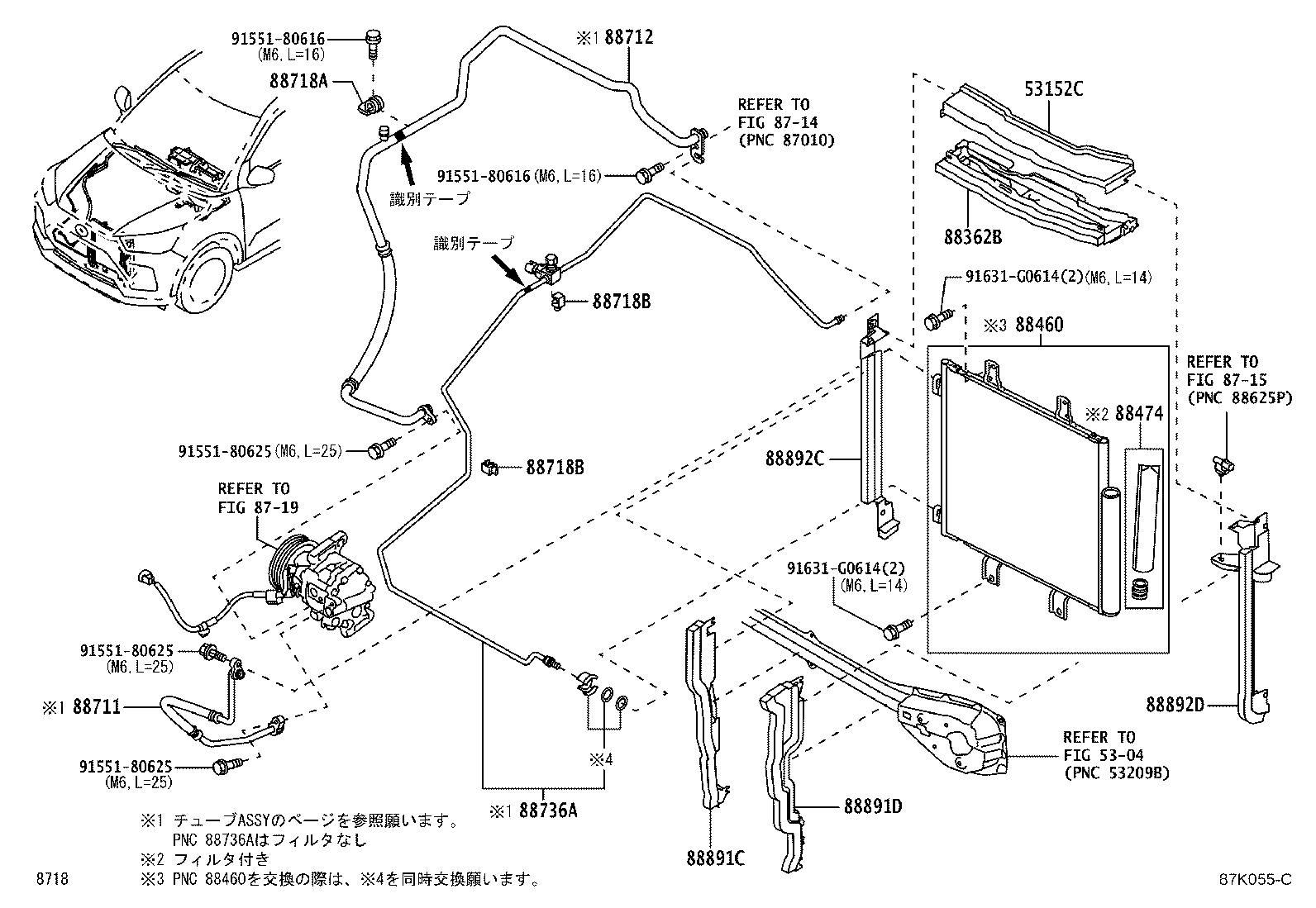

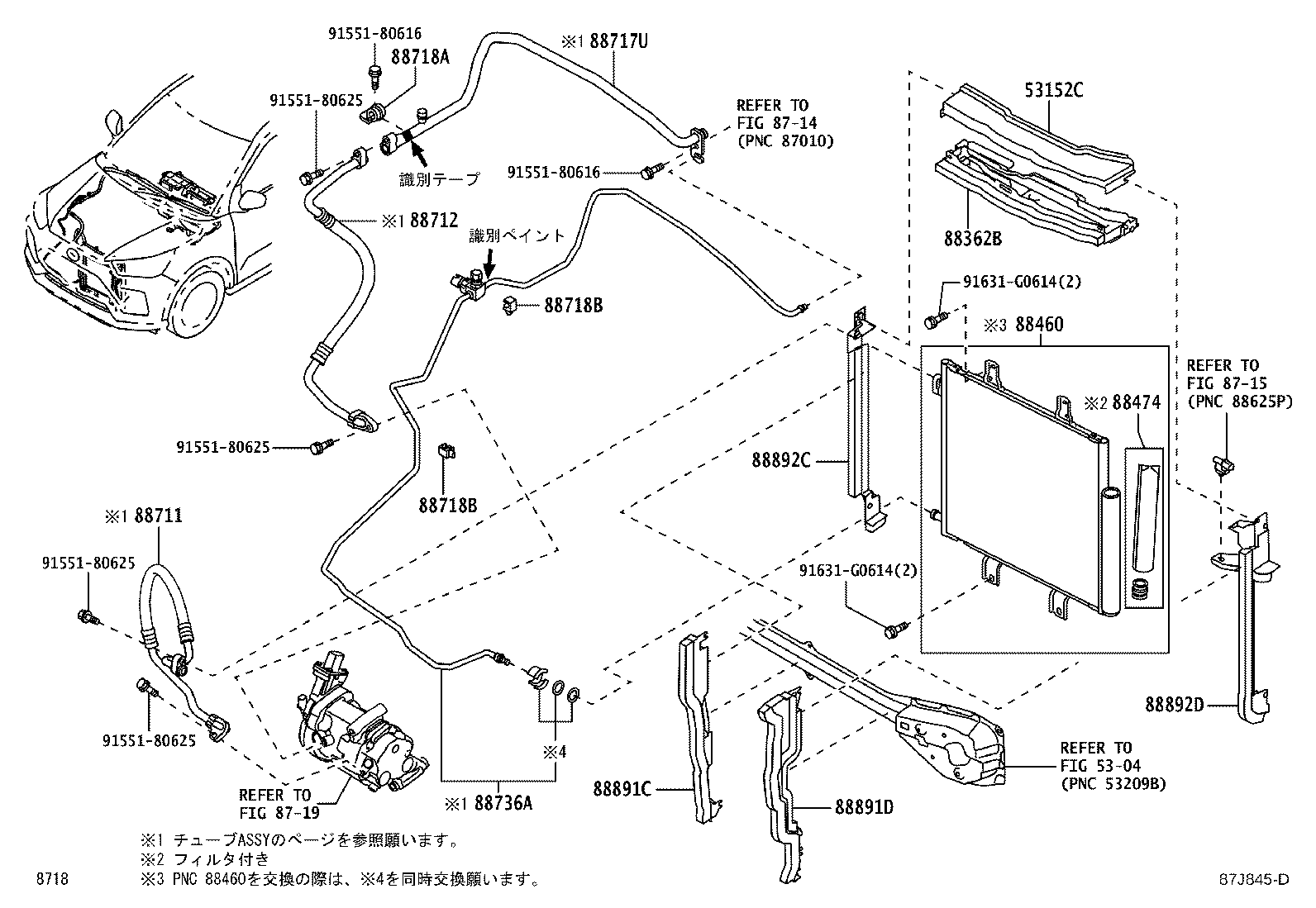

Figure 87I443B 87I443B 2019-10 → 2021-11 Figure 87K055C 87K055C 2021-11 → — Figure 87J845D 87J845D 2021-11 → — Figure 87I964C 87I964C 2019-10 → 2021-11 Figure 87L530A 87L530A 2021-11 → — Figure 87L531A 87L531A 2021-11 → —

Part groups

PNCDescription
53152C Guide, Radiator Grille Air
88362B Plate, Seal
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88374D Valve, Service NO.3
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88375F Cap, Service Valve, NO.3
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88706G Ring, O(FOR LIQUID TUBE)
88707E Ring, O, NO.2(FOR SUCTION TUBE)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711B Ring, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
88712 Hose, Cooler Refrigerant Suction, NO.1
88712A Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88716U Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88717U Tube, Suction, NO.1
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718L Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88736A Tube, Liquid, A(FOR COOL BOX)
88891C Packing C (FOR COOLER)
88891D Packing D (FOR COOLER)
88892C Plate, Condenser, NO.1
88892D Plate, Condenser, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
