Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12

Cylinder Block

40 part groups · 4 illustrations

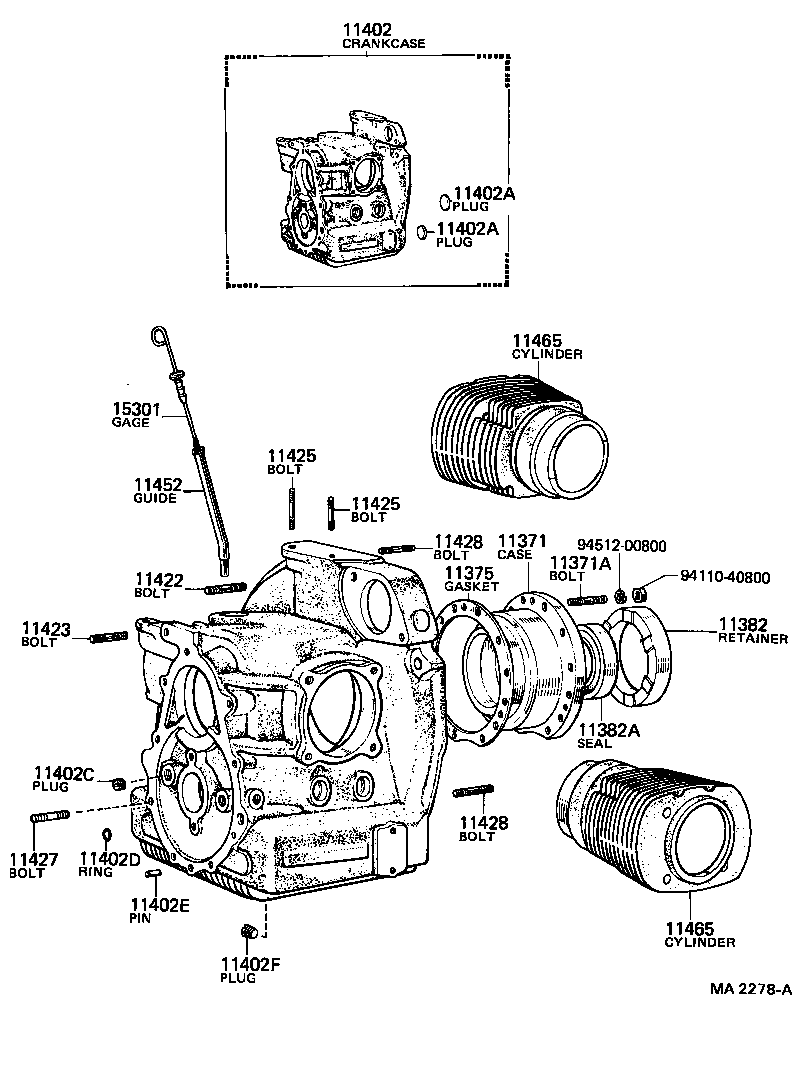

PNC	Description
11371	Case, Bearing, Rear
11371A	Bolt, Stud(FOR BEARING CASE SET)
11375	Gasket, Bearing Case, Rear
11382	Retainer, Engine Oil Seal, Rear
11382A	Seal, Oil(FOR OIL SEAL RETAINER)
11401	Block Sub-assy, Cylinder
11402	Crankcase Sub-assy
11402A	Plug, Expansion(FOR CRANKCASE)
11402C	Plug, Transmission Case Cover (FOR CRANKCASE)
11402D	Ring, O(FOR CRANKCASE)
11402E	Plug, Straigh(FOR CRANKCASE)
11402F	Plug, Taper Screw(FOR CRANKCASE)
11415	Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A	Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416	Bolt(FOR CRANKSHAFT BEARING CAP SET)
11419	Bolt, Stud(FOR FUEL PUMP)
11421	Bolt, Stud(FOR OIL PAN)
11422	Bolt, Stud(FOR STARTER)
11423	Bolt, Stud(FOR ADJUSTING BAR)
11425	Bolt, Stud(FOR OIL FILTER)
11427	Bolt, Stud(FOR TIMING CHAIN COVER SET)
11428	Bolt, Stud(FOR TRANSMISSION CASE)
11431A	Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B	Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C	Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11431D	Plug, Tight, NO.4(FOR CYLINDER BLOCK)
11431E	Plug, Tight, NO.5(FOR CYLINDER BLOCK)
11432A	Plug, W/Head Taper Screw, NO.1
11434A	Pin, Straight(FOR TIMING GEAR COVER SET)
11434B	Pin, Straight(FOR CLUTCH HOUSING SET)
11434C	Pin, Straight (FOR CYLINDER HEAD SET)
11434D	Pin, Straight(FOR ENGINE REAR OIL SEAL)
11452	Guide, Oil Level Gage
11462	Liner, Cylinder
11465	Cylinder
12101	Pan Sub-assy, Oil
12101A	Plug(FOR OIL PAN DRAIN)
12101B	Gasket(FOR OIL PAN DRAIN PLUG)
12151	Gasket, Oil Pan
15301	Gage Sub-assy, Oil Level

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
